CN210895928U

CN210895928U - Convenient radio cassette recorder of english study is transferred to sound collection chamber

Info

Publication number: CN210895928U
Application number: CN201921935853.9U
Authority: CN
Inventors: 李敏; 李超然
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-11-11
Filing date: 2019-11-11
Publication date: 2020-06-30
Anticipated expiration: 2029-11-11

Abstract

The utility model discloses a convenient radio recorder for English learning by sound cavity tone collection, which comprises a radio recorder body; a groove is formed in the upper portion of the bottom of the radio cassette recorder body, a hinge is mounted on the front side of the groove, a storage cover is mounted at the other end of the hinge, a notebook is placed on the left side inside the storage cover, a pen slot is formed in the right side inside the storage cover, and a middle ball pen is placed in the pen slot; the radio recorder comprises a radio recorder body and is characterized in that a display screen is installed on the right side of the top of the radio recorder body, a microphone is installed on the rear side of the left end of the radio recorder body, and an earphone hole is installed below the microphone. The utility model discloses a hinge is opened and is deposited the lid, and notebook and ballpoint that can take this moment carry out the record work, improve the practicality, avoid the later stage to forget, and it is convenient to install the use.

Description

Convenient radio cassette recorder of english study is transferred to sound collection chamber

Technical Field

The utility model relates to an english study radio cassette recorder technical field specifically is a convenient radio cassette recorder of english study is transferred to collection sound cavity.

Background

The working principle of the current radio cassette recorder for learning English is the same as that of a recording pen, and the radio cassette recorder for learning English adopts recording to collect and play various English cavity tones or plays pronunciation audio files of different cavity tones, but the conventional convenient radio cassette recorder for learning English by collecting the cavity tones has some defects, such as defects;

1. the existing radio recorder has too single function, and a notebook and a ball pen need to be taken separately for recording when the existing radio recorder is used for recording, but the notebook and the ball pen are inconvenient to carry, so that the existing radio recorder cannot record in time when the existing radio recorder is used for emergency outdoors;

2. the existing radio recorder is inconvenient to carry and easy to lose, thereby causing unnecessary loss.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a convenient radio cassette recorder of collection sound chamber accent english study has solved the problem that proposes in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: a convenient radio recorder for English learning with tone-collecting cavity tone comprises a radio recorder body;

a groove is formed in the upper portion of the bottom of the radio cassette recorder body, a hinge is mounted on the front side of the groove, a storage cover is mounted at the other end of the hinge, a notebook is placed on the left side inside the storage cover, a pen slot is formed in the right side inside the storage cover, and a middle ball pen is placed in the pen slot;

the radio recorder comprises a radio recorder body and is characterized in that a display screen is installed on the right side of the top of the radio recorder body, a microphone is installed on the rear side of the left end of the radio recorder body, and an earphone hole is installed below the microphone.

As a preferred embodiment of the present invention, the metal strip is embedded in the top of the right side of the storage cover, and the magnet is embedded in the left end of the groove.

As a preferred embodiment of the present invention, a hanging ring is installed at the right end of the radio cassette recorder body, and a hanging rope is installed in the hanging ring.

As a preferred embodiment of the present invention, the control button is installed on the top of the radio cassette tape recorder body and on the left side of the display screen.

As a preferred embodiment of the present invention, the charging hole is installed at the bottom of the left end of the front side of the radio cassette recorder body, and the memory card slot is installed at the right side of the charging hole and at the front side of the radio cassette recorder body.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model relates to a convenient radio cassette recorder of english study is transferred to sound collecting cavity opens through the hinge and deposits the lid, can take this moment notebook and ballpoint carry out the record work, improves the practicality, avoids the later stage to forget, and it is convenient to install the use.

2. The utility model relates to a convenient radio cassette recorder of english study is transferred to sound collecting cavity thereby inhale the fixed work of accomplishing to deposit after the lid is closed through magnet and metal strip mutually, avoid opening at will, improve the convenience when opening and closing, replace comparatively loaded down with trivial details buckle hasp isotructure.

3. The utility model relates to a convenient radio cassette recorder of english study is transferred to sound collecting cavity can realize hanging that the device lies in the neck through the string rope of installing in the link, makes it carry more convenient laborsaving, improves the convenience of device.

Drawings

Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

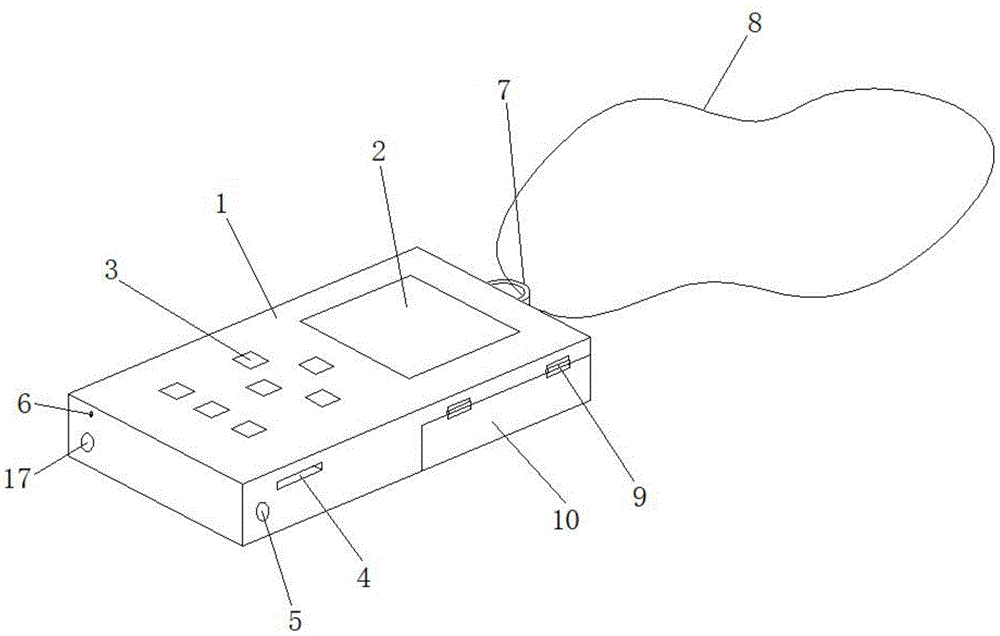

fig. 1 is a schematic front view of a convenient radio recorder for collecting tone cavity tone english learning of the present invention;

fig. 2 is the utility model discloses a bottom expansion structure schematic diagram of the convenient radio cassette recorder of collection sound chamber accent english study.

In the figure: 1. a radio cassette tape recorder body; 2. a display screen; 3. a control button; 4. a memory card slot; 5. a charging hole; 6. a microphone; 7. hanging a ring; 8. hanging a rope; 9. a hinge; 10. a storage box; 11. a groove; 12. a notebook; 13. a pen slot; 14. a ball point pen; 15. a magnet; 16. a metal strip; 17. an earphone hole.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "back", "left", "right", "top", "bottom", "inner", "outer" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, which are merely for convenience of description of the present invention and for simplicity of description, but do not indicate or imply that the device or element referred to must have a specific shape or simplified description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.

In the description of the present invention, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly, e.g., as meaning fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-2, the present invention provides a technical solution: a convenient radio recorder for English learning with tone-collecting cavity tone comprises a radio recorder body 1;

a groove 11 is formed in the upper portion of the bottom of the radio cassette recorder body 1, a hinge 9 is installed on the front side of the groove 11, a storage cover 10 is installed at the other end of the hinge 9, a notebook 12 is placed on the left side inside the storage cover 10, a pen slot 13 is formed in the right side inside the storage cover 10, and a middle ball pen 14 is placed in the pen slot 13;

display screen 2 is installed on 1 top right side of radio cassette tape recorder body, microphone 6 is installed to 1 left end rear side of radio cassette tape recorder body, earphone hole 17 is installed to microphone 6 below.

In this embodiment (please refer to fig. 1 and 2), the storage cover 10 is opened through the hinge 9, and at this time, the notebook 12 and the ball pen 14 can be taken for recording, so that the practicability is improved, the later forgetting is avoided, and the device is convenient to use.

A metal strip 15 is inlaid in the top of the right side of the storage cover 10, and a magnet 16 is inlaid in the left end of the groove 11.

In this embodiment (see fig. 2), the magnet 15 and the metal strip 16 attract each other to complete the fixing work after the storage cover 10 is closed, so as to avoid random opening, improve the convenience of opening and closing, and replace the more complicated structures such as the snap fastener.

A hanging ring 7 is installed at the right end of the radio recorder body 1, and a hanging rope 8 is installed in the hanging ring 7.

In this embodiment (see fig. 1), the hanging rope 8 installed in the hanging ring 7 can realize the hanging of the device on the neck, so that the device is more convenient and labor-saving to carry, and the convenience of the device is improved.

Wherein, the top of the radio cassette recorder body 1 and the left side of the display screen 2 are provided with a control button 3.

In this embodiment (see fig. 1), the control of the recorder body 1 can be facilitated by the control button 3.

Charging hole 5 is installed to 1 front side left end bottom of radio cassette recorder body, 1 front side of radio cassette recorder body just is located charging hole 5 right sides and installs memory card slot 4.

In this embodiment (see fig. 1), the charging hole 5 may be used to charge the recorder body 1, and the memory card slot 4 may facilitate the insertion of a memory card.

It should be noted that the utility model relates to a convenient radio recorder for collecting tone cavity tone English learning, which comprises a radio recorder body 1; 2. a display screen; 3. a control button; 4. a memory card slot; 5. a charging hole; 6. a microphone; 7. hanging a ring; 8. hanging a rope; 9. a hinge; 10. a storage box; 11. a groove; 12. a notebook; 13. a pen slot; 14. a ball point pen; 15. a magnet; 16. a metal strip; 17. the earphone hole, the part is the common standard part or the part known by the technicians in this field, in the spare place of this device, all the electric devices, which refer to the power element, the electric device and the adaptive monitoring computer and the power are connected through the wire, the concrete connection means should refer to the following working principle, the electric devices complete the electric connection in sequence, the detailed connection means is the known technology in this field, the following mainly introduces the working principle and process, no explanation is needed to the electric control, the structure and principle can be known by the technicians through technical manuals or through routine experiment methods, when working, the working principle of the radio recorder is the same as the existing recording pen principle, the radio recorder body 1 can be controlled through the control button 3, at this time, the recording work can be carried out through the microphone 6 and stored in the memory card slot 4, the content that can be random broadcast recorded, during the broadcast only need insert the earphone in the earphone hole 17 can, the pronunciation of spoken language through the different chamber accents of radio-recording is learnt, and still can open through hinge 9 and deposit lid 10 in the device use, notebook 12 and ballpoint 14 that can take this moment carry out the record work, the improvement practicality, avoid the later stage to forget, and the device uses conveniently, thereby inhale mutually through magnet 15 and metal strip 16 and accomplish the fixed work of depositing lid 10 closed back, avoid random opening, improve the convenience when opening and closing, replace comparatively loaded down with trivial details buckle hasp isotructure, and can realize hanging that the device is located the neck through hanging rope 8 of installation in link 7, make it carry more convenient laborsaving, the convenience of improvement device.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A convenient radio recorder for English learning with tone-collecting cavity tone is characterized by comprising a radio recorder body (1);

a groove (11) is formed in the upper portion of the bottom of the radio cassette recorder body (1), a hinge (9) is installed on the front side of the groove (11), a storage cover (10) is installed at the other end of the hinge (9), a notebook (12) is placed on the left side inside the storage cover (10), a pen slot (13) is formed in the right side inside the storage cover (10), and a middle ball pen (14) is placed in the pen slot (13);

display screen (2) are installed on radio cassette tape recorder body (1) top right side, microphone (6) are installed to radio cassette tape recorder body (1) left end rear side, earphone hole (17) are installed to microphone (6) below.

2. The convenient radio recorder for the English learning of the collected tone of the voice cavity according to claim 1, is characterized in that: a metal strip (15) is embedded into the top of the right side of the storage cover (10), and a magnet (16) is embedded into the left end of the groove (11).

3. The convenient radio recorder for the English learning of the collected tone of the voice cavity according to claim 1, is characterized in that: a hanging ring (7) is installed at the right end of the radio cassette recorder body (1), and a hanging rope (8) is installed in the hanging ring (7).

4. The convenient radio recorder for the English learning of the collected tone of the voice cavity according to claim 1, is characterized in that: and the top of the radio cassette recorder body (1) is positioned on the left side of the display screen (2) and is provided with a control button (3).

5. The convenient radio recorder for the English learning of the collected tone of the voice cavity according to claim 1, is characterized in that: charging hole (5) is installed to radio cassette recorder body (1) front side left end bottom, memory card slot (4) are installed just to be located charging hole (5) right side in radio cassette recorder body (1) front side.
