Abstract
The utility model discloses an assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft belongs to wind-powered electricity generation gear box technical field. The assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft includes: a sun gear shaft; the spline shaft is a hollow shaft, one end of the sun wheel shaft penetrates into the spline shaft, and the end of the sun wheel shaft penetrating into the spline shaft is connected with the spline shaft through a spline pair; the mechanical pump driving gear is arranged at one end of the spline shaft, and the inner diameter of the mechanical pump driving gear is smaller than that of the spline shaft; the distance ring is arranged in the spline shaft, one end of the distance ring is abutted to the inner side of the mechanical pump driving gear and is fixedly connected with the mechanical pump driving gear, and the other end of the distance ring and the end part of the sun gear shaft, which is positioned in the spline shaft, are arranged at intervals. The utility model discloses a set up the distance ring and share the axial force of sun gear axle, can reduce the axial wear between sun gear axle and the integral key shaft.
Description
Technical Field
The utility model relates to a wind-powered electricity generation gear box technical field especially relates to an assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft.
Background
Compared with thermal power generation and hydroelectric power generation, the wind power generation has great advantages, and the vigorous development of the wind power generation has great significance to national economic construction and environmental protection. In a wind turbine, the gearbox is a key component of the wind turbine. The gearbox in the wind driven generator has the characteristics of large transmission load and long working duration, and once the gearbox breaks down, the maintenance cost is extremely high.
A gearbox in a medium and large megawatt wind driven generator generally adopts a structure of planetary transmission and parallel transmission, wherein the parallel transmission means that a sun wheel shaft is connected with a spline shaft through a spline, and the spline shaft and the sun wheel shaft are arranged in parallel to realize torque transmission. Generally, a sun wheel shaft of a planet stage is meshed with a planet wheel through helical teeth, so that a larger load can be borne, but the sun wheel shaft generates a larger axial force, so that the abrasion between the sun wheel shaft and a spline shaft is larger. The sun wheel shaft is generally in a floating design, so that loads transmitted by the planetary gears are balanced, the sun wheel shaft and the spline shaft have micromotion when in operation, and abrasion also exists between the sun wheel shaft and the spline shaft. Wear between the sun gear shaft and the spline shaft, if continued, can cause axial misalignment of the sun gear shaft, which in turn causes axial shifting of the sun gear shaft tooth flank mesh, ultimately resulting in complete damage to the gearbox.
Accordingly, the prior art is yet to be improved and developed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft to solve among the prior art wind-powered electricity generation gear box's sun gear axle axial force too big, lead to the wearing and tearing between sun gear axle and the integral key shaft to accelerate, and then lead to the problem that the gear box damaged.
To achieve the purpose, the utility model adopts the following technical proposal:
an assembly structure of a sun gear shaft and a spline shaft of a wind power gear box comprises:
a sun gear shaft;
the spline shaft is a hollow shaft, one end of the sun wheel shaft penetrates into the spline shaft, and the end of the sun wheel shaft penetrating into the spline shaft is connected with the spline shaft through a spline pair;
the mechanical pump driving gear is arranged at one end of the spline shaft, and the inner diameter of the mechanical pump driving gear is smaller than that of the spline shaft;
the distance ring is arranged in the spline shaft, one end of the distance ring is abutted to the inner side of the mechanical pump driving gear and is fixedly connected with the mechanical pump driving gear, and the other end of the distance ring and the end part of the sun gear shaft, which is positioned in the spline shaft, are arranged at intervals.
Optionally, the distance ring comprises a distance ring side wall parallel to the spline shaft and a distance ring bottom perpendicular to the spline shaft; the side wall of the distance ring is abutted against the inner side of the mechanical pump driving gear and is fixedly connected with the mechanical pump driving gear; the bottom of the distance ring and the end part of the sun wheel shaft, which is positioned in the spline shaft, are arranged at intervals.
Optionally, one end of the side wall of the distance ring, which is connected with the mechanical pump driving gear, is provided with a first bolt hole, the first bolt hole is arranged along the axial direction of the distance ring, a second bolt hole is arranged on the mechanical pump driving gear, which corresponds to the first bolt hole, and a first bolt is inserted into the second bolt hole and the first bolt hole, so that the distance ring is fixed on the mechanical pump driving gear.
Optionally, the outer surface of the distance ring and the inner wall of the spline shaft are arranged at intervals, and a first oil return hole is arranged on the mechanical pump driving gear corresponding to the gap.
Optionally, a shoulder is arranged in the spline shaft, a step surface matched with the shoulder is arranged on the sun gear shaft, and the shoulder abuts against the step surface, so that the sun gear shaft is axially positioned.
Optionally, the retaining shoulder is located between the spline pair and the distance ring, a second oil return hole is formed in the retaining shoulder, and the second oil return hole is formed in the axial direction of the spline shaft.
Optionally, the sun gear shaft is a hollow shaft, and the pipe shaft is arranged in the shaft hole of the sun gear shaft in a penetrating manner.
Optionally, the inner diameter of the distance ring is larger than the outer diameter of the pipe shaft.
Optionally, the device further comprises a first gear, an output shaft and a mechanical pump, wherein the first gear is meshed with the mechanical pump driving gear, one end of the output shaft is connected with the first gear, and the other end of the output shaft is connected with the mechanical pump.
Optionally, the mechanical pump driving gear is mounted on the spline shaft through a second bolt.
The utility model has the advantages that:
the utility model discloses set up the distance ring in the assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft, the one end of distance ring is close to the sun gear axle, when the sun gear axle takes place axial deviation under the effect of axial force, can push up and lean on the distance ring, makes the distance ring share some axial force, reduces the wearing and tearing between sun gear axle and the integral key shaft, avoids the gear box inefficacy, has prolonged the life of gear box.
Drawings

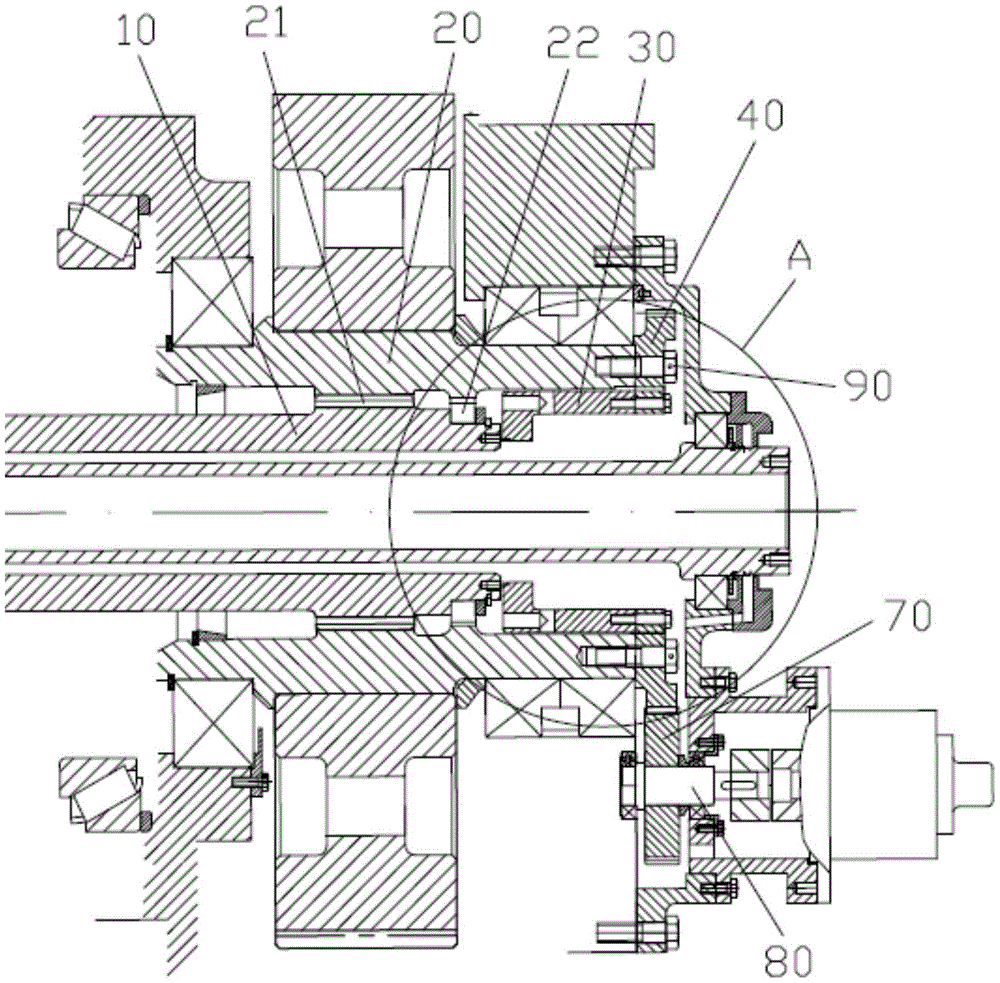

FIG. 1 is a schematic perspective view of an assembly structure of a sun gear shaft and a spline shaft of a wind power gear box according to the present invention;
fig. 2 is an enlarged view of a portion a in fig. 1 according to the present invention.
In the figure:
10-sun gear shaft; 20-a splined shaft; 30-distance ring; 40-mechanical pump drive gear; 50-a first bolt; 60-tube axis; 70-a first gear; 80-an output shaft; 90-a second bolt;
11-step surface; 21-spline pair; 22-a shoulder; 221-a second oil return hole; 31-spacer ring side wall; 32-distance ring bottom; 311-first bolt hole; 41-second bolt hole; 42-first oil return hole.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and examples. It is to be understood that the specific embodiments described herein are merely illustrative of the invention and are not limiting of the invention. It should be further noted that, for the convenience of description, only some of the structures related to the present invention are shown in the drawings, not all of the structures.
In the description of the present invention, unless expressly stated or limited otherwise, the terms "connected," "connected," and "fixed" are to be construed broadly, e.g., as meaning permanently connected, detachably connected, or integral to one another; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
In the description of the present embodiment, the terms "upper", "lower", "right", etc. are used in an orientation or positional relationship based on that shown in the drawings only for convenience of description and simplicity of operation, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used only for descriptive purposes and are not intended to have a special meaning.
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
The utility model provides an assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft, figure 1 is the utility model discloses wind-powered electricity generation gear box sun gear axle and integral key shaft's assembly structure's spatial structure schematic diagram, as shown in figure 1, assembly structure includes sun gear axle 10, integral key shaft 20, mechanical pump drive gear 40 and distance ring 30.
The spline shaft 20 is a hollow shaft, one end of the sun gear shaft 10 penetrates into the spline shaft 20, and one end of the sun gear shaft 10 penetrating into the spline shaft 20 is connected with the spline shaft 20 through a spline pair 21. The mechanical pump driving gear 40 is installed at one end of the spline shaft 20, the mechanical pump driving gear 40 is fixedly connected with the spline shaft 20, the spline shaft 20 is driven to synchronously rotate, the mechanical pump of the gearbox is driven to rotate by the mechanical pump driving gear 40, and the mechanical pump of the gearbox is one of oil pumps of the gearbox. The inner diameter of the mechanical pump drive gear 40 is smaller than the inner diameter of the splined shaft 20, which allows the inner ring of the mechanical pump drive gear 40 to protrude beyond the inner wall of the splined shaft 20, as shown in fig. 1, facilitating the use of this protrusion for positioning and mounting the distance ring 30.
In the conventional gear box, although there is a structure in which the mechanical pump drive gear 40 is attached to one end of the spline shaft 20, the inner diameter of the mechanical pump drive gear 40 is set to be as large as the inner diameter of the spline shaft 20 in the conventional structure because there is no distance ring 30 in the conventional structure. And the utility model discloses only need do some less with mechanical pump drive gear 40's internal diameter, can accomplish the location and the installation of distance ring 30, and set up the axial force that holding ring 30 can share sun gear axle 10, reduce the wearing and tearing between sun gear axle 10 and the integral key shaft 20.
As shown in fig. 1, the distance ring 30 is disposed in the spline shaft 20, one end of the distance ring 30 abuts against the inner side of the mechanical pump driving gear 40 and is fixedly connected with the mechanical pump driving gear 40, the other end of the distance ring 30 is disposed at an interval with the end of the sun gear shaft 10 located in the spline shaft 20, when the sun gear shaft 10 moves axially rightwards due to abrasion between the sun gear shaft 10 and the spline shaft 20, the interval between the distance ring 30 and the sun gear shaft 10 disappears, the sun gear shaft 10 abuts against the distance ring 30, the distance ring 30 abuts against the sun gear shaft 10, the axial force of the sun gear shaft 10 is shared, and failure of the gearbox is avoided.
Further, as shown in fig. 2, in order to facilitate the connection of the distance ring 30 with the mechanical pump driving gear 40 and the abutment of the sun gear shaft 10 on the distance ring 30, the distance ring 30 may be configured to include a distance ring side wall 31 and a distance ring bottom 32, the distance ring side wall 31 is parallel to the spline shaft 20, the distance ring bottom 32 is perpendicular to the spline shaft 20, the right end of the distance ring side wall 31 abuts against the inner side of the mechanical pump driving gear 40 and is fixedly connected with the mechanical pump driving gear 40, and the distance ring bottom 32 is spaced from the end of the sun gear shaft 10 located in the spline shaft 20.
Furthermore, as shown in fig. 2, the end of the side wall 31 of the distance ring, which is connected to the mechanical pump driving gear 40, is provided with a first bolt hole 311, the first bolt hole 311 is arranged along the axial direction of the distance ring 30, the mechanical pump driving gear 40 is provided with a second bolt hole 41 corresponding to the first bolt hole 311, and the distance ring 30 can be fixed to the mechanical pump driving gear 40 by inserting the first bolt 50 into the second bolt hole 41 and the first bolt hole 311.
With continued reference to fig. 2, in one embodiment, the outer surface of the distance ring 30 is spaced from the inner wall of the spline shaft 20 to provide a space for the flow of the lubricating oil, and a first oil return hole 42 is provided in the mechanical pump drive gear 40 corresponding to the gap, so that the lubricating oil flowing to the gap between the distance ring 30 and the spline shaft 20 flows out of the first oil return hole 42.
The number of the first oil return holes 42 may be several, and the first oil return holes are uniformly distributed in the circumferential direction of the mechanical pump driving gear 40, so that an oil discharge effect is improved.
Further, a shoulder 22 is arranged in the spline shaft 20, a step surface 11 matched with the shoulder 22 is arranged on the sun gear shaft 10, and the shoulder 22 abuts against the step surface 11 so as to axially position the sun gear shaft 10. When the axial force of the sun gear shaft 10 causes the abrasion at the matching part of the step surface 11 and the retaining shoulder 22, the sun gear shaft 10 axially deviates, the gap between the sun gear shaft 10 and the distance ring 30 is eliminated, the right end surface of the sun gear shaft 10 and the distance ring 30 can be naturally attached and positioned with the most uniform load, at the moment, the retaining shoulder 22 of the spline shaft 20 and the distance ring 30 can bear the axial force transmitted by the sun gear shaft 10 together without mutual influence, so that the pressure on two positioning surfaces contacted with the sun gear shaft 10 is shared, and the axial abrasion speed is greatly reduced.
Furthermore, referring to fig. 1 and fig. 2, the retaining shoulder 22 is located between the spline pair 21 and the distance ring 30, and a second oil return hole 221 may be formed in the retaining shoulder 22, wherein the second oil return hole 221 is formed along the axial direction of the spline shaft 20, so that the lubricating oil at the front end flows out from the second oil return hole 221.
As shown in fig. 2, the assembly structure further includes a tubular shaft 60, the sun gear shaft 10 is a hollow shaft, and the tubular shaft 60 is inserted into the shaft hole of the sun gear shaft 10, so that the sun gear shaft 10 is sleeved outside the tubular shaft 60. The tubular shaft is used for assembling and supporting parts in the wind power gearbox.
Further, as shown in fig. 2, the inner diameter of the distance ring 30 is larger than the outer diameter of the pipe shaft 60, so that the distance ring 30 can freely penetrate into the pipe shaft 60, the installation of the distance ring 30 is not affected by the pipe shaft 60, and the installation of the distance ring 30 is facilitated.
In one embodiment, as shown in fig. 1, the assembly structure further includes a first gear 70, an output shaft 80 and a mechanical pump, the first gear 70 is engaged with the mechanical pump driving gear 40, one end of the output shaft 80 is connected with the first gear 70, and the other end of the output shaft 80 is connected with the mechanical pump, so that the torque of the mechanical pump driving gear 40 is transmitted to the first gear 70, then the first gear 70 transmits the torque to the output shaft 80, and the output shaft 80 transmits the torque to the mechanical pump to drive the mechanical pump to work.
In one embodiment, as shown in fig. 1, the assembly structure further includes a second bolt 90, the mechanical pump drive gear 40 is mounted on the spline shaft 20 by the second bolt 90, the second bolt 90 is disposed in the axial direction of the mechanical pump drive gear 40, and the mechanical pump drive gear 40 is mounted on the right end of the spline shaft 20.
It is obvious that the above embodiments of the present invention are only examples for clearly illustrating the present invention, and are not intended to limit the embodiments of the present invention. Numerous obvious variations, rearrangements and substitutions will now occur to those skilled in the art without departing from the scope of the invention. And are neither required nor exhaustive of all embodiments. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the claims of the present invention.
Claims (10)
1. The utility model provides an assembly structure of wind-powered electricity generation gear box sun gear axle and integral key shaft which characterized in that includes:
a sun gear shaft (10);
the spline shaft (20) is a hollow shaft, one end of the sun wheel shaft (10) penetrates into the spline shaft (20), and one end of the sun wheel shaft (10) penetrating into the spline shaft (20) is connected with the spline shaft (20) through a spline pair (21);
a mechanical pump driving gear (40) which is installed at one end of the spline shaft (20) and has an inner diameter smaller than that of the spline shaft (20);
the distance ring (30) is arranged in the spline shaft (20), one end of the distance ring (30) abuts against the inner side of the mechanical pump driving gear (40) and is fixedly connected with the mechanical pump driving gear (40), and the other end of the distance ring (30) and the end part, located in the spline shaft (20), of the sun gear shaft (10) are arranged at intervals.
2. The wind power gearbox sun shaft and spline shaft assembly structure according to claim 1, characterized in that the distance ring (30) comprises a distance ring side wall (31) parallel to the spline shaft (20), and a distance ring bottom (32) perpendicular to the spline shaft (20); the side wall (31) of the distance ring is abutted against the inner side of the mechanical pump driving gear (40) and is fixedly connected with the mechanical pump driving gear (40); the distance ring bottom (32) and the end part of the sun gear shaft (10) which is positioned in the spline shaft (20) are arranged at intervals.
3. The structure for assembling a sun gear shaft and a spline shaft of a wind power gearbox according to claim 2, characterized in that one end of the side wall (31) of the distance ring, which is connected with the mechanical pump driving gear (40), is provided with a first bolt hole (311), the first bolt hole (311) is arranged along the axial direction of the distance ring (30), a second bolt hole (41) is arranged on the mechanical pump driving gear (40) corresponding to the first bolt hole (311), and a first bolt (50) is inserted into the second bolt hole (41) and the first bolt hole (311) so as to fix the distance ring (30) on the mechanical pump driving gear (40).
4. The wind power gearbox sun gear shaft and spline shaft assembling structure according to claim 1, characterized in that the outer surface of the distance ring (30) is spaced from the inner wall of the spline shaft (20), and the mechanical pump driving gear (40) is provided with a first oil return hole (42) corresponding to the gap.
5. The assembling structure of the sun gear shaft and the spline shaft of the wind power gear box according to claim 1, characterized in that a retaining shoulder (22) is arranged in the spline shaft (20), a step surface (11) matched with the retaining shoulder (22) is arranged on the sun gear shaft (10), and the retaining shoulder (22) abuts against the step surface (11) so as to axially position the sun gear shaft (10).
6. The assembling structure of the sun gear shaft and the spline shaft of the wind power gearbox according to claim 5, characterized in that the retaining shoulder (22) is located between the spline pair (21) and the distance ring (30), and a second oil return hole (221) is formed in the retaining shoulder (22), and the second oil return hole (221) is formed in the axial direction of the spline shaft (20).
7. The assembling structure of the sun gear shaft and the spline shaft of the wind power gear box according to claim 1, further comprising a tubular shaft (60), wherein the sun gear shaft (10) is a hollow shaft, and the tubular shaft (60) is arranged in the shaft hole of the sun gear shaft (10) in a penetrating manner.
8. The wind power gearbox sun shaft and spline shaft assembly structure of claim 7, characterized in that the inner diameter of the distance ring (30) is larger than the outer diameter of the pipe shaft (60).
9. The assembling structure of the sun gear shaft and the spline shaft of the wind power gear box according to claim 1, further comprising a first gear (70), an output shaft (80) and a mechanical pump, wherein the first gear (70) is engaged with the mechanical pump driving gear (40), one end of the output shaft (80) is connected with the first gear (70), and the other end is connected with the mechanical pump.
10. The wind power gearbox sun shaft and spline shaft assembling structure according to claim 1, further comprising a second bolt (90), wherein the mechanical pump driving gear (40) is mounted on the spline shaft (20) through the second bolt (90).
