Abstract
The utility model discloses a multi-functional waste water treatment equipment, the on-line screen storage device comprises a base, the equal fixedly connected with dead lever in both sides at base top, the top fixedly connected with baffle of dead lever, the surperficial swing joint of dead lever has the fixed block, fixedly connected with casing between two fixed blocks. The utility model discloses a set up two-way motor, first stirring leaf, first gear, the connecting rod, the second gear, the third gear, the fourth gear, bracing piece and second stirring leaf, can improve the mixing efficiency of antiseptic solution, through setting up the motor, the screw rod, the swivel nut, the supporting shoe, guide arm and brush, can clear up the filter screen surface, through setting up the turning block, dwang and bottom plate, can drive the filter screen and rotate, make waste water treatment equipment convenient to use, waste water treatment equipment can improve treatment effeciency, and can clear up the filter screen, be convenient for wash the impurity after the filter screen surface clearance, be favorable to people's use.
Description
Technical Field
The utility model relates to a waste water treatment equipment technical field specifically is a multi-functional waste water treatment equipment.
Background
The waste water treatment is to treat the waste water by physical, chemical and biological methods, purify the waste water and reduce pollution, so as to achieve the purposes of recycling and reusing the waste water and fully utilize water resources, the domestic sewage refers to the waste water discharged by people in daily life activities, the waste water is mainly polluted by domestic waste and human excrement, the quantity, the components and the concentration of pollutants are related to the living habits and the water consumption of people, the domestic sewage generally does not contain toxic substances, but has the conditions suitable for the propagation of microorganisms, contains a large amount of bacteria and pathogens, has certain harmfulness from the aspect of sanitation, and the conventional waste water treatment equipment only has a single filtering function, cannot meet the requirements of people and is not beneficial to the use of people.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multi-functional waste water treatment equipment to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a multifunctional wastewater treatment device comprises a base, wherein both sides of the top of the base are fixedly connected with fixing rods, the top ends of the fixing rods are fixedly connected with a partition plate, the surface of each fixing rod is movably connected with a fixing block, a shell is fixedly connected between the two fixing blocks, the top of the shell is fixedly connected with a two-way motor, the bottom end of a rotating shaft of the two-way motor penetrates through the shell and extends to the inside of the shell to be fixedly connected with a first stirring blade, the top end of the rotating shaft of the two-way motor is fixedly connected with a first gear, the top of the shell is fixedly connected with a connecting block positioned on the surface of the two-way motor, the inside of the connecting block is fixedly connected with a connecting rod, the surface of the connecting rod is respectively and fixedly connected with a second gear and a third gear, the number of the second gears is two, the surface of the first, the bottom of the fourth gear is fixedly connected with a supporting rod, the bottom end of the supporting rod penetrates through the shell and extends to the inside of the shell, the two sides of the supporting rod are fixedly connected with second stirring blades, the left side of the shell is fixedly connected with a motor, the right end of a motor rotating shaft penetrates through the shell and extends to the inside of the shell to be fixedly connected with a screw rod, the right end of the screw rod is movably connected with the right side of an inner cavity of the shell, the surface of the screw rod is in threaded connection with a screw sleeve, the surface of the screw sleeve is movably connected with a supporting block through a bearing, the inside of the supporting block is movably connected with a guide rod, the bottom end of the guide rod extends to the outside of the supporting block to be fixedly connected with a hairbrush, the front side of the shell is fixedly connected with a rotating block, the back side of, the top fixedly connected with filter screen of bottom plate, the equal fixedly connected with dog in both sides of casing inner chamber, the surface and the filter screen contact of dog, the top of filter screen and the bottom swing joint of brush, the top of casing both sides all communicates there is the inlet pipe, the bottom intercommunication of casing has the blow off pipe, the bottom intercommunication on casing right side has the drain pipe.
Preferably, the top end of the guide rod is fixedly connected with a fixed shaft, the top of the fixed shaft penetrates through the supporting block and extends to the outside of the supporting block to be fixedly connected with a baffle, a first spring is sleeved on the surface of the fixed shaft, and the top and the bottom of the first spring are respectively and movably connected with the inner wall of the supporting block and the top of the guide rod.
Preferably, the inside of casing has seted up the spout, the inside and the surperficial swing joint of filter screen of spout.
Preferably, the front face of the shell is fixedly connected with a perspective window, and the perspective window is rectangular.
Preferably, the surface of the fixing rod is sleeved with a second spring, and the top and the bottom of the second spring are respectively movably connected with the bottom of the fixing block and the top of the base.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up two-way motor, first stirring leaf, first gear, the connecting rod, the second gear, the third gear, the fourth gear, bracing piece and second stirring leaf, can improve the mixing efficiency of antiseptic solution, through setting up the motor, the screw rod, the swivel nut, the supporting shoe, guide arm and brush, can clear up the filter screen surface, through setting up the turning block, dwang and bottom plate, can drive the filter screen and rotate, make waste water treatment equipment convenient to use, waste water treatment equipment can improve treatment effeciency, and can clear up the filter screen, be convenient for wash the impurity after the filter screen surface clearance, be favorable to people's use.
2. The utility model discloses a set up fixed axle, baffle and first spring, the position that can the automatically regulated brush through setting up the spout, makes the filter screen rotate more stably, through setting up perspective window, is convenient for survey the operating conditions in the casing, through setting up the second spring, makes waste water treatment equipment have shock-absorbing function.
Drawings

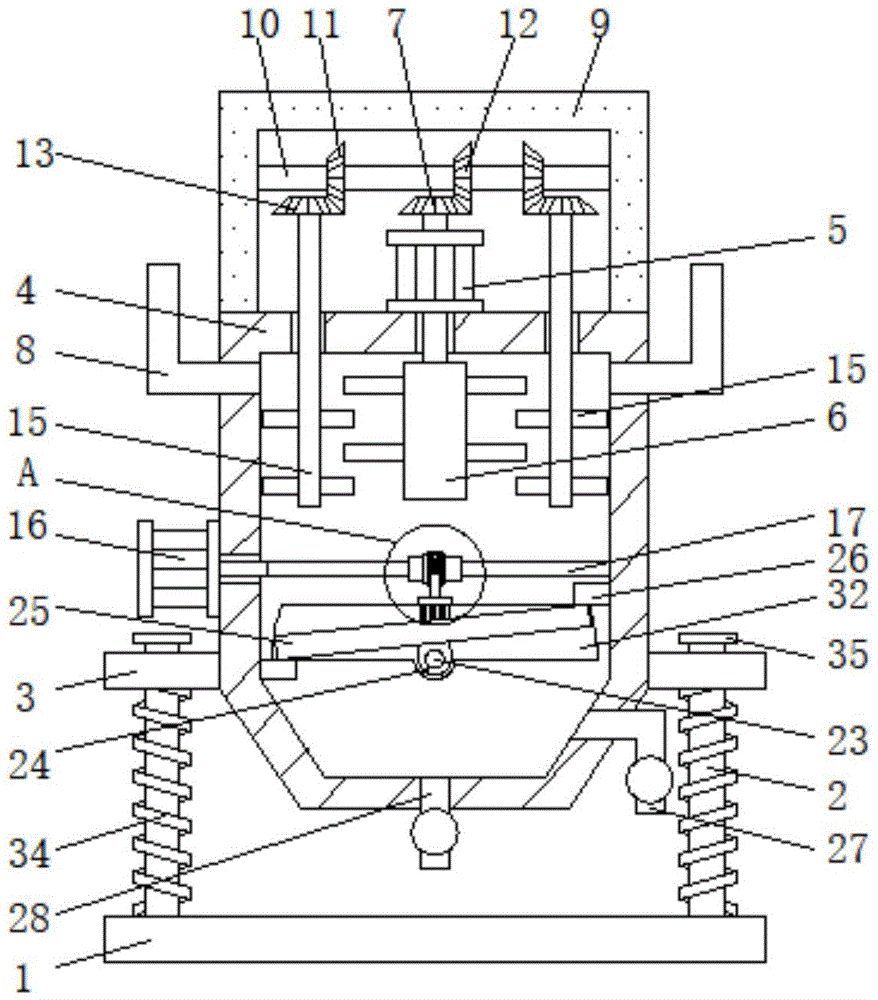

FIG. 1 is a schematic view showing the construction of a multi-functional wastewater treatment facility;
FIG. 2 is a front view showing the construction of a multi-functional wastewater treatment facility;
FIG. 3 is an enlarged view of the structure of A in the multi-functional wastewater treatment facility.
In the figure: 1. a base; 2. fixing the rod; 3. a fixed block; 4. a housing; 5. a bi-directional motor; 6. a first stirring blade; 7. a first gear; 8. a feed pipe; 9. connecting blocks; 10. a connecting rod; 11. a second gear; 12. a third gear; 13. a fourth gear; 14. a support bar; 15. a second stirring blade; 16. a motor; 17. a screw; 18. a threaded sleeve; 19. a support block; 20. a guide bar; 21. a brush; 22. rotating the block; 23. rotating the rod; 24. a base plate; 25. filtering with a screen; 26. a stopper; 27. a blow-off pipe; 28. a liquid outlet pipe; 29. a fixed shaft; 30. a baffle plate; 31. a first spring; 32. a chute; 33. a perspective window; 34. a second spring; 35. a separator.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 3, in an embodiment of the present invention, a multifunctional wastewater treatment apparatus includes a base 1, a fixing rod 2 is fixedly connected to both sides of a top of the base 1, a second spring 34 is sleeved on a surface of the fixing rod 2, a top and a bottom of the second spring 34 are respectively movably connected to a bottom of the fixing block 3 and a top of the base 1, the wastewater treatment apparatus has a damping function by disposing the second spring 34, a partition 35 is fixedly connected to a top end of the fixing rod 2, the fixing block 3 is movably connected to a surface of the fixing rod 2, a housing 4 is fixedly connected between the two fixing blocks 3, a chute 32 is disposed inside the housing 4, an interior of the chute 32 is movably connected to a surface of a filter screen 25, the filter screen 25 rotates more stably by disposing the chute 32, a window 33 is fixedly connected to a front surface of the housing 4, the window 33 is rectangular, and by disposing the, the device is convenient for observing the working condition in the shell 4, the top of the shell 4 is fixedly connected with a two-way motor 5, the bottom end of a rotating shaft of the two-way motor 5 penetrates through the shell 4 and extends to the inside of the shell 4 to be fixedly connected with a first stirring blade 6, the top end of the rotating shaft of the two-way motor 5 is fixedly connected with a first gear 7, the top of the shell 4 is fixedly connected with a connecting block 9 positioned on the surface of the two-way motor 5, the inside of the connecting block 9 is fixedly connected with a connecting rod 10, the surface of the connecting rod 10 is respectively and fixedly connected with a second gear 11 and a third gear 12, the number of the second gears 11 is two, the surface of the first gear 7 is meshed with the third gear 12, the surface of the second gear 11 is meshed with a fourth gear 13, the bottom of the fourth gear 13 is fixedly connected with a supporting rod 14, the bottom end of the supporting rod 14, the left side of the shell 4 is fixedly connected with a motor 16, the right end of a rotating shaft of the motor 16 penetrates through the shell 4 and extends to the inside of the shell 4 to be fixedly connected with a screw 17, the right end of the screw 17 is movably connected with the right side of an inner cavity of the shell 4, the surface of the screw 17 is in threaded connection with a threaded sleeve 18, the surface of the threaded sleeve 18 is movably connected with a supporting block 19 through a bearing, the inside of the supporting block 19 is movably connected with a guide rod 20, the top end of the guide rod 20 is fixedly connected with a fixed shaft 29, the top end of the fixed shaft 29 penetrates through the supporting block 19 and extends to the outside of the supporting block 19 to be fixedly connected with a baffle 30, the surface of the fixed shaft 29 is sleeved with a first spring 31, the top and the bottom of the first spring 31 are respectively and movably connected with the inner wall of the supporting block 19 and the top of the guide rod 20, the front fixedly connected with turning block 22 of casing 4, the back fixedly connected with dwang 23 of turning block 22, the surface of dwang 23 and the inner wall threaded connection of casing 4, the rear end fixedly connected with bottom plate 24 of dwang 23, the top fixedly connected with filter screen 25 of bottom plate 24, the equal fixedly connected with dog 26 in both sides of casing 4 inner chamber, the surface and the filter screen 25 contact of dog 26, the top of filter screen 25 and the bottom swing joint of brush 21, the top of casing 4 both sides all communicates there is inlet pipe 8, the bottom of casing 4 communicates there is blow off pipe 27, the bottom intercommunication on casing 4 right side has drain pipe 28, through setting up two-way motor 5, first stirring leaf 6, first gear 7, connecting rod 10, second gear 11, third gear 12, fourth gear 13, bracing piece 14 and second stirring leaf 15, can improve the mixing efficiency of antiseptic solution, through setting up motor 16, the surface of the first stirring leaf 6, first, Screw rod 17, swivel nut 18, supporting shoe 19, guide arm 20 and brush 21 can clear up filter screen 25 surface, through setting up turning block 22, dwang 23 and bottom plate 24, can drive filter screen 25 and rotate, makes waste water treatment equipment convenient to use, and waste water treatment equipment can improve treatment effeciency, and can clear up filter screen 25, is convenient for wash the impurity after the surface clearance of filter screen 25, is favorable to people's use.
The utility model discloses a theory of operation is: when the device is used, the bidirectional motor 5 drives the first stirring blade 6 and the first gear 7 to rotate, the first gear 7 drives the third gear 12 to rotate, the third gear 12 drives the connecting rod 10 to rotate, the connecting rod 10 drives the second gear 11 to rotate, the second gear 11 drives the fourth gear 13 to rotate, the fourth gear 13 drives the supporting rod 14 to rotate, the supporting rod 14 drives the second stirring blade 15 to rotate, disinfectant and wastewater in the shell 4 are mixed and stirred, the motor 16 drives the screw 17 to rotate, the screw 17 drives the screw sleeve 18 to move left and right, the screw sleeve 18 drives the supporting block 19 to move left and right, the supporting block 19 drives the guide rod 20 and the brush 21 to move left and right, the brush 21 cleans the surface of the filter screen 25, the rotating block 22 rotates the rotating block 22 drives the bottom plate 24 to rotate, the bottom plate 24 drives the filter screen 25 to rotate, and impurities on the surface of the filter screen 25 can enter the bottom of the inner cavity of, make waste water treatment equipment convenient to use, waste water treatment equipment can improve the treatment effeciency, and can clear up filter screen 25, is convenient for wash the impurity after the filter screen 25 surface clearance, is favorable to people's use.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (5)
1. A multi-functional waste water treatment equipment, includes base (1), its characterized in that: the two sides of the top of the base (1) are fixedly connected with fixing rods (2), the top end of each fixing rod (2) is fixedly connected with a partition plate (35), the surface of each fixing rod (2) is movably connected with a fixing block (3), a shell (4) is fixedly connected between the two fixing blocks (3), the top of the shell (4) is fixedly connected with a two-way motor (5), the bottom end of a rotating shaft of the two-way motor (5) penetrates through the shell (4) and extends to the inside of the shell (4) to be fixedly connected with a first stirring blade (6), the top end of the rotating shaft of the two-way motor (5) is fixedly connected with a first gear (7), the top of the shell (4) is fixedly connected with a connecting block (9) positioned on the surface of the two-way motor (5), the inside of the connecting block (9) is fixedly connected with a connecting rod (10), and the surface of the connecting rod, the number of the second gears (11) is two, the surface of the first gear (7) is meshed with the third gear (12), the surface of the second gear (11) is meshed with the fourth gear (13), the bottom of the fourth gear (13) is fixedly connected with a supporting rod (14), the bottom end of the supporting rod (14) penetrates through the shell (4) and extends to the inside of the shell (4), both sides of the supporting rod (14) are fixedly connected with second stirring blades (15), the left side of the shell (4) is fixedly connected with a motor (16), the right end of a rotating shaft of the motor (16) penetrates through the shell (4) and extends to the inside of the shell (4) and is fixedly connected with a screw rod (17), the right end of the screw rod (17) is movably connected with the right side of an inner cavity of the shell (4), the surface of the screw rod (17) is in threaded connection with a threaded sleeve (18), the surface of the threaded sleeve (18) is movably connected with a supporting block (19) through, the inside swing joint of supporting shoe (19) has guide arm (20), the bottom of guide arm (20) extends to the outside fixedly connected with brush (21) of supporting shoe (19), the positive fixedly connected with turning block (22) of casing (4), the back fixedly connected with dwang (23) of turning block (22), the surface of dwang (23) and the inner wall threaded connection of casing (4), the rear end fixedly connected with bottom plate (24) of dwang (23), the top fixedly connected with filter screen (25) of bottom plate (24), the equal fixedly connected with dog (26) in both sides of casing (4) inner chamber, the surface and the filter screen (25) contact of dog (26), the top of filter screen (25) and the bottom swing joint of brush (21), the top of casing (4) both sides all communicates with inlet pipe (8), the bottom of the shell (4) is communicated with a sewage discharge pipe (27), and the bottom of the right side of the shell (4) is communicated with a liquid outlet pipe (28).
2. A multifunctional wastewater treatment plant according to claim 1, characterized in that: the top end of the guide rod (20) is fixedly connected with a fixed shaft (29), the top of the fixed shaft (29) penetrates through the supporting block (19) and extends to the outside of the supporting block (19) to be fixedly connected with a baffle (30), a first spring (31) is sleeved on the surface of the fixed shaft (29), and the top and the bottom of the first spring (31) are respectively movably connected with the inner wall of the supporting block (19) and the top of the guide rod (20).
3. A multifunctional wastewater treatment plant according to claim 1, characterized in that: the inside of casing (4) has seted up spout (32), the inside and the surperficial swing joint of filter screen (25) of spout (32).
4. A multifunctional wastewater treatment plant according to claim 1, characterized in that: the front face of the shell (4) is fixedly connected with a perspective window (33), and the perspective window (33) is rectangular.
5. A multifunctional wastewater treatment plant according to claim 1, characterized in that: the surface cover of dead lever (2) is equipped with second spring (34), the top and the bottom of second spring (34) respectively with the bottom of fixed block (3) and the top swing joint of base (1).
