Abstract
The utility model discloses a liquid crystal splicing screen wall hanging mounting bracket, which belongs to the field of display screen mounting brackets and comprises a bottom plate, a support plate is fixedly connected in the middle of the top of the bottom plate, a support rod is movably mounted at the back of the support plate, two fasteners which are connected in a sliding way are sleeved on the support rod, the vertical angle of a display screen can be ensured through the support plate which is vertically and fixedly mounted on the bottom plate, the support rod which is detachably connected through the back of the support plate can facilitate the dismounting during the mounting and the maintenance, the fasteners sleeved on the support rod and a first fixed block are driven to move up and down through the lifting of an adjusting fastener so as to be suitable for the display screens with different heights, the display screens with different widths can be adapted by adjusting the left and right movement of a second fixed block which is welded on the support rod at the left and right sides of, the display screen can not slide and be damaged by extrusion.
Description
Technical Field
The utility model relates to a display screen installing support field, more specifically say, relate to a liquid crystal concatenation screen wall-hanging installing support.
Background
The computer is composed of hardware system and software system, the hardware unit of traditional computer system can be divided into input unit, output unit, arithmetic logic unit, control unit and memory unit, in which the arithmetic logic unit and control unit are called central processing unit, it is a modern electronic computer for high-speed calculation, it can make numerical calculation and logic calculation, and also has memory function, it is a modern intelligent electronic equipment capable of running according to program and automatically processing mass data at high speed, and is composed of hardware system and software system, and the computer without any software is called bare computer.
The current most LCD concatenation screen hanging installing support can only be applicable to the computer display of single size, and the display is fixed back on the installing support, because of individual use habit is different, needs adjust the display screen height, and the inconvenient height-adjusting of current display screen support device when using is difficult to satisfy people's demand.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved
To the problem that exists among the prior art, the utility model aims to provide a liquid crystal concatenation screen hanging installing support possesses the advantage of being convenient for adjust the display screen height, using multiple display screen size and conveniently adjusting the display screen angle, has solved current installing support and has used the inconvenient problem of regulation of single size display screen, display screen height.
2. Technical scheme
In order to solve the above problems, the utility model adopts the following technical proposal.
A wall-mounted mounting bracket for a liquid crystal splicing screen comprises a bottom plate, a supporting plate is fixedly connected in the middle of the top of the bottom plate, the back of the supporting plate is movably provided with a supporting rod, the supporting rod is sleeved with two fastening pieces which are in sliding connection with the supporting rod, the support rod is sleeved with two first fixed blocks which are connected with the support rod in a sliding way, the two fasteners are fixedly connected with the two first fixed blocks, the left side and the right side of the two first fixed blocks are welded with support rods, the support rod is sleeved with a second fixed block which is connected with the support rod in a sliding way, the surfaces of the two first fixed blocks and the second fixed blocks are both fixedly provided with a rotating connecting block through screws, the two first fixed blocks and the second fixed blocks are connected with a clamp through the rotating connecting block, splint are installed to the lower extreme at anchor clamps top, and the inside on anchor clamps top is provided with the spring, the top welding at the top of splint has the buckle.
Preferably, first spout, two have been seted up to the branch left and right sides first fixed block inboard is provided with first slider, first slider is located the inside of first spout, fastener and first fixed block all with branch looks sliding connection.
Preferably, a second sliding groove is formed in the upper surface of the supporting rod, a second sliding block is arranged on the inner side of the second fixing block, the second sliding block is located inside the second fixing block, and the second fixing block is connected with the supporting rod in a sliding mode through the second sliding block.
Preferably, the surface of the supporting plate is provided with an adjusting groove, an adjusting bolt is arranged in the adjusting groove, and the supporting rod is fixedly connected with the adjusting groove through the adjusting bolt.
Preferably, the inner side of the clamping plate is provided with a rubber non-slip mat.
Preferably, the first fixing block is provided with a connecting block, the connecting block is connected with a fastening bolt in a threaded manner, the adjusting base on the left side of the fastening piece is fixedly connected with the connecting block, and the top of the first fixing block is fixedly connected with the bottom of the connecting block through the fastening bolt.
3. Advantageous effects
Compared with the prior art, the utility model has the advantages of:
(1) the scheme can ensure the vertical angle of the display screen through the supporting plate which is vertically and fixedly installed on the bottom plate, the supporting rod which is detachably connected with the back of the supporting plate can be used for more convenient disassembly during installation and maintenance, the fastening piece and the first fixed block which are sleeved on the supporting rod can save more time and labor during installation and adjustment without shaking to cause damage to the display screen, the second fixed blocks which are sleeved on the supporting rods on the left side and the right side of the first fixed block can be used for adapting to the display screens with different sizes by adjusting the second fixed blocks, the rotary connecting blocks which are fixedly installed through the screws on the surfaces of the first fixed block and the second fixed block and the clamp which is connected through the rotary connecting blocks can realize angle adjustment through the rotary connecting blocks, the clamp plate which is installed through the lower end of the top of the clamp, the spring which is arranged in the clamp and the pinch plate at the top end of, the clamping function of the display screen can be realized at the inner side of the clamping plate.
(2) Through the first spout of seting up on the branch and the inboard first slider of first fixed block, first fixed block and branch looks sliding connection make adjust convenient and fast and labour saving and time saving more, and first spout and first slider can play certain limiting displacement.
(3) Through a second sliding groove formed in the supporting rod and a second sliding block arranged on the inner side of the second fixed block, the second fixed block is in sliding connection with the supporting rod, so that the second fixed block moves left and right on the supporting rod, and the display screens with different widths can be adjusted.
(4) The supporting rod is fixed with the adjusting groove through the adjusting bolt, so that a user can adjust the height of the display screen according to personal habits.
(5) The anti-skidding rubber pads are arranged on the inner sides of the clamping plates, so that the display screen cannot slide down and cannot be extruded and damaged.
(6) Through adjusting the fastener elasticity, thereby make the fastener go up and down to drive first fixed block and reciprocate, alright adjust fixedly to the display screen of high difference.
Drawings

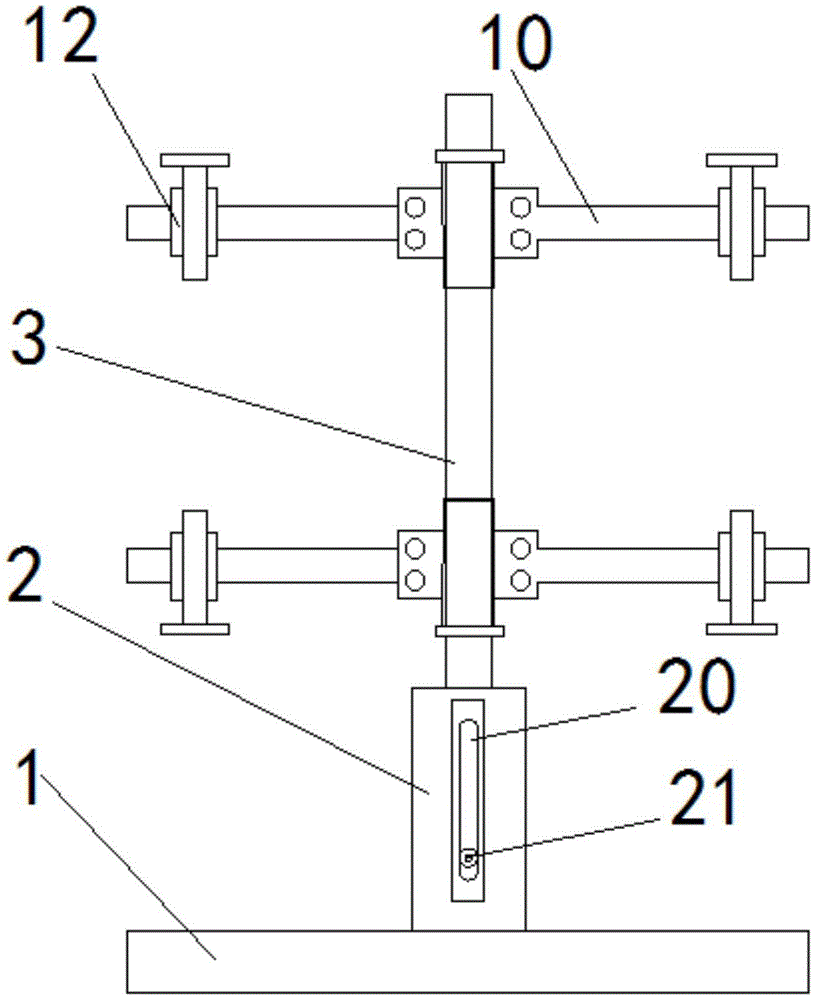

Fig. 1 is a front view of the structure of the present invention;
FIG. 2 is a left side view of the structure of the present invention;
fig. 3 is a schematic top view of the structure on the support rod of the present invention;
FIG. 4 is an enlarged schematic view of FIG. 2 according to the present invention;
FIG. 5 is an enlarged view of the structure B in FIG. 2 according to the present invention.
The reference numbers in the figures illustrate:
1. a base plate; 2. a support plate; 3. a strut; 4. a first chute; 5. a fastener; 6. a first fixed block; 7. a first slider; 8. connecting blocks; 9. fastening a bolt; 10. a support bar; 11. a second chute; 12. a second fixed block; 13. a second slider; 14. rotating the connecting block; 15. a clamp; 16. a spring; 17. a splint; 18. a rubber non-slip mat; 19. buckling the plate; 20. an adjustment groove; 21. and adjusting the bolt.
Detailed Description
The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiment of the present invention; obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention based on the embodiments of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "top/bottom", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "sleeved/connected", "connected", and the like are to be understood in a broad sense, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-5, a wall-mounted mounting bracket for a liquid crystal display (lcd) tiled screen includes a bottom plate 1, and is characterized in that: middle fixedly connected with backup pad 2 at 1 top of bottom plate, 2 back movable mounting of backup pad have branch 3, the cover is equipped with two fasteners 5 rather than sliding connection on branch 3, the cover is equipped with two first fixed blocks 6 rather than sliding connection on branch 3, two fasteners 5 and two 6 fixed connection of first fixed block, bracing piece 10 has all been welded to the left and right sides of two first fixed blocks 6, the cover is equipped with second fixed block 12 rather than sliding connection on bracing piece 10, there is rotation connecting block 14 on the surface of two first fixed blocks 6 and second fixed block 12 all through screw fixed mounting, two first fixed blocks 6 and second fixed block 12 are connected with anchor clamps 15 through rotating connecting block 14, splint 17 are installed to the lower extreme at anchor clamps 15 top, the inside on anchor clamps 15 top is provided with spring 16, the top welding at splint 17 has buckle 19.
Further, first spout 4 has been seted up to the 3 left and right sides of branch, and 6 inboards of two first fixed blocks are provided with first slider 7, and first slider 7 is located the inside of first spout 4, and fastener 5 and first fixed block 6 all are with branch 3 looks sliding connection.
Further, a second sliding groove 11 is formed in the upper surface of the supporting rod 10, a second sliding block 13 is arranged on the inner side of the second fixing block 12, the second sliding block 13 is located inside the second fixing block 12, and the second fixing block 12 is connected with the supporting rod 10 in a sliding mode through the second sliding block 13.
Furthermore, the surface of the supporting plate 2 is provided with an adjusting groove 20, an adjusting bolt 21 is arranged in the adjusting groove 20, and the supporting rod 3 is fixedly connected with the adjusting groove 20 through the adjusting bolt 21.
Further, a rubber mat 18 is provided on the inner side of the splint 17.
Further, be provided with connecting block 8 on the first fixed block 6, threaded connection has fastening bolt 9 on the connecting block 8, 5 left regulation bases of fastener and connecting block 8 fixed connection, and fastening bolt 9 fixed connection is passed through with the bottom of connecting block 8 in the top of first fixed block 6.
The working principle is as follows: when the utility model is used, the bottom plate 1 is firstly placed on a desktop, the support plate 2 is fixedly arranged in the middle of the bottom plate 1, the vertical angle of the display screen can be ensured, the support rod 3 is fixed in the adjusting groove 20 through the adjusting bolt 21, the disassembly during the installation and maintenance is more convenient, and the height of the display screen can be adjusted according to personal habits of a user, the fastening piece 5 and the first fixed block 6 are sleeved on the support rod 3, the adjusting base on the left side of the fastening piece 5 is fixedly connected with the connecting block 8, the first fixed block 6 is fixedly connected with the connecting block 8 through the fastening bolt 9, the first fixed block 6 is driven to move up and down by adjusting the lifting of the fastening piece 5, thereby the first fixed block 6 is adjusted to move up and down on the support rod 3, the display screens with different heights can be adjusted, through the second sliding chute 11 arranged on the support rod 10 and the second sliding, make second fixed block 12 and bracing piece 10 through second spout 11 and second slider 13 looks sliding connection, make second fixed block 12 remove about on bracing piece 10, can adjust the display screen of width difference, anchor clamps 15 through rotating connecting block 14 and connecting, make anchor clamps 15 can realize angle modulation through rotating connecting block 14, splint 17 through the lower extreme installation at anchor clamps 15 top, the spring 16 of the inside setting of anchor clamps 15 and the buckle 19 on splint 17 top drive splint 17 extrusion spring 16, can make the display screen joint realize pressing from both sides the function and the inboard of splint 17 is provided with rubber slipmat 18 in splint 17 inboard, can not make the display screen landing and lead to the fact the extrusion injury to the display screen, the inconvenient problem of regulation of current installing support only is suitable for single size display screen and display screen height has been solved.
The above description is only the preferred embodiment of the present invention; the scope of the present invention is not limited thereto. Any person skilled in the art should also be able to cover the technical scope of the present invention by replacing or changing the technical solution and the improvement concept of the present invention with equivalents and modifications within the technical scope of the present invention.
Claims (6)
1. The utility model provides a liquid crystal concatenation screen hanging installing support, includes bottom plate (1), its characterized in that: the middle of the top of the bottom plate (1) is fixedly connected with a supporting plate (2), the back of the supporting plate (2) is movably provided with a supporting rod (3), the supporting rod (3) is sleeved with two fasteners (5) in sliding connection with the supporting rod, the supporting rod (3) is sleeved with two first fixed blocks (6) in sliding connection with the supporting rod, the fasteners (5) are fixedly connected with the two first fixed blocks (6), the two first fixed blocks (6) are welded with supporting rods (10) on the left side and the right side, the supporting rods (10) are sleeved with second fixed blocks (12) in sliding connection with the supporting rods, the surfaces of the first fixed blocks (6) and the surfaces of the second fixed blocks (12) are fixedly connected with rotating connecting blocks (14) through screws, the two first fixed blocks (6) and the second fixed blocks (12) are connected with clamps (15) through the rotating connecting blocks (14), splint (17) are installed to the lower extreme at anchor clamps (15) top, and the inside on anchor clamps (15) top is provided with spring (16), the top welding of the top of splint (17) has buckle (19).
2. The wall-mounted mounting bracket for the liquid crystal spliced screen as claimed in claim 1, wherein: first spout (4), two have been seted up to branch (3) the left and right sides first fixed block (6) inboard is provided with first slider (7), first slider (7) are located the inside of first spout (4), fastener (5) and first fixed block (6) all with branch (3) looks sliding connection.
3. The wall-mounted mounting bracket for the liquid crystal spliced screen as claimed in claim 1, wherein: the utility model discloses a bracing piece, including bracing piece (10), bracing piece, second spout (11) have been seted up to bracing piece (10) upper surface, the inboard of second fixed block (12) is provided with second slider (13), second slider (13) are located the inside of second fixed block (12), second fixed block (12) are through second slider (13) and bracing piece (10) looks sliding connection.
4. The wall-mounted mounting bracket for the liquid crystal spliced screen as claimed in claim 1, wherein: an adjusting groove (20) is formed in the surface of the supporting plate (2), an adjusting bolt (21) is arranged in the adjusting groove (20), and the supporting rod (3) is fixedly connected with the adjusting groove (20) through the adjusting bolt (21).
5. The wall-mounted mounting bracket for the liquid crystal spliced screen as claimed in claim 1, wherein: the inner side of the clamping plate (17) is provided with a rubber anti-skid pad (18).
6. The wall-mounted mounting bracket for the liquid crystal spliced screen as claimed in claim 1, wherein: be provided with connecting block (8) on first fixed block (6), threaded connection has fastening bolt (9) on connecting block (8), the regulation base and connecting block (8) fixed connection on fastener (5) left side, fastening bolt (9) fixed connection is passed through with the bottom of connecting block (8) in the top of first fixed block (6).
