CN210844007U

CN210844007U - CRRT removes storage tank

Info

Publication number: CN210844007U
Application number: CN201921461036.4U
Authority: CN
Inventors: 李珊珊; 郭荣荣; 韦巧宁
Original assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Current assignee: First Affiliated Hospital of Medical College of Xian Jiaotong University
Priority date: 2019-09-04
Filing date: 2019-09-04
Publication date: 2020-06-26
Anticipated expiration: 2029-09-04

Abstract

The utility model discloses a CRRT removes storage tank, including supporting box and swivel mount, the middle part is provided with in the supporting box the swivel mount, the swivel mount includes fixed structure's pivot, welding and is in bottom plate and the slip setting of pivot lower part are in change epaxial backup pad. Has the advantages that: the utility model discloses a set up backup pad, stop screw, thread groove and pivot, can realize swivel mount interlamellar spacing's regulation according to the needs of actually depositing, be convenient for realize the make full use of supporting box inner space, through setting up the supporting box and putting the thing platform, realized two unifications of desk and storing frame and used for the device still can be used to official working when realizing storing function, has extended the service function of device.

Description

CRRT removes storage tank

Technical Field

The utility model relates to a medical treatment storage apparatus technical field, concretely relates to CRRT removes storage tank.

Background

CRRT is an english abbreviation for continuous kidney replacement therapy. CBP, also known as bedside hemofiltration. The definition is to use a long-time, continuous extracorporeal blood purification therapy of 24 hours or close to 24 hours per day to replace impaired renal function, wherein during CRRT treatment it is necessary to place some storage racks near the hospital bed to store some treatment articles, and during CRRT treatment it is often necessary for the nursing staff to perform clinical records office work.

However, the storage box for the existing CRRT treatment mainly adopts a fixed structural design, so that the space inside the storage box cannot be fully utilized, the storage box for the existing CRRT treatment only can be used for storing articles, the medical personnel cannot provide convenience in the nursing process, the use function of the storage box is reduced, and therefore, a novel CRRT movable storage box is urgently needed to solve the existing problem.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In order to overcome the prior art not enough, provide a CRRT removal storage tank now, solved current CRRT treatment and mainly adopted fixed structural design with the storage tank for the inside space of storage tank obtains the problem of abundant utilization.

(II) technical scheme

The utility model discloses a following technical scheme realizes: the utility model provides a CRRT removes storage tank, including supporting box and swivel mount, the middle part is provided with in the supporting box the swivel mount, the swivel mount includes fixed structure's pivot, welding and is in bottom plate and the slip setting of pivot lower part are in the epaxial backup pad of pivot, the backup pad bottom is provided with stop screw, the backup pad upper end annular distribution has the baffle.

Furthermore, a thread groove is formed in the peripheral side wall of the rotating shaft, bearings are fixed to the positions, close to the two ends of the rotating shaft, of the supporting box body in a clamping and pressing mode, a box door is arranged on one side wall of the supporting box body, a pull groove is formed in the box door, a containing cavity is formed in the peripheral side wall of the supporting box body, and the box door is connected with the containing cavity in a sliding mode.

By adopting the technical scheme, the box door can slide into the containing cavity so as to take articles from the rotating frame.

Furthermore, the welding of supporting box bottom has the base, there is the universal wheel base bottom four corners department through bolted connection.

Through adopting above-mentioned technical scheme, the base can provide reliable support for the device, the universal wheel is convenient for the nimble removal of device.

Furthermore, the top end of the supporting box body is welded with a storage table, and the periphery of the top end of the storage table is connected with a protective guard through bolts.

By adopting the technical scheme, not only can the medical article be placed on the object placing table, but also the object placing table can be used as an office table top of medical staff, so that the device can be used for working while realizing the storage function, and the using function of the device is expanded.

Furthermore, the bearing is inserted into the rotating shaft, and the bearing is connected with the supporting box body in a clamping and pressing mode.

Through adopting above-mentioned technical scheme, can realize the rotation of fulcrum shaft is convenient for realize the swivel mount rotates to make things convenient for getting of article to take.

Furthermore, the limit screw is connected with the screw groove and the supporting plate through threads.

Through adopting above-mentioned technical scheme, stop screw through with the thread groove cooperation realizes the spacing of backup pad.

Further, the partition plate is connected with the support plate through screws.

By adopting the technical scheme, the partition plate is mainly used for dividing the articles, so that the articles can be conveniently found and taken.

(III) advantageous effects

Compared with the prior art, the utility model, following beneficial effect has:

1. in order to solve the problem that the space in the storage box cannot be fully utilized due to the fact that the conventional storage box for CRRT treatment mainly adopts a fixed structural design, the utility model can realize the adjustment of the interlayer spacing of the rotating frame according to the actual storage requirement by arranging the supporting plate, the limiting screw, the screw groove and the rotating shaft, so that the internal space of the supporting box body can be fully utilized;

2. for solving current CRRT treatment and only can be used for carrying out the storing with the storage tank, can't facilitate at the nursing in-process for medical personnel, reduced the service function's of storage tank problem, the utility model discloses a set up the supporting box body and put the thing platform, realized two unifications of desk and storage rack and used for the device still can be used to official working when realizing storage function, has expanded the service function of device.

Drawings

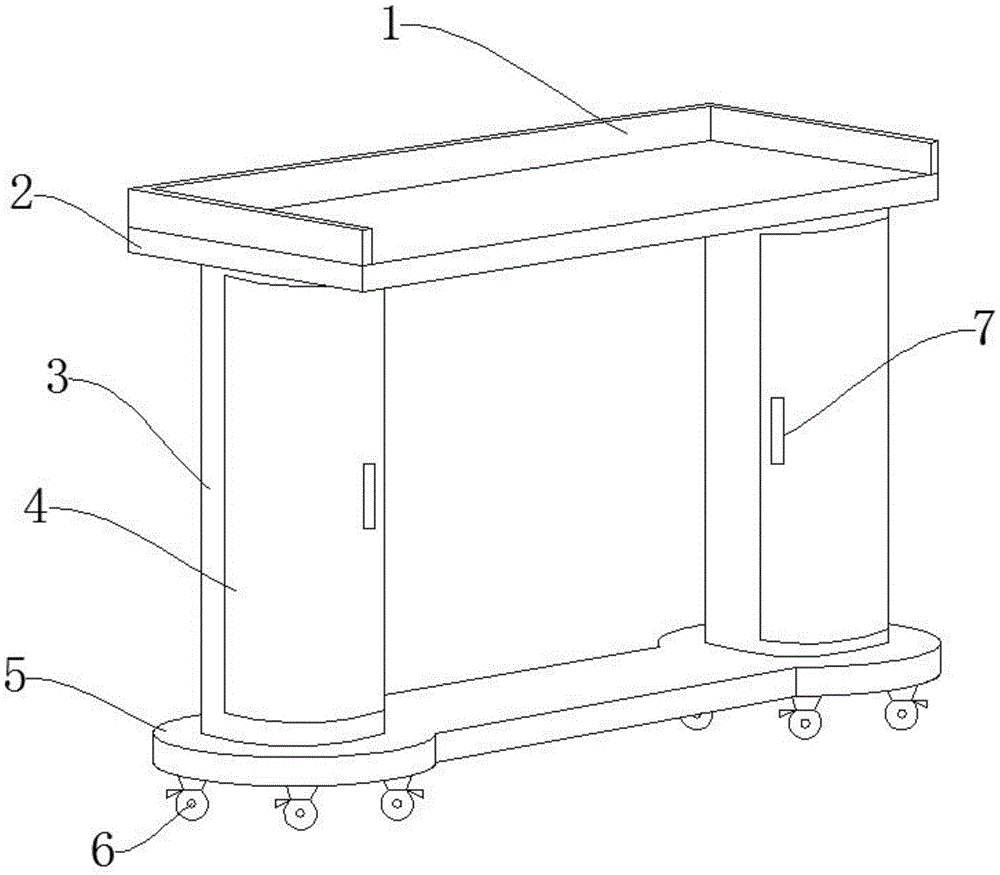

Fig. 1 is a schematic structural view of a CRRT mobile storage box according to the present invention;

fig. 2 is a front sectional view of a support box in a CRRT mobile storage case according to the present invention;

fig. 3 is a sectional view of bowing of support box body in CRRT mobile storage case.

The reference numerals are explained below:

1. protecting the fence; 2. a placing table; 3. supporting the box body; 4. a box door; 5. a base; 6. a universal wheel; 7. groove drawing; 8. a rotating frame; 9. a receiving cavity; 10. a partition plate; 11. a limit screw; 12. a screw groove; 13. a rotating shaft; 14. a support plate; 15. a base plate; 16. and a bearing.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

As shown in fig. 1-3, the CRRT mobile storage box in this embodiment includes a supporting box body 3 and a rotating frame 8, the rotating frame 8 is disposed at the middle inside the supporting box body 3, the rotating frame 8 includes a rotating shaft 13 with a fixed structure, a bottom plate 15 welded at the lower part of the rotating shaft 13, and a supporting plate 14 slidably disposed on the rotating shaft 13, a screw groove 12 is formed on the peripheral sidewall of the rotating shaft 13, bearings 16 are fixed at the two ends of the supporting box body 3 close to the rotating shaft 13 by means of clamping, a limit screw 11 is disposed at the bottom end of the supporting plate 14, partition plates 10 are annularly disposed at the upper end of the supporting plate 14, a base 5 is welded at the bottom end of the supporting box body 3, universal wheels 6 are connected to the four corners at the bottom end of the base 5 by bolts, the base 5 can provide reliable support for the device, the universal wheels 6 facilitate flexible movement of the device, the bearings, can realize the rotation of a pivot 13, be convenient for realize that swivel mount 8 rotates to make things convenient for getting of article to take, stop screw 11 all passes through threaded connection with thread groove 12 and backup pad 14, stop screw 11 is spacing through realizing backup pad 14 with the cooperation of thread groove 12, baffle 10 passes through screwed connection with backup pad 14, baffle 10 mainly is used for cutting apart article, the article of being convenient for are looked for and are got and take.

As shown in fig. 1-3, in this embodiment, a door 4 is disposed on a side wall of the supporting box 3, a pull groove 7 is formed on the door 4, a storage cavity 9 is formed in a peripheral side wall of the supporting box 3, the door 4 is slidably connected to the storage cavity 9, and the door 4 can slide into the storage cavity 9 so as to take articles from the rotating frame 8.

As shown in fig. 1, in this embodiment, the top end of the supporting box body 3 is welded with the object placing table 2, the periphery of the top end of the object placing table 2 is connected with the protective guard 1 through the bolt, and the object placing table 2 can be used for placing medical articles and can be used as an office desk top of medical staff, so that the device can be used for office work while realizing the storage function, and the using function of the device is expanded.

The specific implementation process of this embodiment is as follows: before use, related articles for CRRT treatment are firstly placed on the rotating frame 8, the design of the partition plate 10 can enable the articles on the rotating frame 8 to be placed separately, so that the articles can be conveniently found, the adjustment of the interlayer spacing between the adjacent supporting plates 14 can be realized by adjusting the position of the limiting screw 11 relative to the screw groove 12 according to the actual placing requirement in the placing process, so as to fully utilize the internal space of the supporting box body 3, the practicability of the device is improved, then the device is moved to the corresponding position through the universal wheel 6 according to the CRRT treatment requirement, when the articles need to be taken, the box door 4 is only required to slide into the accommodating cavity 9 through the pull groove 7, and the articles can be found and taken out by shifting the rotating frame 8, the article placing platform 2 not only can be used for placing the articles for medical treatment, but also can be used as an office desk top of medical personnel, the two-in-one use of the office table and the storage rack is realized, so that the device can be used for office work while realizing the storage function, and the use function of the device is expanded.

The above-described embodiments are merely illustrative of the preferred embodiments of the present invention and are not intended to limit the spirit and scope of the present invention. Without departing from the design concept of the present invention, various modifications and improvements made by the technical solution of the present invention by those skilled in the art should fall into the protection scope of the present invention, and the technical contents claimed by the present invention have been fully recorded in the claims.

Claims

1. The utility model provides a CRRT removes storage tank which characterized in that: including supporting box body (3) and swivel mount (8), the middle part is provided with in supporting box body (3) swivel mount (8), swivel mount (8) are in including pivot (13), the welding of fixed structure bottom plate (15) and the slip setting of pivot (13) lower part are in backup pad (14) on pivot (13), backup pad (14) bottom is provided with stop screw (11), annular distribution has baffle (10) in backup pad (14) upper end.

2. The CRRT mobile storage bin according to claim 1, wherein: the improved supporting box is characterized in that a spiral groove (12) is formed in the peripheral side wall of the rotating shaft (13), bearings (16) are arranged at two ends of the rotating shaft (13) and close to the supporting box body (3), a box door (4) is arranged on one side wall of the supporting box body (3), a pull groove (7) is formed in the box door (4), a containing cavity (9) is formed in the peripheral side wall of the supporting box body (3), and the box door (4) is connected with the containing cavity (9) in a sliding mode.

3. The CRRT mobile storage bin according to claim 1, wherein: the bottom welding of supporting box (3) has base (5), there are universal wheel (6) base (5) bottom four corners department through bolted connection.

4. The CRRT mobile storage bin according to claim 1, wherein: the welding of support box (3) top has puts thing platform (2), it has rail guard (1) to put thing platform (2) top periphery through bolted connection.

5. The CRRT mobile storage bin according to claim 2, wherein: the bearing (16) is connected with the rotating shaft (13) in an inserting mode, and the bearing (16) is connected with the supporting box body (3) in a clamping and pressing mode.

6. The CRRT mobile storage bin according to claim 2, wherein: the limiting screw (11) is in threaded connection with the thread groove (12) and the supporting plate (14).

7. The CRRT mobile storage bin according to claim 1, wherein: the partition plate (10) is connected with the support plate (14) through screws.
