An economic management propaganda display device, the utility model relates to the technical field of propaganda equipment; the interior of the base is of a hollow structure, a motor is fixed on the left side of the rear side wall of the base, a driving gear is sleeved on an output shaft of the motor, the front end of the center of the driving gear is rotatably arranged on the front side wall of the base through a rotating shaft, a driven gear is arranged above the driving gear in an engagement manner, the driven gear is connected with a driving wheel above the driven gear through the rotating shaft, the right side of the driving wheel is connected with a driven wheel through a transmission belt, lead screws are connected above the centers of the driving wheel and the driven wheel, the lead screws penetrate through the upper side wall of the base and are rotatably connected with an upper plate, the lead screws are movably connected with a moving sleeve through nuts, an electric push rod is fixed at the front end of the moving sleeve, the front end of the electric push rod is fixed on the rear side surface of the placing device, the display board can be taken for, the practicability is stronger.
Description
Technical Field
The utility model relates to a propaganda equipment technical field, concretely relates to economic management propaganda display device.
Background
Economy is the creation of value, conversion and realization, in social life's development, the management propaganda to economy is favorable to promoting propaganda education, improve work efficiency, realize reasonable organization, the high efficiency propaganda effect of rational planning analysis, therefore, use propaganda display device usually, show economic management's content, so that the common analysis is discussed, propaganda display device in prior art, the support that is fixed mostly demonstrates, the fixed plate is fixed on the support, the show of the propaganda show poster of being not convenient for, single structure, the operation mode of fixed propaganda show product is loaded down with trivial details, fixed propaganda structure, unable reasonable effectual regulation is used, the operation is inconvenient, the bandwagon effect is poor, treat to improve urgently.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's defect and not enough, provide a reasonable in design, convenient to use's economic management propaganda display device, can take the show board and carry out the propaganda show of fixing, the installation is nimble, according to the random height-adjusting of demand, the fore-and-aft direction also can be adjusted, easy operation, convenient to use, the practicality is stronger.
In order to achieve the above object, the utility model adopts the following technical scheme: the novel electric heating cooker comprises a base, a support column and an upper plate, wherein the support column is fixed at the left end and the right end of the base, the top end of the support column is fixed on the bottom surface of the upper plate, the novel electric heating cooker also comprises a driving gear, a driven gear, a transmission belt, a motor, an electric push rod, a fixed column, a movable sleeve and a sliding block, the base is of a hollow structure, the motor is fixed on the left side of the rear side wall of the base, the driving gear is sleeved on an output shaft of the motor, the front end of the center of the driving gear is rotatably arranged on the front side wall of the base through a rotating shaft, the driven gear is arranged above the driving gear in a meshing manner, the driven gear is connected with a driving wheel above the driven gear through the rotating shaft, the right side of the driving wheel is connected with a driven wheel through the transmission belt, the screw rods are connected, the front end of the moving sleeve is fixed with an electric push rod, the front end of the electric push rod is fixed on the rear side face of the placing device, the left end and the right end of the upper surface of the placing device are fixed with fixed columns, the outer movable sleeve of the fixed columns is sleeved with a movable sleeve, the top end of the movable sleeve is fixed with a sliding block, the bottom surface of the upper plate outside the screw rod is fixed with a sliding rail, the sliding block is movably arranged in the sliding rail in the front and back direction, the inner sides of the left side wall and the right side wall of the placing device are provided with side grooves, the placing device at the bottom end of the side grooves is provided with a groove, a display board is movably inserted in the groove, the side edge of the display board.
Furthermore, a mounting plate is fixed in the middle of the upper surface of the display plate, the mounting plate is exposed at the rear side of the display plate, a threaded hole is formed in the middle of the upper surface of the rear side wall of the placement device, a fastening nut is movably arranged on the mounting plate, and the fastening nut penetrates through the mounting plate and is screwed with the threaded hole.
Furthermore, a transparent plastic frame is fixed on the front side surface of the display board, and the upper side wall of the transparent plastic frame is of an open structure.
Furthermore, a non-slip mat is fixed on the bottom surface of the base.
Furthermore, the left end and the right end of the upper surface of the display board are both fixed with a lifting ring.
Furthermore, the outer side of the electric push rod is sleeved with a compression spring, the front end of the compression spring is fixed with the rear side face of the placing device, and the rear end of the compression spring is fixed with the front side face of the movable sleeve.
After the structure is adopted, the utility model discloses beneficial effect does: an economic management propaganda show device, the show board that can take carries out the fixed propaganda show, the installation is nimble, according to the random height-adjusting of demand, the fore-and-aft direction also can be adjusted, easy operation, convenient to use, the practicality is stronger, the utility model has the advantages of set up rationally, the cost of manufacture is low.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

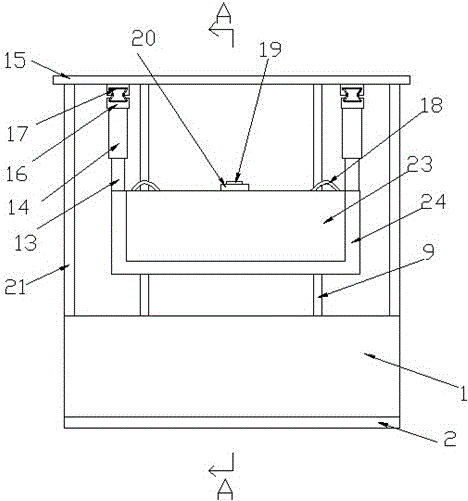

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a cross-sectional view of the present invention.
Fig. 3 is a sectional view taken along line a-a in fig. 1.
Fig. 4 is a schematic view of the connection between the display board and the placement device of the present invention.
Description of reference numerals:
the anti-skid device comprises a base 1, an anti-skid pad 2, a driving gear 3, a transmission belt 4, a driven wheel 5, a driving wheel 6, a driven gear 7, a motor 8, a screw rod 9, a moving sleeve 10, a compression spring 11, an electric push rod 12, a fixed column 13, a movable sleeve 14, an upper plate 15, a sliding block 16, a sliding rail 17, a lifting ring 18, a fastening nut 19, a mounting plate 20, a support column 21, a transparent plastic frame 22, a display plate 23, a placing device 24, a threaded hole 25, a groove 26 and a side groove 27.
Detailed Description
The present invention will be further described with reference to the accompanying drawings.
Referring to fig. 1-4, the technical solution adopted by the present embodiment is: the anti-skid device comprises a base 1, a support 21 and an upper plate 15, wherein the support 21 is fixedly welded at the left end and the right end of the base 1, the top end of the support 21 is fixedly welded on the bottom surface of the upper plate 15, an anti-skid pad 2 is fixedly adhered on the bottom surface of the base 1, the anti-skid device further comprises a driving gear 3, a driven gear 7, a transmission belt 4, a motor 8, an electric push rod 12, a fixed column 13, a movable sleeve 14 and a sliding block 16, the base 1 is of a hollow structure, the motor 8 is fixedly arranged at the left side of the rear side wall of the base 1 through a bolt, the driving gear 3 is sleeved on an output shaft of the motor 8, the front end of the center of the driving gear 3 is rotatably arranged on the front side wall of the base 1 through a rotating shaft, the driven gear 7 is arranged above the driving gear 3 in a meshing manner, the driven gear, a screw rod 9 is connected above the centers of the driving wheel 6 and the driven wheel 5, the screw rod 9 is screwed with an upper plate 15 after penetrating through the upper side wall of the base 1, the screw rod 9 is movably connected with a moving sleeve 10 by a screw nut, the front end of the moving sleeve 10 is fixed with an electric push rod 12 by a bolt, the front end of the electric push rod 12 is riveted and fixed on the rear side surface of a placing device 24, the outer side of the electric push rod 12 is sleeved with a compression spring 11, the front end of the compression spring 11 is riveted and fixed with the rear side surface of the placing device 24, the rear end of the compression spring 11 is riveted and fixed with the front side surface of the moving sleeve 10, the left end and the right end of the upper surface of the placing device 24 are welded and fixed with fixed columns 13, the outer part of the fixed columns 13 is movably sleeved with a movable sleeve 14, the top end of the movable sleeve 14 is riveted and fixed with a slide block, the slide block 16 is movably arranged in the slide rail 17 in the front and back direction, the inner sides of the left and right side walls of the placing device 24 are provided with side grooves 27, the placing device 24 at the bottom end of the side grooves 27 is provided with grooves 26, the display board 23 is movably inserted in the grooves 26, the side edges of the display board 23 are propped against the side grooves 27, the motor 8 and the electric push rod 12 are both connected with an external power supply, the middle of the upper surface of the display board 23 is fixed with a mounting plate 20 through a bolt, the mounting plate 20 is exposed at the rear side of the display board 23, the middle of the upper surface of the rear side wall of the placing device 24 is provided with a threaded hole 25, the mounting plate 20 is movably provided with a fastening nut 19, after the fastening nut 19 passes through the mounting plate 20, the display board 23 is screwed with the threaded hole 25, the transparent plastic frame 22 is fixed on the front side surface of the display board 23 in an adhesive mode, the upper side wall of the transparent plastic frame 22 is of an open structure, and the left end and the right end of the upper surface of the display board 23 are fixedly riveted with the handle rings 18.
The working principle of the specific embodiment is as follows: the display board 23 is taken down, the product to be publicized and shown is placed, the product is plugged into the upper part of the transparent plastic frame 22 and then placed, the lifting ring 18 is taken, the bottom end of the display board 23 is inserted into the groove 26, the side wall is inserted and abutted with the side groove 27, then the fastening nut 19 is utilized to penetrate through the mounting plate 20 and then is connected and fixed with the threaded hole 25 on the placing device 24, the display board 23 can be adjusted in position according to requirements, the motor 8 rotates to drive the driving gear 3 to rotate, the driving gear 3 drives the driven gear 7, the driving wheel 6 on the driven gear 7 rotates, the driving wheel 6 drives the driven wheel 5 to rotate through the driving belt 4, at the moment, the moving sleeve 10 on the screw rod 9 moves up and down on the screw rod 9, the fixed column 13 is movably inserted into the moving sleeve 14, after the proper height is selected and stopped, the electric push rod 12 can be started, the placing device, therefore, the sliding block 16 on the movable sleeve 14 moves back and forth on the sliding rail 17, the product content is displayed more vividly, and the operation is simple and the use is convenient.
After adopting above-mentioned structure, this embodiment beneficial effect does:
1. the motor 8 drives the driving gear 3 to rotate, and the moving sleeve 10 on the screw rod 9 moves up and down, so that the placing device 24 can adjust the height and is simple to operate;
2. the display board 23 is movably arranged in the placing device 24, is flexible to use, convenient to install and higher in practicability.
The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention as long as they do not depart from the spirit and scope of the technical solutions of the present invention.
Claims (6)
1. The utility model provides an economic management propaganda display device, it contains base (1), pillar (21) and top plate (15), and both ends all are fixed with pillar (21) about base (1), and the bottom surface at top plate (15), its characterized in that are fixed on the top of pillar (21): the novel electric bicycle is characterized by further comprising a driving gear (3), a driven gear (7), a transmission belt (4), a motor (8), an electric push rod (12), a fixed column (13), a movable sleeve (14) and a sliding block (16), wherein the base (1) is of a hollow structure, the motor (8) is fixed on the left side of the rear side wall of the base (1), the driving gear (3) is sleeved on an output shaft of the motor (8), the front end of the center of the driving gear (3) is rotatably arranged on the front side wall of the base (1) through a rotating shaft, the driven gear (7) is arranged above the driving gear (3) in a meshing mode, the driven gear (7) is connected with a driving wheel (6) above the driven gear through the rotating shaft, the right side of the driving wheel (6) is connected with the driven wheel (5) through the transmission belt (4), and lead screws (9), the screw rod (9) penetrates through the upper side wall of the base (1) and then is connected with the upper plate (15) in a screwing mode, a moving sleeve (10) is movably connected onto the screw rod (9) through a nut, an electric push rod (12) is fixed at the front end of the moving sleeve (10), the front end of the electric push rod (12) is fixed on the rear side face of a placing device (24), fixing columns (13) are fixed at the left end and the right end of the upper surface of the placing device (24), a moving sleeve (14) is movably sleeved outside the fixing columns (13), a sliding block (16) is fixed at the top end of the moving sleeve (14), a sliding rail (17) is fixed on the bottom face of the upper plate (15) on the outer side of the screw rod (9), the sliding block (16) is movably arranged in the sliding rail (17) in a front-back mode, side grooves (27) are formed in the inner sides of the left side wall and the right side wall of the placing device (24), the display board (23) is movably inserted into the groove (26), the side edge of the display board (23) is abutted against the side groove (27), and the motor (8) and the electric push rod (12) are connected with an external power supply.
2. The economic management publicity display device of claim 1, wherein: the middle of the upper surface of the display board (23) is fixedly provided with a mounting plate (20), the mounting plate (20) is exposed at the rear side of the display board (23), the middle of the upper surface of the rear side wall of the placing device (24) is provided with a threaded hole (25), the mounting plate (20) is movably provided with a fastening nut (19), and the fastening nut (19) is screwed with the threaded hole (25) after penetrating through the mounting plate (20).
3. The economic management publicity display device of claim 1, wherein: a transparent plastic frame (22) is fixed on the front side surface of the display board (23), and the upper side wall of the transparent plastic frame (22) is of an open structure.
4. The economic management publicity display device of claim 1, wherein: the bottom surface of the base (1) is fixed with a non-slip mat (2).
5. The economic management publicity display device of claim 1, wherein: the left end and the right end of the upper surface of the display board (23) are respectively fixed with a lifting ring (18).
6. The economic management publicity display device of claim 1, wherein: the outer side of the electric push rod (12) is sleeved with a compression spring (11), the front end of the compression spring (11) is fixed with the rear side face of the placing device (24), and the rear end of the compression spring (11) is fixed with the front side face of the movable sleeve (10).
