Abstract

The utility model discloses an indoor humidifying device, comprising a casing, a water storage tank is welded on the right side of the inner cavity of the casing, a fan is fixedly installed on the left side of the water tank, and a tee pipe is communicated with the bottom of the fan, so the The left side of the bottom of the three-way pipe is communicated with a sealing box, the bottom of the sealing box is welded with the bottom of the inner cavity of the shell, and a purification box is inserted into the front of the sealing box; The setting of the through pipe, the sealing box, the purification box, the adsorption box, the activated carbon adsorption plate and the bamboo charcoal fiber adsorption plate has the advantages of improving the air environment, and solves the problem that the existing humidification device on the market has a single function and only has the humidification function. The indoor air of many families does not meet the standard, so it is necessary to equip with air purification equipment, which not only increases the cost but also increases the floor space, which has a certain impact on the indoor layout.

Description

An indoor humidifier

technical field

The utility model relates to the technical field of humidification devices, in particular to an indoor humidification device.

Background technique

A humidifier is a household appliance that increases the humidity of a room. A humidifier can humidify a designated room, or it can be connected to a boiler or central air conditioning system to humidify the entire building, thereby changing the humidity in the air.

The existing humidification devices on the market have a single function and only have the humidification function. Now the indoor air of many households does not meet the standard, so they also need to be equipped with air purification equipment, which not only increases the cost but also increases the area of the indoor layout. Certain influence, for this reason, we propose an indoor air humidification device to solve this problem.

Utility model content

In view of the above problems, the utility model provides an indoor humidifying device, which solves the problem that the existing humidifying device has a single function and only has a humidifying function. Now the indoor air of many households does not meet the standard, so it needs to be equipped with air purification equipment, which not only increases the The cost also increases the floor space, which has a certain impact on the layout of the interior.

The technical solution of the present utility model for solving the technical problem is as follows:

An indoor humidification device comprises a casing, a water tank is welded on the right side of the inner cavity of the casing, a fan is fixedly installed on the left side of the water tank, a tee pipe is communicated with the bottom of the fan, and the bottom of the tee pipe is The left side is connected with a sealing box, the bottom of the sealing box is welded with the bottom of the inner cavity of the shell, a purification box is inserted into the front of the sealing box, the interior of the purification box is filled with purification liquid, and the front of the purification box penetrates The shell extends to the outside of the shell, an adsorption box is welded on the left side of the inner cavity of the shell and located on the top of the sealing box, and the bottom of the adsorption box penetrates the sealing box through a conduit and extends to the inner cavity of the purification box and purification box. The purified liquid inside the box is in contact, and an activated carbon adsorption plate and a bamboo charcoal fiber adsorption plate are respectively fixedly installed on the inner wall of the adsorption box.

Further, an atomizing box is welded on the bottom of the inner cavity of the casing and located on the right side of the sealing box, a float switch is fixedly installed on the left side of the inner cavity of the atomizing box, and the bottom of the inner cavity of the atomizing box is fixed. An atomizing device is installed, and the top of the atomizing box communicates with the right side of the bottom of the three-way pipe.

Preferably, a water inlet pipe is connected to the top of the right side of the water tank, the end of the water inlet pipe away from the water tank penetrates the casing and extends to the outside of the casing, and a pipe cover is hinged on the right side of the top of the water inlet pipe.

Further, a fixing plate is welded in the inner cavity of the casing and above the fan, and an air outlet pipe is connected to the top of the fan, and the top end of the air outlet pipe penetrates the fixing plate and extends to the top bearing support of the fixing plate. There is a sleeve, the top end of the sleeve penetrates through the casing and extends to the outside of the casing, and is connected with a spray head.

Further, a water outlet pipe is communicated with the right side of the bottom of the water tank, the end of the water outlet pipe away from the water tank is communicated with the top of the right side of the atomization box, and the surface of the water outlet pipe is communicated with a solenoid valve.

Further, a driven wheel is welded on the surface of the sleeve, a motor is fixedly installed on the left side of the inner cavity of the casing and below the fixed plate, and the output shaft of the motor penetrates through the fixed plate and extends to the top of the fixed plate for welding. There is a driving wheel, and the driving wheel and the driven wheel are connected by a belt drive.

Further, an air inlet pipe is communicated with the top of the adsorption box, and an end of the air inlet pipe away from the adsorption box penetrates the casing and extends to the outside of the casing and is connected with a dust cover.

The effects provided in the content of the utility model are only the effects of the embodiments, not all the effects of the utility model. One of the above-mentioned technical solutions has the following advantages or beneficial effects:

1. The utility model has the advantages of improving the air environment through the setting of the casing, the water tank, the fan, the three-way pipe, the sealing box, the purification box, the adsorption box, the activated carbon adsorption plate and the bamboo charcoal fiber adsorption plate, and solves the problem of The existing humidification device has a single function and only has the humidification function. Now the indoor air of many households does not meet the standard, so it is necessary to install air purification equipment, which not only increases the cost but also increases the floor space, which has a certain impact on the indoor layout. The problem.

2. Through the arrangement of the atomizing box, the float switch and the atomizing device, the present invention enables the float switch to monitor the water level in the atomizing box in real time while the atomizing device causes the water level in the atomizing box to drop during operation. The liquid level position, when the water level is too low, can control the solenoid valve to add water to the atomizing box. Through the setting of the water inlet pipe and the pipe cover, it is convenient for the user to add clean water to the water tank and prevent dust and impurities from falling, ensuring that The normal operation of the atomizing device, through the setting of the solenoid valve and the water outlet pipe, can enable the solenoid valve to control the opening and closing of the water outlet pipe, which facilitates the water addition work.

3. The utility model can make the atomized gas humidify outward through the nozzle through the arrangement of the casing and the nozzle, and through the arrangement of the motor, the driving wheel and the driven wheel, the casing can be driven, and the motor can drive the casing to rotate to atomize the gas. The gas is dispersed and discharged to increase the atomization effect and accelerate the effect of indoor humidification. The setting of the dust cover can effectively prevent large particles of foreign matter from entering the intake pipe and prevent the adsorption box from being blocked.

Description of drawings

Fig. 1 is the structural representation of the utility model;

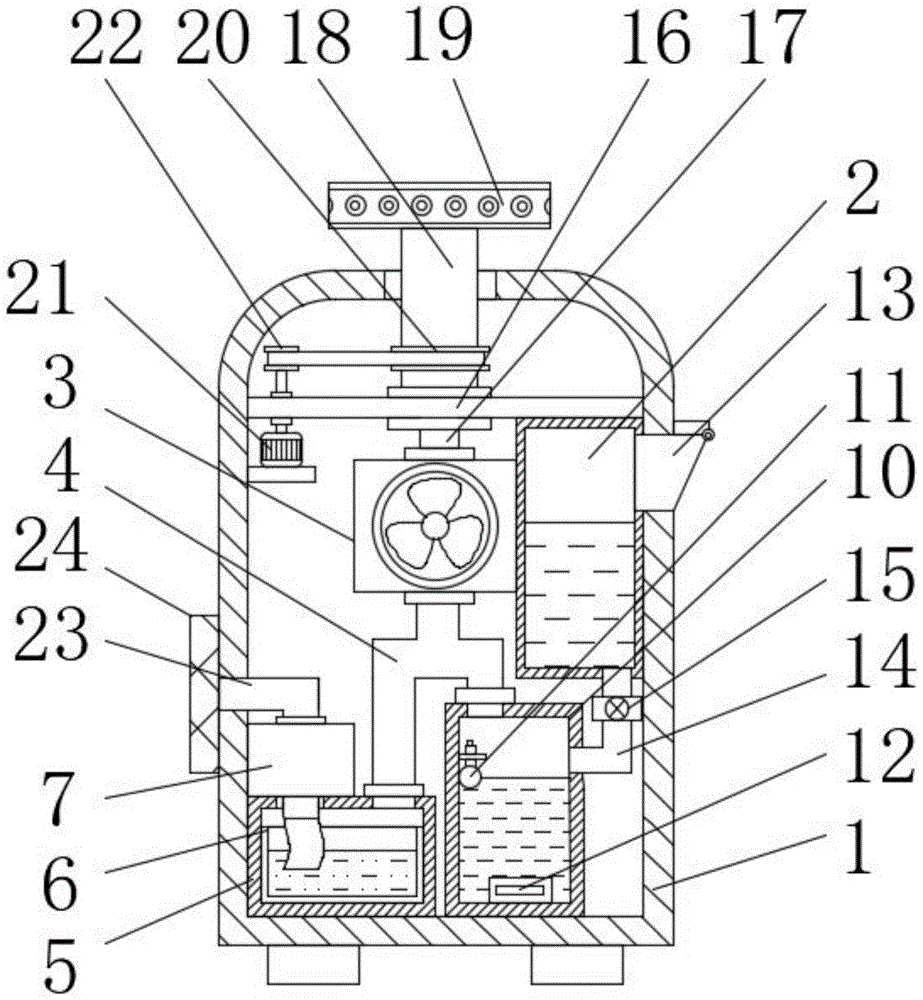

Fig. 2 is the front sectional view of the utility model structure;

3 is a partial front sectional view of the adsorption box of the present invention;

Figure 4 is a partial right side sectional view of the sealed box of the utility model;

In the picture: 1. Shell, 2. Water tank, 3. Fan, 4. Three-way pipe, 5. Sealed box, 6. Purification box, 7. Adsorption box, 8. Activated carbon adsorption board, 9. Bamboo charcoal fiber adsorption board, 10. Atomization box, 11, Float switch, 12, Atomization device, 13, Inlet pipe, 14, Outlet pipe, 15, Solenoid valve, 16, Fixed plate, 17, Outlet pipe, 18, Sleeve, 19 , Nozzle, 20, driven wheel, 21, motor, 22, driving wheel, 23, intake pipe, 24, dust cover.

Detailed ways

In order to clearly illustrate the technical features of the present solution, the present utility model will be described in detail below through specific embodiments and in conjunction with the accompanying drawings. The following disclosure provides many different embodiments or examples for implementing different structures of the invention. In order to simplify the disclosure of the present invention, the components and arrangements of specific examples are described below. Furthermore, the present disclosure may repeat reference numerals and/or letters in different instances. This repetition is for the purpose of simplicity and clarity and does not in itself indicate a relationship between the various embodiments and/or arrangements discussed. It should be noted that the components illustrated in the figures are not necessarily drawn to scale. Descriptions of well-known components and processing techniques and processes are omitted from the present invention to avoid unnecessarily limiting the present invention.

Please refer to Figures 1-4, an indoor humidification device, including a casing 1, a water storage tank 2 is welded on the right side of the inner cavity of the casing 1, a fan 3 is fixedly installed on the left side of the water tank 2, and a tee is connected to the bottom of the fan 3 Pipe 4, the left side of the bottom of the tee pipe 4 is connected with a sealing box 5, the bottom of the sealing box 5 is welded with the bottom of the inner cavity of the shell 1, the front of the sealing box 5 is inserted with a purification box 6, and the interior of the purification box 6 is filled with Purification liquid, the front of the purification box 6 penetrates through the shell 1 and extends to the outside of the shell 1, the left side of the inner cavity of the shell 1 and the top of the sealing box 5 is welded with an adsorption box 7, and the bottom of the adsorption box 7 is penetrated by a conduit The inner cavity of the sealed box 5 and extending to the purification box 6 contacts with the purification liquid inside the purification box 6, and the inner wall of the adsorption box 7 is fixedly installed with an activated carbon adsorption plate 8 and a bamboo charcoal fiber adsorption plate 9 respectively. The fan 3, the tee pipe 4, the sealing box 5, the purification box 6, the adsorption box 7, the activated carbon adsorption plate 8 and the bamboo charcoal fiber adsorption plate 9 have the advantages of improving the air environment and solve the existing humidification in the market. The device has a single function and only has a humidification function. Now the indoor air of many families does not meet the standard, so it is necessary to equip with air purification equipment, which not only increases the cost but also increases the floor space, which has a certain impact on the indoor layout.

In this embodiment, specifically, an atomizing box 10 is welded on the bottom of the inner cavity of the housing 1 and located on the right side of the sealing box 5 , and a float switch 11 is fixedly installed on the left side of the inner cavity of the atomizing box 10 . 10 The bottom of the inner cavity is fixedly installed with an atomizing device 12, and the top of the atomizing box 10 is communicated with the right side of the bottom of the three-way pipe 4. The setting of the atomizing box 10, the float switch 11 and the atomizing device 12 plays a When the atomizing device 12 is working, the water level in the atomizing box 10 is lowered, and the float switch 11 can monitor the liquid level position of the clean water in the atomizing box 10 in real time, and when the water level is too low, it can control the solenoid valve 15 to atomize. Add water to the tank 10.

In this embodiment, specifically, a water inlet pipe 13 is connected to the top of the right side of the water tank 2 , and the end of the water inlet pipe 13 away from the water tank 2 penetrates the casing 1 and extends to the outside of the casing 1 , and the right side of the top of the water inlet pipe 13 is hinged with a water inlet pipe 13 . The pipe cover, through the arrangement of the water inlet pipe 13 and the pipe cover, can facilitate the user to add clean water to the water tank 2 and prevent dust and impurities from falling, so as to ensure the normal operation of the atomizing device 12 .

In this embodiment, specifically, a water outlet pipe 14 is communicated with the right side of the bottom of the water tank 2, one end of the water outlet pipe 14 away from the water tank 2 is communicated with the top of the right side of the atomizing box 10, and a solenoid valve 15 is communicated with the surface of the water outlet pipe 14. Through the arrangement of the electromagnetic valve 15 and the water outlet pipe 14 , the electromagnetic valve 15 can control the opening and closing of the water outlet pipe 14 , which facilitates the water addition work.

In this embodiment, specifically, a fixing plate 16 is welded to the inner cavity of the casing 1 and is located above the fan 3 , the top of the fan 3 is connected with an air outlet duct 17 , and the top of the air outlet duct 17 penetrates the fixing plate 16 and extends to the The top bearing of the fixed plate 16 supports a sleeve 18, the top of the sleeve 18 penetrates through the casing 1 and extends to the outside of the casing 1 and is connected to a spray head 19. Through the arrangement of the sleeve 18 and the spray head 19, the atomized gas can pass through. The spray head 19 is humidified outward.

In this embodiment, specifically, a driven wheel 20 is welded on the surface of the sleeve 18 , a motor 21 is fixedly installed on the left side of the inner cavity of the housing 1 and below the fixing plate 16 , and the output shaft of the motor 21 penetrates the fixing plate 16 and Extending to the top of the fixed plate 16 is welded with a driving wheel 22. The driving wheel 22 is connected with the driven wheel 20 through a belt drive. Through the setting of the motor 21, the driving wheel 22 and the driven wheel 20, the sleeve 18 is driven, so that the motor 21 can drive the sleeve 18. The tube 18 rotates to disperse and discharge the atomized gas, so as to increase the atomization effect and speed up the humidification in the room.

In this embodiment, specifically, the top of the adsorption box 7 is communicated with an air intake pipe 23, and the end of the air intake pipe 23 away from the adsorption box 7 penetrates the casing 1 and extends to the outside of the casing 1 and is connected to a dust cover 24. The setting of the cover 24 can effectively prevent the large particles of foreign matter from entering the intake pipe 23 and prevent the adsorption box 7 from being blocked.

The specific working process: the device is powered by an external power supply, and is started by an external controller, the fan 3 extracts the gas in the sealing box 5 through the tee pipe 4, and a negative pressure is generated inside the sealing box 5 at this time, Therefore, under the action of atmospheric pressure, the outside gas is pressed into the three-way pipe 4, and when the gas passes through the adsorption box 7, the adsorption of the activated carbon adsorption plate 8 and the bamboo charcoal fiber adsorption plate 9 can be obtained, and the gas contained in the gas can be adsorbed. Harmful substances such as formaldehyde are adsorbed, and then the gas is injected into the purification box 6 through the hose conduit, and contacts with the purification liquid. The purification liquid removes most of the harmful impurities and solid particles in the gas, and the purified gas passes through three. The through pipe 4, the fan 3, the air outlet pipe 17, the casing 18 and the nozzle 19 are sprayed out, and during the purification process, the atomizing device 12 can atomize the clean water in the atomizing box 10, making it a water vapor suspension In the atomization box 10, when there is air passing through the tee pipe 4, a negative pressure will be generated inside the atomization box 10, so that the water vapor will be brought from the atomization box 10 to the tee pipe 4, and the water vapor will eventually flow from the atomization box 10. The water is discharged from the spray head 19, thereby humidifying the air in the room, and the float switch 11 can monitor the liquid level position of the clean water in the atomizing box 10 in real time. When the water volume is too low, the float switch 11 controls the solenoid valve 15 to open. When the clean water in the water storage tank 2 flows into the atomization box 10 through the water outlet pipe 14, water is added to ensure the normal progress of the atomization work. Rotate to disperse the atomized gas to increase the atomization effect.

The control method of the application document is automatically controlled by the controller, and the control circuit of the controller can be realized by simple programming by those skilled in the art, which belongs to the common knowledge in the field, and the application document is mainly used to protect the mechanical device, so This application document will not explain the control method and circuit connection in detail.

Although the specific embodiments of the utility model are described above in conjunction with the accompanying drawings, they are not intended to limit the protection scope of the present utility model. On the basis of the technical solutions of the present utility model, those skilled in the art can make the Various modifications or deformations are still within the protection scope of the present invention.

Claims (7)

1. An indoor humidification device, includes casing (1), its characterized in that: the right side of the inner cavity of the shell (1) is welded with a water storage tank (2), the left side of the water tank (2) is fixedly provided with a fan (3), the bottom of the fan (3) is communicated with a three-way pipe (4), the left side of the bottom of the three-way pipe (4) is communicated with a seal box (5), the bottom of the seal box (5) is welded with the bottom of the inner cavity of the shell (1), a purification box (6) is inserted into the front of the seal box (5), the purification box (6) is filled with purification liquid, the front of the purification box (6) penetrates through the shell (1) and extends to the outside of the shell (1), an adsorption box (7) is welded on the left side of the inner cavity of the shell (1) and is positioned at the top of the seal box (5), the bottom of the adsorption box (7) penetrates through a guide pipe and extends to the inner cavity of the purification box (6) to be contacted with the purification liquid inside the, the inner wall of the adsorption box (7) is respectively and fixedly provided with an activated carbon adsorption plate (8) and a bamboo charcoal fiber adsorption plate (9).

2. An indoor humidifying device as claimed in claim 1, wherein: the bottom of casing (1) inner chamber and the right side welding that is located seal box (5) have atomizer box (10), the left side fixed mounting of atomizer box (10) inner chamber has float switch ware (11), the bottom fixed mounting of atomizer box (10) inner chamber has atomizer (12), the top of atomizer box (10) and the right side intercommunication of three-way pipe (4) bottom.

3. An indoor humidifying device as claimed in claim 1, wherein: the top intercommunication on water tank (2) right side has inlet tube (13), and the one end that water tank (2) were kept away from in inlet tube (13) runs through casing (1) and extends to the outside of casing (1), the right side at inlet tube (13) top articulates there is the tube cap.

4. An indoor humidifying device as claimed in claim 2, wherein: the right side of water tank (2) bottom intercommunication has outlet pipe (14), the one end that water tank (2) were kept away from in outlet pipe (14) communicates with the top on atomizer box (10) right side, the surface intercommunication of outlet pipe (14) has solenoid valve (15).

5. An indoor humidifying device as claimed in claim 1, wherein: the inner chamber of casing (1) and the top welding that is located fan (3) have fixed plate (16), the top intercommunication of fan (3) has air-out pipe (17), the top that air-out pipe (17) runs through fixed plate (16) and extends to fixed plate (16) supports there is sleeve pipe (18), the outside intercommunication that the top of sleeve pipe (18) runs through casing (1) and extends to casing (1) has shower nozzle (19).

6. An indoor humidifying device as claimed in claim 5, wherein: the skin weld of sleeve pipe (18) has from driving wheel (20), the below fixed mounting that just is located fixed plate (16) in the left side of casing (1) inner chamber has motor (21), the output shaft of motor (21) runs through fixed plate (16) and extends to the top welding of fixed plate (16) and has action wheel (22), action wheel (22) are connected through belt transmission with following driving wheel (20).

7. An indoor humidifying device as claimed in claim 1, wherein: the top intercommunication of adsorption tank (7) has intake pipe (23), the one end that adsorption tank (7) were kept away from in intake pipe (23) runs through casing (1) and extends to the outside intercommunication of casing (1) has dust cover (24).
