CN210831720U

CN210831720U - Multi-angle foldable clothing design equipment

Info

Publication number: CN210831720U
Application number: CN201922312950.9U
Authority: CN
Inventors: 李旭
Original assignee: Chongqing City Management College
Current assignee: Chongqing City Management College
Priority date: 2019-12-20
Filing date: 2019-12-20
Publication date: 2020-06-23
Anticipated expiration: 2029-12-20

Abstract

The utility model discloses a folding dress designing equipment of multi-angle, including bottom plate, lighting mechanism, adjustment mechanism and fixed plate, the upper surface of bottom plate has adjustment mechanism at mid-mounting, adjustment mechanism's top is rotated and is installed the fixed plate, lighting mechanism is installed to the top of fixed plate, the collecting box is installed at adjustment mechanism's side to the upper surface avris of bottom plate, adjustment mechanism includes inner tube, outer tube and pivot at least, inner tube and outer tube telescopic connection, and inside the bottom of inner tube stretches into along the top of outer tube, the top of inner tube vertically runs through and installs the pivot, pivot and inner tube fixed connection, and the both ends of pivot rotate respectively and connect the fixed block, the vertical symmetric distribution of fixed block is in the both sides of inner tube, and the bottom face weld of fixed block and fixed plate. This dress designing equipment that multi-angle is folding, rational in infrastructure, it is convenient to adjust, and functional strong, can extensively promote.

Description

Multi-angle foldable clothing design equipment

Technical Field

The utility model belongs to the technical field of dress designing, concretely relates to folding dress designing equipment of multi-angle.

Background

The clothing design belongs to the field of industrial art, and is an artistic form combining practicability and artistry. Design (Design) means plan, conception, and set-up plan, including image, drawing, and modeling, and the definition of clothing Design is creative plan and creation behavior for solving the problems of people wearing living systems. It is an extremely wide marginal discipline in the field, closely related to social science and natural science such as literature, art, history, philosophy, religion, aesthetics, psychology, physiology, ergonomics and the like. As a comprehensive art, the clothing design has common practical art, but has the characteristics of content, form and expression means.

At present, when the clothes are designed, the drawing board is mostly supported by the supporting device, the existing supporting device mostly only plays a role in supporting, the functionality is lower, the adjusting can not be carried out according to the use requirement, and the further improvement is needed.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a folding dress designing equipment of multi-angle to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a multi-angle foldable clothing design apparatus comprises a bottom plate, an illuminating mechanism, an adjusting mechanism and a fixing plate, wherein the adjusting mechanism is arranged in the middle of the upper surface of the bottom plate, the fixing plate is rotatably arranged above the adjusting mechanism, the illuminating mechanism is arranged above the fixing plate, and a collecting box is arranged on the side of the adjusting mechanism on the side of the upper surface of the bottom plate;

the adjusting mechanism at least comprises an inner pipe, an outer pipe and a rotating shaft, the inner pipe is in telescopic connection with the outer pipe, the bottom of the inner pipe extends into the outer pipe along the top of the outer pipe, the rotating shaft longitudinally penetrates through the top end of the inner pipe and is fixedly connected with the inner pipe, the two ends of the rotating shaft are respectively rotatably connected with fixing blocks, the fixing blocks are vertically and symmetrically distributed on the two sides of the inner pipe, and the fixing blocks are welded with the bottom end face of the fixing plate;

folding plates are hinged to the side walls of the two sides of the fixed plate, and the folding plates turn towards the inside of the fixed plate;

the illuminating mechanism at least comprises a placing plate fixedly connected above the fixing plate and an illuminating lamp connected with the placing plate in a sliding mode, a placing groove is formed in the top end face of the placing plate horizontally, a sliding rod is fixedly mounted inside the placing groove, a sliding block is sleeved outside the sliding rod in a sliding mode, and the sliding block is fixedly connected with the illuminating lamp through a support.

Preferably, the slider is a hollow cylindrical tubular structure with openings at two ends, and a limit block is convexly arranged on the inner wall.

Preferably, the inner walls of the placing grooves are fixedly connected to the rod walls at the two ends of the sliding rod, the limiting grooves for the limiting blocks to extend into are horizontally formed in the outer wall of the sliding rod along the length direction, and the limiting blocks are connected with the limiting grooves in a sliding mode.

Preferably, the bottom of fixed block still an organic whole constructs there is the connecting block, vertical threaded mounting has positioning bolt on the connecting block, positioning bolt passes the outer wall of connecting block butt inner tube.

Preferably, a plurality of groups of slots are vertically arranged on the outer wall of the inner pipe in an array mode, and limiting pins extending into the slots are longitudinally arranged on the outer wall of the outer pipe.

Preferably, the bracket is a bendable gooseneck.

The utility model discloses a technological effect and advantage: this multi-angle folding dress designing equipment, setting up through lighting mechanism effectively promotes the service function nature of this equipment, when the environment that light is not good uses, effectively promote luminance, and can transversely slide the light through the slider, when the drawing board volume is great, carry out the pertinence and shine, therefore, the clothes hanger is strong in practicability, position through adjusting the setting of structure but the multi-angle adjustment fixed plate, adjust the posture according to the design hobby, promote the travelling comfort of design drawing, this multi-angle folding dress designing equipment, and is rational in infrastructure, adjust conveniently, and is functional strong, can extensively promote.

Drawings

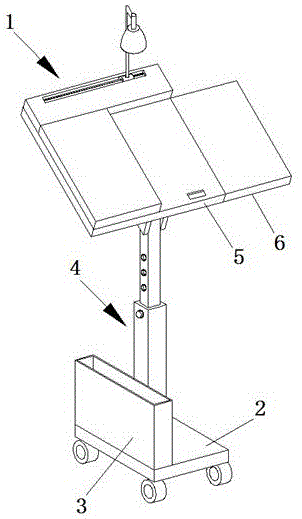

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of an adjusting mechanism of the present invention;

fig. 3 is a schematic structural view of the illumination mechanism of the present invention.

In the figure: the device comprises a lighting mechanism 1, a bottom plate 2, a collecting box 3, an adjusting mechanism 4, a fixing plate 5, a folding plate 6, a positioning bolt 7, a connecting block 8, an outer tube 9, a limiting pin 10, a rotating shaft 12, a fixing block 13, a slot 14, an inner tube 15, a support 16, a lighting lamp 17, a placing plate 18, a sliding block 19, a placing groove 20 and a sliding rod 21.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides a multi-angle foldable clothing design equipment as shown in figures 1-3, which comprises a bottom plate 2, a lighting mechanism 1, an adjusting mechanism 4 and a fixing plate 5, wherein the adjusting mechanism 4 is arranged in the middle of the upper surface of the bottom plate 2, the fixing plate 5 is rotatably arranged above the adjusting mechanism 4, the lighting mechanism 1 is arranged above the fixing plate 5, and a collecting box 3 is arranged at the side of the adjusting mechanism 4 at the side of the upper surface of the bottom plate 2;

the adjusting mechanism 4 at least comprises an inner tube 15, an outer tube 9 and a rotating shaft 12, the inner tube 15 is in telescopic connection with the outer tube 9, the bottom of the inner tube 15 extends into the outer tube 9 along the top of the outer tube, the rotating shaft 12 is longitudinally arranged at the top end of the inner tube 15 in a penetrating mode, the rotating shaft 12 is fixedly connected with the inner tube 15, two ends of the rotating shaft 12 are respectively rotatably connected with fixing blocks 13, the fixing blocks 13 are vertically and symmetrically distributed on two sides of the inner tube 15, and the fixing blocks 13 are welded with the bottom end face of the fixing plate 5;

folding plates 6 are hinged to the side walls of the two sides of the fixing plate 5, and the folding plates 6 turn towards the inside of the fixing plate 5;

the lighting mechanism 1 at least comprises a placing plate 18 fixedly connected above the fixing plate 5 and a lighting lamp 17 connected with the placing plate 18 in a sliding mode, a placing groove 20 is horizontally formed in the top end face of the placing plate 18, a sliding rod 21 is fixedly installed inside the placing groove 20, a sliding block 19 is sleeved outside the sliding rod 21 in a sliding mode, the sliding block 19 is fixedly connected with the lighting lamp 17 through a support 16, and the using functionality of the equipment is effectively improved through the setting of the lighting mechanism 1.

Specifically, the slider 19 is a hollow cylinder tubular structure with two open ends, and the inner wall is provided with a limiting block in a protruding manner, and the sliding direction of the slider 19 is stabilized by the limiting block and the limiting groove.

Specifically, the equal fixed connection standing groove 20's of both ends pole wall of slide bar 21 inner wall, and set up the spacing groove that supplies the stopper to stretch into along length direction level on the outer wall of slide bar 21, stopper and spacing groove sliding connection.

Specifically, the bottom of fixed block 13 still an organic whole is constructed there is connecting block 8, positioning bolt 7 is installed to vertical screw thread on the connecting block 8, positioning bolt 7 passes the outer wall of connecting block 8 butt inner tube 15, and positioning bolt 7 butt inner tube 15's outer wall is fixed with fixed plate 5 after the slope.

Specifically, a plurality of groups of slots 14 are formed in the outer wall of the inner tube 15 in a vertical array mode, the outer wall of the outer tube 9 is longitudinally provided with a limiting pin 10 extending into the slots 14, the inner tube 15 rises to a required height along the inner wall of the outer tube 9, the limiting pin 10 is inserted into the outer tube 9 and extends into the slots 14, the inner tube 15 is fixed with the outer tube 9, and the height of the fixing plate 5 is adjusted.

Specifically, the bracket 16 is a bendable gooseneck, and the swinging direction of the bracket is consistent with that of the table lamp in the prior art.

Specifically, when the multi-angle foldable clothing design equipment is used, the bottom plate 2 is moved to a required position, then the inner tube 15 is stretched, after the inner tube 15 rises to a required height along the inner wall of the outer tube 9, the limiting pin 10 is inserted into the outer tube 9 and extends into the slot 14, the inner tube 15 is fixed with the outer tube 9, the height of the fixing plate 5 is adjusted, then the fixing plate 5 is rotated, the fixing plate 5 takes the rotating shaft 12 as a supporting point to adjust the angle, the connecting block 8, the fixing block 13 and the fixing plate 5 rotate synchronously, then the positioning bolt 7 is screwed, the positioning bolt 7 is abutted against the outer wall of the inner tube 15, the inclined fixing plate 5 is fixed, the fixing block 13 is annularly turned over by taking the rotating shaft 12 as a circle center, then the folding plate 6 is unfolded from the upper part of the fixing plate 5, a clothing design drawing board is placed on the folding plate, a limiting plate, the limiting plate is accomodate in the upset when not using, opens light 17 afterwards, if the volume of drawing board is when great, the accessible removes slider 19 and drives light 17 horizontal adjusting position, effectively promotes the permeability of drawing board, and collecting box 3 can be used to collect relevant appliances such as drawings, and the practicality is strong, and this dress designing equipment that the multi-angle is folding, and is rational in infrastructure, adjusts the facility, and functional strong can extensively promote.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides a folding dress designing equipment of multi-angle, includes bottom plate (2), lighting mechanism (1), adjustment mechanism (4) and fixed plate (5), its characterized in that: an adjusting mechanism (4) is arranged in the middle of the upper surface of the bottom plate (2), a fixing plate (5) is rotatably arranged above the adjusting mechanism (4), an illuminating mechanism (1) is arranged above the fixing plate (5), and a collecting box (3) is arranged on the side of the adjusting mechanism (4) on the side of the upper surface of the bottom plate (2);

the adjusting mechanism (4) at least comprises an inner tube (15), an outer tube (9) and a rotating shaft (12), the inner tube (15) is in telescopic connection with the outer tube (9), the bottom of the inner tube (15) extends into the inner tube along the top of the outer tube (9), the rotating shaft (12) is longitudinally installed at the top end of the inner tube (15) in a penetrating mode, the rotating shaft (12) is fixedly connected with the inner tube (15), the two ends of the rotating shaft (12) are respectively rotatably connected with fixing blocks (13), the fixing blocks (13) are vertically and symmetrically distributed on the two sides of the inner tube (15), and the fixing blocks (13) are welded with the bottom end face of the fixing plate (5);

folding plates (6) are hinged to the side walls of the two sides of the fixing plate (5), and the folding plates (6) turn towards the inside of the fixing plate (5);

the illuminating mechanism (1) at least comprises a placing plate (18) fixedly connected above the fixing plate (5) and an illuminating lamp (17) connected with the placing plate (18) in a sliding mode, a placing groove (20) is formed in the top end face of the placing plate (18) horizontally, a sliding rod (21) is fixedly installed inside the placing groove (20), a sliding block (19) is sleeved outside the sliding rod (21) in a sliding mode, and the sliding block (19) is fixedly connected with the illuminating lamp (17) through a support (16).

2. The multi-angle foldable clothing design equipment as claimed in claim 1, wherein: the sliding block (19) is of a hollow cylindrical tubular structure with two open ends, and a limiting block is arranged on the inner wall in a protruding mode.

3. The multi-angle foldable clothing design equipment as claimed in claim 1, wherein: the inner wall of the placing groove (20) is fixedly connected with the rod walls at the two ends of the sliding rod (21), a limiting groove for the limiting block to extend into is horizontally formed in the outer wall of the sliding rod (21) along the length direction, and the limiting block is connected with the limiting groove in a sliding mode.

4. The multi-angle foldable clothing design equipment as claimed in claim 1, wherein: the bottom of fixed block (13) still integrative the structure have connecting block (8), vertical threaded mounting has positioning bolt (7) on connecting block (8), positioning bolt (7) pass the outer wall of connecting block (8) butt inner tube (15).

5. The multi-angle foldable clothing design equipment as claimed in claim 1, wherein: the outer wall of the inner pipe (15) is vertically provided with a plurality of groups of slots (14) in an array mode, and the outer wall of the outer pipe (9) is longitudinally provided with limit pins (10) extending into the slots (14).

6. The multi-angle foldable clothing design equipment as claimed in claim 1, wherein: the bracket (16) is a bendable gooseneck.
