Abstract
The utility model relates to a conveyer technical field discloses a building materials conveyer of material loading is convenient for with building materials production, including removing the portal crane, suspend hoisting mechanism in midair, load the conveyer, outer frame top center department fixed mounting has the loading frame, loading frame center through-hole department fixed mounting has the flexible outer pole of hydraulic pressure, the lower part through-hole swing joint of the flexible outer pole of hydraulic pressure has the flexible interior pole of hydraulic pressure, the lower extreme fixedly connected with hydraulic connecting plate of the flexible interior pole of hydraulic pressure, the lower part fixedly connected with compression rubber of hydraulic connecting plate, the upper portion of cylinder connecting plate is provided with the connecting plate draw-in groove. This building materials conveyer of building materials production with being convenient for material loading when building materials production need carry out work such as material loading or transportation, can alleviate the consumption of manpower and materials in a large number through loading the conveyer, has improved work efficiency, the convenience when having increased the material loading, the danger of the building materials production during operation that reduces simultaneously.
Description
Technical Field
The utility model relates to a conveyer technical field specifically is a building materials conveyer of material loading is convenient for with building materials production.
Background
In the aspect of the transportation of the existing raw materials for building material production, when the raw materials for building materials are transported and taken, great inconvenience is brought, most building material transportation devices adopt the modes of binding, strengthening, manpower pushing and the like which are time-consuming, labor-consuming and have no guarantee on safety, and the risk is increased in the production work while the workload is increased.
SUMMERY OF THE UTILITY MODEL
The utility model provides a building materials conveyer of material loading of being convenient for is used in building materials production, this building materials conveyer of material loading of being convenient for is used in building materials production can alleviate the consumption of manpower and materials in a large number, has improved work efficiency, the convenience when having increased the material loading, the danger of the building materials production during operation that reduces simultaneously.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a building material conveying device convenient for feeding for building material production comprises a mobile gantry crane, a suspension hoisting mechanism and a loading and conveying device, wherein the lower part of the mobile gantry crane is movably connected with the suspension hoisting mechanism, and the lower part of the suspension hoisting mechanism is fixedly connected with the loading and conveying device;
the loading and transporting device comprises an outer frame, a frame sleeving ring, a hydraulic telescopic outer rod, a loading frame, a hydraulic telescopic inner rod, a hydraulic connecting plate, compressed rubber, a stable connecting plate, a roller connecting plate, a clamping rod, a connecting plate clamping groove, a roller, a through shaft, a groove and a bearing, wherein the frame sleeving ring is arranged around the top of the outer wall of the outer frame, the loading frame is fixedly arranged at the center of the top of the outer frame, the hydraulic telescopic outer rod is fixedly arranged at the through hole in the center of the loading frame, the hydraulic telescopic inner rod is movably connected with a lower through hole of the hydraulic telescopic outer rod, the hydraulic connecting plate is fixedly connected with the lower end of the hydraulic telescopic inner rod, the compressed rubber is fixedly connected with the lower part of the hydraulic connecting plate, the bottom of the outer frame is fixedly connected with the roller connecting plate through the stable connecting, the bearing is characterized in that a through shaft is fixedly connected with an inner through hole of the bearing, a roller is fixedly mounted on the outer surface of the through shaft, a groove is formed in the side surface of the roller, a clamping rod is clamped in the connecting plate clamping groove, and one end of the clamping rod is movably connected with the roller through the groove.
Preferably, the movable gantry crane comprises a top frame, a pulley track, a frame fixing plate, a top fixing frame, an expansion frame, a side frame expansion device, a supporting frame, a bottom fixing frame, an upper baffle, side baffles, a rotating wheel and a rotating wheel central shaft, wherein the pulley track is arranged on the lower portion of the inner wall of the top frame, the frame fixing plate is fixedly connected to two ends of the top frame, the expansion frame is fixedly connected to the lower portion of the frame fixing plate, the top frame and the expansion frame are respectively connected to two ends of the top fixing frame, the lower end of the expansion frame is movably connected with the supporting frame through the side frame expansion device, the upper baffle is fixedly connected to the bottom of the supporting frame, the side baffles are fixedly mounted on two sides of the inner wall of the upper baffle, the side baffles are fixedly connected to the side, and two ends of the bottom fixing frame are respectively connected with a supporting frame and an upper baffle.
Preferably, suspend hoisting mechanism in midair and include track pulley, pulley baffle, semicircle ring couple, suspend wire rope, assembly pulley, wire rope socket ring and firm wire rope in midair, one side fixed mounting of track pulley has the pulley baffle, the bottom fixed mounting of pulley baffle has the semicircle ring couple, the top of assembly pulley has the semicircle ring couple through suspending wire rope swing joint in midair, the bottom of assembly pulley has wire rope socket ring through suspending wire rope swing joint in midair.
Preferably, the central through hole of the steel wire rope sleeving ring is fixedly connected with the frame sleeving ring through a stable steel wire rope.
Preferably, the upper surface of the pulley track is movably connected with a track pulley.
Preferably, the number of the rollers is four.
Borrow by above-mentioned technical scheme, the utility model provides a building materials conveyer of material loading is convenient for with building materials production. The method at least has the following beneficial effects:
(1) this building materials conveyer of building materials production with be convenient for material loading when building materials production and need carry out work such as material loading or transportation, can alleviate the consumption of manpower and materials in a large number through loading the conveyer, has improved work efficiency, the convenience when having increased the material loading, the danger of the building materials production during operation that reduces simultaneously.
(2) This building materials production is with building materials conveyer of being convenient for material loading, the scene conversion is carried out to the optional nature, according to material loading and transportation demand of difference, can adjust work in order to adapt to the demand to it.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this application:

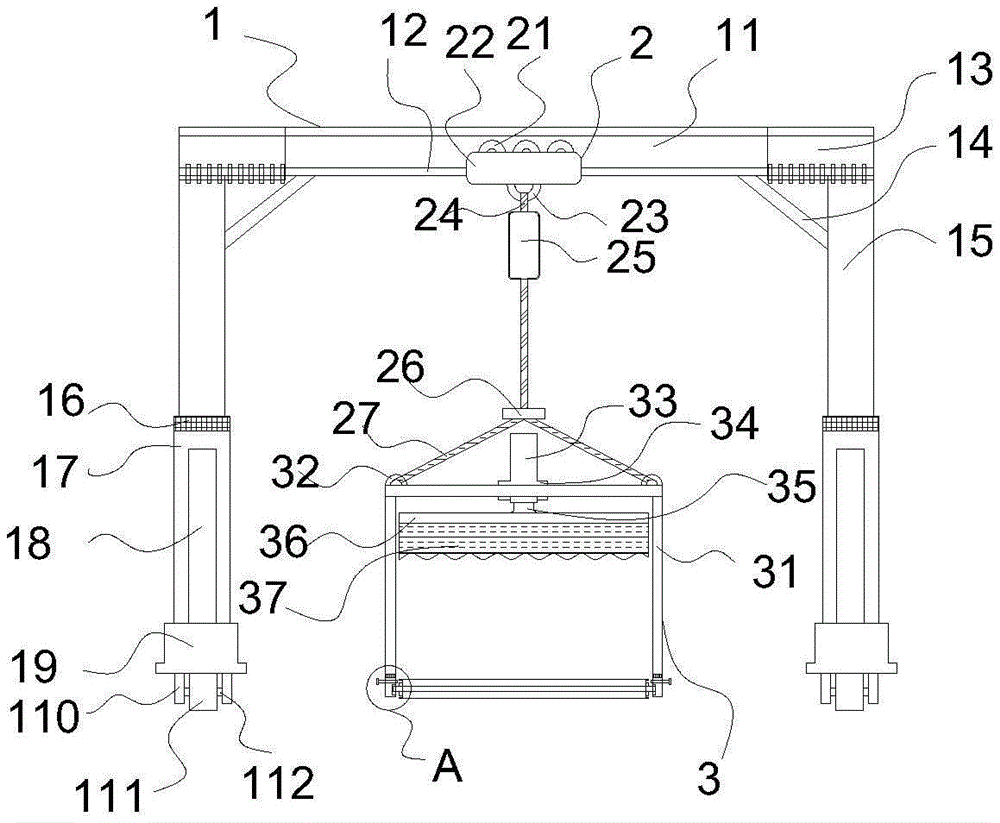

fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic side view of the loading and transporting apparatus of FIG. 1 according to the present invention;
FIG. 3 is a schematic view of a portion A of FIG. 1 according to the present invention;
fig. 4 is a schematic structural view of the clamping portion of the roller shown in fig. 1 according to the present invention.
In the figure: 1 moving gantry crane, 11 top frames, 12 pulley rails, 13 frame fixing plates, 14 top fixing frames, 15 expansion frames, 16 side frame expansion devices, 17 supporting frames, 18 bottom fixing frames, 19 upper baffles, 110 side baffles, 111 rotating wheels and 112 rotating wheel central shafts;
2, hanging a hoisting mechanism, 21 track pulleys, 22 pulley baffles, 23 semicircular hooks, 24 hanging steel wire ropes, 25 pulley blocks, 26 steel wire rope sleeving rings and 27 stabilizing steel wire ropes;
3 loading and transporting devices, 31 outer frames, 32 frame connecting rings, 33 hydraulic telescopic outer rods, 34 loading frames, 35 hydraulic telescopic inner rods, 36 hydraulic connecting plates, 37 compressed rubber, 38 stabilizing connecting plates, 39 roller connecting plates, 310 clamping rods, 311 connecting plate clamping grooves, 312 rollers, 313 through shafts, 314 grooves and 315 bearings.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, the present invention provides a technical solution: a building material conveying device convenient for feeding for building material production comprises a mobile gantry crane 1, a suspension hoisting mechanism 2 and a loading and conveying device 3, wherein the lower part of the mobile gantry crane 1 is movably connected with the suspension hoisting mechanism 2, and the lower part of the suspension hoisting mechanism 2 is fixedly connected with the loading and conveying device 3;
the loading and transporting device 3 comprises an outer frame 31, a frame sleeve ring 32, a hydraulic telescopic outer rod 33, a loading frame 34, a hydraulic telescopic inner rod 35, a hydraulic connecting plate 36, compressed rubber 37, a stable connecting plate 38, a roller connecting plate 39, a clamping rod 310, a connecting plate clamping groove 311, a roller 312, a through shaft 313, a groove 314 and a bearing 315, wherein the frame sleeve ring 32 is arranged around the top of the outer wall of the outer frame 31, the loading frame 34 is fixedly arranged at the center of the top of the outer frame 31, the hydraulic telescopic outer rod 33 is fixedly arranged at the through hole of the center of the loading frame 34, the hydraulic telescopic inner rod 35 is movably connected with a through hole at the lower part of the hydraulic telescopic outer rod 33, the hydraulic connecting plate 36 is fixedly connected with the lower part of the hydraulic connecting plate 36, the bottom of the outer frame 31 is fixedly connected with the roller connecting plate 39 through the stable connecting plate 38, the lower part of the roller connecting plate 39 is provided with a bearing 315, a through shaft 313 is fixedly connected with an inner through hole of the bearing 315, a roller 312 is fixedly installed on the outer surface of the through shaft 313, a groove 314 is arranged on the side surface of the roller 312, a clamping rod 310 is clamped in the connecting plate clamping groove 311, and one end of the clamping rod 310 is movably connected with the roller 312 through the groove 314.
The movable gantry crane 1 comprises a top frame 11, a pulley rail 12, a frame fixing plate 13, a top fixing frame 14, an expansion frame 15, a side frame expansion device 16, a supporting frame 17, a bottom fixing frame 18, an upper baffle plate 19, side baffle plates 110, a rotating wheel 111 and a rotating wheel center shaft 112, wherein the pulley rail 12 is arranged on the lower portion of the inner wall of the top frame 11, the frame fixing plate 13 is fixedly connected to two ends of the top frame 11, the expansion frame 15 is fixedly connected to the lower portion of the frame fixing plate 13, the top frame 11 and the expansion frame 15 are respectively connected to two ends of the top fixing frame 14, the lower end of the expansion frame 15 is movably connected with the supporting frame 17 through the side frame expansion device 16, the upper baffle plate 19 is fixedly connected to the bottom of the supporting frame 17, the side baffle plates 110 are fixedly installed on two sides of the inner wall of the upper baffle plate 19, the two ends of the bottom fixing frame 18 are respectively connected with a supporting frame 17 and an upper baffle plate 19.
The suspension hoisting mechanism 2 comprises a track pulley 21, a pulley baffle 22, a semicircular hook 23, a suspension steel wire rope 24, a pulley block 25, a steel wire rope sleeve connecting ring 26 and a stable steel wire rope 27, wherein the pulley baffle 22 is fixedly installed on one side of the track pulley 21, the semicircular hook 23 and the semicircular hook 23 are fixedly installed at the bottom of the pulley baffle 22, the top of the pulley block 25 is movably connected with the semicircular hook 23 through the suspension steel wire rope 24, and the bottom of the pulley block 25 is movably connected with the steel wire rope sleeve connecting ring 26 through the suspension steel wire rope 24.
The central through hole of the wire rope hitching ring 26 is fixedly connected with the frame hitching ring 32 by a stabilizing wire rope 27.
The upper surface of the pulley track 12 is movably connected with a track pulley 21 so that the suspended hoisting mechanism 2 can move transversely and adjust the orientation.
The number of the rollers 312 is four, so that the bearing capacity of the building material conveying device is improved.
When in use, the production building materials are placed on the roller 312 through the rolling of the roller 312, then the clamping rod 310 is clamped into the groove 314 through the connecting plate clamping groove 311, the roller 312 is fixed and loses the rolling property, then the compression rubber 37 is tightly attached to the production building materials through the downward stable hydraulic pushing of the hydraulic telescopic inner rod 35, the effect of fixing the building materials is achieved, the safety during the transportation of the building materials is improved, the building materials are transported to the position needing to be fed through the rotating wheel 111 of the gantry crane 1, the height length of the gantry crane 1 can be changed through the side frame expansion device 16 and the frame fixing plate 13 according to the scene change of the feeding so as to adapt to the scene requirement, the height of the loading and transporting device 3 is changed through the pulley block 25 during the feeding, the compression rubber 37 is lifted when the corresponding height is adjusted, the raw materials are pushed to the position needing to be fed through the rolling force of the roller 312, greatly reduces the consumption of manpower and material resources and increases the convenience.
It is right above the utility model provides a building materials production is with building materials conveyer of the material loading of being convenient for introduces in detail. The utility model discloses it is right to have used specific individual example the utility model discloses a principle and implementation have been elucidated, and the explanation of above embodiment is only used for helping understanding the utility model discloses a method and core thought thereof. It should be noted that, for those skilled in the art, without departing from the principle of the present invention, the present invention can be further modified and modified, and such modifications and modifications also fall within the protection scope of the appended claims.
Claims (6)
1. The utility model provides a building materials production is with building materials conveyer of material loading of being convenient for, is including removing portal crane (1), hanging hoisting mechanism (2) and loading and transporting device (3) in midair, its characterized in that: the lower part of the movable gantry crane (1) is movably connected with a suspension hoisting mechanism (2), and the lower part of the suspension hoisting mechanism (2) is fixedly connected with a loading and transporting device (3);
the loading and transporting device (3) comprises an outer frame (31), a frame sleeving ring (32), a hydraulic telescopic outer rod (33), a loading frame (34), a hydraulic telescopic inner rod (35), a hydraulic connecting plate (36), compressed rubber (37), a stable connecting plate (38), a roller connecting plate (39), a clamping rod (310), a connecting plate clamping groove (311), a roller (312), a through shaft (313), a groove (314) and a bearing (315);
frame muffjoint rings (32) are arranged around the top of the outer wall of the outer frame (31), a loading frame (34) is fixedly arranged at the center of the top of the outer frame (31), a hydraulic telescopic outer rod (33) is fixedly arranged at the center through hole of the loading frame (34), a hydraulic telescopic inner rod (35) is movably connected with a lower through hole of the hydraulic telescopic outer rod (33), a hydraulic connecting plate (36) is fixedly connected with the lower end of the hydraulic telescopic inner rod (35), compressed rubber (37) is fixedly connected with the lower part of the hydraulic connecting plate (36), the bottom of the outer frame (31) is fixedly connected with a roller connecting plate (39) through a stabilizing connecting plate (38), a connecting plate clamping groove (311) is arranged on the upper part of the roller connecting plate (39), a bearing (315) is arranged on the lower part of the roller connecting plate (39), and a through shaft (313) is, the outer surface of the through shaft (313) is fixedly provided with a roller (312), the side surface of the roller (312) is provided with a groove (314), a clamping rod (310) is clamped in the connecting plate clamping groove (311), and one end of the clamping rod (310) is movably connected with the roller (312) through the groove (314).
2. A building material transportation apparatus for building material production facilitating loading according to claim 1, wherein: the movable gantry crane (1) comprises a top frame (11), a pulley track (12), a frame fixing plate (13), a top fixing frame (14), an expansion bracket (15), a side frame expansion device (16), a supporting frame (17), a bottom fixing frame (18), an upper baffle plate (19), a side baffle plate (110), a rotating wheel (111) and a rotating wheel central shaft (112);
a pulley track (12) is arranged at the lower part of the inner wall of the top frame (11), frame fixing plates (13) are fixedly connected at the two ends of the top frame (11), the lower part of the frame fixing plate (13) is fixedly connected with an expansion bracket (15), two ends of the top fixing bracket (14) are respectively connected with a top frame (11) and the expansion bracket (15), the lower end of the telescopic frame (15) is movably connected with a supporting frame (17) through a side frame telescopic device (16), the bottom of the supporting frame (17) is fixedly connected with an upper baffle (19), two sides of the inner wall of the upper baffle (19) are fixedly provided with side baffles (110), the side edge of the central shaft (112) of the rotating wheel is fixedly connected with a side edge baffle plate (110), the outer surface of the rotating wheel central shaft (112) is movably connected with a rotating wheel (111), two ends of the bottom fixing frame (18) are respectively connected with a supporting frame (17) and an upper baffle (19).
3. A building material transportation apparatus for building material production facilitating loading according to claim 2, wherein: the suspension hoisting mechanism (2) comprises a track pulley (21), a pulley baffle (22), a semicircular ring hook (23), a suspension steel wire rope (24), a pulley block (25), a steel wire rope splicing ring (26) and a stable steel wire rope (27);
one side fixed mounting of track pulley (21) has pulley baffle (22), the bottom fixed mounting of pulley baffle (22) has semicircle ring couple (23), there is semicircle ring couple (23) at the top of assembly pulley (25) through hanging wire rope (24) swing joint in midair, there is wire rope socket ring (26) bottom of assembly pulley (25) through hanging wire rope (24) swing joint in midair.
4. A building material transportation apparatus for building material production facilitating loading according to claim 3, wherein: the central through hole of the steel wire rope sleeving ring (26) is fixedly connected with the frame sleeving ring (32) through a stable steel wire rope (27).
5. A building material transportation device for building material production convenient to feed according to claim 4, characterized in that: the upper surface of the pulley track (12) is movably connected with a track pulley (21).
6. A building material transportation device for building material production convenient to feed according to claim 5, characterized in that: the number of the rollers (312) is four.
