CN210824671U

CN210824671U - Winding and unwinding equipment for coating machine

Info

Publication number: CN210824671U
Application number: CN201921548086.6U
Authority: CN
Inventors: 涂旭; 刘小波; 贾全伟
Original assignee: Dongguan Zhuangling Automation Technology Co ltd
Current assignee: Henan Zhuangling Intelligent Equipment Co ltd
Priority date: 2019-09-18
Filing date: 2019-09-18
Publication date: 2020-06-23
Anticipated expiration: 2029-09-18

Abstract

The utility model provides a coating machine is with receiving and releasing equipment, the on-line screen storage device comprises a base, four removal guide holders that are square arrangement of installation on the base, all be provided with sharp slider module on the removal guide holder, the frame is fixed on sharp slider module, the winding up roller is installed in the rear end of frame, drive arrangement installs in the frame and with the end hub connection of winding up roller, the last the place ahead at the winding up roller is installed to the tensioning roller, first deflector roll and second deflector roll are installed in the place ahead of tensioning roller side by side, on adjust the deflector roll and install the place ahead down at first deflector roll, down adjust the deflector roll and install the place ahead down at last regulation deflector roll, wherein the winding up roller, the tensioning roller, first deflector roll, the second deflector roll and on adjust the deflector roll and all install in the frame, down adjust the. This coating machine is with receiving and releasing equipment structure sets up rationally, the whole portable adjustment of frame, strong adaptability to through setting up a plurality of adjustable deflector rolls and tensioning roller, receive/unreel effectual.

Description

Winding and unwinding equipment for coating machine

Technical Field

The utility model relates to a receive and release the unwinding equipment, concretely relates to coating machine is with receiving and releasing the unwinding equipment.

Background

The coating machine is mainly used for the surface coating process production of films, paper and the like, and the coating machine is used for coating a layer of glue, paint or ink with a specific function on a coiled substrate, drying and then rolling.

The winding/unwinding mechanism of the conventional coating machine generally drives a winding/unwinding roller to rotate directly by a driving motor so as to wind the coated coiled material on the winding/unwinding roller, and the winding/unwinding speed of the winding/unwinding mechanism is controlled by the driving motor, so that the winding/unwinding stability is not high, and the common winding/unwinding roller has no tensioning function, so that the problems that the coiled material is wound up excessively or is not wound up in place and is not wound up tightly enough are easily caused; thereby the reel diameter after the rolling receives the restriction to the coiled material length of once rolling is shorter, reduces rolling efficiency, improves the rolling cost. In addition, the frame of the existing winding/unwinding mechanism is generally fixed, the whole adjustability of the roller on the frame is poor, and the winding/unwinding requirements of different processes are difficult to adapt.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a coating machine is with receiving and releasing equipment, the whole portable adjustment of frame, strong adaptability to through setting up a plurality of adjustable deflector rolls and tensioning roller, receive/effectual that unreels.

In order to realize the technical scheme, the utility model provides a coating machine is with receiving and releasing equipment, the on-line screen storage device comprises a base, four removal guide holders that are square arrangement of installation on the base, all be provided with sharp slider module on the removal guide holder, the frame is fixed on sharp slider module, the winding up roller is installed in the rear end of frame, drive arrangement installs in the frame and is connected with the end axle of winding up roller, the last the place ahead at the winding up roller is installed to the tensioning roller, install the place ahead at the tensioning roller side by side at first deflector roll and second deflector roll, on adjust the deflector roll and install the place ahead down at first deflector roll, down adjust the deflector roll and install the place ahead down at last regulation deflector roll, wherein the winding up roller, the tensioning roller, first deflector roll, the second deflector roll and on adjust the deflector roll and all install in the frame.

In the technical scheme, the base is fixedly arranged on the ground, the frame can adjust the position through the linear sliding block module arranged on the base, and the whole movement of the frame can drive the winding roller, the tensioning roller, the first guide roller, the second guide roller and the upper adjusting guide roller to move relative to the lower adjusting guide roller, so that the position of the winding and unwinding equipment during working can be integrally adjusted relative to other equipment, and the winding and unwinding requirements of different processes are met. By arranging an adjustable tension roller before the winding roller, the tension can be ensured to be stable when winding/unwinding. The upper adjusting guide roller and the lower adjusting guide roller which can be used for adjusting the position can be arranged, the adjusting and controlling capability of the film roll during rolling or unreeling can be enhanced, and the adjusting and controlling capability during rolling or unreeling is effectively enhanced.

Preferably, the driving device comprises a driving motor, a speed reducer, a transmission belt and a transmission wheel, the driving motor and the speed reducer are both mounted on the frame, an output shaft of the driving motor is connected with the speed reducer, the transmission wheel is mounted on an end shaft of the winding roller, and the transmission wheel is connected with an output shaft of the speed reducer through the transmission belt. In the actual working process, the speed reducer is driven to rotate by the driving motor, and the driving wheel is driven to rotate by the driving belt, so that the winding roller is driven to rotate.

Preferably, the location briquetting is all installed to the end shaft one side of winding up roller, be provided with the location handle on the location briquetting, because the winding up roller needs frequent change, when the winding up roller is changed to needs, accessible location handle is opened the location briquetting for the location briquetting is separated with the end shaft of winding up roller, then carry out the winding up roller change can, after the winding up roller is changed and is accomplished, rethread location handle resets the location briquetting, ensures that the winding up roller is rotatory steadily.

Preferably, the end shaft of the winding roll close to one side of the driving device is provided with a butt joint shaft, the butt joint shaft is in butt joint with the end shaft of the winding roll, a locking block is arranged at the butt joint of the butt joint shaft and the end shaft of the winding roll, and a locking handle is arranged on the locking block. In the actual roll changing process, the locking block can be opened through the locking handle, so that the butt joint shaft is separated from the end shaft of the roll, then the roll is hung out, after a new roll is changed, the butt joint shaft is in butt joint with the end shaft of the roll, the locking block is in butt joint with the end shaft of the butt joint shaft and the end shaft of the roll through the locking handle again, and locking is achieved, and the butt joint shaft can drive the roll to rotate.

Preferably, one side of the locking block is provided with a bracket matched with the locking handle, so that the locking handle can be conveniently operated.

Preferably, a guide plate is arranged between the first guide roller and the second guide roller, an adjusting cylinder is arranged below the guide plate, the position of the guide plate can be adjusted through the adjusting cylinder, and the tension of the film roll between the first guide roller and the second guide roller can be properly adjusted.

Preferably, adjust the deflector roll down and fix on the base through first regulation saddle, on adjust the deflector roll and fix in the frame through the second regulation saddle, the tensioning roller is adjusted the saddle through the tensioning and is fixed in the frame, in the actual work process, can adjust the saddle through first regulation saddle, second respectively and the tensioning adjusts the saddle and realizes adjusting the regulation of deflector roll, upper regulation deflector roll and tensioning roller position down.

The utility model provides a pair of coating machine lies in with receiving and releasing equipment's beneficial effect:

1) this coating machine is with receipts unreeling equipment structural arrangement is reasonable, and the frame accessible carries out the regulation of position at the straight line slider module of installing on the base, and the bulk movement through the frame can drive the movement of adjusting the deflector roll under the winder roller, tensioning roller, first deflector roll, second deflector roll and the upper control deflector roll relatively to in the overall adjustment of receipts unreeling equipment during operation position for other equipment, the receipts that adapts to different technologies/unreel the requirement.

2) This coating machine is with receiving and releasing equipment can ensure that the tension when receiving/releasing is stable through setting up adjustable tensioning roller before the winding up roller to through setting up the last deflector roll of adjusting and adjusting the deflector roll down that can carry out position control, can strengthen the rolling or when releasing to the regulation and control ability of membrane book, effectively strengthen the rolling or when releasing regulation and control ability.

Drawings

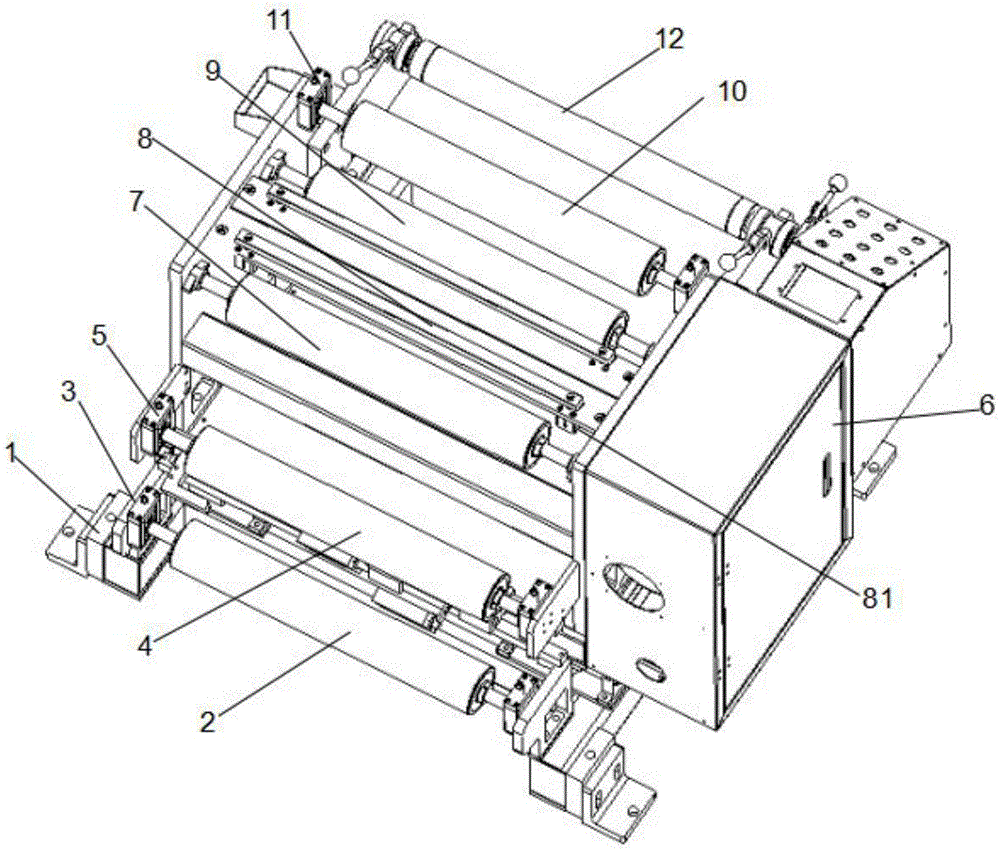

Fig. 1 is a schematic perspective view of the present invention.

Fig. 2 is a schematic diagram of the middle transmission structure of the present invention.

Fig. 3 is a schematic view of the mounting structure of the middle base and the frame of the present invention.

Fig. 4 is an enlarged schematic view of a part of the structure of the present invention.

In the figure: 1. a base; 2. adjusting the guide roller downwards; 3. a first adjusting guide seat; 4. an upper adjusting guide roller; 5. a second adjustment guide seat; 6. a drive device; 61. a drive motor; 62. a speed reducer; 63. a drive belt; 64. a driving wheel; 7. a first guide roller; 8. a guide plate; 81. a cylinder; 9. a second guide roller; 10. a tension roller; 11. tensioning and adjusting the guide seat; 12. a winding roller; 13. a frame; 14. moving the guide seat; 15. a linear slider module; 16. positioning a pressing block; 17. a positioning handle; 18. a support; 19. locking the handle; 20. a butt joint shaft; 21. and a locking block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. All other embodiments obtained by a person skilled in the art without any inventive step are within the scope of the present invention.

Example (b): a winding and unwinding device for a coating machine.

Referring to fig. 1 to 4, a winding and unwinding device for a coating machine includes a base 1, four moving guide seats 14 arranged in a square shape are installed on the base 1, linear slider modules 15 are respectively installed on the moving guide seats 14, a frame 13 is fixed on the linear slider modules 15, the frame 13 can be driven by the linear slider modules 15 to move integrally relative to the base 1, a winding roller 12 is installed at the rear end of the frame 13, a driving device 6 is installed on the frame 13 and is connected with an end shaft of the winding roller 12, the driving device 6 includes a driving motor 61, a speed reducer 62, a driving belt 63 and a driving wheel 64, the driving motor 61 and the speed reducer 62 are installed on the frame 13, an output shaft of the driving motor 61 is connected with the speed reducer 62, the driving wheel 64 is installed on a butt joint shaft 20 butt-jointed with the end shaft of the winding roller 12, the driving wheel 64 is connected with the output shaft of the speed reducer 62 through, the end shaft of the winding roll 12 is provided with a positioning pressing block 16 on one side, the positioning pressing block 16 is provided with a positioning handle 17, the winding roll 12 needs to be frequently replaced, when the winding roll 12 needs to be replaced, the positioning pressing block 16 can be opened through the positioning handle 17, so that the positioning pressing block 16 is separated from the end shaft of the winding roll 12, then the winding roll 12 is replaced, after the winding roll 12 is replaced, the positioning pressing block 16 is reset through the positioning handle 17, the stable rotation of the winding roll 12 is ensured, the end shaft of one side of the winding roll 12 close to the driving device 6 is provided with a butt joint shaft 20, the butt joint shaft 20 is in butt joint with the end shaft of the winding roll 12, a locking block 21 is arranged at the butt joint of the end shaft of the winding roll 20 and the end shaft of the winding roll 12, the locking handle 19 is arranged on the locking block 21, one side of the locking block 21 is provided with a bracket 18 matched with the locking handle 19, in the actual roll changing process, the locking block 21 can be opened through the locking handle 19, so that the butt joint shaft 20 is separated from the end shaft of the roll 12, then the roll 12 is lifted out, after a new roll 12 is changed, the butt joint shaft 20 is in butt joint with the end shaft of the roll 12, the locking block 21 is used for butt joint the butt joint shaft 20 with the end shaft of the roll 12 through the locking handle 19 again, and locking is realized, so that the butt joint shaft 20 can drive the roll 12 to rotate, in the actual working process, the speed reducer 62 is driven to rotate through the driving motor 61, the driving wheel 64 is driven to rotate through the driving belt 63, and then the roll 12 is driven to rotate.

The tensioning roller 10 is fixed on a frame 13 through a tensioning adjusting guide seat 11 and is positioned in front of an upper portion of a winding roller 12, the position of the tensioning roller 10 can be adjusted through the tensioning adjusting guide seat 11, and then the tension of a film roll can be adjusted according to actual requirements, a first guide roller 7 and a second guide roller 9 are arranged in front of the tensioning roller 10 side by side, a guide plate 8 is arranged between the first guide roller 7 and the second guide roller 9, an adjusting cylinder 81 is arranged below the guide plate 8, the position of the guide plate 8 can be adjusted through the adjusting cylinder 81, and then the tension of the film roll between the first guide roller 7 and the second guide roller 9 can be properly adjusted, the upper adjusting guide roller 4 is arranged in front of a lower portion of the first guide roller 7 through a second adjusting guide seat 5, the lower adjusting guide roller 2 is arranged in front of a lower portion of the upper adjusting guide roller 4 through a first adjusting guide seat 3, wherein the winding roller 12, the tensioning roller 10, the first guide roller 7, the second guide roller 9, lower regulation deflector roll 2 is fixed on base 1, in the actual work in-process, can realize respectively adjusting the regulation of deflector roll 2, upper regulation deflector roll 4 and tensioning roller 10 position down through first regulation guide holder 3, second regulation guide holder 5 and tensioning regulation guide holder 11.

This coating machine is with receipts unreeling equipment structural arrangement is reasonable, and frame 13 accessible is installed the regulation that the position was carried out to sharp slider module 15 on base 1, and the bulk movement through frame 13 can drive winding up roller 12, tensioning roller 10, first deflector roll 7, second deflector roll 9 and adjust deflector roll 2 and remove under adjusting deflector roll 4 relatively to in the overall adjustment of receipts unreeling equipment during operation position for other equipment, the receipts that adapts to different technologies/unreel the requirement. This winding and unwinding equipment for coating machine is through setting up adjustable tensioning roller 10 before wind-up roll 12, can ensure to receive/tension when unreeling stable to through setting up the regulation and control ability of going up that can carry out position control and adjusting deflector roll 4 and adjusting deflector roll 2 down, to the membrane book when can strengthening the rolling or unreeling, effectively strengthen the rolling or the regulation and control ability when unreeling.

The above description is a preferred embodiment of the present invention, but the present invention should not be limited to the disclosure of the embodiment and the accompanying drawings, and therefore, all equivalents and modifications that can be accomplished without departing from the spirit of the present invention are within the protection scope of the present invention.

Claims

1. The utility model provides a coating machine is with receiving and releasing roll equipment which characterized in that includes: the base, four removal guide seats that are square arrangement of installation on the base, all be provided with sharp slider module on the removal guide seat, the frame is fixed on sharp slider module, the rear end in the frame is installed to the winding up roll, drive arrangement install in the frame and with the end hub connection of winding up roll, the last the place ahead at the winding up roll is installed to the tensioning roll, first deflector roll and second deflector roll are installed in the place ahead of tensioning roll side by side, it installs the lower the place ahead at first deflector roll to adjust the deflector roll on, lower the regulation deflector roll is installed the lower the place ahead at last regulation deflector roll, wherein the winding up roll, the tensioning roll, first deflector roll, second deflector roll and last regulation deflector roll are all installed in the frame, lower regulation deflector roll is fixed on the base.

2. The winding and unwinding device for coating machines as claimed in claim 1, characterized in that: the driving device comprises a driving motor, a speed reducer, a transmission belt and a transmission wheel, wherein the driving motor and the speed reducer are both arranged on the rack, an output shaft of the driving motor is connected with the speed reducer, the transmission wheel is arranged on an end shaft of the winding roller, and the transmission wheel is connected with an output shaft of the speed reducer through the transmission belt.

3. The winding and unwinding device for coating machines as claimed in claim 1, characterized in that: and one side of the end shaft of the winding roller is provided with a positioning pressing block, and the positioning pressing block is provided with a positioning handle.

4. The winding and unwinding device for coating machines as claimed in claim 1, characterized in that: the end shaft of the winding roll, which is close to one side of the driving device, is provided with a butt joint shaft, the butt joint shaft is in butt joint with the end shaft of the winding roll, a locking block is arranged at the butt joint position of the butt joint shaft and the end shaft of the winding roll, and a locking handle is arranged on the locking block.

5. The winding and unwinding device for coating machines as claimed in claim 4, characterized in that: and a bracket matched with the locking handle is arranged on one side of the locking block.

6. The winding and unwinding device for coating machines as claimed in claim 1, characterized in that: be provided with the baffle between first deflector roll and the second deflector roll, the below of baffle is provided with adjust cylinder.

7. The winding and unwinding device for coating machines as claimed in claim 1, characterized in that: the lower adjusting guide roller is fixed on the base through a first adjusting guide seat, the upper adjusting guide roller is fixed on the frame through a second adjusting guide seat, and the tensioning roller is fixed on the frame through a tensioning adjusting guide seat.
