Abstract
The utility model relates to a heat dissipation frame technical field, more specifically the notebook computer heat dissipation frame that says so, notebook computer heat dissipation frame can change the angle of computer screen for the user. Placing a notebook computer on a hollowed-out heat dissipation inclined plate, leaning the front end of the notebook computer on two notebook supporting blocks, lifting the hollowed-out heat dissipation inclined plate from the rear, rotating the hollowed-out heat dissipation inclined plate front end on a rotary supporting rotating plate, inclining, placing the bottom end of a rotary inclined supporting rod in two inclined adjusting clamping grooves, enabling the rotary inclined supporting rod to support the hollowed-out heat dissipation inclined plate, keeping the inclination of the hollowed-out heat dissipation inclined plate, opening two powerful heat radiating fans, and conducting air supply and heat dissipation on the notebook computer through the two powerful heat radiating fans.
Description
Technical Field
The utility model relates to a heat dissipation frame technical field, more specifically the notebook computer heat dissipation frame that says so.
Background
The utility model with the publication number of CN207557860U discloses a novel notebook computer heat dissipation frame, which comprises a notebook computer heat dissipation frame, a notebook computer anti-slip cover, a heat dissipation fan, a support plate, a sliding clamping plate, a plastic protection block, a spring, a handle, a first support leg and a second support leg, wherein the notebook computer anti-slip cover is connected inside the notebook computer heat dissipation frame, the notebook computer anti-slip cover is embedded inside the notebook computer heat dissipation frame, the upper part of the notebook computer anti-slip cover is provided with a plurality of fourth heat dissipation holes, the upper part of the notebook computer heat dissipation frame is provided with a plurality of third heat dissipation holes, the third heat dissipation holes correspond to the fourth heat dissipation holes, the notebook computer heat dissipation frame is internally provided with a plurality of chutes, the chutes are symmetrically arranged, the springs are connected inside the chutes, the springs slide in the chutes, the lower parts of the sliding clamping plate are connected with the lower parts of the, the left side of the sliding clamping plate is connected with the right side of the handle through a first screw; the disadvantage is that the angle of the computer screen relative to the user cannot be changed.
Disclosure of Invention
The utility model provides a notebook computer heat dissipation frame, its beneficial effect can change the angle of computer screen for the user for notebook computer heat dissipation frame.
The utility model provides a notebook computer heat dissipation frame, includes heat dissipation support frame, angle of rotation base and portable removal base, portable removal base rotate to be connected on angle of rotation base, heat dissipation support frame rotates to be connected on angle of rotation base, angle of rotation base include rotatory support rotor plate, slope adjustment card groove, rotatory fixed bayonet lock and rotatory fixed extension spring, rotatory fixed bayonet lock sliding connection is on rotatory support rotor plate, two slope adjustment card grooves are fixed connection respectively at both ends about rotatory support rotor plate, the upper and lower both ends of rotatory fixed extension spring are fixed connection respectively on rotatory fixed bayonet lock and rotatory support rotor plate, rotatory support rotor plate bottom is rotated and is connected on portable removal base, the heat dissipation support frame rotates to be connected at rotatory support rotor plate front end.
As this technical scheme's further optimization, the utility model relates to a notebook computer heat dissipation frame heat dissipation support frame include fretwork heat dissipation hang plate, the notebook supporting shoe, rotate the inclined support pole, powerful radiator fan and hang plate supporting leg, two hang plate supporting legs fixed connection respectively are in the left and right sides of fretwork heat dissipation hang plate bottom, fretwork heat dissipation hang plate front end is rotated and is connected at the rotation support rotor plate front end, the equal fixed connection of two powerful radiator fans is in fretwork heat dissipation hang plate bottom, rotate about the inclined support pole both ends rotate respectively and connect both ends about the fretwork heat dissipation hang plate, the equal fixed connection of two notebook supporting shoes is at the front end of fretwork heat dissipation hang plate, it is the face contact with two slope adjustment draw-in grooves to rotate the inclined support pole.
As this technical scheme's further optimization, the utility model relates to a notebook computer heat dissipation frame portable removal base including removing the bearing bottom plate, auto-lock universal wheel, central rotation axis and rotatory fixing clip hole, a plurality of rotatory fixing clip holes are annular equipartition on removing the bearing bottom plate, remove the equal fixedly connected with auto-lock universal wheel in four angle departments of bearing bottom plate bottom, central rotation axis bottom fixed connection is on removing the bearing bottom plate, the rotation of central rotation axis top is connected in the rotation support rotor plate bottom, rotatory fixed bayonet lock sliding connection is downthehole at one of them rotatory fixing clip.
As a further optimization of this technical scheme, the utility model relates to a notebook computer heat dissipation frame a plurality of rotatory fixing clip holes angle that the arc length corresponds each other is twenty degrees.
As a further optimization of this technical scheme, the utility model relates to a notebook computer heat dissipation frame the length of two hang plate supporting legs all be greater than the length of rotatory fixed bayonet lock.
As this technical scheme's further optimization, the utility model relates to a notebook computer heat dissipation frame rotatory support rotor plate, fretwork heat dissipation hang plate and removal bearing bottom plate be the aluminum alloy material.
The utility model relates to a notebook computer heat dissipation frame's beneficial effect does:
notebook computer heat dissipation frame can be through under the condition at non-rotation removal bearing bottom plate, drive fretwork heat dissipation hang plate through rotating rotatory support rotor plate and rotate, the convenience gets off and adjusts according to the position that the user faced the computer screen under the unable circumstances that removes of removal bearing bottom plate, guarantee that the user is just to the computer screen all the time, can also be through rotating the slope bracing piece card in two slope adjustment draw-in grooves, for computer screen height-adjusting, avoid using long-time low-head use, lead to the aching pain of cervical vertebra, come to blow the heat dissipation to the computer through two powerful radiator fan simultaneously, can also drive the computer through four auto-lock universal wheels and carry out the removal of miniverum, need not the user moves, in order to avoid taking place unexpected loss that causes.
Drawings
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

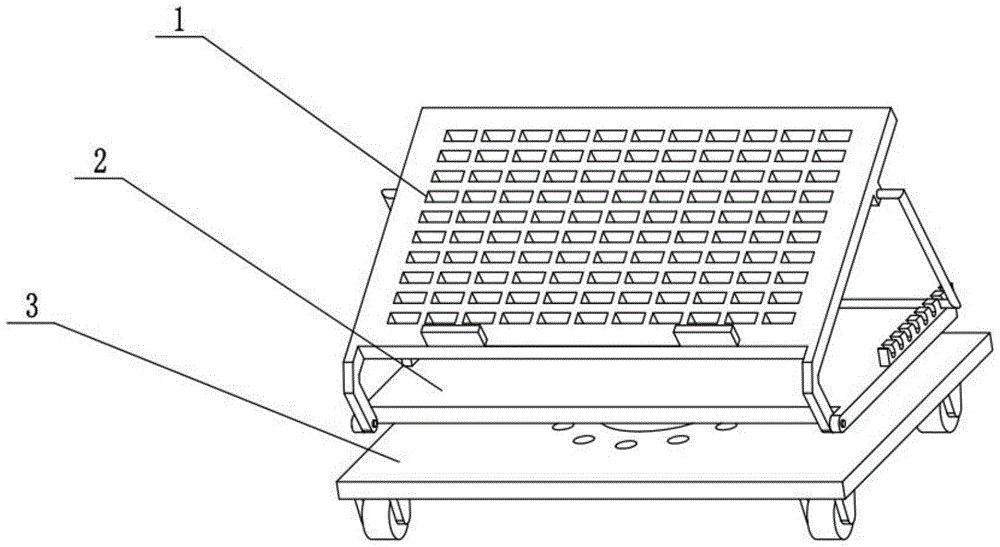

Fig. 1 is a schematic structural view of a heat dissipation rack of a notebook computer according to the present invention.
Fig. 2 is a schematic structural view of a notebook computer heat dissipation frame in another direction.
Fig. 3 is a schematic structural view of the heat dissipation support frame.
Fig. 4 is a structural schematic view of the heat dissipation support frame in another direction.
Fig. 5 is a schematic structural view of the angular rotation base.
Fig. 6 is a schematic structural diagram of a portable mobile base.
In the figure: a heat dissipation support frame 1; a hollowed-out heat dissipation inclined plate 1-1; 1-2 parts of a notebook support block; rotating the inclined support rods 1-3; 1-4 of a powerful heat radiation fan; inclined plate support legs 1-5; the angle rotating base 2; rotatably supporting the rotating plate 2-1; the clamping groove 2-2 is obliquely adjusted; rotating and fixing the bayonet 2-3; rotating and fixing the tension spring 2-4; a portable mobile base 3; moving the load-bearing bottom plate 3-1; 3-2 of self-locking universal wheels; a central rotation axis 3-3; and 3-4 of a rotary fixing clamp hole.
Detailed Description
The first embodiment is as follows:
the following describes this embodiment with reference to fig. 1, 2, 3, 4, 5, and 6, and the present invention relates to a heat dissipation rack, and more specifically to a heat dissipation rack for a notebook computer, which includes a heat dissipation support frame 1, an angular rotating base 2, and a portable moving base 3, wherein the portable moving base 3 is rotatably connected to the angular rotating base 2, the heat dissipation support frame 1 is rotatably connected to the angular rotating base 2, the angular rotating base 2 includes a rotating support rotating plate 2-1, an inclined adjustment clamping groove 2-2, a rotating fixing clamping pin 2-3, and a rotating fixing tension spring 2-4, the rotating fixing clamping pin 2-3 is slidably connected to the rotating support rotating plate 2-1, the two inclined adjustment clamping grooves 2-2 are respectively fixedly connected to the left and right ends of the rotating support rotating plate 2-1, and the upper and lower ends of the rotating fixing tension spring 2-4 are respectively fixedly connected to the rotating fixing clamping pin 2-3 and the bottom end of the rotary supporting rotating plate 2-1 is rotatably connected to the portable moving base 3, and the heat dissipation support frame 1 is rotatably connected to the front end of the rotary supporting rotating plate 2-1; the two inclined adjusting clamping grooves 2-2 provide the heat dissipation supporting frame 1 which can be inclined to change the height of the computer screen, the rotating fixing clamping pin 2-3 is pulled, the rotating supporting rotating plate 2-1 is rotated to adjust the angle of the computer screen, the rotating fixing clamping pin 2-3 is loosened, the rotating fixing tension spring 2-4 pulls down the rotating fixing clamping pin 2-3, and the rotating fixing clamping pin 2-3 slides into one rotating fixing clamping hole 3-4 to fix the angle.
The second embodiment is as follows:
the following describes the present embodiment with reference to fig. 1, 2, 3, 4, 5, and 6, and the present embodiment further describes the first embodiment, wherein the heat dissipation support frame 1 includes a hollow heat dissipation inclined plate 1-1, a notebook support block 1-2, a rotating inclined support rod 1-3, a powerful heat dissipation fan 1-4, and inclined plate support legs 1-5, the two inclined plate support legs 1-5 are respectively and fixedly connected to the left and right sides of the bottom end of the hollow heat dissipation inclined plate 1-1, the front end of the hollow heat dissipation inclined plate 1-1 is rotatably connected to the front end of the rotating support rotating plate 2-1, both the powerful heat dissipation fans 1-4 are fixedly connected to the bottom end of the hollow heat dissipation inclined plate 1-1, the left and right ends of the rotating inclined support rod 1-3 are respectively and rotatably connected to the left and right ends of the hollow heat, the two notebook supporting blocks 1-2 are fixedly connected to the front ends of the hollowed radiating inclined plates 1-1, and the rotary inclined supporting rods 1-3 are in surface contact with the two inclined adjusting clamping grooves 2-2; the bottom ends of the rotary inclined supporting rods 1-3 are placed in the two inclined adjusting clamping grooves 2-2, the hollow heat dissipation inclined plates 1-1 are supported by the rotary inclined supporting rods 1-3, the two notebook supporting blocks 1-2 can be used for fixing a computer, the computer is prevented from sliding off when the hollow heat dissipation inclined plates 1-1 incline, and the two powerful heat dissipation fans 1-4 dissipate heat of the computer.
The third concrete implementation mode:
the present embodiment will be described with reference to fig. 1, 2, 3, 4, 5 and 6, and the second embodiment will be further described, the portable moving base 3 comprises a moving bearing bottom plate 3-1, self-locking universal wheels 3-2, a central rotating shaft 3-3 and rotating fixing clamp holes 3-4, a plurality of rotating fixing clamp holes 3-4 are annularly and uniformly distributed on the moving bearing bottom plate 3-1, the self-locking universal wheels 3-2 are fixedly connected at four corners of the bottom end of the moving bearing bottom plate 3-1, the bottom end of the central rotating shaft 3-3 is fixedly connected to the moving bearing bottom plate 3-1, the top end of the central rotating shaft 3-3 is rotatably connected to the bottom end of a rotating support rotating plate 2-1, and a rotating fixing clamp pin 2-3 is slidably connected in one rotating fixing clamp hole 3-4; the four self-locking universal wheels 3-2 are driven to rotate by pushing the movable bearing bottom plate 3-1, so that the computer can be moved.
The fourth concrete implementation mode:
the third embodiment is further described below with reference to fig. 1, 2, 3, 4, 5, and 6, in which the angles corresponding to the arc lengths of the plurality of rotation fixing clip holes 3-4 are all twenty degrees.
The fifth concrete implementation mode:
the third embodiment is further described by combining the following description with figures 1, 2, 3, 4, 5 and 6, wherein the lengths of the two inclined plate supporting legs 1-5 are both larger than the length of the rotary fixing bayonet 2-3.
The sixth specific implementation mode:
the third embodiment is further described below with reference to fig. 1, 2, 3, 4, 5, and 6, wherein the rotary supporting and rotating plate 2-1, the hollow heat dissipation inclined plate 1-1, and the movable load bearing bottom plate 3-1 are made of aluminum alloy; light weight and high strength.
The utility model relates to a working principle of notebook computer heat dissipation frame: the notebook computer is placed on the hollowed radiating inclined plate 1-1, the front end of the notebook computer leans against two notebook supporting blocks 1-2, the hollowed radiating inclined plate 1-1 is lifted from the rear, the front end of the hollowed radiating inclined plate 1-1 rotates on the rotary supporting rotary plate 2-1 and inclines, the bottom end of the rotary inclined supporting rod 1-3 is placed in two inclination adjusting clamping grooves 2-2, the rotary inclined supporting rod 1-3 supports the hollowed radiating inclined plate 1-1, the inclination of the hollowed radiating inclined plate 1-1 is kept, two strong radiating fans 1-4 are opened, the two strong radiating fans 1-4 supply air to the notebook computer for radiating, when the position of a user changes, the four self-locking universal wheels 3-2 can be driven to rotate by pushing and moving the bearing bottom plate 3-1, when the angle of the face of a user relative to the screen of the notebook computer is changed, the notebook computer is moved, the rotary fixing bayonet lock 2-3 is pulled, the rotary supporting rotating plate 2-1 is rotated to adjust the angle of the screen of the computer, the rotary fixing bayonet lock 2-3 is loosened, the rotary fixing tension spring 2-4 pulls down the rotary fixing bayonet lock 2-3, the rotary fixing bayonet lock 2-3 slides into one rotary fixing bayonet hole 3-4 to fix the angle, and the face of the user is guaranteed to be always opposite to the screen of the notebook computer.
Of course, the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and the changes, modifications, additions or replacements made by those skilled in the art within the scope of the present invention also belong to the protection scope of the present invention.
Claims (6)
1. The utility model provides a notebook computer heat dissipation frame, includes heat dissipation support frame (1), angle of rotation base (2) and portable removal base (3), portable removal base (3) rotate to be connected on angle of rotation base (2), heat dissipation support frame (1) rotate to be connected on angle of rotation base (2), its characterized in that: the angle rotating base (2) comprises a rotating supporting and rotating plate (2-1), an inclined adjusting clamping groove (2-2), a rotating fixing clamping pin (2-3) and a rotating fixing tension spring (2-4), the rotary fixing clamping pin (2-3) is connected to the rotary supporting rotating plate (2-1) in a sliding mode, the two inclined adjusting clamping slots (2-2) are fixedly connected to the left end and the right end of the rotary supporting rotating plate (2-1) respectively, the upper end and the lower end of the rotary fixing tension spring (2-4) are fixedly connected to the rotary fixing clamping pin (2-3) and the rotary supporting rotating plate (2-1) respectively, the bottom end of the rotary supporting rotating plate (2-1) is connected to the portable moving base (3) in a rotating mode, and the heat dissipation support frame (1) is connected to the front end of the rotary supporting rotating plate (2-1) in a rotating mode.
2. The heat dissipation rack for the notebook computer according to claim 1, wherein: the heat dissipation support frame (1) comprises hollow heat dissipation inclined plates (1-1), notebook support blocks (1-2), rotation inclined support rods (1-3), powerful heat dissipation fans (1-4) and inclined plate support legs (1-5), wherein the two inclined plate support legs (1-5) are fixedly connected to the left side and the right side of the bottom end of each hollow heat dissipation inclined plate (1-1) respectively, the front ends of the hollow heat dissipation inclined plates (1-1) are rotatably connected to the front ends of the rotation support rotating plates (2-1), the two powerful heat dissipation fans (1-4) are fixedly connected to the bottom end of each hollow heat dissipation inclined plate (1-1), the left end and the right end of each rotation inclined support rod (1-3) are rotatably connected to the left end and the right end of each hollow heat dissipation inclined plate (1-1) respectively, and the two notebook support blocks (1-2) are fixedly connected to the front ends of the hollow heat dissipation inclined plates The rotary inclined supporting rod (1-3) is in surface contact with the two inclined adjusting clamping grooves (2-2).
3. The heat dissipation rack for the notebook computer according to claim 2, wherein: the portable movable base (3) comprises a movable bearing bottom plate (3-1), self-locking universal wheels (3-2), a central rotating shaft (3-3) and rotary fixing clamp holes (3-4), wherein the rotary fixing clamp holes (3-4) are annularly and uniformly distributed on the movable bearing bottom plate (3-1), the self-locking universal wheels (3-2) are fixedly connected to four corners of the bottom end of the movable bearing bottom plate (3-1), the bottom end of the central rotating shaft (3-3) is fixedly connected to the movable bearing bottom plate (3-1), the top end of the central rotating shaft (3-3) is rotatably connected to the bottom end of a rotary supporting rotating plate (2-1), and the rotary fixing clamp pins (2-3) are slidably connected into one of the rotary fixing clamp holes (3-4).
4. The heat dissipation rack for the notebook computer according to claim 3, wherein: the angle corresponding to the arc length of each of the plurality of rotary fixing clamp holes (3-4) is twenty degrees.
5. The heat dissipation rack for the notebook computer according to claim 3, wherein: the length of the two inclined plate supporting legs (1-5) is greater than that of the rotary fixing bayonet lock (2-3).
6. The heat dissipation rack for the notebook computer according to claim 3, wherein: the rotary supporting rotating plate (2-1), the hollow heat dissipation inclined plate (1-1) and the movable bearing bottom plate (3-1) are all made of aluminum alloy materials.
