Abstract

A multifunctional small bag, comprising a bag body, connecting tapes are arranged on both sides of the top and the bottom of the bag body, a zipper is arranged on the bag body, a laptop computer accommodating compartment is arranged in the bag body, and the A connecting strip is arranged on the outside of the bag body, and the connecting strip is connected by a buckle. A mobile phone storage bag is also arranged on the outside of the bag body. The surface of the mobile phone storage bag is made of transparent material. Velcro is arranged on the surface, and the mobile phone storage bag is correspondingly provided with a strip, and the blocking surface is fixed on the mobile phone storage bag through the cooperation of the Velcro and the strip, which can be combined with an independent strap to serve as a chest bag. The shoulder bag can also be combined with a shoulder strap to play the role of a chest strap. One bag can be used for multiple purposes, reducing waste of resources and reducing processing and manufacturing costs. Combined with the current trend of urban functional wind, the shape is simple and the lines are smooth.

Description

A multifunctional pouch

technical field

The utility model relates to the field of daily necessities, in particular to a multifunctional small bag.

Background technique

With the improvement of people's living standards, travel has become the first choice for many people to relax themselves and broaden their horizons, so it is inevitable to carry some clothes and other items when traveling. At this time, travel bags came into being, and now there are special Some volunteers in the mountains also need to be equipped with travel bags.

Travel bags are generally divided into many types, one is a backpack, the other is a waist bag, and there is a chest bag that matches the backpack. It is carried according to different occasions. However, after all carried out, there will be too many things, heavy and messy situation, a small package that adapts to a variety of situations is needed to solve these problems.

Utility model content

In view of the problems in the background, the purpose of the present invention is to provide a multifunctional small bag which is multi-purpose and can be used in combination with other bags.

In order to achieve the above purpose, the present utility model provides a multifunctional small bag, comprising a bag body, the top two sides of the bag body and the bottom two sides are provided with connecting tapes, the bag body is provided with a zipper, and the bag body is provided with a zipper. A laptop computer accommodating compartment is provided, a connecting bar is arranged on the outside of the bag body, and the connecting bar is connected by a buckle, and a mobile phone storage bag is also arranged on the outside of the bag body. The surface of the mobile phone storage bag is made of transparent material, and the mobile phone storage bag is The bag is provided with a blocking surface, the blocking surface is provided with a Velcro, and the mobile phone storage bag is correspondingly provided with a strip, and the blocking surface is fixed on the mobile phone storage bag through the cooperation of the Velcro and the strip.

In order to be more waterproof, the utility model improves that the zipper is an invisible waterproof zipper, and the zipper head adopts a long strip of silica gel.

For the convenience of use, the present invention is improved as follows: the transparent material is a transparent plastic film.

In order to improve the sorting performance of the bag body, the utility model improves that the bag body is provided with a card tape and a key tape for preventing cards.

In order to facilitate the carrying of odds and ends, the utility model improves that the bag body is provided with a card belt and a key belt for preventing cards.

In order to facilitate the use of the small bag, the utility model is improved in that the bottom of the bag body is provided with through buttons, and the through buttons are arranged in multiples and are evenly arranged on the bottom of the bag body.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the novel multifunctional small bag can be combined with an independent strap, used as a chest bag, a messenger bag, and can also be combined with a shoulder strap to play the role of a chest strap. Multi-purpose, reduce waste of resources and reduce processing and manufacturing costs. Combined with the current trend of urban functional wind, the shape is simple and the lines are smooth.

Description of drawings

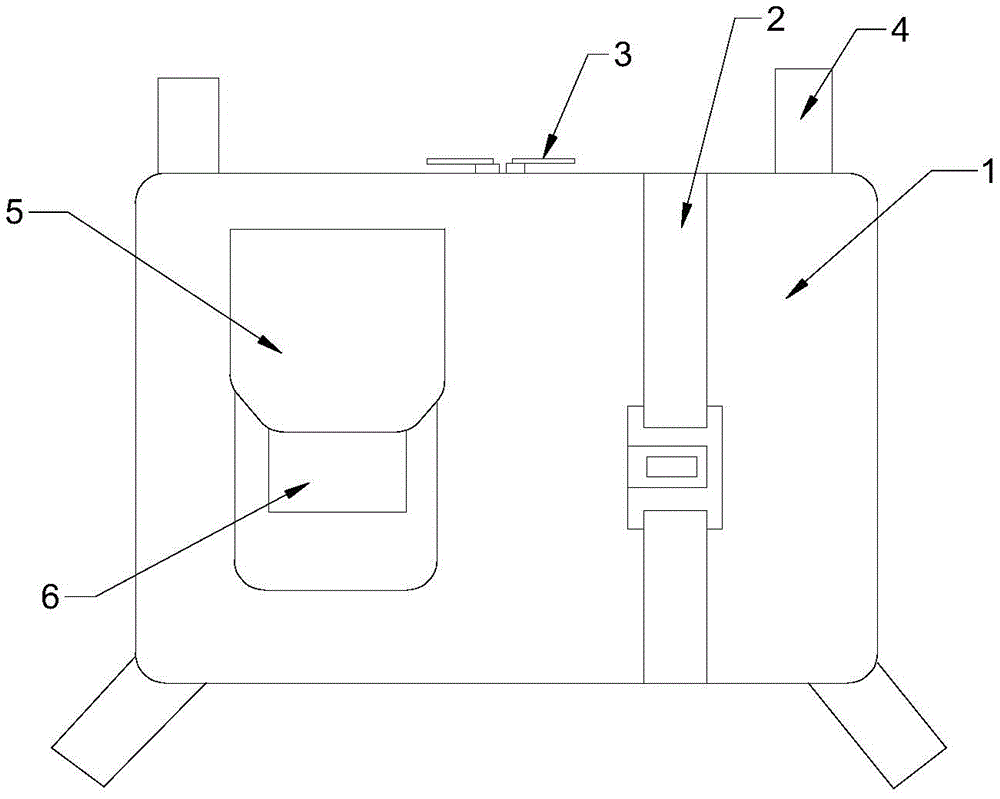

Fig. 1 is the structural representation 1 of the multifunctional small bag of the present utility model;

FIG. 2 is a schematic diagram 2 of the structure of the multifunctional small bag of the present invention.

Symbols in the drawings: 1-bag body; 2-connecting belt; 3-zipper; 4-connecting strip; 5-storage bag; 6-transparent material; -Hook and loop.

Detailed ways

In order to make the technical solution of the present invention more clear, the present invention will be further described in detail with reference to the following examples. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

Referring to accompanying drawings 1 and 2 , a multifunctional small bag of the present invention includes a bag body 1 , both sides of the top and the bottom of the bag body 1 are provided with connecting strips 2 , and the bag body 1 is provided with There is a zipper 3, the bag body 1 is provided with a laptop computer accommodating compartment, the outer side of the bag body 1 is provided with a connecting bar 4, the connecting bar 4 is connected by a buckle, and the connecting bar 4 is mainly used for clamping notebooks and other supplies, It is convenient to record some important things at any time. The outer side of the bag body 1 is also provided with a mobile phone storage bag 5. The surface of the mobile phone storage bag 5 is made of a transparent material 6, which is waterproof and anti-skid. The storage bag 5 is provided with a blocking surface, the blocking surface is provided with a Velcro, the mobile phone storage bag 5 is correspondingly provided with a strap 7, and the blocking surface is fixed on the mobile phone through the cooperation of the Velcro and the strap 7. On the storage bag 5, after realizing the quick reading of the message, it can be put down directly, and the Velcro can be opened directly when using, which can not only realize the quick reading, but also ensure the concealment and safety of the mobile phone.

The bag body 1 is provided with a card tape and a key belt for preventing cards, or small pockets of different specifications are provided as required, so as to facilitate the use of the entire bag body 1 .

The bag body 1 is provided with a card belt and a key belt for placing cards, and the fixing ring cooperates with the buckle. When matched with a shoulder strap, the whole small bag can be used as a chest bag, or a hanging bag 9 can be used as a messenger bag.

In this embodiment, the bottom of the bag body 1 is provided with through buttons 8 , and the through buttons 8 are provided in multiples and are evenly arranged on the bottom of the bag body 1 .

The buckle 8 is used for placing the hanging bag 9, and the hanging bag 9 is arranged on the bottom of the bag body 1 through the buckle 8. The hanging bag 9 is provided with a hook or a hook and loop fastener 10. The hanging bag 9 is fixed on the bag body 1, so that when the hanging bag 9 is realized, of course, if the user wants to use it as a waist bag, the hanging bag 9 can also be directly fixed around the waist.

In this embodiment, the zipper 3 is a two-way opening and closing waterproof zipper 3, which improves the life of the zipper 3

In the description herein, unless otherwise stated, "plurality" means two or more; the terms "upper", "lower", "left", "right", "inner", "outer" The orientation or positional relationship indicated by , "front end", "rear end", "head", "tail", etc. are based on the orientation or positional relationship shown in the accompanying drawings, only for the convenience of describing the present utility model and simplifying the description, and It is not indicated or implied that the indicated device or element must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as a limitation of the present invention. In the description in this text, it should be noted that, unless otherwise expressly specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integrated connection. Ground connection; it can be a mechanical connection, an electrical connection, a direct connection, or an indirect connection through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

The above descriptions are only the embodiments of the present invention, and are not intended to limit the scope of the patent of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (6)

1. The utility model provides a multifunctional small bag, includes the inclusion, and the top both sides and the bottom both sides of inclusion all are provided with the connecting band, be provided with the zip fastener on the inclusion, be provided with notebook computer holding storehouse in the inclusion, the inclusion outside is provided with the connecting strip, and the connecting strip passes through the buckle to be connected, the inclusion outside still is provided with the cell-phone and accomodates the bag, and the surface that the bag was accomodate to the cell-phone is transparent material, the cell-phone is accomodate and is provided with the fender face on the bag, be provided with nylon fastener on the fender face, the cell-phone is accomodate and is provided with the strip of taking on the bag, will keep off the.

2. The multifunctional pouch according to claim 1, wherein the zipper is a hidden waterproof zipper, and the zipper head is in the form of a strip of silicone.

3. The multifunctional pouch according to claim 1, wherein the transparent material is a transparent plastic film.

4. The multifunctional pouch of claim 1, wherein a card band and a key band for preventing a card are provided in the pack body.

5. The multifunctional pouch of claim 1, wherein a card band and a key band for preventing a card are provided in the pack body.

6. The multifunctional bag according to any one of claims 1 to 5, wherein the bag body bottom is provided with a plurality of penetrating buttons which are uniformly arranged on the bag body bottom.
