Abstract
The utility model relates to an accomodate bench technical field, specifically be an accomodate bench convenient to transportation, including accomodating the bench body, accomodate the bench body and include containing box and case lid, containing box all is provided with first folded sheet and second folded sheet around, the top of first folded sheet and second folded sheet is provided with the card axle, the bottom of first folded sheet is provided with first upset base, the bottom of second folded sheet is provided with second upset base, all install the connecting plate on first upset base and the second upset base, rotate through the hinge between the connecting plate on the first upset base and the second upset base and connect. The utility model discloses an on rotate through the hinge between first upset base and the second upset base, the other end of first upset base and second upset base rotates through the pivot to it is sunken to drive first folded sheet and second folded sheet by first upset base and second upset base, thereby reduces the area of accomodating the bench body, is favorable to accomodating the transportation of bench body.
Description
Technical Field
The utility model relates to an accomodate bench technical field, specifically be an accomodate bench convenient to transportation.
Background
The storage stool is a novel household storage article, is round, polygonal, square or rectangular in appearance, comprises a stool body and a stool cover, the stool body is provided with a storage cavity with an upward opening, and a movable cover of the stool cover is arranged on the stool body. When the stool cover is opened, articles can be taken and placed in the storage cavity, when the stool cover is covered, the storage stool can be used as a sitting stool, when an existing storage stool leaves a factory, due to the fact that the size of the stool body is too large, the needed occupied area is large, and therefore the transportation efficiency is low, and accordingly the storage stool convenient to transport is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a accomodate bench convenient to transportation to current that proposes in solving above-mentioned background art accomodates the bench when dispatching from the factory, because the volume of the bench body is too big, the area that needs is great, thereby leads to the problem that conveying efficiency is low.
In order to achieve the above object, the utility model provides a following technical scheme:
a storage stool convenient to transport comprises a storage box and a box cover, wherein a first folding plate and a second folding plate are arranged on the periphery of the storage box, a clamping shaft is arranged at the top ends of the first folding plate and the second folding plate, a first overturning base is arranged at the bottom end of the first folding plate, a second overturning base is arranged at the bottom end of the second folding plate, connecting plates are mounted on the first overturning base and the second overturning base respectively, the connecting plates on the first overturning base and the connecting plates on the second overturning base are rotatably connected through hinges, a concave connecting piece is arranged at one end of the first overturning base, a convex connecting piece is arranged at one end of the second overturning base, the convex connecting piece and the concave connecting piece are mounted on a rotating shaft, and a supporting pad is arranged at the bottom end of the rotating shaft, and a clamping groove clamped with the clamping shaft is arranged at the bottom end of the box cover.
Preferably, the connecting plate is fixedly connected to the first turnover base and the second turnover base through screws.
Preferably, the convex connecting piece and the concave connecting piece are both provided with through holes, and the convex connecting piece and the concave connecting piece are both connected to the rotating shaft through the through holes.
Preferably, the bottom fixed connection of first folded sheet is in on the first upset base, the bottom fixed connection of second folded sheet is in on the second upset base, first folded sheet with the top of second folded sheet is passed through the card axle and the draw-in groove is connected the case lid.
Preferably, the first turnover base and the second turnover base are rotatably connected through the rotating shaft.
Compared with the prior art, the beneficial effects of the utility model are that:
1. should accomodate and rotate through the hinge between the first upset base on the bench body and the second upset base, the other end of first upset base and second upset base rotates through the pivot to it is sunken to drive first folded sheet and second folded sheet by first upset base and second upset base, thereby reduces the area of accomodating the bench body, is favorable to accomodating the transportation of bench body.
Drawings

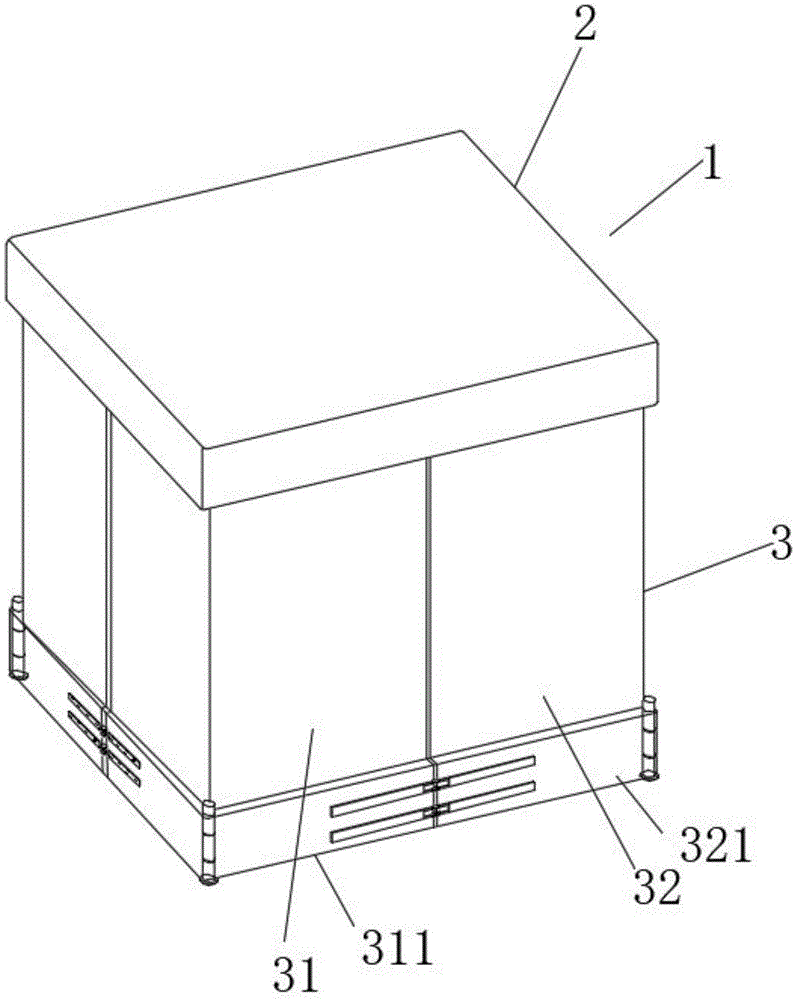

Fig. 1 is a schematic view of the overall assembly structure of the present invention;
FIG. 2 is a schematic side sectional view of the present invention;
fig. 3 is a schematic view of a connection structure of the first turnover base and the second turnover base of the present invention;
fig. 4 is a schematic view of the connection structure of the concave connecting member and the convex connecting member of the present invention.
In the figure: in the figure: 1. a storage stool body; 2. a box cover; 21. a card slot; 3. a storage box; 31. a first folding plate; 311. a first flipping base; 3111. a male connection member; 32. a second folding plate; 321. a second flipping base; 3211. a connecting plate; 3212. a hinge; 3213. a female connector 33, a clamping shaft; 4. clamping a shaft; 41. a support pad.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be understood that the terms "center", "center line", "longitudinal", "lateral", "length", "width", "thickness", "depth", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be taken as limiting the invention, in the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
Example 1
A storage stool convenient for transportation, in order to solve the problem that the transportation efficiency is low due to the large volume of the stool body and the large occupied area required when the existing storage stool is shipped out, as shown in fig. 1, fig. 2, fig. 3 and fig. 4, the storage stool comprises a storage stool body 1, the storage stool body 1 comprises a storage box 3 and a box cover 2, a first folding plate 31 and a second folding plate 32 are arranged around the storage box 3, the top ends of the first folding plate 31 and the second folding plate 32 are provided with a clamping shaft 33, the bottom end of the first folding plate 31 is provided with a first turning base 311, the bottom end of the second folding plate 32 is provided with a second turning base 321, the first turning base 311 and the second turning base 321 are both provided with a connecting plate 3211, the connecting plate 3211 on the first turning base 311 and the connecting plate 3211 on the second turning base 321 are rotatably connected through a hinge 3212, one end of the first turning base 311 is provided with a concave connecting piece 3213, one end of the second turning base 321 is provided with a convex connecting piece 3111, the convex connecting piece 3111 and the concave connecting piece 3213 are both installed on the rotating shaft 4, the bottom end of the rotating shaft 4 is provided with a supporting pad 41, and the bottom end of the case cover 2 is provided with a clamping groove 21 clamped with the clamping shaft 33.
In this example, the connecting plate 3211 is fixedly connected to the first flipping base 311 and the second flipping base 321 through screws, and when the bracket 3211 is rotated through the hinge 3212, the connecting plate 3211 drives the first flipping base 311 and the second flipping base 321 to rotate.
Further, all be provided with the through-hole on protruding type connecting piece 3111 and the concave type connecting piece 3213, protruding type connecting piece 3111 and concave type connecting piece 3213 all connect on pivot 4 through the through-hole, are favorable to making protruding type connecting piece 3111 and concave type connecting piece 3213 rotatory on pivot 4, are convenient for cooperate the rotation of first upset base 311 and second upset base 321.
Specifically, the bottom end of the first folding plate 31 is fixedly connected to the first turning base 311, the bottom end of the second folding plate 32 is fixedly connected to the second turning base 321, the top ends of the first folding plate 31 and the second folding plate 32 are connected to the case cover 2 through the clamping shaft 33 and the clamping groove 21, and the clamping shaft 33 is clamped into the first folding plate 31 and the second folding plate 32 through the clamping groove 21 on the case cover 2, so as to limit the positions of the first folding plate 31 and the second folding plate 32.
In addition, the other ends of the first and second flipping bases 311 and 321 are rotatably connected by a rotating shaft 4.
The utility model discloses when using, at first between first upset base 311 and the second upset base 321 through hinge 3212 between the connecting plate 3211 to the containing box 3 in sunken, wherein the protruding type connecting piece 3111 and the concave type connecting piece 3213 of the other end of first upset base 311 and second upset base 321 are rotatory in pivot 4, cooperate the rotation of first upset base 311 and second upset base 321, thereby make first upset base 311 and second upset base 321 drive first folded sheet 31 and second folded sheet 32 to the containing box 3 in sunken, thereby reduce the area of accomodating bench body 1, be favorable to accomodating the transportation of bench body, during the use, go into card axle 33 on first folded sheet 31 and the second folded sheet 32 by draw-in groove 21 card on the case lid 2, thereby it can to inject the position of first folded sheet 31 and second folded sheet 32.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (5)
1. The utility model provides a accomodate bench convenient to transportation, is including accomodating bench body (1), its characterized in that: the storage stool body (1) comprises a storage box (3) and a box cover (2), a first folding plate (31) and a second folding plate (32) are arranged on the periphery of the storage box (3), a clamping shaft (33) is arranged at the top ends of the first folding plate (31) and the second folding plate (32), a first overturning base (311) is arranged at the bottom end of the first folding plate (31), a second overturning base (321) is arranged at the bottom end of the second folding plate (32), connecting plates (3211) are respectively arranged on the first overturning base (311) and the second overturning base (321), the connecting plates (3211) on the first overturning base (311) are rotatably connected with the connecting plates (3211) on the second overturning base (321) through hinges (3212), a concave connecting piece (3213) is arranged at one end of the first overturning base (311), the one end of second upset base (321) is provided with protruding type connecting piece (3111), protruding type connecting piece (3111) with concave type connecting piece (3213) all installs on pivot (4), the bottom of pivot (4) is provided with supporting pad (41), the bottom of case lid (2) be provided with draw-in groove (21) of card axle (33) institute joint.
2. A stowing stool convenient for transport according to claim 1, characterised in that: the connecting plate (3211) is fixedly connected to the first tilting base (311) and the second tilting base (321) by screws.
3. A stowing stool convenient for transport according to claim 1, characterised in that: the male connecting piece (3111) and the female connecting piece (3213) are provided with through holes, and the male connecting piece (3111) and the female connecting piece (3213) are connected to the rotating shaft (4) through the through holes.
4. A stowing stool convenient for transport according to claim 1, characterised in that: the bottom fixed connection of first folded sheet (31) is in on first upset base (311), the bottom fixed connection of second folded sheet (32) is in on second upset base (321), first folded sheet (31) with the top of second folded sheet (32) is passed through card axle (33) and draw-in groove (21) is connected case lid (2).
5. A stowing stool convenient for transport according to claim 1, characterised in that: the other ends of the first overturning base (311) and the second overturning base (321) are rotatably connected through the rotating shaft (4).
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
