Abstract

The utility model discloses a new type of chest support, which comprises a chest support main body composed of a chest support front piece, a chest support middle piece, a chest support back piece and sleeves. The chest support front piece has a U-shaped opening, and the breast support The front support piece is composed of the left front piece of the chest support and the right front piece of the chest support that are detachably connected to each other, the bottom of the chest support main body is sewn with a fixing belt, and the position of the chest support body corresponding to the armpit is provided with a ring-shaped tightening belt. A seam, a mesh layer is arranged in the tight seam, and four tight seams extend outward from the tight seam, two of which form the upper cuff of the sleeve, and the other tight seams are the sleeves respectively The intersection of the medial median line, the front piece of the breast brace, and the middle piece of the breast brace. The utility model has a simple and reasonable structure, can effectively remove the sweat and smell under the armpit, and at the same time facilitates the movement of the wearer's arm, and the fixing belt can prevent rolling.

Description

A new type of chest support

technical field

The utility model relates to the field of clothing, in particular to a new type of chest support.

Background technique

With the development of social material living standards, women's pursuit of beauty is becoming more and more intense. The majority of women especially desire to have a graceful figure and a sexy body. In response to the needs of the majority of female consumers, more and more clothing companies have launched a variety of breast braces to prevent fat from growing outwards, shape girls' curves, prevent sagging breasts, and make breasts more suitable for stereotyped growth and development.

The alias of the chest support is also called invisible bra or push-up bra. It is a functional bra, which instantly lifts the chest, and the shaping effect completely surpasses similar bras. It is very suitable for women with large breasts that sag and leak on the side. U-shaped fixing, the bra is specially designed with a U-shaped back, which can effectively fix the flow of back fat, making it more comfortable and stable to wear.

After in-depth research, the applicant found that the existing chest support with sleeves is relatively tight, complex and unreasonable in structure, causing inconvenience in the movement of the wearer's arms and other parts, and at the same time unable to eliminate the sweat and smell of the armpit, nor can it be Avoid the friction between the fat on the inner side of the arm and the position under the armpit, which will cause tissue wear, and at the same time, it is impossible to free the fat on the back and carry out technical defects such as health care for the back.

Utility model content

The purpose of the utility model is to provide a new type of chest support, which has solved the defects and deficiencies of the prior art.

The technical scheme of the present utility model:

A new type of chest support, comprising a chest support main body composed of a chest support front piece, a chest support middle piece, a chest support back piece and sleeves, the chest support front piece has a U-shaped opening, and the chest support front piece is composed of The chest support left front piece and the chest support right front piece that are detachably connected to each other are formed, the bottom of the chest support main body is sewn with a fixing belt, and the position of the chest support body corresponding to the armpit is provided with an annular tight seam, so There is a grid layer in the tight seam, and the tight seam extends out four tight stitches, wherein two tight stitches form the upper cuff of the sleeve, and the other tight stitches are the midline of the inner side of the sleeve respectively. , the intersection line of the front piece of the breast support and the middle piece of the breast support.

Preferably, each of the quarter points of the tight seam has a line extending outward and pointing to the center of the circle.

Preferably, the positions of the left front piece of the breast support and the right front piece of the breast support corresponding to the auxiliary breasts are provided with sickle-shaped auxiliary breast support pieces.

Preferably, strong pressure layers are respectively distributed on both sides of the midline of the inner side of the sleeve, and the strong pressure layers are connected by weak pressure layers.

Preferably, a first elongated area and a second elongated area are respectively distributed along the midline of the back panel of the breast support, and the edges of the elongated area are sewn with lifting strips.

Preferably, a memory alloy steel frame is embedded in the longitudinal direction of the first elongated region.

Preferably, the top of the edge of the back piece of the breast support is sewed with a right-angled trapezoid block extending toward the middle piece of the breast support, and the straight waist of the right-angled trapezoid block just corresponds to the midline of the shoulder.

Preferably, a far-infrared fabric layer is sewn on the back piece of the chest support.

Preferably, meridian stones are embedded on the main body of the chest support.

Preferably, the left front piece of the breast support and the right front piece of the breast support are detachably connected through a buckle structure.

Compared with the prior art, the beneficial effects of the technical solution of the present utility model:

1. The present utility model includes the main body of the breast support consisting of the front piece of the breast support, the middle piece of the breast support, the back piece of the breast support and the sleeves, the front piece of the breast support has a U-shaped opening, and the front piece of the breast support is composed of mutually The left front piece of the chest support and the right front piece of the chest support are detachably connected between them. The bottom of the chest support main body is sewn with a fixing belt, and the position corresponding to the armpit is provided with an annular tight seam. A grid layer is arranged in the tight seam strip, and four tight seam lines extend outward from the tight seam bar, two of which form the upper cuff of the sleeve, and the other tight seam lines are the midline of the inner side of the sleeve, The intersecting line of the front piece of the chest support and the middle piece of the chest support has a simple and reasonable structure, which can effectively remove the sweat and smell under the armpit, and at the same time facilitate the movement of the wearer's arm, and the above-mentioned fixing belt can prevent rolling.

2. There is a line extending outward and pointing to the center of the circle at the quarter points of the tight seam strip of the present invention, which further optimizes the structure, is more conducive to the stretching of various positions of the main body of the back clip, and is also conducive to processing and manufacturing, It can effectively remove sweat and odor under the armpit, and at the same time facilitate the movement of the wearer's arm.

3. The position of the left front piece of the breast support and the right front piece of the breast support of the present utility model are provided with a sickle-shaped auxiliary breast support piece at the position corresponding to the auxiliary breast, and in cooperation with the fixing belt, the breast can be held in the best state and prevent the fat from moving to the breast. Excess growth can shape the curvaceous beauty of girls, prevent sagging breasts, and make the breasts more suitable for stereotyped growth and development.

4. Strong pressure layers are respectively distributed on both sides of the midline of the inner side of the sleeve of the present invention. The strong pressure layers are connected by the weak pressure layers, which can free the fat and fat on the inner side of the arm to avoid friction between the inner side of the arm and the underarm, resulting in tissue formation. damage.

5. The back piece of the breast support of the present utility model distributes the first elongated area and the second elongated area in turn along the center line, and the edge of the elongated area is sewn with lifting strips, which can free the fat on the back. Makes the back more relaxed and prevents the accumulation of fat blocks on the back.

6. The length direction of the first elongated region of the present invention is embedded with a memory alloy steel bone, which is beneficial to the shaping of the spine, shaping a good dorsal arch curve, and at the same time preventing the main body of the chest support from rolling over.

7. The top of the edge of the back piece of the breast support of the present invention is sewn with a right-angled trapezoid block extending to the middle piece of the breast support. The straight waist of the right-angled trapezoid block just corresponds to the midline of the shoulder, which can effectively protect the shoulder. The well position has a certain health care effect, and at the same time is conducive to the relaxation of the back piece of the chest support.

8. The back piece of the chest support of the present invention is sewn with a far-infrared fabric layer, which can be set as required, and has better health care effects.

9. Meridian stones are embedded on the main body of the chest support of the present utility model, which can perform magnetic therapy on the acupoints of the human body according to the needs, and has a good health care effect.

10. The left front piece of the breast support and the right front piece of the breast support of the present utility model are detachably connected through the buckle structure, which is convenient for disassembly or connection, and at the same time, it can maintain a good connection state, is not easy to roll, and has a good shaping effect.

Description of drawings

The accompanying drawings forming a part of the present application are used to provide further understanding of the present invention, and the schematic embodiments and descriptions of the present invention are used to explain the present invention and do not constitute an improper limitation of the present invention. In the attached image:

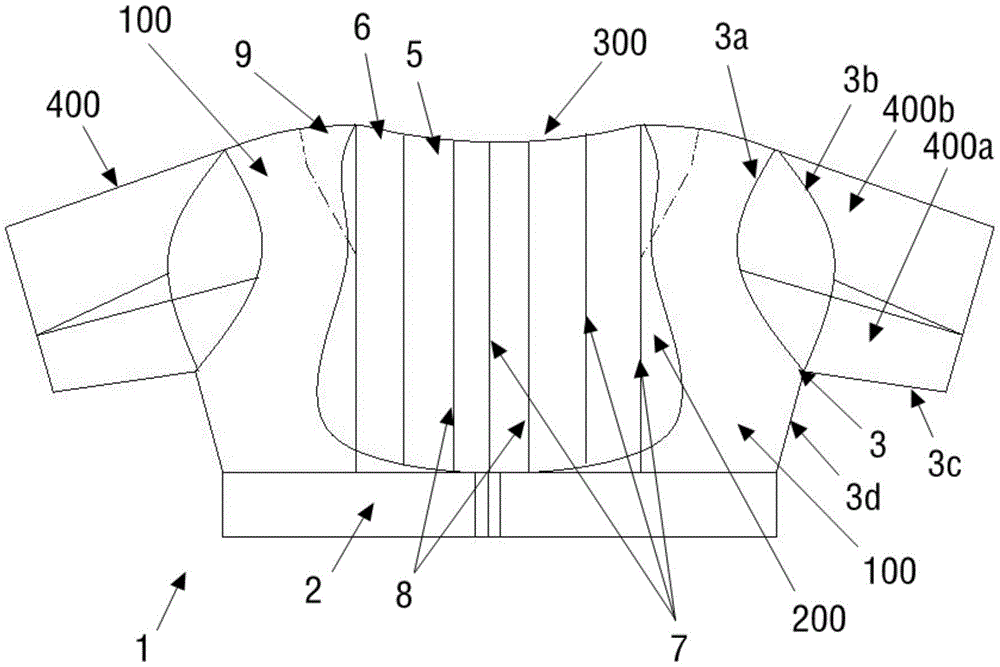

Figure 1 is a schematic diagram of the utility model.

Figure 2 is a schematic diagram of the tight seam of the present invention.

Detailed ways

The following content is a further detailed description of the present invention in conjunction with the specific preferred embodiments, and it cannot be considered that the specific implementation of the present invention is limited to these descriptions. and features in the embodiments may be combined with each other.

Referring to Figures 1, 2 and 2, a new type of chest support in this embodiment includes a chest support body 1 consisting of a chest support front piece 100, a chest support middle piece 200, a chest support rear piece 300 and sleeves 400. The front piece of the chest support has a U-shaped opening, and the front piece of the chest support is composed of the left front piece of the chest support and the right front piece of the chest support that are detachably connected to each other, and the bottom of the main body of the chest support is sewn with a fixing belt 2, The position of the chest support body corresponding to the armpit is provided with an annular tight seam strip 3, a grid layer is arranged in the tight seam strip, and four tight seam lines 3a, 3b, 3c extend outward from the tight seam strip. , 3d, wherein the two tight stitches 3a, 3b form the upper cuff of the sleeve, and the other tight stitches 3c, 3d are respectively the intersection line of the midline of the inner side of the sleeve, the front piece of the chest support and the middle piece of the chest support.

As a preferred implementation manner, each of the quarter points of the tight seam strip in this embodiment has a line extending outward and pointing to the center of the circle.

As a preferred embodiment, the left front piece of the breast support and the right front piece of the breast support in the present embodiment are provided with sickle-shaped auxiliary breast support pieces at the positions corresponding to the auxiliary breasts.

As a preferred embodiment, strong pressure layers 400a are respectively distributed on both sides of the inner median line of the sleeve 400 in this embodiment, and the strong pressure layers 400a are connected by a weak pressure layer 400b.

As a preferred embodiment, the chest support back sheet 300 in this embodiment is distributed along the center line 4 of the first elongated area 5 and the second elongated area 6 in sequence, and the edges of the elongated areas are sewn with pull-ups Article 7.

As a preferred embodiment, a memory alloy steel 8 is embedded in the longitudinal direction of the first elongated region 5 in this embodiment.

As a preferred embodiment, the top of the edge of the back piece 300 of the breast support in this embodiment is sewed with a right-angled trapezoid block 9 extending toward the middle piece of the breast support, and the straight waist of the right-angled trapezoid block just corresponds to the midline of the shoulder.

As a preferred embodiment, the back piece of the chest brace described in this embodiment is sewn with a far-infrared fabric layer.

As a preferred embodiment, the main body of the chest support in this embodiment is embedded with meridian stones.

As a preferred embodiment, the left front piece of the chest support and the right front piece of the chest support in this embodiment are detachably connected through a buckle structure.

As a preferred embodiment, the lower cuff of the sleeve in this embodiment is sewn with a lace layer.

For those of ordinary skill in the technical field of the present invention, without departing from the concept of the present invention, some simple deductions or substitutions can be made, which should be regarded as belonging to the protection scope of the present invention.

Claims (10)

1. The utility model provides a novel chest holds in palm, a serial communication port, hold in the palm the main part including the chest that the chest held in the palm anter, chest held in the palm the median, the chest held in the palm the back part and the sleeve is constituteed, the chest holds in the palm the anter and holds in the palm right anter with the chest by dismantling the left anter of chest support of connection between each other and constitute, the fixed band has been sewed up to the bottom that the chest held in the palm the main part, the chest holds in the palm the position that the main part corresponds the armpit and is equipped with annular tight seam strip, be equipped with the net layer in the tight seam strip, tight seam strip outwards stretches out four tight seam lines, wherein two tight seam lines form the last cuff of sleeve, other tight seam line divide into the inboard median line of sleeve, the chest holds in the palm the front.

2. The novel chest support according to claim 1, wherein each quarter point of the fastening strip has a line extending outward and pointing to the center of the circle.

3. The novel chest support according to claim 1, wherein sickle-shaped auxiliary breast support sheets are arranged on the left front sheet and the right front sheet of the chest support at positions corresponding to the auxiliary breasts.

4. The novel chest support as claimed in claim 1, wherein the medial midline of the sleeves is distributed on both sides with strong pressure layers, and the strong pressure layers are connected by weak pressure layers.

5. The novel chest support according to claim 1, wherein the back piece of the chest support is provided with a first strip area and a second strip area along the central line thereof, and the edges of the strip areas are sewed with lifting strips.

6. The chest support as claimed in claim 5, wherein a steel rib made of memory alloy is embedded in the first strip region in the length direction.

7. A novel chest support according to claim 5 or 6, characterized in that a right-angle-like trapezoidal block extending towards the middle sheet of the chest support is sewn on the top of the edge of the back sheet of the chest support, and the straight waist of the right-angle-like trapezoidal block just corresponds to the midline of the shoulder.

8. The novel chest support according to claim 1, characterized in that the back sheet of the chest support is sewed with a far infrared fabric layer.

9. The novel chest support according to claim 1, wherein the body of the chest support is embedded with trachelospermi.

10. The novel chest support as claimed in claim 1, wherein the left front chest support and the right front chest support are detachably connected by a row buckle structure.
