CN210724661U

CN210724661U - Self-cleaning solar cell panel capable of supplying energy by utilizing self energy

Info

Publication number: CN210724661U
Application number: CN201922299254.9U
Authority: CN
Inventors: 涂洁磊; 张炜楠; 李雷; 胡凯; 孙晓宇; 颜平远; 徐晓壮; 宋冠宇
Original assignee: Yunnan Normal University
Current assignee: Yunnan University YNU; Yunnan Normal University
Priority date: 2019-12-19
Filing date: 2019-12-19
Publication date: 2020-06-09
Anticipated expiration: 2029-12-19

Abstract

The utility model relates to a solar cell panel technical field, and an utilize self energy to carry out automatically cleaning solar cell panel of energy supply is disclosed, including the panel body, the fixed plate that is provided with of lower extreme of panel body, first cavity has been seted up to the inside of fixed plate, and the inside of first cavity transversely is provided with two-way lead screw, and the left end of two-way lead screw is rotated through the lateral wall of first rolling bearing with first cavity and is connected, and the right-hand member of two-way lead screw passes the right side wall of fixed plate and extends to the outside, and the fixed quick-witted case that is provided with of right. The utility model discloses, the electric energy that usable solar cell panel self produced makes cleaning device work, cleans solar cell panel surface automatically, reduces clean cost, increases work efficiency.

Description

Self-cleaning solar cell panel capable of supplying energy by utilizing self energy

Technical Field

The utility model relates to a solar cell panel technical field especially relates to an utilize self energy to carry out automatically cleaning solar cell panel of energy supply.

Background

The solar cell panel is a power generation device which is widely applied at present and converts light energy into electric energy, and at the present stage, street lamps, garden lamps, small-sized power supply facilities and the like increasingly use the solar cell panel.

The solar cell panel that current usable self energy supplied power uses the back for a long time, when the surface produced a large amount of dust influence illumination, generally needs the manual work to clean, has increased clear degree of difficulty and clear cost.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving among the prior art after solar cell panel uses for a long time, the manual work is cleaned the dust, has not only increased the lower problem of clean cost and work efficiency, and the self-cleaning solar cell panel who utilizes self energy to carry out the energy supply that proposes.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a self-cleaning solar cell panel utilizing self energy to supply energy comprises a cell panel body, wherein a fixed plate is fixedly arranged at the lower end of the cell panel body, a first cavity is formed in the fixed plate, a bidirectional screw rod is transversely arranged in the first cavity, the left end of the bidirectional screw rod is rotatably connected with the side wall of the first cavity through a first rotating bearing, the right end of the bidirectional screw rod penetrates through the right side wall of the fixed plate and extends to the outside, a case is fixedly arranged at the right end of the fixed plate, a motor is fixedly arranged in the case, the output end of the motor is fixedly connected with the right end of the bidirectional screw rod, a strip-shaped opening is formed in the upper side wall of the fixed plate, a sliding groove is formed in the lower side wall of the fixed plate, a sliding block is connected to the rod wall of the bidirectional screw rod in a threaded manner, the cleaning brush is characterized in that a reciprocating swing mechanism is fixedly arranged at the upper end of the sliding block, a rocker is arranged at the upper end of the fixing plate, a second cavity is formed in the rocker, a buckle mechanism is arranged in the second cavity, a cleaning brush is arranged on the side wall of the rocker, and the cleaning brush is fixedly connected with the rocker through the buckle mechanism.

Preferably, the reciprocating swing mechanism comprises a rack and a gear, the rack is fixedly connected with the upper end of the sliding block, a rotating rod is arranged at the upper end of the rack, the gear is fixedly connected with the rod wall of the rotating rod, the lower end of the rocker is fixedly connected with the rod wall of the rotating rod, and the rack is meshed with the gear.

Preferably, buckle mechanism includes first diaphragm and second diaphragm, first diaphragm and second diaphragm all transversely set up the inside at the second cavity, the right side wall of first diaphragm and the left side wall of second diaphragm all fix and are provided with the telescopic link, two the other end of telescopic link all with the lateral wall fixed connection of second cavity, two the outside of telescopic link all is fixed the cup jointed spring, the fixed card pole that is provided with in upper end of cleaning brush, the card pole pass the lateral wall of rocker and with the lateral wall sliding connection of through-hole, the joint between first diaphragm, second diaphragm and the card pole, the one end that first diaphragm and second diaphragm deviate from the spring all fixes and is provided with the button, two the button passes the lateral wall of rocker and extends to the outside.

Preferably, a first connecting rod is fixedly arranged at the right end of the rocker, a second connecting rod is fixedly arranged at the right end of the battery panel body, and a fixing rod is rotatably connected between the first connecting rod and the second connecting rod through a second rotating bearing.

Preferably, the cleaning brush is made of a nylon soft material.

Compared with the prior art, the utility model provides an utilize self energy to carry out automatically cleaning solar cell panel of energy supply possesses following beneficial effect:

1. this utilize self energy to carry out automatically cleaning solar cell panel of energy supply, rotate through the motor, the motor drives two-way lead screw and rotates, two-way lead screw drives threaded connection's slider motion on the pole wall, the slider drives upper end fixed connection's rack motion, the rack drives upper end fixed connection's gear motion, the gear drives rear end fixed connection's rocker and rotates, the rocker drives lateral wall fixed connection's cleaning brush motion, the dust on self-cleaning solar cell panel surface, reduce clean cost, increase production efficiency.

2. This utilize self energy to carry out automatically cleaning solar cell panel of energy supply, through pressing the button, two buttons promote first diaphragm and second diaphragm motion, pass the through-hole with the kelly, not hard up button, two springs promote first diaphragm and second diaphragm respectively and move to both ends, and it is fixed with the cleaning brush, after long-time the use, conveniently carry out dismouting and change to the cleaning brush.

The part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, the utility model discloses convenient operation, the electric energy that usable solar cell panel self produced makes cleaning device work, cleans solar cell panel surface automatically, reduces clean cost, increases work efficiency.

Drawings

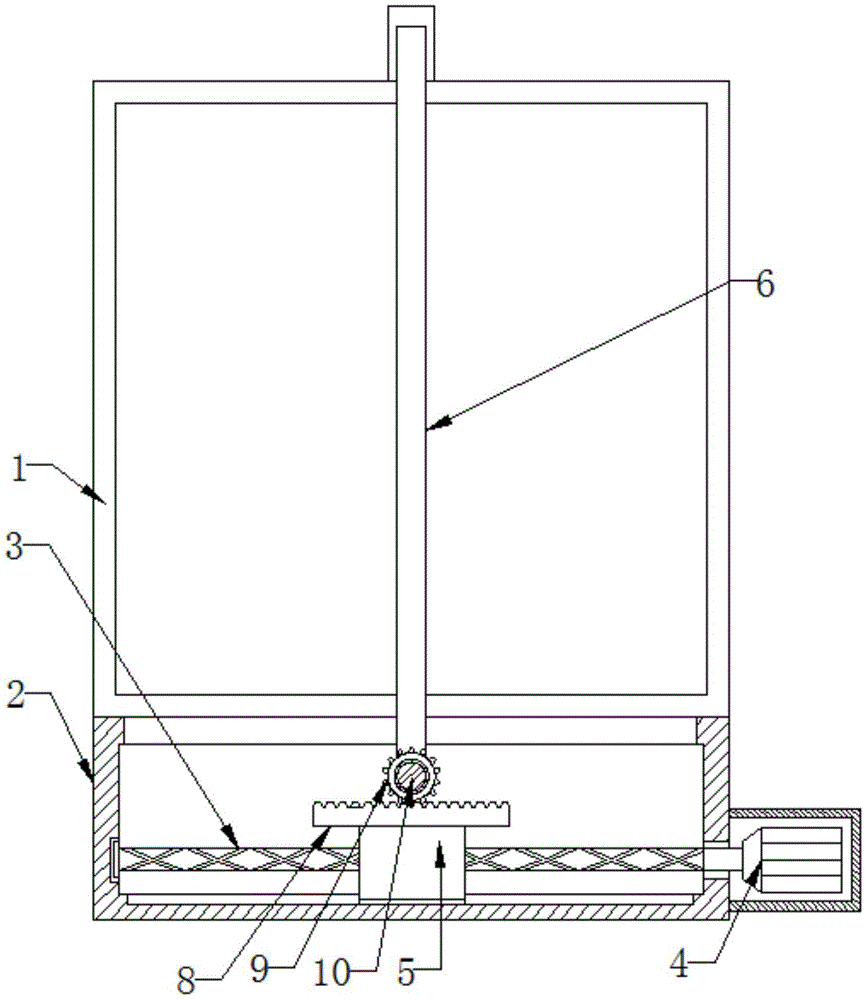

Fig. 1 is a schematic front structural view of a self-cleaning solar cell panel powered by self energy according to the present invention;

fig. 2 is a schematic side view of a self-cleaning solar cell panel powered by self energy according to the present invention;

fig. 3 is a side cross-sectional view of the snap mechanism.

In the figure: the cleaning device comprises a battery panel body 1, a fixing plate 2, a bidirectional screw rod 3, a motor 4, a sliding block 5, a rocker 6, a cleaning brush 7, a rack 8, a gear 9, a rotating rod 10, a first transverse plate 11, a second transverse plate 12, a telescopic rod 13, a spring 14, a first connecting rod 15, a second connecting rod 16, a fixing rod 17, a clamping rod 18 and a button 19.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, a self-cleaning solar cell panel using self energy for energy supply comprises a cell panel body 1, a fixed plate 2 is fixedly arranged at the lower end of the cell panel body 1, a first cavity is arranged inside the fixed plate 2, a bidirectional screw rod 3 is transversely arranged inside the first cavity, the left end of the bidirectional screw rod 3 is rotatably connected with the side wall of the first cavity through a first rotating bearing, the right end of the bidirectional screw rod 3 passes through the right side wall of the fixed plate 2 and extends to the outside, a case is fixedly arranged at the right end of the fixed plate 2, a motor 4 is fixedly arranged inside the case, the output end of the motor 4 is fixedly connected with the right end of the bidirectional screw rod 3, a strip-shaped opening is arranged on the upper side wall of the fixed plate 2, a chute is arranged on the lower side wall of the fixed plate 2, a slide block 5 is connected with the, the upper end of the sliding block 5 is fixedly provided with a reciprocating swing mechanism, the reciprocating swing mechanism comprises a rack 8 and a gear 9, the rack 8 is fixedly connected with the upper end of the sliding block 5, the upper end of the rack 8 is provided with a rotating rod 10, the gear 9 is fixedly connected with the rod wall of the rotating rod 10, the lower end of a rocker 6 is fixedly connected with the rod wall of the rotating rod 10, the rack 8 is meshed with the gear 9, the upper end of a fixed plate 2 is provided with the rocker 6, the right end of the rocker 6 is fixedly provided with a first connecting rod 15, the right end of a battery panel body 1 is fixedly provided with a second connecting rod 16, a fixed rod 17 is rotatably connected between the first connecting rod 15 and the second connecting rod 16 through a second rotating bearing, a second cavity is arranged inside the rocker 6, a buckle mechanism is arranged inside the second cavity and comprises a first transverse plate 11 and a second transverse plate 12, the first transverse plate 11 and the second transverse plate, the right side wall of first diaphragm 11 and the left side wall of second diaphragm 12 all fix and are provided with telescopic link 13, the other end of two telescopic links 13 all with the lateral wall fixed connection of second cavity, spring 14 has all been fixed to cup joint in the outside of two telescopic links 13, the fixed kelly 18 that is provided with in upper end of cleaning brush 7, kelly 18 pass rocker 6's lateral wall and with the lateral wall sliding connection of through-hole, first diaphragm 11, second diaphragm 12 and the joint between the kelly 18, first diaphragm 11 and second diaphragm 12 deviate from the one end of spring 14 and all fix and are provided with button 19, two buttons 19 pass rocker 6's lateral wall and extend to the outside, rocker 6's lateral wall is provided with cleaning brush 7, cleaning brush 7 adopts the soft material of nylon, cleaning brush 7 passes through fixed connection between buckle mechanism and the rocker 6.

In the utility model, when the upper end of the cell panel body 1 needs to be cleaned, the motor 4 is started, the motor 4 drives the bidirectional screw rod 3 to rotate, the bidirectional screw rod 3 drives the slider 5 which is connected with the screw thread on the rod wall to move, the slider 5 drives the rack 8 which is fixedly connected with the upper end to move, the rack 8 drives the gear 9 which is fixedly connected with the upper end to move, the gear 9 drives the rocker 6 which is fixedly connected with the rear end to rotate, accessible cleaning device is automatic to be cleaned 1 upper end of panel body, increases work efficiency, reduces clean cost, presses button 19, two button 19 promotes to promote respectively first diaphragm 11 and the motion of second diaphragm 12, passes through the through-hole with kelly 18, and not hard up button 19, two springs 14 promote respectively first diaphragm 11 and the motion of second diaphragm 12, will block 18 centre gripping of pole, after long-time the use, conveniently carry out dismouting and change to the cleaning brush.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A self-cleaning solar cell panel utilizing self energy to supply energy comprises a cell panel body (1) and is characterized in that a fixing plate (2) is fixedly arranged at the lower end of the cell panel body (1), a first cavity is formed in the fixing plate (2), a bidirectional screw rod (3) is transversely arranged in the first cavity, the left end of the bidirectional screw rod (3) is rotatably connected with the side wall of the first cavity through a first rotating bearing, the right end of the bidirectional screw rod (3) penetrates through the right side wall of the fixing plate (2) and extends to the outside, a case is fixedly arranged at the right end of the fixing plate (2), a motor (4) is fixedly arranged in the case, the output end of the motor (4) is fixedly connected with the right end of the bidirectional screw rod (3), a strip-shaped opening is formed in the upper side wall of the fixing plate (2), a sliding groove is formed in the lower side wall of the fixing plate (2, the bidirectional screw rod (3) is characterized in that a sliding block (5) is connected to the rod wall of the bidirectional screw rod in a threaded manner, the lower end of the sliding block (5) is connected with the side wall of the sliding groove in a sliding manner, a reciprocating swing mechanism is fixedly arranged at the upper end of the sliding block (5), a rocker (6) is arranged at the upper end of the fixing plate (2), a second cavity is formed in the rocker (6), a buckle mechanism is arranged in the second cavity, a cleaning brush (7) is arranged on the side wall of the rocker (6), and the cleaning brush (7) is fixedly connected with the rocker (6) through the buckle mechanism.

2. The self-cleaning solar panel powered by self energy according to claim 1, wherein the reciprocating rocking mechanism comprises a rack (8) and a gear (9), the rack (8) is fixedly connected with the upper end of the sliding block (5), the upper end of the rack (8) is provided with a rotating rod (10), the gear (9) is fixedly connected with the rod wall of the rotating rod (10), the lower end of the rocker (6) is fixedly connected with the rod wall of the rotating rod (10), and the rack (8) is meshed with the gear (9).

3. The self-cleaning solar cell panel powered by self energy according to claim 1, wherein the fastening mechanism comprises a first transverse plate (11) and a second transverse plate (12), the first transverse plate (11) and the second transverse plate (12) are both transversely disposed inside the second cavity, the right side wall of the first transverse plate (11) and the left side wall of the second transverse plate (12) are both fixedly provided with a telescopic rod (13), the other ends of the two telescopic rods (13) are both fixedly connected with the side wall of the second cavity, the outer parts of the two telescopic rods (13) are both fixedly sleeved with a spring (14), the upper end of the cleaning brush (7) is fixedly provided with a clamping rod (18), the clamping rod (18) passes through the side wall of the rocker (6) and is slidably connected with the side wall of the through hole, and the first transverse plate (11), the second transverse plate (12) and the clamping rod (18) are clamped together, the first transverse plate (11) and the second transverse plate (12) are fixedly provided with buttons (19) at ends departing from the spring (14), and the two buttons (19) penetrate through the side wall of the rocker (6) and extend to the outside.

4. The self-cleaning solar panel using self energy for energy supply according to claim 1, wherein a first connecting rod (15) is fixedly arranged at the right end of the rocker (6), a second connecting rod (16) is fixedly arranged at the right end of the panel body (1), and a fixing rod (17) is rotatably connected between the first connecting rod (15) and the second connecting rod (16) through a second rotating bearing.

5. Self-cleaning solar panel powered by its own energy source as claimed in claim 1, characterised in that the cleaning brush (7) is made of nylon soft material.
