CN210697816U

CN210697816U - Medical paediatrics surgical equipment storage device

Info

Publication number: CN210697816U
Application number: CN201921145842.0U
Authority: CN
Inventors: 邓超; 李运鸾; 张栖玮; 潘韦行
Original assignee: First Peoples Hospital of Neijiang
Current assignee: First Peoples Hospital of Neijiang
Priority date: 2019-07-22
Filing date: 2019-07-22
Publication date: 2020-06-09
Anticipated expiration: 2029-07-22

Abstract

The utility model belongs to the technical field of medical equipment, in particular to a medical pediatric surgery equipment storage device, which comprises a fixed table, a storage cabinet body, an alcohol bin, an alcohol inlet and an alcohol outlet, wherein the storage cabinet body is fixedly connected at the upper end of the fixed table, the alcohol bin is arranged in the storage cabinet body, and the bottom end of the alcohol bin is provided with a first clapboard; the utility model discloses, the setting in alcohol storehouse, make people when using the device, the alcohol of need preparing again has been avoided, the speed that the doctor disinfected to surgical equipment has been improved, doctor's operating pressure has also been alleviateed simultaneously, under lamp stand and ultraviolet lamp's setting, make people carry out the in-process of depositing to surgical equipment, surgical equipment has been avoided carrying out the in-process of storing by bacterial infection, surgical equipment's cleanness has been guaranteed, at the water pump, under shunt tubes and the effect of rain shower, make the doctor carry out sterile in-process more convenient at surgical equipment.

Description

Medical paediatrics surgical equipment storage device

Technical Field

The utility model belongs to the technical field of medical equipment, concretely relates to medical paediatrics surgical equipment deposits device.

Background

Surgical equipment of hospital has strict system of depositing, especially to surgical equipment of paediatrics, paediatrics patient immune system is still incomplete, surgical equipment more needs to classify and places, present surgical equipment strorage device is large-scale cabinet structure generally, the inside storage grid that is cut apart into a lot of little of in the storage cabinet, all be immobility in storage grid, can't remove and stretch out the storage cabinet, to some deeper storage cabinets in position, the depositing of inconvenient equipment, simultaneously to surgical equipment the required environment of in-process surgical equipment that deposits need accomplish aseptic environment, simultaneously need carry out disinfection treatment to surgical equipment before using, prior art carries out sterile in-process to surgical equipment, it is too extravagant to the use of alcohol, for solving prior art's weak point, we have pushed out following device.

SUMMERY OF THE UTILITY MODEL

To solve the problems set forth in the background art described above. The utility model provides a medical paediatrics surgical equipment deposits device has simple structure, the simple operation to have and conveniently deposit surgical equipment, and to surgical equipment's disinfection convenient more and resources are saved's characteristics.

In order to achieve the above object, the utility model provides a following technical scheme: a medical pediatric surgery equipment storage device comprises a fixed table, a storage cabinet body, an alcohol bin, an alcohol inlet and an alcohol outlet, wherein the storage cabinet body is fixedly connected to the upper end of the fixed table, the alcohol bin is arranged in the storage cabinet body, a first partition plate is arranged at the bottom end of the alcohol bin and is fixed on the inner wall of the storage cabinet body, the side face of the alcohol bin is fixedly connected with the alcohol inlet, the left side of the alcohol inlet is provided with a bin cover, the alcohol outlet is embedded on the surface of the storage cabinet body, the bottom end of the alcohol bin is fixedly connected with the alcohol outlet, the surface of the alcohol outlet is fixedly connected with a water pump, the lower end of the alcohol outlet is fixedly connected with a shunt pipe, the bottom end of the shunt pipe is fixedly connected with a rain sprinkler, the rain sprinkler is provided with a plurality of rain sprinkles and is orderly arranged, the ultraviolet lamps are arranged on the surfaces of the lamp holders, the lamp holders are sequentially arranged at the bottom end of the first partition plate, the storage cabinet body is internally provided with a device bin, the side surfaces of the device bin are fixedly connected with sliding blocks, the inner wall of the storage cabinet body is provided with sliding grooves, the sliding grooves are sequentially arranged on the inner wall of the storage cabinet body, the sliding blocks are connected in the sliding grooves in a sliding manner, the bottom end of the device bin is fixedly connected with a filtering plate, the inner wall of the device bin is fixedly connected with a second partition plate, the second partition plates are provided with a plurality of second partition plates and are sequentially arranged in the device bin, the device bin is divided into a plurality of placing grooves by the second partition plates, the placing grooves are rectangular and square, the device bins are two and are sequentially arranged in the storage cabinet body, the front surfaces of the device bins are fixedly connected with handles, and the, the storage cabinet comprises a fixed table, and is characterized in that the lower end of the fixed table is fixedly connected with a base, the lower end of the base is fixedly connected with a wheel set, the wheel set comprises four wheels, the wheels are orderly arranged at the bottom end of the fixed table, and a handle is fixedly connected to the side face of the storage cabinet body.

Preferably, the ultraviolet lamp is of a model number of QB 801.

Preferably, the right side surface of the waste water bin is fixedly connected with a waste water outlet, and the surface of the waste water outlet is fixedly connected with a water valve.

Preferably, the side face of the storage cabinet body is fixedly connected with a waste hopper, and the upper end of the storage cabinet body is fixedly connected with a guardrail.

Preferably, the bottom end of the fixed table is fixedly connected with a storage battery, and the side face of the storage cabinet body is fixedly connected with a control panel.

Preferably, the output end of the storage battery is electrically connected with the input end of the control panel, and the output end of the control panel is electrically connected with the input ends of the water pump and the ultraviolet lamp respectively.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses, through setting up the storing compartment body, make the doctor can deposit after disinfecting surgical instruments, made things convenient for the arrangement of doctor to surgical instruments, simultaneously also made things convenient for the doctor to take surgical instruments when needing to use surgical instruments to carry out the operation, simultaneously made things convenient for the doctor to disinfect surgical instruments, scientific and reasonable uses alcohol, make the use of alcohol more reasonable, avoided meaningless waste, thereby avoided the waste of resources, the setting of alcohol storehouse, make people avoid needing to prepare alcohol again when using the device, improve the speed that the doctor disinfected surgical instruments, also lightened doctor's operating pressure simultaneously, the setting of storehouse lid, make alcohol deposit in the alcohol storehouse, avoided alcohol leakage, reduce the disinfection function of alcohol, thereby when having guaranteed that the device disinfects surgical instruments, the disinfection is more thorough, the disinfection thoroughness of the device to surgical equipment is ensured, under the arrangement of the lamp holder and the ultraviolet lamp, people can prevent the surgical equipment from being infected by bacteria in the storage process when the surgical equipment is stored, the cleanness of the surgical equipment is ensured, under the action of a water pump, a shunt pipe and a rain sprinkler, a doctor can more conveniently and quickly disinfect the surgical equipment, the disinfection thoroughness of the device to the surgical equipment is ensured, the detoxification effect is better, through the arrangement of the handle and the waste hopper, the people can more conveniently move the device, meanwhile, the used waste can be stored in the waste hopper in the operation process of the doctor, the environment is prevented from being polluted, the arrangement of the placing groove is more convenient for the doctor to store the surgical equipment of different models, the condition that some surgical instruments are not stored in the storage cabinet body is avoided.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

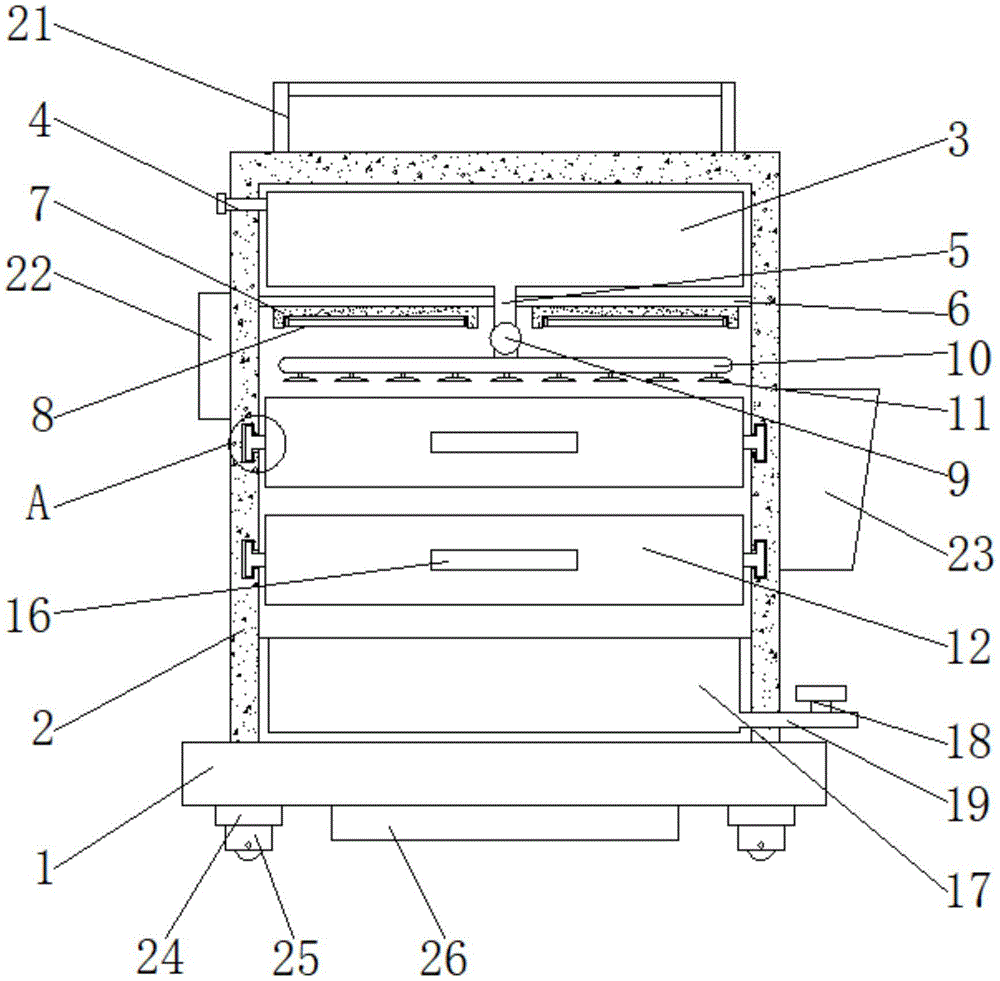

fig. 1 is a schematic structural view of a front view section of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a schematic structural view of a top view section of the equipment bin of the present invention;

fig. 4 is a schematic structural view of the position a in the present invention;

in the figure: 1. a fixed table; 2. a storage cabinet body; 3. an alcohol bin; 4. an alcohol inlet; 5. an alcohol outlet; 6. a first separator; 7. a lamp socket; 8. an ultraviolet lamp; 9. a water pump; 10. a shunt tube; 11. sprinkling; 12. an equipment bin; 13. a slider; 14. a filter plate; 15. a second separator; 16. a handle; 17. a wastewater bin; 18. a water valve; 19. a waste water outlet; 20. a chute; 21. a guardrail; 22. a control panel; 23. a waste hopper; 24. a base; 25. a wheel set; 26. a storage battery; 27. a grip; 28. and (6) placing the groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1-4, the present invention provides the following technical solutions: a medical pediatric surgical equipment storage device comprises a fixed table 1, a storage cabinet body 2, an alcohol bin 3, an alcohol inlet 4 and an alcohol outlet 5, wherein the storage cabinet body 2 is fixedly connected to the upper end of the fixed table 1, a doctor can store surgical equipment after disinfecting the surgical equipment by arranging the storage cabinet body 2, the arrangement of the surgical equipment by the doctor is facilitated, the surgical equipment can be conveniently taken by the doctor when the surgical equipment is required to be used for surgery, the surgical equipment can be conveniently disinfected by the doctor, the alcohol can be scientifically and reasonably used, the waste of resources is avoided, the alcohol bin 3 is arranged in the storage cabinet body 2, a first partition plate 6 is arranged at the bottom end of the alcohol bin 3, the alcohol bin 3 is arranged, so that when people use the device, the device avoids the need of preparing alcohol again, improves the speed of disinfecting surgical instruments by doctors, and simultaneously reduces the working pressure of doctors, the first clapboard 6 is fixed on the inner wall of the storage cabinet body 2, the side surface of the alcohol bin 3 is fixedly connected with the alcohol inlet 4, the left side of the alcohol inlet 4 is provided with the bin cover, the bin cover is arranged, so that alcohol is stored in the alcohol bin 3, the alcohol leakage is avoided, the disinfection function of alcohol is reduced, the disinfection of the device on surgical instruments is ensured to be more thorough, the disinfection thoroughness of the device on surgical instruments is ensured, the alcohol outlet 5 is embedded on the surface of the storage cabinet body 2, the bottom end of the alcohol bin 3 is fixedly connected with the alcohol outlet 5, the surface of the alcohol outlet 5 is fixedly connected with the water sprinkling pump 9, the lower end of the alcohol outlet 5 is fixedly connected with the shunt tube 10, and the bottom end of the shunt tube 10 is fixedly connected with, under the action of the water pump 9, the shunt tubes 10 and the rain sprinklers 11, doctors can disinfect surgical equipment more conveniently, the disinfection of the surgical equipment is more thorough, the disinfection effect is better, the rain sprinklers 11 are provided with a plurality of the shunt tubes 10, the shunt tubes are orderly arranged on the body, the lower ends of the first partition plates 6 are fixedly connected with the lamp holders 7, the surfaces of the lamp holders 7 are provided with the ultraviolet lamps 8, under the arrangement of the lamp holders 7 and the ultraviolet lamps 8, people can store the surgical equipment by avoiding the bacterial infection of the surgical equipment in the storage process, the cleanness of the surgical equipment is ensured, the lamp holders 7 are two in total, the lamp holders are orderly arranged at the bottom ends of the first partition plates 6, the equipment bin 12 is arranged in the storage cabinet body 2, and the side surface of the equipment bin 12 is fixedly connected with the sliding blocks 13, the inner wall of the storage cabinet body 2 is provided with two sliding grooves 20, the sliding grooves 20 are arranged on the inner wall of the storage cabinet body 2 in an orderly manner, the sliding block 13 is connected in the sliding groove 20 in a sliding manner, the bottom end of the equipment bin 12 is fixedly connected with the filter plate 14, the inner wall of the equipment bin 12 is fixedly connected with the second partition plate 15, the second partition plates 15 are arranged in the equipment bin 12 in an orderly manner, the equipment bin 12 is divided into a plurality of placing grooves 28 by the second partition plates 15, doctors can store different types of surgical equipment more conveniently under the arrangement of the placing grooves 28, the situation that some surgical equipment cannot be stored in the storage cabinet body 2 is avoided, the placing grooves 28 are divided into rectangles and squares, the equipment bins 12 are two in total and are arranged in the storage cabinet body 2 in an orderly manner, the front of the equipment bin 12 is fixedly connected with the handle 16, the inside lower extreme fixedly connected with waste water storehouse 17 of storing

compartment body

2, 1 lower extreme fixedly connected with base 24 of fixed station, 24 lower extreme fixedly connected with wheel group 25 of base, wheel group 25 is total four wheels, the orderly range of wheel is in 1 bottom of fixed station, 2 side fixedly connected with handles 27 of storing compartment body.

Specifically, the ultraviolet lamp 8 is of a model of QB 801.

Specifically, the right side of the wastewater bin 17 is fixedly connected with a wastewater outlet 19, and the surface of the wastewater outlet 19 is fixedly connected with a water valve 18.

Specifically, 2 side fixedly connected with waste material hoppers 23 of storing compartment body, 2 upper end fixedly connected with guardrails 21 of storing compartment body are through setting up handle 27 and waste material hopper 23 for people are more convenient when removing the device, and the waste material after the in-process that the doctor was operated simultaneously used can be deposited to waste material hopper 23 in, avoids the environment to be polluted.

Specifically, the bottom end of the fixed table 1 is fixedly connected with a storage battery 26, and the side surface of the storage cabinet body 2 is fixedly connected with a control panel 22.

Specifically, the output end of the storage battery 26 is electrically connected with the input end of the control panel 22, and the output end of the control panel 22 is electrically connected with the input ends of the water pump 9 and the ultraviolet lamp 8, respectively.

The utility model discloses a theory of operation and use flow: the utility model discloses, when using, at first twist off the cang gai of alcohol entry 4, then inject right amount alcohol into alcohol storehouse 3 through alcohol entry 4 with alcohol, then twist back the cang gai again alcohol entry 4 upper end, pull out storing compartment body 2 with equipment storehouse 12 through pulling the positive handle 16 of fixing in equipment storehouse 12, the surgical instruments that will deposit are deposited respectively according to the model in different standing grooves 28 in equipment storehouse 12, then push back equipment storehouse 12 in storing compartment body 2 through the effect of handle 16, then control ultraviolet lamp 8 through control panel 22 and start, disinfect surgical instruments, when needing to use surgical instruments, only need to control water pump 9 through control panel 22 and start, make rain 11 disinfect to the surgical instruments placed in equipment storehouse 12, alcohol after disinfecting surgical instruments flows into waste water storehouse 17, after a period of time, the water valve 18 is opened to allow the used alcohol to be collected and treated through the waste water outlet 19.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a medical paediatrics surgical equipment storage device, includes fixed station (1), storing compartment body (2), alcohol storehouse (3), alcohol entry (4) and alcohol export (5), its characterized in that: the storage cabinet comprises a storage cabinet body (2), a first partition plate (6) is fixedly connected to the upper end of a fixed table (1), an alcohol bin (3) is arranged in the storage cabinet body (2), a first partition plate (6) is arranged at the bottom end of the alcohol bin (3), the inner wall of the storage cabinet body (2) is fixed by the first partition plate (6), an alcohol inlet (4) is fixedly connected to the side surface of the alcohol bin (3), a bin cover is arranged on the left side of the alcohol inlet (4), an alcohol outlet (5) is embedded on the surface of the storage cabinet body (2), an alcohol outlet (5) is fixedly connected to the bottom end of the alcohol bin (3), a water pump (9) is fixedly connected to the surface of the alcohol outlet (5), a shunt pipe (10) is fixedly connected to the lower end of the alcohol outlet (5), a rain sprinkler (11) is fixedly connected to the bottom end of the shunt pipe (10), a plurality of rain sprinkles, the lower end of the first partition board (6) is fixedly connected with a lamp holder (7), the surface of the lamp holder (7) is provided with ultraviolet lamps (8), the number of the lamp holders (7) is two, the lamp holders are orderly arranged at the bottom end of the first partition board (6), a device bin (12) is arranged in the storage cabinet body (2), the side surface of the device bin (12) is fixedly connected with a sliding block (13), the inner wall of the storage cabinet body (2) is provided with two sliding grooves (20), the sliding grooves (20) are orderly arranged on the inner wall of the storage cabinet body (2), the sliding block (13) is slidably connected in the sliding grooves (20), the bottom end of the device bin (12) is fixedly connected with a filter plate (14), the inner wall of the device bin (12) is fixedly connected with a second partition board (15), the second partition board (15) is provided with a plurality of lamp holders, and, the equipment storehouse (12) is divided into a plurality of standing grooves (28) by second baffle (15), standing groove (28) are divided into rectangle and square, equipment storehouse (12) is total two to orderly the range is in storing compartment body (2), the positive fixedly connected with handle (16) of equipment storehouse (12), storing compartment body (2) inside lower extreme fixedly connected with waste water storehouse (17), fixed station (1) lower extreme fixedly connected with base (24), base (24) lower extreme fixedly connected with wheel group (25), wheel group (25) total four wheels, the orderly range of wheel is in fixed station (1) bottom, storing compartment body (2) side fixedly connected with handle (27).

2. The medical pediatric surgical device storage apparatus according to claim 1, wherein: the model of the ultraviolet lamp (8) is QB 801.

3. The medical pediatric surgical device storage apparatus according to claim 1, wherein: the right side face of the waste water bin (17) is fixedly connected with a waste water outlet (19), and the surface of the waste water outlet (19) is fixedly connected with a water valve (18).

4. The medical pediatric surgical device storage apparatus according to claim 1, wherein: storage cabinet body (2) side fixedly connected with waste material fill (23), storage cabinet body (2) upper end fixedly connected with guardrail (21).

5. The medical pediatric surgical device storage apparatus according to claim 1, wherein: the storage cabinet is characterized in that a storage battery (26) is fixedly connected to the bottom end of the fixed table (1), and a control panel (22) is fixedly connected to the side face of the storage cabinet body (2).

6. The medical pediatric surgical device storage apparatus according to claim 5, wherein: the output end of the storage battery (26) is electrically connected with the input end of the control panel (22), and the output end of the control panel (22) is electrically connected with the input ends of the water pump (9) and the ultraviolet lamp (8) respectively.
