CN210691214U

CN210691214U - Quick radiating computer machine case

Info

Publication number: CN210691214U
Application number: CN201922256599.6U
Authority: CN
Inventors: 甘祥
Original assignee: Guangzhou Hongyi Information Technology Co Ltd
Current assignee: Guangzhou Ruiyuan Energy Saving Technology Co.,Ltd.
Priority date: 2019-12-16
Filing date: 2019-12-16
Publication date: 2020-06-05
Anticipated expiration: 2029-12-16

Abstract

The utility model discloses a quick radiating computer machine case relates to computer machine case equipment field, including machine case main part, machine case main part's bottom is provided with the mount, and one side of machine case main part is provided with the curb plate, the inboard of mount is provided with the shock attenuation air cushion, and the top of mount is provided with first bracing piece. The utility model discloses a filter screen, litter, the spout that set up stimulate the curb plate. The side plate is pulled out of the case main body to one side through the sliding rod and the sliding groove, the filter screens in the grooves in the side plate are unfolded under the action of pulling force and move along with the side plate, gaps between the side plate and the case main body are blocked, dust is prevented from entering the case main body, the two fans are controlled to run at the moment, the side face of the case main body is cooled, heat flow after the inside of the case main body is exchanged flows out of the four filter screens on one side of the heat flow, the cooling efficiency of the fans is improved, and the problem that the cooling effect on the side face of the case is poor is effectively solved.

Description

Quick radiating computer machine case

Technical Field

The utility model relates to a computer machine case equipment field specifically is a quick radiating computer machine case.

Background

The computer case is used as one part of computer fittings, and has the main function of holding and fixing computer fittings to support and protect the computer fittings.

The radiating effect of current computer machine case is poor, and the heat dissipation of especially side leads to computer machine case to use can generate heat after a period, and the operation is slow, and on ground or desk were generally placed to the machine case, put on ground, the user can play to touch quick-witted case by accident, makes quick-witted case produce and rocks, puts on the desk, because rocking of the desk, also can drive quick-witted case and rock, and quick-witted case rocks and can make the inside part of quick-witted case not hard up, drops even, leads to quick-witted case unable use.

Disclosure of Invention

The utility model aims to provide a: in order to solve the problems that the side face radiating effect of a case is poor and the case shakes to make parts loose, a computer case capable of radiating heat quickly is provided.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a quick radiating computer machine case, includes quick-witted case main part, machine case main part's bottom is provided with the mount, and one side of machine case main part is provided with the curb plate, the inboard of mount is provided with the shock attenuation air cushion, and the top of mount is provided with first bracing piece, one side that the top of mount is located first bracing piece is provided with the fixed strip, the one end of first bracing piece is connected with first sucking disc, the top of fixed strip is connected with the second bracing piece, one side of second bracing piece is connected with the second sucking disc, install the fan on the curb plate, and one side of curb plate is located the inside of machine case main part and is provided with the litter, the inside of curb plate is provided with the recess, the inside of recess is provided with reset spring, reset spring's the.

Preferably, the filter screen is connected with the case main body through glue, and the side plate is movably connected with the case main body through a slide rod.

Preferably, the inside of mount, shock attenuation air cushion all is provided with the louvre, second bracing piece, first bracing piece and machine case main part are respectively through second sucking disc, first sucking disc fixed connection, the bottom of mount is provided with the supporting leg.

Preferably, the inside of the case main body is provided with four sliding grooves, and the sliding grooves are connected with the sliding rods in a sliding manner.

Preferably, the return spring is rotatably connected with the groove through a rotating shaft, and the filter screen is rotatably connected with the return spring through a rolling shaft.

Preferably, the number of the second supporting rods is two, and the second supporting rods are connected with the second suction cups through glue.

Preferably, the number of the first supporting rods is two, the number of the first supporting rods in each group is two, and the two groups of the first supporting rods are symmetrically arranged by using the transverse central axis of the fixing frame.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses a filter screen, litter, the spout that set up stimulate the curb plate. The side plate is pulled out of the case main body to one side through the sliding rod and the sliding groove, the filter screens in the grooves in the side plate are unfolded under the action of pulling force and move along with the side plate, gaps between the side plate and the case main body are blocked, dust is prevented from entering the case main body, the two fans are controlled to run at the moment, the side face of the case main body is cooled, heat flow after the inside of the case main body is exchanged flows out of the four filter screens on one side of the heat flow, the cooling efficiency of the fans is improved, and the problem that the cooling effect on the side face of the case is poor is effectively solved.

The utility model discloses a mount that sets up, the shock attenuation air cushion, first bracing piece, the second bracing piece, first sucking disc, the second sucking disc, the fan, the mount passes through the supporting leg to be fixed on ground, put into the shock attenuation air cushion in the mount with quick-witted case main part, and with the mount block, after the block, first sucking disc on the first bracing piece at mount both ends is fixed with the surface adsorption of quick-witted case main part, second sucking disc on the second support frame of mount one side is fixed with the side surface adsorption of quick-witted case main part, then quick-witted case main part is fixed on the mount, the shock attenuation air cushion reduces the external vibrations influence to quick-witted case main part with the mount simultaneously, the machine case is rocked and is made the not hard up.

Drawings

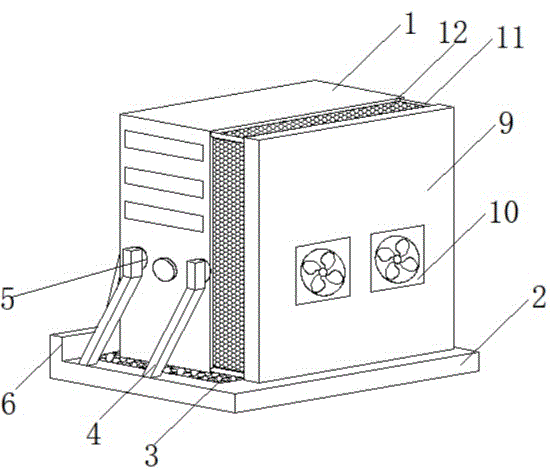

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a front view of the present invention;

FIG. 3 is a sectional view of the present invention;

fig. 4 is an enlarged view of a of the present invention;

fig. 5 is a structural view of the shock-absorbing air cushion of the present invention.

In the figure: 1. a chassis main body; 2. a fixed mount; 3. a shock-absorbing air cushion; 4. a first support bar; 5. a first suction cup; 6. a fixing strip; 7. a second support bar; 8. a second suction cup; 9. a side plate; 10. a fan; 11. a slide rod; 12. a filter screen; 13. a chute; 14. a groove; 15. a return spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, a computer case with rapid heat dissipation includes a case main body 1, a fixing frame 2 is disposed at a bottom end of the case main body 1, a side plate 9 is disposed at one side of the case main body 1, a shock-absorbing air cushion 3 is disposed at an inner side of the fixing frame 2, a first supporting rod 4 is disposed at a top end of the fixing frame 2, a fixing strip 6 is disposed at one side of the first supporting rod 4 at a top end of the fixing frame 2, a first suction cup 5 is connected to one end of the first supporting rod 4, a second supporting rod 7 is connected to a top end of the fixing strip 6, a second suction cup 8 is connected to one side of the second supporting rod 7, a fan 10 is mounted on the side plate 9, a slide rod 11 is disposed inside the case main body 1 at one side of the side plate 9, a groove 14 is disposed inside the side plate 9, a return spring.

Please refer to fig. 1, the filter 12 is connected to the main case 1 by glue, so that the filter 12 can block the gap when the filter 12 is pulled, and the side plate 9 is movably connected to the main case 1 by a sliding rod 11, so that the side plate 9 can be pulled by the sliding rod 11.

Please refer to fig. 2, the fixing frame 2 and the shock-absorbing air cushion 3 are provided with heat dissipation holes inside, the heat dissipation holes are convenient for dissipating heat from the bottom of the case body 1, the second support rod 7, the first support rod 4 and the case body 1 are respectively fixed to the case body 1 through the second suction cup 8 and the first suction cup 5, the second suction cup 8 and the first suction cup 5 are fixedly connected to the bottom of the fixing frame 2, and the support legs are provided at the bottom of the fixing frame 2 and can enable outside air to enter the heat dissipation holes.

Please refer to fig. 3, the cabinet body 1 is provided with four sliding grooves 13 inside, the sliding grooves 13 are slidably connected to the sliding rods 11, and the four sliding grooves 13 facilitate the four sliding rods 11 to move inside.

Referring to fig. 4 again, the return spring 15 is rotatably connected to the groove 14 through a rotating shaft, so that the filter screen 12 can be automatically retracted after the filter screen 12 is pulled, and the filter screen 12 is rotatably connected to the return spring 15 through a roller.

Please refer to fig. 5, the number of the second support rods 7 is two, the second support rods 7 are connected to the second suckers 8 through glue, so that the two second support rods 7 drive the two second suckers 8 to fix the case body 1, the number of the first support rods 4 is two, the number of each group of the first support rods 4 is two, the two groups of the first support rods 4 are symmetrically arranged with respect to the horizontal central axis of the fixing frame 2, and the two groups of the first support rods 4 drive the two groups of the first suckers 5 to fix the two ends of the case body 1.

The working principle is as follows: when the utility model is used, the fixing frame 2 is fixed on the ground through the supporting legs, the case body 1 is put into the damping air cushion 3 in the fixing frame 2 and is clamped with the fixing frame 2, after the clamping, the first sucking discs 5 on the first supporting rods 4 at the two ends of the fixing frame 2 are fixed with the surface of the case body 1 in an adsorption way, the second sucking discs 8 on the second supporting rods 7 at one side of the fixing frame 2 are fixed with the side surface of the case body 1 in an adsorption way, the case body 1 is fixed on the fixing frame 2, the damping air cushion 3 and the fixing frame 2 simultaneously reduce the vibration influence of the outside on the case body 1, when the case is used for a long time, the temperature in the case body 1 rises, at the moment, the side plate 9 is pulled, the slide rod 11 at one side of the side plate 9 moves in the chute 13, the side plate 9 is pulled out from the case body 1 to one side, when the side plate 9 is far away from the case body 1, the filter screen 12 in, along with the movement of the side plate 9, the gap between the side plate 9 and the case body 1 is blocked, dust is prevented from entering, the two fans 10 are controlled to operate at the moment, the side face of the case body 1 is cooled, heat flow after internal exchange of the case body 1 flows out of the four filter screens 12 on one side of the heat flow, and therefore the cooling efficiency of the fans 10 is improved.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a quick radiating computer machine case, includes chassis main body (1), its characterized in that: the bottom of the case main body (1) is provided with a fixing frame (2), one side of the case main body (1) is provided with a side plate (9), the inner side of the fixing frame (2) is provided with a shock absorption air cushion (3), the top end of the fixing frame (2) is provided with a first supporting rod (4), one side, located on the first supporting rod (4), of the top end of the fixing frame (2) is provided with a fixing strip (6), one end of the first supporting rod (4) is connected with a first sucking disc (5), the top end of the fixing strip (6) is connected with a second supporting rod (7), one side of the second supporting rod (7) is connected with a second sucking disc (8), the side plate (9) is provided with a fan (10), one side of the side plate (9) is located inside the case main body (1) and is provided with a sliding rod (11), the inside of the side plate (, a return spring (15) is arranged in the groove (14), and a filter screen (12) is arranged on the outer side of the return spring (15).

2. The computer case of claim 1, wherein: the filter screen (12) is connected with the case main body (1) through glue, and the side plate (9) is movably connected with the case main body (1) through a sliding rod (11).

3. The computer case of claim 1, wherein: the inside of mount (2), shock attenuation air cushion (3) all is provided with the louvre, second bracing piece (7), first bracing piece (4) and chassis main body (1) are respectively through second sucking disc (8), first sucking disc (5) fixed connection, the bottom of mount (2) is provided with the supporting leg.

4. The computer case of claim 1, wherein: the cabinet is characterized in that sliding grooves (13) are formed in the cabinet body (1), the number of the sliding grooves (13) is four, and the sliding grooves (13) are connected with the sliding rods (11) in a sliding mode.

5. The computer case of claim 1, wherein: reset spring (15) and recess (14) are connected through the pivot rotation, filter screen (12) are connected through the roller rotation with reset spring (15).

6. The computer case of claim 1, wherein: the number of the second supporting rods (7) is two, and the second supporting rods (7) are connected with the second suckers (8) through glue.

7. The computer case of claim 1, wherein: the number of the first supporting rods (4) is two, the number of the first supporting rods (4) in each group is two, and the first supporting rods (4) in two groups are symmetrically arranged by using the transverse central axis of the fixing frame (2).
