Abstract

The utility model discloses an easy-to-install wall lamp, which comprises a casing and a wall. The casing is movably arranged on one side of the wall, and an installation groove is opened on one side of the casing. An LED lamp is fixedly arranged, a protective cover is fixedly arranged on the side close to the LED lamp, a mounting plate is fixedly arranged on one side of the wall, and a first fixing bolt is movably arranged on one side of the installation plate , the other end of the first fixing bolt is arranged inside the wall through the mounting plate, the lower end of one side of the casing is provided with a fixing groove, and the two sides of the interior of the fixing groove are provided with limiting grooves. A fixing block is fixedly arranged on one side of the plate, grooves are formed on both sides of the fixing block, a telescopic rod is fixedly arranged inside the groove, and a limit block is fixedly arranged at the other end of the telescopic rod. The utility model has a simple structure, makes the installation of the wall lamp more convenient, and can make the wall lamp more stably fixed.

Description

An easy-to-install wall lamp

technical field

The utility model relates to the technical field of wall lamps, in particular to a wall lamp which is convenient for installation.

Background technique

Wall lamps are auxiliary lighting decorative lamps installed on indoor walls. Generally, milky white glass lampshades are used. The power of the bulbs is about 15-40 watts. The light is elegant and harmonious. Suitable, there are many types and styles of wall lamps, generally common ceiling lamps, color-changing wall lamps, bedside wall lamps, mirror wall lamps, etc.

However, the currently used wall lamps only use foreign nails to be nailed to the wall during installation, and then hang the wall lamps on the foreign nails, so that the foreign nails are inserted into the through holes opened by the wall lamps to complete the installation of the wall lamps, but this requires the use of foreign nails. The fixed position is very accurate, which makes it more troublesome to operate; and only rely on a few foreign nails to support the wall lamp, the fixation of the wall lamp is not stable, and it is easy to fall off when the wall lamp is accidentally touched .

Utility model content

The purpose of the present invention is to provide a wall lamp that is easy to install, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a wall lamp that is easy to install, comprising a shell and a wall, the shell is movably arranged on one side of the wall, and an installation slot is opened on one side of the shell, The inside of the installation groove is fixedly provided with an LED lamp through a mounting bracket, a protective cover is fixedly arranged on the side of the casing close to the LED lamp, and a mounting plate is fixedly arranged on one side of the wall body, and one side of the installation plate is fixedly arranged. A first fixing bolt is movably arranged on the side, the other end of the first fixing bolt is arranged inside the wall through the mounting plate, and a fixing groove is opened at the lower end of one side of the casing, and both sides inside the fixing groove are A limit slot is provided, a fixing block is fixed on one side of the mounting plate, a groove is formed on both sides of the fixing block, a telescopic rod is fixed inside the groove, and the other end of the telescopic rod is fixed A limit block is provided, the limit block is movably arranged inside the limit slot, one side of the limit block is fixed with a spring on the outside of the telescopic rod, the top of the casing is provided with a slot, and the mounting plate A fixing plate is movably arranged on one side of the top end through a rotating shaft, and a clamping block is fixedly arranged at one side of the bottom end of the fixing plate, and the clamping block is movably arranged inside the clamping slot.

Preferably, limit holes are provided on both sides of the top end of the housing, a limit pin is fixed on one side of the mounting plate, the limit pin is movably arranged inside the limit hole, and the outer side of the limit pin is The fixing sleeve is provided with a rubber ring.

Preferably, a support plate is fixedly arranged on one side of the bottom end of the mounting plate, a slider is movably arranged at the top end of the support plate, a chute is provided at the bottom end of the casing, and the slider is movably arranged inside the chute.

Preferably, the top end of the fixing plate is movably provided with a second fixing bolt, and the bottom end of the second fixing bolt is arranged inside the casing through the fixing plate.

Preferably, the outer side of one end of the limiting block away from the telescopic rod is arc-shaped.

Compared with the prior art, the beneficial effects of the present utility model are:

1. When the wall lamp is installed in the present invention, the limit pin is inserted into the limit hole, and the rubber ring fixedly arranged on the outside of the limit pin is in contact with the inner wall of the limit hole, so that the wall lamp can be fixed, and At this time, press the limit block and the spring, so that the limit block is arranged inside the groove, and the fixed block is inserted into the fixed groove. When the groove matches the limit groove, the limit block is under the elastic force of the spring to make the limit block The position block is snapped into the limit slot to lock the shell, which makes the installation of the wall lamp more convenient and fast, and the operation is simpler;

2. In the present invention, the limiting pin is arranged inside the limiting hole, and when the fixing block is inserted into the fixing groove, the limiting block makes the limiting block snap into the limiting groove under the elastic force of the spring, and the casing is not affected. Locking makes the wall light more secure.

Description of drawings

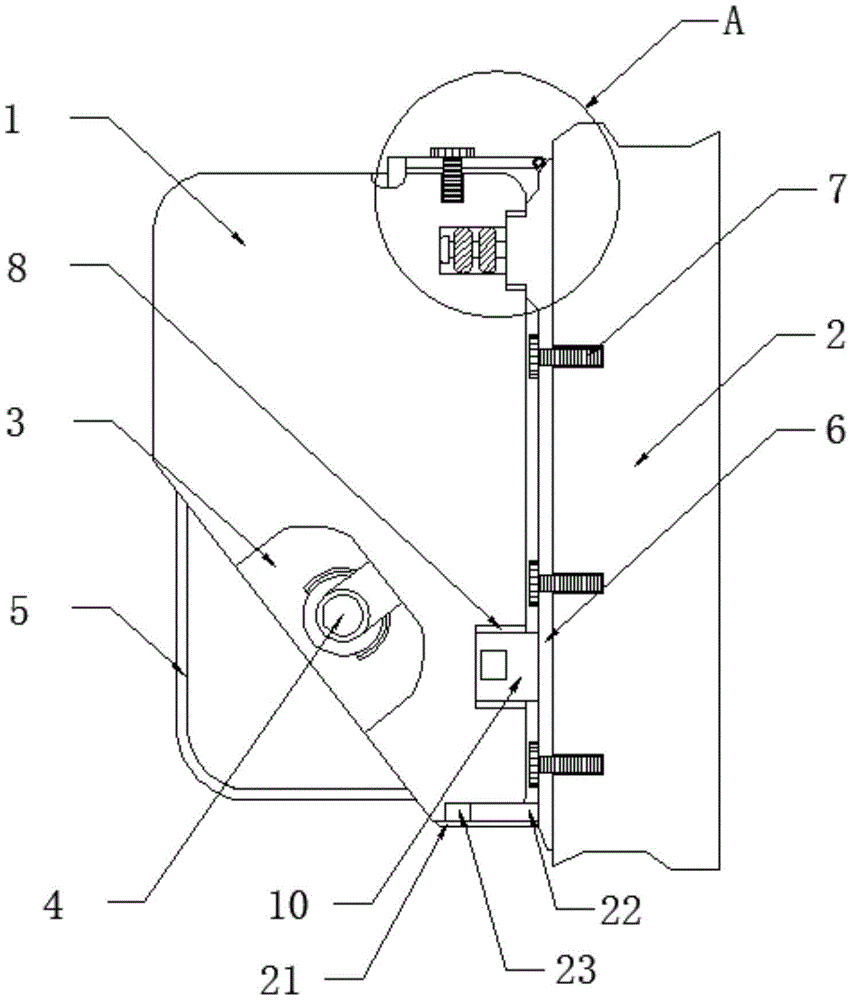

1 is a schematic diagram of the overall structure of a wall lamp that is easy to install according to the present invention;

Fig. 2 is an enlarged schematic view of the wall lamp in Fig. 1 of the utility model at A, which is easy to install;

FIG. 3 is a schematic diagram of the installation of a fixing block of a wall lamp that is easy to install according to the present invention.

In the figure: 1. Shell; 2. Wall; 3. Mounting slot; 4. LED light; 5. Protective cover; 6. Mounting plate; 7. First fixing bolt; 8. Fixing slot; 9. Limit slot ;10, fixed block; 11, groove; 12, telescopic rod; 13, limit block; 14, spring; 15, clip slot; 16, fixed plate; 17, clip block; 18, limit hole; 19, limit Position pin; 20, rubber ring; 21, support plate; 22, slider; 23, chute; 24, second fixing bolt.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a wall lamp that is easy to install, comprising a housing 1 and a wall 2, the housing 1 is movably arranged on one side of the wall 2, and one side of the housing 1 is opened There is an installation slot 3, the interior of the installation slot 3 is fixedly provided with an LED lamp 4 through a mounting frame, a protective cover 5 is fixedly arranged on the side of the housing 1 close to the LED lamp 4, and a mounting plate 6 is fixedly arranged on one side of the wall 2, One side of the mounting plate 6 is movably provided with a first fixing bolt 7 , the other end of the first fixing bolt 7 is arranged inside the wall 2 through the mounting plate 6 , and a fixing groove 8 is opened at the lower end of one side of the casing 1 . 8. Limiting slots 9 are provided on both sides of the interior, one side of the mounting plate 6 is fixedly provided with a fixing block 10, both sides of the fixing block 10 are provided with grooves 11, and a telescopic rod 12 is fixed inside the groove 11. The other end of the rod 12 is fixedly provided with a limit block 13, the limit block 13 is movably arranged inside the limit slot 9, one side of the limit block 13 is fixedly provided with a spring 14 on the outer side of the telescopic rod 12, and the top of the housing 1 is provided with a spring 14. In the card slot 15 , a fixing plate 16 is movably provided on the top side of the mounting plate 6 through a rotating shaft, and a locking block 17 is fixed on the bottom end side of the fixing plate 16 , and the locking block 17 is movably arranged inside the card slot 15 .

Limiting holes 18 are provided on both sides of the top of the housing 1 , a limiting pin 19 is fixed on one side of the mounting plate 6 , the limiting pin 19 is movably arranged inside the limiting hole 18 , and the outer side of the limiting pin 19 is fixedly sleeved with a limiter pin 19 . Rubber ring 20;

A support plate 21 is fixedly arranged at the bottom end of the mounting plate 6 , a slider 22 is movably arranged at the top of the support plate 21 , a chute 23 is opened at the bottom end of the housing 1 , and the slider 22 is movably arranged in the chute 23 internal;

The top end of the fixing plate 16 is movably provided with a second fixing bolt 24, and the bottom end of the second fixing bolt 24 is arranged inside the casing 1 through the fixing plate 16;

The outer side of one end of the limiting block 13 away from the telescopic rod 12 is arranged in an arc shape.

Working principle: When installing the wall lamp, the utility model inserts the limit pin 19 into the limit hole 18, and the rubber ring 20 fixedly arranged on the outside of the limit pin 19 contacts the inner wall of the limit hole 18, so that the wall lamp can be removed. At this time, the limit block 13 and the spring 14 are pressed, so that the limit block 13 is arranged inside the groove 11, and the fixed block 10 is inserted into the fixed groove 8, and the groove 11 and the limit groove 9 are in contact with each other. When matching, the limit block 13 is under the elastic force of the spring 14, so that the limit block 13 is snapped into the limit slot 9, and the housing 1 is locked, so that the installation of the wall lamp is more convenient, fast and stable. , which can effectively prevent falling.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. An easy-to-install wall lamp, comprising a housing (1) and a wall (2), characterized in that: the housing (1) is movably arranged on one side of the wall (2), and the housing (1) ) is provided with a mounting groove (3) on one side, the interior of the mounting groove (3) is fixedly provided with an LED lamp (4) through a mounting bracket, and the casing (1) is fixedly arranged on the side close to the LED lamp (4) There is a protective cover (5), one side of the wall (2) is fixedly provided with a mounting plate (6), one side of the mounting plate (6) is movably provided with a first fixing bolt (7), The other end of a fixing bolt (7) is disposed inside the wall (2) through the mounting plate (6), and a fixing groove (8) is formed at the lower end of one side of the casing (1). The fixing groove (8) ) inside both sides are provided with limiting grooves (9), one side of the mounting plate (6) is fixedly provided with a fixing block (10), and both sides of the fixing block (10) are provided with grooves (11) ), a telescopic rod (12) is fixedly arranged inside the groove (11), a limit block (13) is fixedly arranged at the other end of the telescopic rod (12), and the limit block (13) is movably arranged in a limit Inside the position slot (9), a spring (14) is fixedly arranged on one side of the limit block (13) on the outer side of the telescopic rod (12), and the top end of the casing (1) is provided with a clamping slot (15), A fixing plate (16) is movably provided on the top side of the mounting plate (6) through a rotating shaft, and a clamping block (17) is fixedly arranged on the bottom end side of the fixing plate (16), and the clamping block (17) is movable Set inside the card slot (15). 2. A wall lamp for easy installation according to claim 1, characterized in that: limiting holes (18) are provided on both sides of the top of the housing (1), and one side of the mounting plate (6) A limit pin (19) is fixedly arranged, the limit pin (19) is movably arranged inside the limit hole (18), and a rubber ring (20) is fixedly sleeved on the outer side of the limit pin (19). 3. A wall lamp for easy installation according to claim 1, characterized in that: a support plate (21) is fixedly arranged on one side of the bottom end of the mounting plate (6), and a top end of the support plate (21) is fixedly provided with a support plate (21). A sliding block (22) is movably arranged, a sliding groove (23) is opened at the bottom end of the casing (1), and the sliding block (22) is movably arranged inside the sliding groove (23). 4. An easy-to-install wall lamp according to claim 1, characterized in that: the top of the fixing plate (16) is movably provided with a second fixing bolt (24), and the second fixing bolt (24) is The bottom end is arranged inside the casing (1) through the fixing plate (16). 5 . The wall lamp for easy installation according to claim 1 , characterized in that: the outer side of the end of the limit block ( 13 ) away from the telescopic rod ( 12 ) is arc-shaped. 6 .
