CN210654409U

CN210654409U - Wine set bottle mouth

Info

Publication number: CN210654409U
Application number: CN201921664919.5U
Authority: CN
Inventors: 孟庆则
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-09-30
Filing date: 2019-09-30
Publication date: 2020-06-02
Anticipated expiration: 2029-09-30

Abstract

The utility model discloses a wine set bottleneck relates to beverage bottle technical field. Solves the technical problem that the prior art needs to find the inconvenience of drinking when drinking. The wine set bottle mouth comprises a bottle body, an outer cover and an inner cover, wherein the bottle mouth is arranged at the top of the bottle body, the inner cover can be covered on the bottle mouth, and the bottle mouth is connected with the inner cover in a screwing fit manner; the outer cover can be covered on the inner cover, and the outer cover is connected with the inner cover in a screwing fit manner; the wine glass is arranged on the top surface of the inner cover, and the cup mouth or the cup bottom of the wine glass is attached to the inner side wall of the top of the outer cover when the outer cover is screwed with the inner cover. The utility model discloses a wine set bottleneck beverage bottle and integrative setting of wineglass, the drinker need not look for the wineglass in addition when drinking wine can realize convenient health and drink wine.

Description

Wine set bottle mouth

Technical Field

The utility model relates to a beverage bottle technical field, concretely relates to wine set bottleneck.

Background

The wine bottle is a container for containing wine, is colorful, has a glorious and prosperous scene, and comprises a glass wine bottle, a plastic wine bottle, a ceramic wine bottle and the like. Modern wine bottles pay attention to daily use, practicability, artistry, ideality and scientificity. Modern wine bottles are rich in connotation, exceed the concept of only wine containers, and are changed into a special packaging artwork and a carrier of elegant culture, thereby being an important component of wine culture.

Most of the existing wine bottles are composed of a bottle body and a bottle cap, and have simple structure and single function, and have some defects in the using process, for example, a drinker needs to find a wine glass additionally when drinking, and the wine bottle is inconvenient when the drinker is in a condition of being inconvenient to find the wine glass; people directly drink the wine by facing the mouth of the wine bottle or pour the wine into the bottle cap, so that the wine which is not drunk completely in the bottle is polluted and wasted, and the drinker is inconvenient and sanitary when drinking the wine.

SUMMERY OF THE UTILITY MODEL

In order to solve the above problems, the present invention provides a wine set bottle mouth, which is characterized in that a user can drink wine conveniently and sanitarily.

The utility model adopts the technical proposal that:

a wine set bottle mouth comprises a bottle body, an outer cover and an inner cover, wherein the top of the bottle body is provided with the bottle mouth, the inner cover can be covered on the bottle mouth, and the inner cover is connected with the bottle mouth in a screwing fit manner; the outer cover can be covered on the inner cover, and the outer cover is connected with the inner cover in a screwing fit manner; the wine glass is arranged on the top surface of the inner cover, and the cup mouth or the cup bottom of the wine glass is attached to the inner side wall of the top of the outer cover when the outer cover is screwed with the inner cover.

Further, when the outer cover and the inner cover are screwed tightly, the cup opening of the wine glass is attached to the inner side wall of the top of the outer cover, a groove is formed in the top surface of the inner cover, and the cup bottom of the wine glass is located in the groove.

Furthermore, the cross section shape of the groove is the same as that of the cup bottom, the cup bottom is sleeved in the groove, and the side edge of the cup bottom is attached to the groove wall of the groove.

Furthermore, two check blocks are arranged on the groove wall of the groove, and the two check blocks are oppositely arranged on the groove wall of the groove.

Further, the bottleneck is provided with first external screw thread, the inner cup is provided with first internal thread and second external screw thread, the enclosing cover is provided with the second internal thread, the inner cup with the bottleneck passes through first external screw thread with first internal thread threaded connection, the inner cup with the enclosing cover passes through second external screw thread with second internal thread threaded connection.

Further, the second external thread is arranged at the lower end of the inner cover, and anti-skid lines are arranged on the outer side wall of the upper end of the inner cover.

Further, the cross section of the cup bottom is circular, elliptical or square.

Further, the cross section of the cup mouth is circular, oval or square.

Further, the cross section of the cup opening is circular, and the side edge of the cup opening is attached to the inner side wall of the outer cover.

Further, the shape of the bottle body is a square body shape, an ellipsoid shape or a spherical shape.

Further, the wine cup is a glass cup, a stainless steel cup, a copper cup, a ceramic cup or a plastic cup.

Further, the bottle is the structure that glass or pottery were made, the enclosing cover, the inner cup, the dog is the structure that glass or plastics were made.

The utility model has the advantages that:

the wine set bottleneck provided by the utility model comprises a bottle body, an outer cover and an inner cover, wherein the top of the bottle body is provided with a bottleneck, the inner cover can be covered on the bottleneck, and the bottleneck is connected with the inner cover in a screwing and matching way; the outer cover can be covered on the inner cover, and the outer cover is connected with the inner cover in a screwing fit manner; a wine cup is arranged on the top surface of the inner cover, and the cup rim of the wine cup is attached to the inner side wall of the top of the outer cover when the outer cover is screwed with the inner cover; the wine glass clamp of the wine set bottleneck provided by the utility model is arranged between the top surface of the inner cover and the inner side wall of the top part of the outer cover to integrate the wine glass and the wine bottle, when a user needs to drink, the outer cover is unscrewed to take out the wine glass, and then the inner cover is unscrewed to pour the wine in the wine bottle into the wine glass; after drinking, screwing the inner cover, putting the wine glass on the top surface of the inner cover, and screwing the outer cover; therefore, a drinker can drink wine conveniently and sanitarily without looking for a wine glass additionally when drinking, and meanwhile, the wine which is not drunk up in the wine bottle can not be polluted and wasted, and the wine bottle is very convenient and practical. And the wine glass clamp is established and is covered the setting that the inner cup held in the wine glass for the wine glass back-off and cover the setting of inner cup holding in the wine glass in the top inside wall of inner cup and enclosing cover can avoid the inner cup to cause the pollution to the wine glass inner wall. The wine set can be recycled and disinfected for reuse after use.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

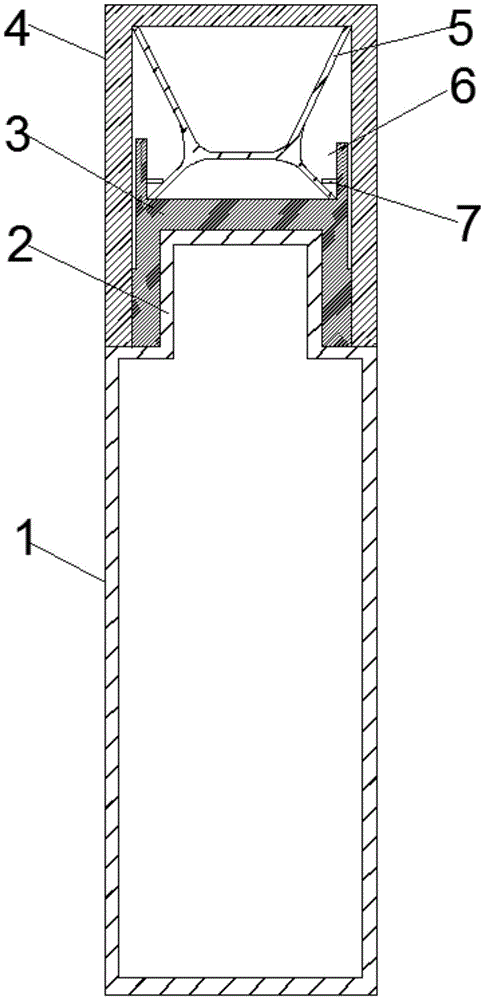

FIG. 1 is a sectional view of a mouth of a wine set according to an embodiment of the present invention;

FIG. 2 is a schematic structural view of a wine glass according to an embodiment of the present invention;

fig. 3 is a cross-sectional view of a wine bottle according to an embodiment of the present invention.

The reference numbers in the figures are:

1. a bottle body; 2. a bottle mouth; 3. an inner cover; 4. an outer cover; 5. a wine glass; 6. a groove; 7. a stopper; 8. a bottle shoulder; 9. an annular groove.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention clearer, the technical solutions of the present invention will be described in detail below. It is to be understood that the embodiments described are only some embodiments of the invention, and not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

Example (b):

as shown in fig. 1, 2 and 3, the present embodiment provides a wine set bottle mouth, which includes a bottle body 1, an outer cover 4 and an inner cover 3, wherein the top of the bottle body 1 is provided with a bottle mouth 2, the inner cover 3 can cover the bottle mouth 2, and the inner cover 3 is screwed and matched with the bottle mouth 2; the outer cover 4 can be covered on the inner cover 3, and the outer cover 4 is connected with the inner cover 3 in a screwing and matching way; the top surface of the inner cover 3 is provided with a wine glass 5, and the cup rim of the wine glass 5 is attached to the inner side wall of the top of the outer cover 4 when the outer cover 4 is screwed with the inner cover 3.

The wine set bottle mouth based on the structure comprises a bottle body 1, an outer cover 4 and an inner cover 3, wherein the top of the bottle body 1 is provided with a bottle mouth 2, the inner cover 3 can be covered on the bottle mouth 2, and the inner cover 3 is in screwed fit connection with the bottle mouth 2; the outer cover 4 can be covered on the inner cover 3, and the outer cover 4 is connected with the inner cover 3 in a screwing and matching way; a wine cup 5 is arranged on the top surface of the inner cover 3, and the cup rim of the wine cup 5 is attached to the inner side wall of the top of the outer cover 4 when the outer cover 4 is screwed with the inner cover 3; the wine glass clamp of the wine set bottleneck provided by the utility model is arranged between the top surface of the inner cover and the inner side wall of the top part of the outer cover to integrate the wine glass and the wine bottle, when a user needs to drink, the outer cover is unscrewed to take out the wine glass, and then the inner cover is unscrewed to pour the wine in the wine bottle into the wine glass; after drinking, screwing the inner cover, putting the wine glass on the top surface of the inner cover, and screwing the outer cover; therefore, a drinker can drink wine conveniently and sanitarily without looking for a wine glass additionally when drinking, and meanwhile, the wine which is not drunk up in the wine bottle can not be polluted and wasted, and the wine bottle is very convenient and practical. And the arrangement that the wineglass clamp is arranged between the top surface of the inner cover and the inner side wall of the top of the outer cover is reversed to cover the inner cover in the wineglass, so that the inner cover can be prevented from polluting the inner wall of the wineglass, and the wineglass can be recycled and disinfected for reuse after being used up.

Specifically, the wine glass 5 is vertically placed on the top surface of the inner cover 3 (the cup opening of the wine glass 5 is upward), and the cup opening of the wine glass 5 is attached to the inner side wall of the top of the outer cover 4 when the outer cover 4 is screwed with the inner cover 3; as another possible embodiment, the wine glass 5 can be reversely buckled on the top surface of the inner cover 3, and the bottom of the wine glass 5 is attached to the inner side wall of the top of the outer cover 4 when the outer cover 4 is screwed with the inner cover 3.

As an implementable mode, when the outer cover 4 is screwed with the inner cover 3, the cup mouth of the wine cup 5 is attached to the inner side wall of the top of the outer cover 4, the groove 6 is formed in the top surface of the inner cover 3, the cup bottom of the wine cup 5 is located in the groove 6, the groove 6 plays a circumferential limiting role for the wine cup 5, and the wine cup 5 is prevented from being damaged by shaking the top surface of the inner cover 3 and colliding with the outer cover.

Preferably, the cross sectional shape of recess 6 is the same with the cross sectional shape of bottom of cup, and in recess 6 was located to the bottom of cup cover, the side edge of bottom of cup laminated with the cell wall of recess 6, sets up like this and can further stabilize wine glass 5 and make it can not rock on the top surface of inner cup 3 circumference.

Preferably, two check blocks 7 are arranged on the groove wall of the groove 6, the two check blocks 7 are oppositely arranged on the groove wall of the groove 6, the cup bottom of the wine cup is placed into the groove 6 from two side edges of the two check blocks 7, the two check blocks 7 are clamped on the side wall of the cup bottom of the wine cup 5, the two check blocks 7 play a role in limiting the wine cup 5 in the upward direction, and the wine cup 5 is prevented from falling out and breaking when a drinker opens the outer cover 4.

As an implementation mode, the cross section shape of the cup bottom is circular or oval or square, and can be customized according to needs, for example, the cross section shape of the cup bottom is oval.

As an implementation mode, the cross section of the cup mouth is circular or oval or square, and the cup mouth can be designed according to the needs in a customized mode.

Preferably, the cross-sectional shape of the rim is circular, and the side edge of the rim is attached to the inner side wall of the outer lid 4. This arrangement further secures the wine glass 5 between the inner lid 3 and the outer lid 4.

As an implementable manner, the mouth 2 is provided with a first external thread, the inner cap 3 is provided with a first internal thread and a second external thread, the outer cap 4 is provided with a second internal thread, the inner cap 3 and the mouth 2 are in threaded connection through the first external thread and the first internal thread, and the inner cap 3 and the outer cap 4 are in threaded connection through the second external thread and the second internal thread. The threaded connection facilitates the opening and closing of the inner cap 3 and the outer cap 4 by a user. Preferably, the lower extreme lateral wall of inner cup 3 is provided with the second external screw thread, and the upper end lateral wall of inner cup 3 is provided with vertical strip antiskid line, and convenient to use person opens inner cup 3.

Preferably, the second external thread is arranged at the lower end of the inner cap 3, and the outer side wall of the upper end of the inner cap 3 is provided with anti-slip lines, such as vertical strips, which are convenient for a drinker to open the inner cap 3. Wherein the non-slip threads do not interfere with the second internal thread on the outer cap 4.

As an implementable way, the wine glass 5 is a glass or a stainless steel or a copper or a ceramic or a plastic glass, e.g. the wine glass 5 is a glass.

As an example, the bottle body 1 is a glass or ceramic structure, such as the bottle body 1 is a glass structure, and the outer lid 4 and the inner lid 3 are glass or plastic structures, such as the outer lid 4 and the inner lid 3 are glass structures.

As an implementation manner, the bottle shoulder 8 of the bottle body 1 is provided with an annular groove 9, the annular groove 9 extends around the circumference of the bottle mouth 2 to form a closed ring shape, the lower edge of the inner cap 3 can be accommodated in the annular groove 9 after the inner cap 3 is screwed, and when the inner cap 3 and the outer cap 4 are tightly clamped and screwed out together, the inner cap 3 and the outer cap 4 are conveniently separated by reversely rotating the lower edge of the inner cap 3 and the outer cap 4.

The above description is only for the specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art can easily think of the changes or substitutions within the technical scope of the present invention, and all should be covered within the protection scope of the present invention.

Claims

1. A wine set bottle mouth is characterized in that: the bottle comprises a bottle body (1), an outer cover (4) and an inner cover (3), wherein a bottle opening (2) is formed in the top of the bottle body (1), the inner cover (3) can cover the bottle opening (2), and the inner cover (3) is connected with the bottle opening (2) in a screwing fit manner; the outer cover (4) can be covered on the inner cover (3), and the outer cover (4) is connected with the inner cover (3) in a screwing and matching manner; be provided with wineglass (5) on the top surface of inner cup (3), enclosing cover (4) with when inner cup (3) are screwed the rim of a cup or the bottom of a cup of wineglass (5) with the laminating of the top inside wall of enclosing cover (4).

2. The wine set neck finish of claim 1, wherein: the wine glass is characterized in that the outer cover (4) is tightly screwed with the inner cover (3), the cup opening of the wine glass (5) is attached to the inner side wall of the top of the outer cover (4), the top surface of the inner cover (3) is provided with a groove (6), and the cup bottom of the wine glass (5) is located in the groove (6).

3. The wine set neck finish of claim 2, wherein: the cross section shape of the groove (6) is the same as that of the cup bottom, the cup bottom is sleeved in the groove (6), and the side edge of the cup bottom is attached to the groove wall of the groove (6).

4. A wine set neck finish according to claim 3, wherein: two stop blocks (7) are arranged on the groove wall of the groove (6), and the two stop blocks (7) are oppositely arranged on the groove wall of the groove (6).

5. The wine set neck finish of claim 1, wherein: bottleneck (2) are provided with first external screw thread, inner cup (3) are provided with first internal thread and second external screw thread, enclosing cover (4) are provided with the second internal thread, inner cup (3) with bottleneck (2) pass through first external screw thread with first internal thread threaded connection, inner cup (3) with enclosing cover (4) pass through second external screw thread with second internal thread threaded connection.

6. The wine set neck finish of claim 5, wherein: the second external thread is arranged at the lower end of the inner cover (3), and anti-skid lines are arranged on the outer side wall of the upper end of the inner cover (3).

7. The wine set neck finish of claim 1, wherein: the cross section of the cup bottom is circular, elliptical or square.

8. The wine set neck finish of claim 1, wherein: the cross section of the cup opening is circular, and the side edge of the cup opening is attached to the inner side wall of the outer cover (4).

9. The wine set neck finish of claim 1, wherein: the wine cup (5) is a glass cup or a stainless steel cup or a copper cup or a ceramic cup or a plastic cup.

10. The wine set neck finish of claim 4, wherein: the bottle body (1) is a structural part made of glass or ceramic, and the outer cover (4), the inner cover (3) and the stop block (7) are structural parts made of glass or plastic.
