CN210644585U - Novel multi-functional women moxibustion box

Info

Publication number: CN210644585U
Application number: CN201920819964.7U
Authority: CN
Inventors: 杨宇; 李建男; 彭丁丁; 王颜鹏
Original assignee: First Affiliated Hospital of Guangxi Medical University
Current assignee: First Affiliated Hospital of Guangxi Medical University
Priority date: 2019-05-31
Filing date: 2019-05-31
Publication date: 2020-06-02
Anticipated expiration: 2029-05-31

Abstract

The utility model discloses a novel multi-functional women moxibustion box, including the box, characterized by: the improved box is characterized in that a group of square holes are formed in two long plates of the box body respectively, the box body corresponds to each square hole and is provided with a symmetrical second track, the box body corresponds to each square hole and is provided with a first groove, each groove is communicated with the corresponding second track respectively, each second track is communicated with the corresponding square hole and is provided with a first square shell and a first square shell, each first square shell is fixedly connected with the symmetrical first square plates respectively, and each first square plate is arranged in the corresponding second track respectively. The utility model relates to a moxa-moxibustion equipment field specifically says, relates to a novel multi-functional women moxibustion box. This device can make things convenient for the moxa-moxibustion.

Description

Novel multi-functional women moxibustion box

Technical Field

The utility model relates to a moxa-moxibustion equipment field specifically says, relates to a novel multi-functional women moxibustion box.

Background

Moxibustion, also called moxibustion therapy, is a treatment method which uses moxa heat generated by moxa materials made of folium artemisiae argyi to stimulate body surface acupuncture points or specific parts and regulates the physiological and biochemical functions of human body disorder by exciting the activities of meridian qi, thereby achieving the purposes of preventing and treating diseases. Can be used for treating diseases of internal medicine, surgery, gynecological diseases, pediatrics, and five sense organs. Especially has special effects on mastitis, prostatitis, scapulohumeral periarthritis, pelvic inflammation, cervical spondylosis, diabetes and the like. Moxibustion therapy has a wide range of applications and is the main treatment of diseases in ancient China. Moxibustion is one of six methods of ancient Chinese medical treatment. Has effects of harmonizing yin and yang, warming and dredging channels and collaterals, promoting qi and blood circulation, warming yang, tonifying deficiency, restoring yang, recovering adverse qi, preventing diseases, promoting health, strengthening body constitution, and prolonging life. Various moxibustion boxes and high-tech convenient moxibustion devices in the market at present are all, but a special multifunctional moxibustion box for female gynecological diseases is not found. The most common limitation is the general heat moxibustion, which can not achieve the precise and personalized treatment of specific acupuncture points and timely regulation and control. Most of the moxibustion boxes are square box tops which are not beneficial to the dissipation of smoke in the boxes and are not beautiful enough; the moxibustion box is internally provided with the fixed nail insertion, so that the flexibility is low, the moxibustion can be properly adjusted, and the moxibustion efficiency is reduced; the box is internally provided with a layer of ash isolating net, so that the safety performance is low, the potential safety hazard is large, and scalding accidents are easy to happen; the corresponding radian is not designed according to the curvature of the human body at the bottom of the moxibustion box, so that the moxibustion box cannot be better attached to the human body, the heat loss is more, the waste is caused, and the comfort level is poorer. This is a disadvantage of the prior art.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to provide a need acupuncture point and take all usable multi-functional adjustable moxibustion box of pulse at women's abdomen lumbosacral portion and belly, can be pertinence treatment women's relevant diseases of gynaecology, the difficult problem of touchhing in this clinical of better solution.

The utility model discloses a following technical scheme realizes the utility model purpose:

the utility model provides a novel multi-functional women moxibustion box, includes the box, characterized by: the improved box is characterized in that a group of square holes are formed in two long plates of the box body respectively, the box body corresponds to each square hole and is provided with a symmetrical second track, the box body corresponds to each square hole and is provided with a first groove, each first groove is communicated with the corresponding second track respectively, each second track is communicated with the corresponding square hole and is provided with a first square shell, each first square shell is fixedly connected with the symmetrical first square plate, and each square plate is arranged in the corresponding second track respectively.

As a further limitation of the technical scheme, a group of jackscrews respectively penetrate through the corresponding grooves I and are in threaded connection with the corresponding square plates I.

As a further limitation of the technical scheme, the box body is hinged with a rectangular plate, a rectangular groove is formed in the rectangular plate, a third symmetrical rail is arranged on the rectangular plate corresponding to the rectangular groove, the third symmetrical rail is communicated with the rectangular groove respectively, a second groove is formed in the rectangular plate corresponding to the rectangular groove, and the second groove is communicated with the third rail.

As a further limitation of the technical scheme, a group of square shells second is arranged in the rectangular groove, each square shell second is fixedly connected with a symmetrical square plate second, each square plate second is arranged in the corresponding track third, and a group of jackscrews third respectively penetrate through the grooves second and are in threaded connection with the corresponding square plates second.

As a further limitation of the technical scheme, two short plates of the box body are respectively provided with a ventilation round hole, and the ventilation round holes corresponding to the box body are respectively provided with a symmetrical first rail.

As a further limitation of the technical scheme, a second sliding block is arranged in each first track, each second sliding block is fixedly connected with one side of a semicircular sheet, the other side of each semicircular sheet is fixedly connected with one end of a second round rod, the other end of each second round rod is hinged with one end of a connecting rod, and the other ends of the two adjacent connecting rods are respectively hinged with the center of one side of the first sliding block in a coaxial and crossed mode.

As a further limitation of the technical solution, the box body is fixedly connected with symmetrical blocks corresponding to each ventilation circular hole, one end of each screw rod is hinged with one of the symmetrical blocks, each screw rod is in threaded connection with the center of the corresponding slider one, each screw rod is hinged with the other of the symmetrical blocks, the other end of each screw rod is fixedly connected with the center of one side of a bevel gear two, each bevel gear two is engaged with the bevel gear one, one symmetrical bevel gear is respectively and fixedly connected with a first round rod, one end of the first round rod is hinged with a short plate of the box body, the first round rod is hinged to the other short plate of the box body, the other end of the first round rod is fixedly connected with the center of one side of the first handle, and the box body corresponds to the first round rod in threaded connection with the first jackscrew.

As the further limited of this technical scheme, the moxa-moxibustion groove matches square shell one, the moxa-moxibustion groove matches square shell two, every one side of square shell one is provided with round hole one, every the downside of square shell one is provided with the quad slit respectively, every the downside of square shell two is provided with round hole two respectively.

As a further limitation of the technical scheme, one side of the moxibustion groove is fixedly connected with one end of a telescopic rod, and the other end of the telescopic rod is fixedly connected with a second handle.

As a further limitation of the technical scheme, the lower side of the box body is fixedly connected with an arc plate, and a group of uniformly distributed ventilation holes are formed in the arc plate.

Compared with the prior art, the utility model discloses an advantage is with positive effect:

(1) but this device is to multi-functional moxa-moxibustion auxiliary device of manually regulated of women's gynecopathy research and development. Two parallel rails II are reserved on two sides of the box body, a telescopic rod which is perpendicular to the rails II and can stretch inwards and outwards is arranged in the square shell I, after the point Baliao or the point needing abdominal part of the human body is found, the square shell I of the device is respectively corresponding to the point Baliao or the point needing abdominal part on two sides, the ignited moxa cone is fixed, and moxibustion is carried out;

(2) the temperature range acceptable for the human body is adjusted and adapted through the adjustment of the ventilation round holes, the maximum effect of moxibustion is exerted in limited time, the waste is reduced, the cost is saved, and the effect is improved;

(3) for people with different body types, the width of one side of the square shell can be adjusted to perform accurate moxibustion;

(4) the third track of the box cover part is provided with a second square shell, a telescopic rod which is vertical to the third track and can stretch inwards and outwards is arranged in the second square shell, and the design is designed aiming at the important points and belt pulses of women in gynecology, such as the shenque point, the Qihai point, the Guanyuan point, the uterus point and the like of the abdomen of the women, so that the treatment requirement of the important points of the abdomen of the women is greatly met;

(5) the moxibustion box is made of bamboo and is not easy to damage, and the box top adopts a flip cover, so that the moxa column can be conveniently arranged and the burning state of the moxibustion sticks can be conveniently observed;

(6) the bottom of the moxibustion box adopts an arc design according to the physiological curve of a woman, so that the moxibustion box can be better attached to a human body, the heat loss is reduced, the utilization rate of moxibustion is improved, and the beauty of the moxibustion box is embodied;

(7) the thick and thin double-layer ash-separating circular arc plate is adopted in the box, so that medical accidents caused by scalding due to scattering of moxa ash can be better prevented.

This device can make things convenient for the moxa-moxibustion.

Drawings

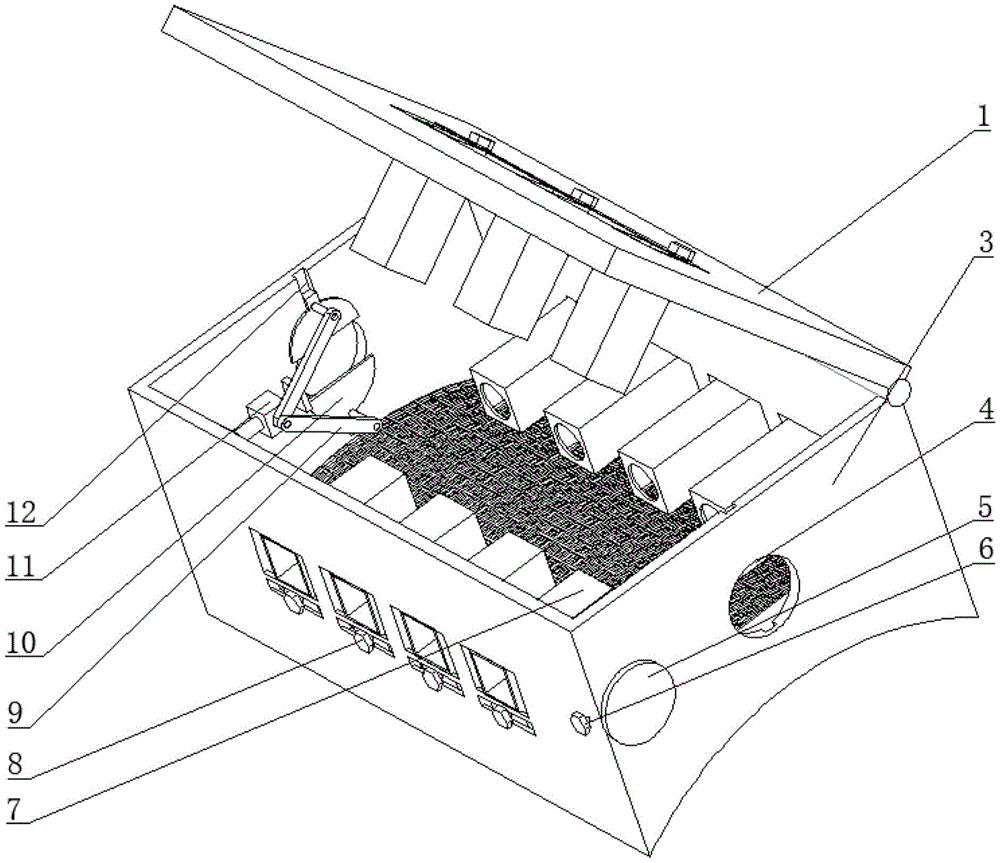

Fig. 1 is a schematic view of a three-dimensional structure of the present invention.

Fig. 2 is a schematic view of the partially cut-open structure of the present invention.

Fig. 3 is a schematic diagram of a partially cut-open structure of the present invention.

Fig. 4 is a schematic view of a three-dimensional structure of the first square shell of the present invention.

Fig. 5 is a schematic view of the partially cut-open three-dimensional structure of the present invention.

Fig. 6 is a schematic view of the partially cut-open three-dimensional structure of the present invention.

Fig. 7 is a schematic view of the three-dimensional structure of the second square shell of the present invention.

Fig. 8 is a schematic perspective view of the box body of the present invention.

Fig. 9 is a schematic view of a partial three-dimensional structure of the present invention.

Fig. 10 is a schematic view of a three-dimensional structure of the arc plate of the present invention.

Fig. 11 is a schematic diagram of a partially cut-open three-dimensional structure of the present invention.

Fig. 12 is a schematic perspective view of the present invention.

Fig. 13 is a third schematic perspective view of the present invention.

In the figure: 1. the square plate, 3, the box body, 4, the ventilation round hole, 5, the handle I, 6, the jackscrew I, 7, the square shell I, 8, the jackscrew II, 9, the connecting rod, 10, the semicircular sheet, 11, the slide block I, 12, the track I, 13, the round rod I, 14, the bevel gear I, 15, the bevel gear II, 16, the screw, 17, the square block, 18, the slide block II, 19, the ventilation hole, 20, the arc plate, 21, the track II, 22, the groove I, 23, the square plate I, 24, the round hole I, 25, the square hole, 26, the groove II, 27, the track III, 28, the square plate II, 29, the square shell II, 30, the jackscrew III, 31, the rectangular groove, 32, the handle II, 33, the telescopic rod, 34, the moxibustion groove, 35, the round hole II, 36, the square hole, 37 and the round rod II.

Detailed Description

In the following, an embodiment of the present invention will be described in detail with reference to the drawings, but it should be understood that the scope of the present invention is not limited by the embodiment.

As shown in fig. 1-13, the utility model discloses a box 3, be provided with a set of square hole 36 on two rectangular boards of box 3 respectively, box 3 corresponds every square hole 36 is provided with two 21 of tracks of symmetry respectively, box 3 corresponds every square hole 36 is provided with recess 22 respectively, every recess 22 communicates the correspondence respectively two 21 of tracks, every two 21 of tracks communicate the correspondence respectively square hole 36, every be provided with square shell 7 in the square hole 36 respectively, every square shell 7 is the square plate 23 of fixed connection symmetry respectively, every square plate 23 sets up respectively in the track two 21 that correspond.

And a group of jackscrews 8 respectively penetrate through the corresponding grooves 22 and are in threaded connection with the corresponding square plates 23.

Box 3 hinge rectangular plate 1, be provided with rectangular groove 31 on the rectangular plate 1, rectangular plate 1 corresponds rectangular groove 31 is provided with the track three 27 of symmetry, and the track three 27 of symmetry communicates respectively rectangular groove 31, rectangular plate 1 corresponds rectangular groove 31 is provided with recess two 26, recess two 26 communicates one track three 27.

A group of square shells II 29 are arranged in the rectangular groove 31, each square shell II 29 is fixedly connected with a symmetrical square plate II 28, each square plate II 28 is arranged in the corresponding rail III 27, and a group of jackscrews III 30 penetrate through the grooves II 26 respectively and are in threaded connection with the corresponding square plates II 28.

Two short plates of the box body 3 are respectively provided with a ventilation round hole 4, and the box body 3 is respectively provided with a symmetrical track I12 corresponding to the ventilation round holes 4.

Each first rail 12 is internally provided with a second sliding block 18, each second sliding block 18 is fixedly connected with one side of a semi-circular plate 10, the other side of each semi-circular plate 10 is fixedly connected with one end of a second round rod 37, the other end of each second round rod 37 is hinged with one end of a connecting rod 9, and the other ends of the two adjacent connecting rods 9 are respectively hinged with the center of one side of a first sliding block 11 in a coaxial and crossed manner.

The box body 3 is respectively and fixedly connected with symmetrical square blocks 17 corresponding to each ventilation round hole 4, one end of each screw rod 16 is respectively hinged with one of the symmetrical square blocks 17, each screw rod 16 is respectively and threadedly connected with the center of the corresponding sliding block I11, each screw rod 16 is respectively and movably connected with the other of the symmetrical square blocks 17, the other end of each screw rod 16 is respectively and fixedly connected with the center of one side of a bevel gear II 15, each bevel gear II 15 is respectively meshed with a bevel gear I14, the symmetrical bevel gears I14 are respectively and fixedly connected with a round rod I13, one end of the round rod I13 is hinged with a short plate of the box body 3, the first round rod 13 is hinged to the other short plate of the box body 3, the other end of the first round rod 13 is fixedly connected with the center of one side of the first handle 5, and the box body 4 corresponds to the first round rod 13 in threaded connection with the first jackscrew 6.

The moxibustion groove 34 is matched with the first square shell 7, the moxibustion groove 34 is matched with the second square shell 29, a first round hole 24 is formed in one side of each second square shell 7, a square hole 25 is formed in the lower side of each first square shell 7, and a second round hole 35 is formed in the lower side of each second square shell 29.

One end of the telescopic rod 33 is fixedly connected with one side of the moxibustion groove 34, and the other end of the telescopic rod 33 is fixedly connected with the second handle 32.

The downside fixed connection circular arc board 20 of box 4, be provided with a set of evenly distributed's ventilation hole 19 on the circular arc board 20.

The two groups of symmetrical semi-circular sheets 10 are respectively matched with the corresponding ventilation round holes 4.

The screw 16 has a self-locking function.

The utility model discloses a work flow does: in the initial state, the rectangular plate 1 is tightly attached to the box body 3, and the upper half slice and the lower half slice 10 are contacted to completely shield the ventilation round hole 4. The device is placed on the abdomen, lumbosacral part and abdomen part of the patient. And respectively unscrewing the corresponding second jackscrews 8, pushing the first square shell 7 by hands, driving the first square plate 23 to move along the second rails 21 by the first square shell 7, driving the second jackscrews 8 to move along the first grooves 22 by the first square plate 23, aligning the first square shell 7 with the corresponding acupuncture points, and screwing the second jackscrews 8. And (3) loosening the corresponding third jackscrew 30, pushing the second square shell 29 by hand, driving the second square plate 28 to move along the third rail 27 by the second square shell 29, driving the third square plate 30 to move along the second groove 26 by the second square plate 28, aligning the second square shell 29 with the corresponding acupuncture point, and tightening the third jackscrew 30. When the moxibustion instrument is used, the moxa column is placed in the moxibustion groove 34, the moxa column is ignited, the telescopic rod 33 is stretched, the length of the telescopic rod 33 is proper, the moxibustion groove 34 is placed in the corresponding square shell I7 and the square shell II 29 respectively, heat generated by the moxa column is dissipated from the square hole 25, the round hole I24 and the round hole II 35, and moxibustion is performed on corresponding acupuncture points. Unscrewing the jackscrew I6, rotating the handle I5, the handle I5 drives the round rod I13 to rotate, the round rod I13 drives the bevel gear I14 to rotate, the bevel gear I14 drives the bevel gear II 15 to rotate, the bevel gear II 15 drives the screw 16 to rotate, the screw 16 drives the slider I11 to move, the slider I11 drives the connecting rod 9 to swing, the connecting rod 9 drives the round rod II 37 to move, the round rod II 37 drives the semi-circular plate 10 to move, the semi-circular plate 10 drives the slider II 18 to move along the track I12, the two semi-circular plates 10 move towards directions away from each other, and the ventilation round hole 4 is partially exposed, so that air in the box body 3 circulates, a good moxibustion effect is achieved, the opening part of the ventilation round hole 4 is adjusted, and the jackscrew I6 is screwed down. The hot air heats the corresponding acupuncture points through the ventilation holes 19. Acupuncture and moxibustion is started.

The above disclosure is only one specific embodiment of the present invention, however, the present invention is not limited thereto, and any changes that can be considered by those skilled in the art should fall within the protection scope of the present invention.

Claims

1. The utility model provides a novel multi-functional women moxibustion box, includes box (3), characterized by: be provided with a set of square hole (36) on two rectangular plates of box (3) respectively, box (3) correspond every square hole (36) are provided with track two (21) of symmetry respectively, box (3) correspond every square hole (36) are provided with recess one (22) respectively, every recess one (22) communicate respectively corresponding track two (21), every track two (21) communicate respectively corresponding square hole (36), every be provided with square shell one (7) in square hole (36) respectively, every square shell one (7) are the square plate one (23) of fixed connection symmetry respectively, every square plate one (23) set up respectively in the track two (21) that correspond.

2. The novel multifunctional female moxibustion box of claim 1, which is characterized in that: and a group of jackscrews II (8) respectively penetrate through the corresponding grooves I (22) and are in threaded connection with the corresponding square plates I (23).

3. The novel multifunctional female moxibustion box of claim 1, which is characterized in that: the box (3) hinge rectangular plate (1), be provided with rectangular groove (31) on rectangular plate (1), rectangular plate (1) corresponds rectangular groove (31) is provided with three (27) of track of symmetry, and three (27) of track of symmetry communicate respectively rectangular groove (31), rectangular plate (1) corresponds rectangular groove (31) is provided with recess two (26), recess two (26) communicate one track three (27).

4. The novel multifunctional female moxibustion box of claim 3, which is characterized in that: a group of square shells II (29) are arranged in the rectangular groove (31), each square shell II (29) is fixedly connected with a symmetrical square plate II (28), each square plate II (28) is arranged in the corresponding track III (27), and a group of jackscrews III (30) respectively penetrate through the grooves II (26) and are in threaded connection with the corresponding square plates II (28).

5. The novel multifunctional female moxibustion box of claim 1, which is characterized in that: the box body (3) is characterized in that two short plates of the box body (3) are respectively provided with a ventilation round hole (4), and the ventilation round holes (4) of the box body (3) which are symmetrical correspondingly are respectively provided with a symmetrical first rail (12).

6. The novel multifunctional female moxibustion box of claim 5 is characterized in that: every be provided with slider two (18) in track (12) respectively, every slider two (18) one side of fixed connection semicircle piece (10) respectively, every the opposite side of semicircle piece (10) is the one end of fixed connection round bar two (37) respectively, every the other end of round bar two (37) articulates the one end of connecting rod (9) respectively, adjacent two the other end of connecting rod (9) is coaxial alternately articulated one side center of slider one (11) respectively.

7. The novel multifunctional female moxibustion box of claim 6, which is characterized in that: the box body (3) is respectively and fixedly connected with symmetrical square blocks (17) corresponding to each ventilation round hole (4), one end of each screw rod (16) is respectively hinged with one of the symmetrical square blocks (17), each screw rod (16) is respectively and threadedly connected with the center of the corresponding slide block I (11), each screw rod (16) is respectively and fixedly connected with the other of the symmetrical square blocks (17), the other end of each screw rod (16) is respectively and fixedly connected with the center of one side of a bevel gear II (15), each bevel gear II (15) is respectively meshed with a bevel gear I (14), the symmetrical bevel gear I (14) is respectively and fixedly connected with a round rod I (13), one end of the round rod I (13) is hinged with one short plate of the box body (3), the round rod I (13) is hinged with the other short plate of the box body (3), and the other end of the round rod I (13) is fixedly connected with the center of one side of the handle I (5), the box body (3) is in threaded connection with a first jackscrew (6) corresponding to the first round rod (13).

8. The novel multifunctional female moxibustion box of claim 4, which is characterized in that: moxibustion groove (34) matches square shell one (7), moxibustion groove (34) matches square shell two (29), every one side of square shell one (7) is provided with round hole one (24), every the downside of square shell one (7) is provided with quad slit (25) respectively, every the downside of square shell two (29) is provided with round hole two (35) respectively.

9. The novel multifunctional female moxibustion box of claim 8, which is characterized in that: moxibustion groove (34) one side fixed connection telescopic link (33) one end, the other end fixed connection handle two (32) of telescopic link (33).

10. The novel multifunctional female moxibustion box of claim 1, which is characterized in that: the lower side of the box body (3) is fixedly connected with an arc plate (20), and a group of uniformly distributed ventilation holes (19) are formed in the arc plate (20).
