CN210643500U

CN210643500U - Flower placing frame

Info

Publication number: CN210643500U
Application number: CN201921692080.6U
Authority: CN
Inventors: 韩露; 郑宇�; 祝晓云; 罗希榕; 江秋菊; 刘玉倩; 杨凤飞
Original assignee: Zunyi Vocational and Technical College
Current assignee: Zunyi Vocational and Technical College
Priority date: 2019-10-11
Filing date: 2019-10-11
Publication date: 2020-06-02
Anticipated expiration: 2029-10-11

Abstract

The utility model provides a flower placing rack, which comprises a front bracket, a rear bracket, a water collecting tank and a plurality of placing tables which are arranged in a vertically staggered manner; the water collecting tank consists of an outer tank and an inner tank; the outer box is fixed at the bottom between the front bracket and the rear bracket; a trapezoidal cavity penetrating through the side surface of the outer box is arranged in the outer box; the top of the outer box is provided with a plurality of strip-shaped holes communicated with the trapezoidal cavity; the top of the inner box is opened and is arranged in the trapezoidal cavity in a detachable drawing way; the placing table consists of a top frame and a bottom box; the top of the top frame is provided with an opening, and the bottom and the periphery of the top frame are hollowed out; the periphery of an opening at the top of the bottom box is closed, the top of the bottom box is fixed at the bottom of the top frame, and the bottom of the bottom box is fixed between the front support and the rear support; a first guide pipe is connected between the bottom boxes of two adjacent placing platforms on the same side; a second guide tube is connected between the outer box and the bottom box of the lowest placing table. The utility model discloses simple structure can effectual collection flowers water too much produced pelvic floor water, has avoided the pelvic floor water to drip the condition emergence that the ground made dirty and get wet ground.

Description

Flower placing frame

Technical Field

The utility model relates to a flower planting technical field, in particular to flower rack.

Background

With the continuous improvement of living standard of people, consumers increasingly like flowers, and more or less flowers are embellished in each family or office of modern cities. For ornamental flowers, people usually can arrange various flowers in a staggered manner so as to increase the artistry. The flower placing rack should be born, the existing flower placing rack is mostly of a hollow structure at the placing table, the flowerpot is placed on the back, if the watering amount is large, water mixed with dust can drip from the bottom of the flowerpot on the placing table, and finally the water drips on the bottom surface of the placing table to pollute rooms.

SUMMERY OF THE UTILITY MODEL

To the problem, the utility model aims to provide a simple structure to have the pelvic floor water and collect the function, prevent that the pelvic floor water from dripping to the flowers rack on ground. The specific technical scheme is as follows:

a flower placing frame comprises a front support, a rear support, a water collecting tank and a plurality of placing tables which are arranged between the front support and the rear support in an up-and-down staggered mode; the water collecting tank consists of an outer tank and an inner tank; the outer box is welded and fixed at the bottom between the front support and the rear support; a trapezoidal cavity penetrating through the side surface of the outer box is arranged in the outer box; the top of the outer box is provided with a plurality of strip-shaped holes communicated with the trapezoidal cavity; the top of the inner box is opened and is arranged in the trapezoidal cavity in a detachable and drawing manner; the placing table consists of a top frame and a bottom box; the top of the top frame is provided with an opening, and the bottom and the periphery of the top frame are hollowed; the periphery of an opening at the top of the bottom box is closed, the top of the bottom box is fixed at the bottom of the top frame, and the bottom of the bottom box is fixedly welded between the front support and the rear support; a first guide pipe is connected between the bottom boxes of two adjacent placing platforms on the same side; the upper end of the first guide pipe is connected with and communicated with the bottom of the bottom box of the upper layer placing table, and the lower end of the first guide pipe is connected with and communicated with the side surface of the bottom box of the lower layer placing table; a second guide tube is connected between the outer box and the bottom box of the lowest placing table; the upper end of the second guide tube is connected with and communicated with the bottom of the bottom box of the bottommost placing table, and the lower end of the second guide tube extends into the outer box and is positioned right above the inner box.

Furthermore, for the rational utilization space, the number of the placing platforms is four, two of the placing platforms are positioned right above the water collecting tank, and the other two placing platforms are respectively arranged above two sides of the water collecting tank.

Further, the shape of the placing table is a regular polygon or a circle.

Furthermore, in order to conveniently pull out the inner box and dump the sewage in the inner box, the outer wall of the inner box is provided with a pull ring.

Further, the top edge of the bottom box is higher than the bottom of the top frame.

Furthermore, in order to prevent the hollow hard plastic pipe from rusting, the first guide pipe and the second guide pipe are made of hollow hard plastic pipes.

The utility model discloses simple structure can effectual collection flowers water too much produced pelvic floor water, has avoided the pelvic floor water to drip the condition emergence that the ground made dirty and get wet ground.

Drawings

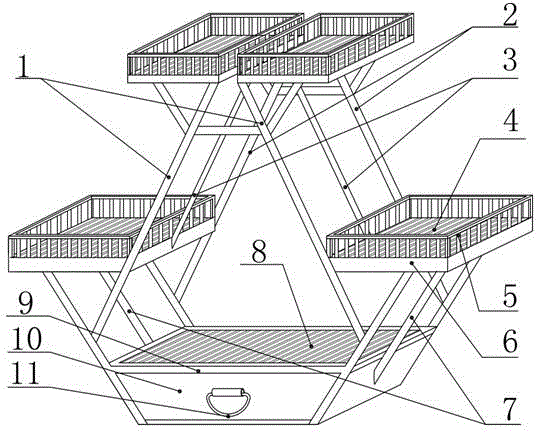

Fig. 1 is a schematic structural view of a flower holding rack of the present invention;

fig. 2 is a front view of the flower shelf of the present invention;

shown in the figure: 1-front support, 2-rear support, 3-first guide tube, 4-placing table, 5-top frame, 6-bottom box, 7-second guide tube, 8-water collecting box, 9-outer box, 10-inner box and 11-pull ring.

Detailed Description

The present invention will be described more fully hereinafter with reference to the accompanying drawings, in which some, but not all embodiments of the invention are shown. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without any inventive step, shall fall within the scope of the present invention.

As shown in fig. 1 and 2, the flower placing rack of the present invention comprises a front support 1 and a rear support 2, and further comprises a water collecting tank 8 and a plurality of placing tables 4 arranged between the front support 1 and the rear support 2 in an up-and-down staggered manner; the water collecting tank 8 consists of an outer tank 9 and an inner tank 10; the outer box 9 is fixedly welded at the bottom between the front support 1 and the rear support 2; a trapezoidal cavity penetrating through the side surface of the outer box 9 is arranged in the outer box 9; the top of the outer box 9 is provided with a plurality of strip-shaped holes communicated with the trapezoidal cavity; the top of the inner box 10 is open and is arranged in the trapezoidal cavity in a detachable drawing mode; the placing table 4 consists of a top frame 5 and a bottom box 6; the top of the top frame 5 is open, and the bottom and the periphery of the top frame are hollowed; the periphery of an opening at the top of the bottom box 6 is closed, the top of the bottom box 6 is fixed at the bottom of the top frame 5, and the bottom of the bottom box 6 is fixedly welded between the front support 1 and the rear support 2; a first guide pipe 3 is connected between the bottom boxes 5 of two adjacent placing platforms 4 on the same side; the upper end of the first guide pipe 3 is connected with and communicated with the bottom of the bottom box 6 of the upper layer placing table 4, and the lower end of the first guide pipe is connected with and communicated with the side surface of the bottom box 6 of the lower layer placing table 4; a second guide tube 7 is connected between the outer box 9 and the bottom box 5 of the lowest placing table 4; the upper end of the second guide tube 7 is connected with and communicated with the bottom of the bottom box 6 of the lowest placing table 4, and the lower end of the second guide tube extends into the outer box 9 and is positioned right above the inner box 10.

Further, for the rational utilization space, the number of the placing platforms 4 is four, two of the placing platforms are located right above the water collecting tank 8, and the other two placing platforms are respectively arranged above two sides of the water collecting tank 8.

Further, the shape of the placing table 4 is a regular polygon or a circle.

Further, in order to facilitate the pulling out of the inner box 10 and the dumping of the sewage in the inner box 10, a pull ring 11 is arranged on the outer wall of the inner box 10.

Further, in order to prevent water from flowing out along the top frame 5, the top edge of the bottom box 6 is higher than the bottom of the top frame 5.

Furthermore, in order to prevent the first guide tube 3 and the second guide tube 7 from rusting, the first guide tube 3 and the second guide tube 7 are made of hollow hard plastic tubes.

The utility model discloses the theory of operation as follows:

when the flowerpot placed on the uppermost placing platform 4 is watered, if the watering amount is too large, excessive water leaks onto the hollow plate at the bottom of the top frame 5 of the placing platform 4 from the bottom of the flowerpot and leaks into the bottom box 6 from the hollow plate, then flows into the bottom box 6 of the next placing platform 4 on the same side through the first guide pipe 3, and finally is introduced into the inner box 10 of the water collecting box 8 through the second guide pipe 7.

When the flowerpot placed on the lowest placing table 4 is watered, if the watering amount is too large, excessive water leaks to the hollow plate at the bottom of the top frame 5 of the placing table 4 from the bottom of the flowerpot and leaks to the bottom box 6 from the hollow plate, and then is introduced into the inner box 10 of the water collecting box 8 through the second guide pipe 7.

When water in the inner box 10 of the water collecting box 8 is more, the inner box 10 can be taken out for pouring water only by pulling the pull ring 11 to pull outwards, and after the water is poured, the inner box 10 is sent into the outer box 9.

The utility model discloses not only can prevent the flowerpot on putting platform 4, can also place happiness cloudy flowers or other article at 8 tops of header tank.

The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.

Claims

1. The utility model provides a flower placing frame, includes fore-stock and after-poppet, its characterized in that: the water collecting tank and the placing tables are arranged between the front support and the rear support in a vertically staggered manner; the water collecting tank consists of an outer tank and an inner tank; the outer box is welded and fixed at the bottom between the front support and the rear support; a trapezoidal cavity penetrating through the side surface of the outer box is arranged in the outer box; the top of the outer box is provided with a plurality of strip-shaped holes communicated with the trapezoidal cavity; the top of the inner box is opened and is arranged in the trapezoidal cavity in a detachable and drawing manner; the placing table consists of a top frame and a bottom box; the top of the top frame is provided with an opening, and the bottom and the periphery of the top frame are hollowed; the periphery of an opening at the top of the bottom box is closed, the top of the bottom box is fixed at the bottom of the top frame, and the bottom of the bottom box is fixedly welded between the front support and the rear support; a first guide pipe is connected between the bottom boxes of two adjacent placing platforms on the same side; the upper end of the first guide pipe is connected with and communicated with the bottom of the bottom box of the upper layer placing table, and the lower end of the first guide pipe is connected with and communicated with the side surface of the bottom box of the lower layer placing table; a second guide tube is connected between the outer box and the bottom box of the lowest placing table; the upper end of the second guide tube is connected with and communicated with the bottom of the bottom box of the bottommost placing table, and the lower end of the second guide tube extends into the outer box and is positioned right above the inner box.

2. A flower holding rack according to claim 1, wherein: the number of the placing platforms is four, two of the placing platforms are located right above the water collecting tank, and the other two placing platforms are respectively arranged above two sides of the water collecting tank.

3. A flower holding rack according to claim 1, wherein: the placing table is in a regular polygon or a circle shape.

4. A flower holding rack according to claim 1, wherein: and a pull ring is arranged on the outer wall of the inner box.

5. A flower holding rack according to claim 1, wherein: the top edge of the bottom box is higher than the bottom of the top frame.

6. A flower holding rack according to any one of claims 1 to 5, wherein: the first guide pipe and the second guide pipe are made of hollow hard plastic pipes.
