Abstract

The utility model discloses a showcase with automatic rising glass door, place the platform including the panel, the bottom fixedly connected with show stand base of platform is placed to the panel, the bottom fixedly connected with bottom antifriction plate of show stand base, the chamber has been seted up and has been placed at the top of show stand base, but place the intracavity bottom lean on the equal fixedly connected with telescopic link in both ends position. This showcase with automatic rising glass door, setting through on-off control button and output cylinder, can go up and down to liftable glass door fast, make things convenient for the sales force article in the cabinet of taking, design through liftable glass door U type, make the customer edgewise also can view and admire article in the cabinet, but through the setting of telescopic link, more have stability when making liftable glass door go up and down, and through preventing interbedded setting, can avoid appearing the condition that personnel's hand was pressed from both sides and is hindered, thereby the device's security has been improved.

Description

Showcase with automatic lifting glass door
Technical Field
The utility model relates to a showcase technical field specifically is a showcase with automatic rising glass door.
Background
The showcase is a prop, is mainly used for displaying and storing commodities in shops such as markets and supermarkets, has individual appearance and powerful functions, and also has an advertising effect, so that the aim of better profit is fulfilled, and a better sale platform is provided for brand products. Various showcases companies can design and manufacture various display cabinets and display cabinets with unique specifications.
With the expansion of the application range of glass and the improvement of the manufacturing process level, many merchants prefer to select glass decorative products in the arrangement process of display shelves of display cabinets. Glass looks beautiful due to the characteristics of being simple and crystal clear, but the exhibition tool made of the glass material also needs to be carefully cared in daily life. The artistic charm of glass makes it one of the indispensable elements in modern fashion home decoration. The glass showcase display effect picture brings people's feeling, creates a glistening texture for the whole shop, and makes people bright in the front, new in the ears and cool to the utmost. Nowadays, the number of glass exhibition tools on the market is more and more, and the glass exhibition has a fragile soul, so that people must carefully care about the glass exhibition tools in decoration. First, glass displays are fragile and not prone to frequent movement, so they are best installed in relatively fixed locations and do not move back and forth as often. The articles placed on the glass exhibition tool must be lightly handled and placed, and hardware articles cannot be thrown onto the glass exhibition tool in a long distance and still cannot be thrown, otherwise the surface of the glass exhibition tool is easily damaged.
However, the traditional glass showcase does not have the function of automatically lifting the glass door, so that the salesperson needs to frequently unlock the showcase to take the articles in the showcase to explain the sale of the customer, and the traditional glass showcase is extremely inconvenient and cannot meet the requirements of the salesperson. To this end, we propose a showcase with automatically liftable glass doors.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a showcase with automatic rising glass door to propose traditional glass showcase and do not have the function of automatic rising glass door in solving above-mentioned background art, lead to the frequent explanation of unblanking and taking the article in the cabinet and carrying out the sale to client, it is extremely inconvenient, can not satisfy the problem of salesperson demand.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a showcase with automatic lift glass door, places the platform including the panel, the bottom fixedly connected with show stand base of platform is placed to the panel, the bottom fixedly connected with bottom antifriction plate of show stand base, the chamber of placing has been seted up at the top of show stand base, but place the intracavity bottom lean on the equal fixedly connected with telescopic link in both ends position, the top fixedly connected with connecting plate of two telescopic links, the top fixedly connected with liftable glass door of connecting plate, the intermediate position fixed mounting who places the intracavity bottom has the delivery cylinder.
The utility model discloses a table for exhibition glass door, including stand, liftable glass door, but the top of stand is seted up logical groove, but the top of liftable glass door is run through logical groove and is extended to the outside that the stand was placed to the stand, but the top fixedly connected with of liftable glass door prevents the intermediate layer, the rear end fixedly connected with vertical support plate of bench top is placed to the stand, vertical support plate's top fixedly connected with top transparent cover plate, top transparent cover plate's bottom with prevent the pinch layer and contact.
Preferably, the middle position of the top of the display board placing table is fixedly connected with a first display board body, and the top of the first display board body is fixedly connected with a second display board body through a connecting rod.
Preferably, the front side movable mounting of show stand base has the maintenance cabinet door, and the left end position fixed mounting that leans on of show stand base front side has the on-off control button, the on-off control button passes through wire and output cylinder electric connection.
Preferably, the liftable glass door is designed in a U shape, and the width of the liftable glass door is slightly smaller than that of the through groove.
Preferably, the LED illuminating lamps are fixedly mounted in the middle of the front side of the vertical supporting plate and close to two ends, and the LED illuminating lamps are electrically connected with an external power supply through power lines.
Preferably, the output cylinder is SC63X100, and is electrically connected with an external power supply through a power line.
Compared with the prior art, the beneficial effects of the utility model are that: this showcase with automatic rising glass door, setting through on-off control button and output cylinder, can go up and down to liftable glass door fast, make things convenient for the sales force article in the cabinet of taking, design through liftable glass door U type, make the customer edgewise also can view and admire article in the cabinet, but through the setting of telescopic link, more have stability when making liftable glass door go up and down, and through preventing interbedded setting, can avoid appearing the condition that personnel's hand was pressed from both sides and is hindered, thereby the device's security has been improved.
Drawings

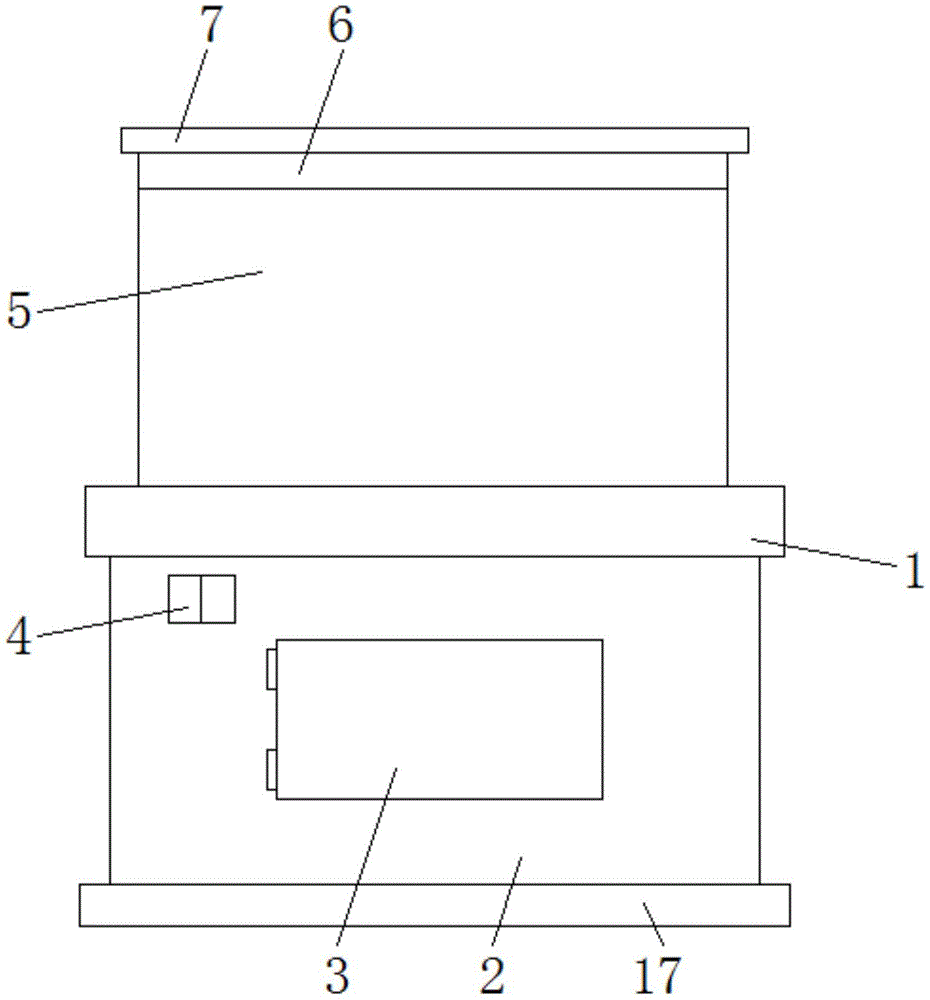

FIG. 1 is a front view of the structure of the present invention;
FIG. 2 is a sectional view of the structure of the present invention;
fig. 3 is a partial top view of the structure of the display board placing table of the present invention;
fig. 4 is a top view of the liftable glass door structure of the present invention.
In the figure: 1. a display board placing table; 2. a display stand base; 3. maintaining the cabinet door; 4. a switch control knob; 5. A liftable glass door; 6. an anti-interlayer; 7. a top transparent cover plate; 8. a vertical support plate; 9. an LED lighting lamp; 10. a first display board body; 11. a through groove; 12. a placement chamber; 13. a connecting plate; 14. a telescopic rod; 15. a second display board body; 16. an output cylinder; 17. a bottom wear plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a showcase with automatic lift glass door, place platform 1 including the panel, platform 1 is placed to the panel's bottom fixedly connected with show stand base 2, show stand base 2's bottom fixedly connected with bottom antifriction plate 17, place chamber 12 has been seted up at show stand base 2's top, place the chamber 12 in lean on the equal fixedly connected with telescopic link 14 in both ends position, the top fixedly connected with connecting plate 13 of two telescopic links 14, the top fixedly connected with liftable glass door 5 of connecting plate 13, place the intermediate position fixed mounting of chamber 12 in the bottom and have output cylinder 16, during the use, the user passes through 4 control output cylinders 16 of on-off control button, come to go up and down liftable glass door 5.
The exhibition board is placed platform 1's top and has been seted up logical groove 11, liftable glass door 5's top is run through logical groove 11 and is extended to the exhibition board and place platform 1's outside, liftable glass door 5's top fixedly connected with prevents intermediate layer 6, the exhibition board is placed the rear end fixedly connected with vertical support plate 8 at platform 1 top, vertical support plate 8's top fixedly connected with top transparent cover plate 7, top transparent cover plate 7's bottom with prevent the contact of pinch course 6, prevent that pinch course 6 adopts sponge material to make.
The utility model discloses in: the middle position of the top of the display board placing table 1 is fixedly connected with a first display board body 10, and the top of the first display board body 10 is fixedly connected with a second display board body 15 through a connecting rod; the first and second display board bodies 10 and 15 may have sales articles placed on the top thereof.
The utility model discloses in: a maintenance cabinet door 3 is movably mounted on the front side of the display table base 2, a switch control button 4 is fixedly mounted at the position close to the left end of the front side of the display table base 2, and the switch control button 4 is electrically connected with the output cylinder 16 through a wire; the setting of maintenance cabinet door 3 makes things convenient for personnel to maintain output cylinder 16.
The utility model discloses in: the liftable glass door 5 is designed in a U shape, and the width of the liftable glass door 5 is slightly smaller than that of the through groove 11; the arrangement of the through groove 11 can reduce the friction force on the liftable glass door 5, thereby prolonging the service life of the liftable glass door 5.
The utility model discloses in: the LED illuminating lamps 9 are fixedly arranged at the positions close to the two ends in the middle of the front side of the vertical supporting plate 8, and the LED illuminating lamps 9 are electrically connected with an external power supply through power lines; the LED illuminating lamp 9 provides an illuminating effect for the whole showcase.
The utility model discloses in: the output cylinder 16 is of a model SC63X100, and the output cylinder 16 is electrically connected with an external power supply through a power line.
In summary, the following steps: this showcase with automatic rising glass door, setting through on-off control button 4 and output cylinder 16, can go up and down to liftable glass door 5 fast, make things convenient for the sales force article in the cabinet of taking, design through liftable glass door 5U type, make the customer edgewise also can vwatch the article in the cabinet, but through telescopic link 14's setting, more have stability when making liftable glass door 5 go up and down, and through the setting of preventing intermediate layer 6, can avoid appearing the condition that personnel's hand was pressed from both sides wounded, thereby the device's security has been improved.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a showcase with automatic lift glass door, places platform (1) including the panel, its characterized in that: the bottom of the display board placing table (1) is fixedly connected with a display table base (2), the bottom of the display table base (2) is fixedly connected with a bottom wear-resisting plate (17), a placing cavity (12) is formed in the top of the display table base (2), the positions, close to two ends, of the bottom in the placing cavity (12) are fixedly connected with telescopic rods (14), the tops of the two telescopic rods (14) are fixedly connected with a connecting plate (13), the top of the connecting plate (13) is fixedly connected with a liftable glass door (5), and an output air cylinder (16) is fixedly arranged in the middle of the bottom in the placing cavity (12);
the display board is placed the top of platform (1) and has been seted up logical groove (11), but the top of liftable glass door (5) runs through logical groove (11) and extends to the outside that platform (1) was placed to the display board, but the top fixedly connected with of liftable glass door (5) prevents intermediate layer (6), the rear end fixedly connected with vertical support plate (8) at platform (1) top are placed to the display board, the top fixedly connected with top transparent cover plate (7) of vertical support plate (8), the bottom of top transparent cover plate (7) with prevent the contact of clamping layer (6).
2. The display case with automatically lifting glass door as claimed in claim 1, wherein: the display board is characterized in that a first display board body (10) is fixedly connected to the middle of the top of the display board placing table (1), and a second display board body (15) is fixedly connected to the top of the first display board body (10) through a connecting rod.
3. The display case with automatically lifting glass door as claimed in claim 1, wherein: the front side movable mounting of show stand base (2) has maintenance cabinet door (3), and the left end position fixed mounting that leans on of show stand base (2) front side has switch control button (4), switch control button (4) pass through wire and output cylinder (16) electric connection.
4. The display case with automatically lifting glass door as claimed in claim 1, wherein: liftable glass door (5) are the design of U type, and the width of liftable glass door (5) slightly is less than the width that leads to groove (11).
5. The display case with automatically lifting glass door as claimed in claim 1, wherein: the LED lamp is characterized in that LED lamps (9) are fixedly mounted in the middle of the front side of the vertical supporting plate (8) near two ends, and the LED lamps (9) are electrically connected with an external power supply through power lines.
6. The display case with automatically lifting glass door as claimed in claim 1, wherein: the type adopted by the output cylinder (16) is SC63X100, and the output cylinder (16) is electrically connected with an external power supply through a power line.
