Abstract
The utility model discloses a safety shoe with all-directional protection made of rubber, which comprises an EVA foaming sole, a vamp, a first protection mechanism, a second protection mechanism, a fixing mechanism and a shoe tongue; EVA foaming sole: the lower surface of the EVA foaming sole is wrapped with a TPU sole; shoe upper: the vamp is arranged on the EVA foaming sole, the vamp is provided with a shoelace, the left side of the inner cavity surface of the vamp is provided with a sponge ring, a sponge strip and a sponge pad, and the sponge pad is arranged on the lower side of the sponge ring; the first protection mechanism: the first protection mechanism is arranged on the upper surface of the EVA foaming sole and is positioned inside the vamp; a second protection mechanism: the second protection mechanism is arranged on the EVA foaming sole and the vamp; this safety shoes of all-round protection of rubber system can provide all-round protection to human foot, can not make the tongue off tracking, can effectively improve and dress travelling comfort and protectiveness.
Description
Technical Field
The utility model relates to a safety shoes technical field specifically is a safety shoes of all-round protection of rubber system.
Background
Safety shoes are a general term for safety-type shoes and protective-type shoes, and generally refer to shoes worn at different work occasions to protect the feet and legs from foreseeable injuries. The safety writing line and enamel on the existing market is full, but the protectiveness of some safety shoes is not comprehensive enough, and the safety writing line and enamel can not provide all-round protection for feet of human bodies, and the rubber for manufacturing the soles is harder, the comfort is not enough, and when the shoes are worn, the tongues are easy to deviate, so that the wearing comfort and the protectiveness are reduced.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide a safety shoes of all-round protection of rubber system, can provide all-round protection to the human foot, can not make the tongue off tracking, can effectively improve and dress travelling comfort and protectiveness, can effectively solve the problem in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: a rubber safety shoe with omnibearing protection comprises an EVA foaming sole, a vamp, a first protection mechanism, a second protection mechanism, a fixing mechanism and a shoe tongue;
EVA foaming sole: the lower surface of the EVA foaming sole is wrapped with a TPU sole;
shoe upper: the vamp is arranged on the EVA foaming sole, the vamp is provided with a shoelace, the left side of the inner cavity surface of the vamp is provided with a sponge ring, a sponge strip and a sponge pad, and the sponge pad is arranged on the lower side of the sponge ring;
the first protection mechanism: the first protection mechanism is arranged on the upper surface of the EVA foaming sole and is positioned inside the vamp;
a second protection mechanism: the second protection mechanism is arranged on the EVA foaming sole and the vamp;
a fixing mechanism: the fixing mechanism is sewed on the vamp;
tongue: the shoe tongue is sewn on the inner cavity surface of the vamp and arranged corresponding to the shoelace, a limit ring is arranged on the shoe tongue, and the shoelace is inserted in the limit ring.
Further, fixed establishment includes the female face of magic post, elastic webbing and magic card, and the cooperation of magic post is bonded on the female face of magic card, and the female face of magic card sews up on the elastic webbing, and the female face of elastic webbing and magic card sews up respectively on the vamp, and corresponds with human ankle department, when bonding the cooperation of magic post face on the female face of magic card, can pull the vamp into, makes sponge ring, sponge strip and foam-rubber cushion hug closely human ankle and heel, improves the protectiveness of sponge ring, sponge strip and foam-rubber cushion.
Further, first protection machanism includes sweat-absorbing shoe-pad, silica gel granule and arch of foot backing sheet, and the arch of foot backing sheet sets up the upper surface at sweat-absorbing shoe-pad, and corresponds with human arch of foot department, and silica gel granule array distributes at sweat-absorbing shoe-pad's upper surface, and sweat-absorbing shoe-pad sets up on the EVA foaming sole, and sweat-absorbing shoe-pad can absorb the sweat that human foot produced, and the arch of foot backing sheet can support the protection to the arch of foot of human foot, and silica gel granule can improve the antiskid nature when the sweat is more to can massage human foot when walking.
Furthermore, the second protection mechanism comprises a puncture-proof steel sheet and a smash-proof steel sheet, the puncture-proof steel sheet is arranged between the TPU sole and the EVA foaming sole, the smash-proof steel sheet is arranged in an interlayer of the vamp and corresponds to the human toes, the puncture-proof steel sheet is flexible steel, the sharp objects can be prevented from injuring the human feet through the puncture-proof steel sheet, and the smash-proof steel sheet can protect the human toes.
Compared with the prior art, the beneficial effects of the utility model are that: this all-round protection's safety shoes of rubber system has following benefit:
1. the sweat absorbing insole can absorb sweat generated by the feet of a human body, the arch support sheet can support and protect the arch of the feet of the human body, the silica gel particles can improve the anti-skid property when the sweat is more, and the feet of the human body can be massaged when the user walks;
2. the anti-puncturing steel sheet is flexible steel, the injury to the feet of a human body caused by sharp objects can be prevented through the anti-puncturing steel sheet, the toes of the human body can be protected through the anti-smashing steel sheet, the ankle of the human body can be protected through the sponge ring, and the heel of the human body can be protected through the sponge strip and the sponge pad;
3. when bonding magic post surface cooperation on the female face of magic card, can pull into the vamp, make sponge ring, sponge strip and foam-rubber cushion hug closely human ankle and heel, improve the protectiveness of sponge ring, sponge strip and foam-rubber cushion.
Drawings

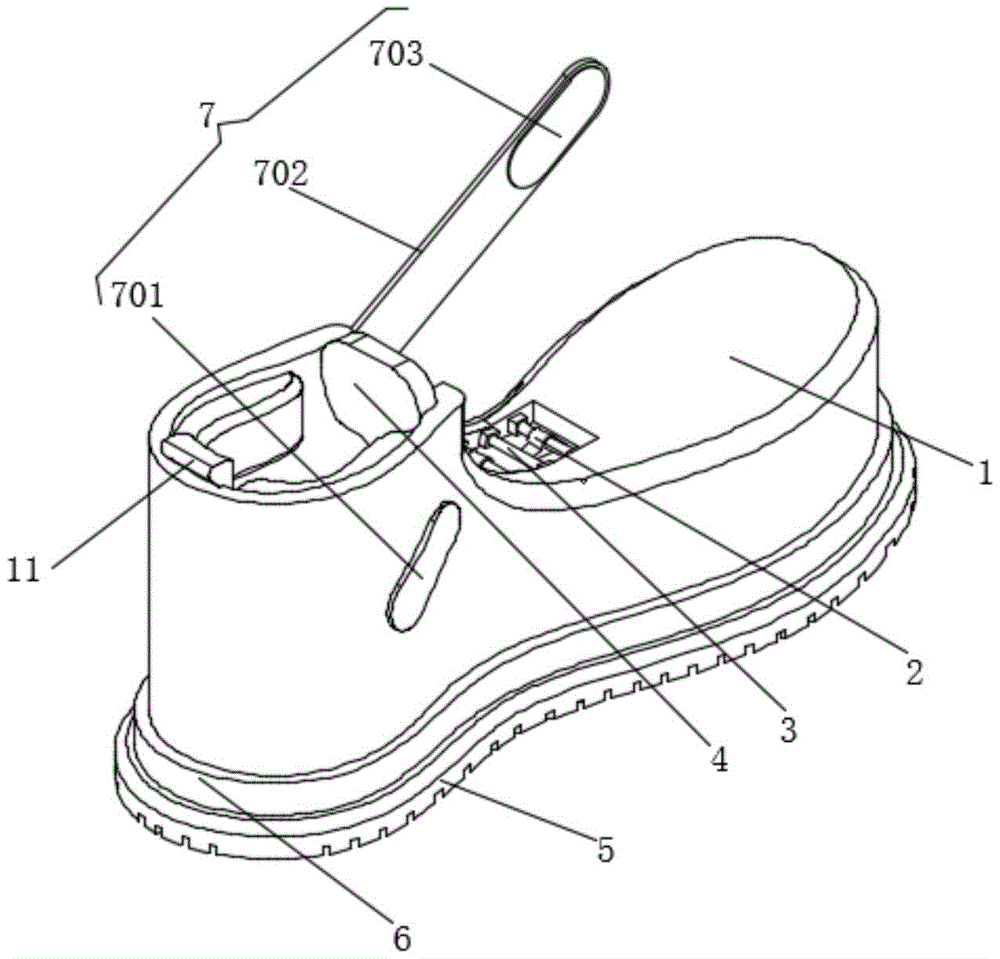

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic cross-sectional view of the present invention.
In the figure: 1 vamp, 2 spacing rings, 3 shoelaces, 4 tongues, 5TPU soles, 6EVA foaming soles, 7 fixing mechanisms, 701 magic post surfaces, 702 elastic bands, 703 magic post female surfaces, 8 first protection mechanisms, 801 sweat-absorbing insoles, 802 silica gel particles, 803 arch support sheets, 9 second protection mechanisms, 901 stab-resistant steel sheets, 902 stab-resistant steel sheets, 10 sponge rings, 11 sponge strips and 12 sponge pads.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: a rubber safety shoe with omnibearing protection comprises an EVA foaming sole 6, a vamp 1, a first protection mechanism 8, a second protection mechanism 9, a fixing mechanism 7 and a shoe tongue 4;
EVA foaming sole 6: the lower surface of the EVA foaming sole 6 is wrapped with the TPU sole 5, the EVA foaming sole 6 can improve the comfort when being worn, and the TPU sole 5 has wear resistance and oxidation resistance, so that the wearing life is prolonged;
the shoe upper 1: the vamp 1 is arranged on the EVA foaming sole 6, the shoelace 3 is arranged on the vamp 1, the sponge ring 10, the sponge strip 11 and the sponge pad 12 are arranged on the left side of the inner cavity surface of the vamp 1, the sponge pad 12 is arranged on the lower side of the sponge ring 10, the sponge ring 10 can protect the ankle of a human body, and the sponge strip 11 and the sponge pad 12 can protect the heel part of the human body;
first protection mechanism 8: the first protection mechanism 8 is arranged on the upper surface of the EVA foaming sole 6 and is positioned inside the vamp 1;
the second protection mechanism 9: the second protection mechanism 9 is arranged on the EVA foaming sole 6 and the vamp 1;
the fixing mechanism 7: the fixing mechanism 7 is sewed on the vamp 1;
and (4) the tongue 4: tongue 4 sews up at the interior chamber face of vamp 1, and corresponds the setting with shoelace 3, is equipped with spacing ring 2 on tongue 4, and shoelace 3 alternates in spacing ring 2, and spacing ring 2 can prevent that tongue 4 from taking place to deviate, improves and dresses travelling comfort and protectiveness.
Fixing mechanism 7 includes magic post face 701, elastic webbing 702 and the female face 703 of magic subsides, magic post face 701 cooperation is pasted on the female face 703 of magic subsides, the female face 703 of magic subsides stitches on elastic webbing 702, elastic webbing 702 and the female face 703 of magic subsides sew up respectively on vamp 1, and correspond with human ankle department, when pasting magic post face 701 cooperation on the female face 703 of magic subsides, can pull vamp 1 in, make sponge ring 10, sponge strip 11 and foam-rubber cushion 12 hug closely human ankle and heel, improve the protectiveness of sponge ring 10, sponge strip 11 and foam-rubber cushion 12.
The first protection mechanism 8 comprises a sweat absorbing insole 801, silica gel particles 802 and an arch support sheet 803, the arch support sheet 803 is arranged on the upper surface of the sweat absorbing insole 801 and corresponds to the arch of the foot of a human body, the silica gel particles 802 are distributed on the upper surface of the sweat absorbing insole 801 in an array mode, the sweat absorbing insole 801 is arranged on the EVA foaming sole 6, sweat generated by the foot of the human body can be absorbed by the sweat absorbing insole 801, the arch support sheet 803 can support and protect the arch of the foot of the human body, the silica gel particles 802 can improve the skid resistance when the sweat is more, and the foot of the human body can be massaged when the user walks.
The second protection mechanism 9 comprises a puncture-proof steel sheet 901 and a smash-proof steel sheet 902, the puncture-proof steel sheet 901 is arranged between the TPU sole 5 and the EVA foamed sole 6, the smash-proof steel sheet 902 is arranged in the interlayer of the vamp 1 and corresponds to the toes of a human body, the puncture-proof steel sheet 901 is made of flexible steel, the sharp objects can be prevented from damaging the feet of the human body through the puncture-proof steel sheet 901, and the smash-proof steel sheet 902 can protect the toes of the human body.
When in use: the foot of a human body is put on the vamp 1, the EVA foamed sole 6 can improve the comfort when the shoe is put on, and the TPU sole 5 has wear resistance and oxidation resistance, so that the wearing life is prolonged;
the sweat absorbing insole 801 can absorb sweat generated by feet of a human body, the arch support piece 803 can support and protect the arch of the feet of the human body, the silica gel particles 802 can improve the anti-skid property when a large amount of sweat exists, and the feet of the human body can be massaged when the human body walks;
the anti-stab steel sheet 901 is flexible steel, sharp objects can be prevented from damaging feet of a human body through the anti-stab steel sheet 901, and the anti-smashing steel sheet 902 can protect toes of the human body;
the sponge ring 10 can protect the ankle of the human body, and the sponge strip 11 and the sponge pad 12 can protect the heel of the human body;
when the magic post surface 701 is adhered to the magic post female surface 703 in a matching manner, the vamp 1 can be pulled in, so that the sponge ring 10, the sponge strip 11 and the sponge pad 12 are tightly attached to the heel and the ankle of a human body, and the protectiveness of the sponge ring 10, the sponge strip 11 and the sponge pad 12 is improved;
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
1. The utility model provides a safety shoes of all-round protection of rubber which characterized in that: comprises an EVA foaming sole (6), a vamp (1), a first protection mechanism (8), a second protection mechanism (9), a fixing mechanism (7) and a tongue (4);
EVA foamed sole (6): the lower surface of the EVA foaming sole (6) is wrapped with a TPU sole (5);
shoe upper (1): the vamp (1) is arranged on the EVA foaming sole (6), the vamp (1) is provided with the shoelace (3), the left side of the inner cavity surface of the vamp (1) is provided with the sponge ring (10), the sponge strip (11) and the sponge pad (12), and the sponge pad (12) is arranged on the lower side of the sponge ring (10);
first protection mechanism (8): the first protection mechanism (8) is arranged on the upper surface of the EVA foaming sole (6) and is positioned inside the vamp (1);
second protection mechanism (9): the second protection mechanism (9) is arranged on the EVA foaming sole (6) and the vamp (1);
fixing mechanism (7): the fixing mechanism (7) is sewed on the vamp (1);
tongue (4): tongue (4) sews up at the inner chamber face of vamp (1), and corresponds the setting with shoelace (3), is equipped with spacing ring (2) on tongue (4), and shoelace (3) alternate in spacing ring (2).
2. The all-round protection safety shoes of rubber of claim 1 characterized in that: the fixing mechanism (7) comprises a magic post surface (701), an elastic belt (702) and a magic card female surface (703), the magic post surface (701) is matched and bonded on the magic card female surface (703), the magic card female surface (703) is sewn on the elastic belt (702), and the elastic belt (702) and the magic card female surface (703) are respectively sewn on the vamp (1) and correspond to the ankle of a human body.
3. The all-round protection safety shoes of rubber of claim 1 characterized in that: the first protection mechanism (8) comprises a sweat absorbing insole (801), silica gel particles (802) and an arch support sheet (803), the arch support sheet (803) is arranged on the upper surface of the sweat absorbing insole (801) and corresponds to the arch of the human body, the silica gel particles (802) are distributed on the upper surface of the sweat absorbing insole (801) in an array mode, and the sweat absorbing insole (801) is arranged on the EVA foaming sole (6).
4. The all-round protection safety shoes of rubber of claim 1 characterized in that: the second protection mechanism (9) comprises an anti-puncturing steel sheet (901) and an anti-smashing steel sheet (902), the anti-puncturing steel sheet (901) is arranged between the TPU sole (5) and the EVA foamed sole (6), the anti-smashing steel sheet (902) is arranged in the interlayer of the vamp (1) and corresponds to toes of a human body, and the anti-puncturing steel sheet (901) is made of flexible steel.
