Abstract
The utility model discloses a power intelligent protection ware convenient to installation relates to power intelligent protection ware field, including the mounting panel, the standing groove has been seted up at the middle part of mounting panel, and the inside swing joint of standing groove has the protector, and the top middle part swing joint of protector has the handle, and the space groove has all been seted up to the inside both sides of mounting panel, and the inside fixedly connected with gag lever post in space groove, the outside swing joint of gag lever post have the fly leaf, one side middle part fixedly connected with pull rod of fly leaf, and the bottom of fly leaf is provided with the extrusion stem. The utility model discloses a gag lever post can prevent that the fly leaf from taking place to slope, can drive the fly leaf through the pull rod and remove to can drive spacing fixture block and remove, and can make the protector be convenient for fixed, can prevent through spacing spout that the fly leaf from taking place to rock, can prevent through reset spring that spacing fixture block from taking place to rock, thereby can improve the reliability of protector.
Description
Technical Field
The utility model relates to a power intelligent protection ware field, in particular to power intelligent protection ware convenient to installation.
Background
The power supply protector DFY-5 is a monitoring and protecting instrument for multifunctional three-phase power supply system or three-phase electric equipment. The three-phase voltage display, the overvoltage protection, the undervoltage protection, the open-phase protection (open-phase protection) and the phase sequence protection (phase error protection) are integrated. The Chinese liquid crystal display has the characteristics of complete functions, stable performance, simple and convenient operation and the like.
However, through analysis, the existing power supply intelligent protector convenient to install has the following disadvantages: the protector is inconvenient to disassemble and assemble, and a tool needs to be found to fix the protector, so that the installation efficiency of the protector is reduced, and therefore, the invention provides the power supply intelligent protector convenient to install to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a power intelligence protector convenient to installation to the dismouting of being not convenient for that proposes in solving above-mentioned background art needs the searching tool to fix the protector, thereby reduces the problem of the installation effectiveness of protector.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a power intelligence protector convenient to installation, includes the mounting panel, the standing groove has been seted up at the middle part of mounting panel, the inside swing joint of standing groove has the protector, the top middle part swing joint of protector has the handle, the space groove has all been seted up to the inside both sides of mounting panel, the inside fixedly connected with gag lever post in space groove, the outside swing joint of gag lever post has the fly leaf, one side middle part fixedly connected with pull rod of fly leaf, the bottom of fly leaf is provided with the stripper bar, the spacing fixture block of one end fixedly connected with of stripper bar, the other end fixedly connected with stripper plate of stripper bar, the inside fixedly connected with sleeve pipe in space groove, sheathed tube inside fixedly connected with reset spring.
Optionally, the middle parts of two sides of the protector are provided with limiting sliding chutes;
the inside of the limiting sliding groove is movably connected with the outer side of the limiting clamping block.
Optionally, one end of the pull rod penetrates through the side wall of the mounting plate and is movably connected with the mounting plate;
one end of the limiting clamping block penetrates through the side wall of the space groove and is movably connected with the space groove.
Optionally, two spatial slots are provided, and the two spatial slots are respectively located at two sides of the protector;
two of the spatial slots are symmetrical about the axis of symmetry of the mounting plate.
Optionally, a through hole is formed in the bottom of the movable plate, and the inside of the through hole is fixedly connected with the middle part of the extrusion rod;
one end of the extrusion rod is movably connected with the interior of the sleeve.
Optionally, the outer side of the extrusion plate is movably connected with the interior of the sleeve;
one side of the extrusion plate is movably connected with one end of the return spring.
Optionally, a clamping groove is formed in the space groove;
the inside of draw-in groove and the bottom swing joint of fly leaf.
The utility model discloses a technological effect and advantage:
1. the utility model discloses a gag lever post can prevent that the fly leaf from taking place to slope, can drive the fly leaf through the pull rod and remove to can drive spacing fixture block and remove, and can make the protector be convenient for fixed.
2. The utility model discloses a spacing spout can prevent that the fly leaf from taking place to rock, can prevent through reset spring that spacing fixture block from taking place to rock to can improve the reliability of protector, through gag lever post, fly leaf, pull rod, extrusion stem, spacing fixture block, stripper plate, sleeve pipe and reset spring's cooperation setting, can make the dismouting of being convenient for of protector, thereby can reduce the time of searching for the instrument.
Drawings

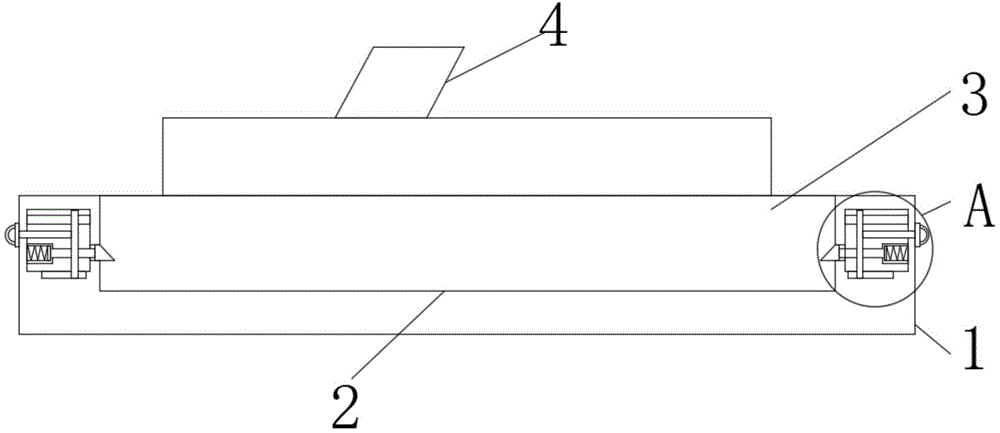

Fig. 1 is a schematic front view of the cross-sectional view of the present invention.
Fig. 2 is a schematic front view of the protector of the present invention.
Fig. 3 is an enlarged schematic view of a portion a in fig. 1 according to the present invention.
In the figure: 1. mounting a plate; 2. a placement groove; 3. a protector; 4. a handle; 5. a spatial groove; 6. a limiting rod; 7. a movable plate; 8. a pull rod; 9. an extrusion stem; 10. a limiting clamping block; 11. a pressing plate; 12. a sleeve; 13. a return spring; 14. a limiting chute; 15. a clamping groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship indicated based on the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "disposed," "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection or a removable connection; may be a mechanical connection; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
The utility model provides a power supply intelligent protector convenient to install as shown in figures 1-3, which comprises a mounting plate 1, a placing groove 2 is arranged in the middle of the mounting plate 1, the inner part of the placing groove 2 is movably connected with a protector 3, the middle part of the top end of the protector 3 is movably connected with a handle 4, the middle parts of the two sides of the protector 3 are provided with a limit chute 14, the inner part of the limit chute 14 is movably connected with the outer side of a limit fixture block 10, a movable plate 7 can be prevented from shaking through the limit chute 14, the limit fixture block 10 can be prevented from shaking through a reset spring 13, thereby improving the reliability of the protector, the two space grooves 5 are arranged on the two inner sides of the mounting plate 1, the two space grooves 5 are respectively positioned at the two sides of the protector 3, the two space grooves 5 are symmetrical about the symmetrical axis of the mounting plate 1, the, the inclination of the movable plate 7 can be prevented through the limiting rod 6, the movable plate 7 is movably connected to the outer side of the limiting rod 6, a through hole is formed in the bottom of the movable plate 7, the inside of the through hole is fixedly connected with the middle of the extrusion rod 9, the middle of one side of the movable plate 7 is fixedly connected with the pull rod 8, one end of the pull rod 8 penetrates through the side wall of the mounting plate 1 and is movably connected with the mounting plate 1, the movable plate 7 can be driven to move through the pull rod 8, so that the limiting fixture block 10 can be driven to move, and the protector 3 can be conveniently fixed, the extrusion rod 9 is arranged at the bottom of the movable plate 7, one end of the extrusion rod 9 is movably connected with the inside of the sleeve 12, the limiting fixture block 10 is fixedly connected to one end of the extrusion rod 9, one end of the limiting fixture block 10 penetrates through the side wall of the spatial groove 5 and is movably, one side of stripper plate 11 and reset spring 13's one end swing joint, the inside fixedly connected with sleeve pipe 12 of space groove 5, the inside fixedly connected with reset spring 13 of sleeve pipe 12, draw-in groove 15 has been seted up to the inside of space groove 5, the inside of draw-in groove 15 and the bottom swing joint of fly leaf 7, through gag lever post 6, fly leaf 7, pull rod 8, extrusion stem 9, spacing fixture block 10, stripper plate 11, sleeve pipe 12 and reset spring 13's cooperation sets up, can make the dismouting of being convenient for of protector 3, thereby can reduce the time of searching for the instrument.
This practical theory of operation: when protector 3 needs to be installed, place protector 3 in the inside of standing groove 2, promote protector 3, extrude spacing fixture block 10 through protector 3, it removes to drive stripper bar 9 through spacing fixture block 10, thereby can drive stripper plate 11 extrusion reset spring 13 and make reset spring 13 produce elasticity, elasticity through reset spring 13 can reset spacing fixture block 10, thereby can be fixed protector 3, when protector 3 needs to be dismantled, pulling pull rod 8, drive spacing fixture block 10 through pull rod 8 and remove, and extrude reset spring 13, thereby can demolish protector 3.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (7)
1. The utility model provides a power intelligent protector convenient to installation, includes mounting panel (1), its characterized in that: a placing groove (2) is formed in the middle of the mounting plate (1), a protector (3) is movably connected inside the placing groove (2), and a handle (4) is movably connected in the middle of the top end of the protector (3);
space groove (5) have all been seted up to the inside both sides of mounting panel (1), inside fixedly connected with gag lever post (6) of space groove (5), the outside swing joint of gag lever post (6) has fly leaf (7), one side middle part fixedly connected with pull rod (8) of fly leaf (7), the bottom of fly leaf (7) is provided with stripper bar (9), the spacing fixture block of one end fixedly connected with (10) of stripper bar (9), other end fixedly connected with stripper plate (11) of stripper bar (9), the inside fixedly connected with sleeve pipe (12) of space groove (5), the inside fixedly connected with reset spring (13) of sleeve pipe (12).
2. A power supply intelligent protector convenient to install according to claim 1, wherein:
the middle parts of two sides of the protector (3) are provided with limiting sliding chutes (14);
the inside of the limiting sliding groove (14) is movably connected with the outer side of the limiting clamping block (10).
3. A power supply intelligent protector convenient to install according to claim 1, wherein:
one end of the pull rod (8) penetrates through the side wall of the mounting plate (1) and is movably connected with the mounting plate (1);
one end of the limiting clamping block (10) penetrates through the side wall of the spatial groove (5) and is movably connected with the spatial groove (5).
4. A power supply intelligent protector convenient to install according to claim 1, wherein:
two spatial grooves (5) are arranged, and the two spatial grooves (5) are respectively positioned on two sides of the protector (3);
the two spatial slots (5) are symmetrical about the axis of symmetry of the mounting plate (1).
5. A power supply intelligent protector convenient to install according to claim 1, wherein:
the bottom of the movable plate (7) is provided with a through hole, and the inside of the through hole is fixedly connected with the middle part of the extrusion rod (9);
one end of the extrusion rod (9) is movably connected with the interior of the sleeve (12).
6. A power supply intelligent protector convenient to install according to claim 1, wherein:
the outer side of the extrusion plate (11) is movably connected with the interior of the sleeve (12);
one side of the extrusion plate (11) is movably connected with one end of a return spring (13).
7. A power supply intelligent protector convenient to install according to claim 1, wherein:
a clamping groove (15) is formed in the space groove (5);
the inside of the clamping groove (15) is movably connected with the bottom end of the movable plate (7).
