Abstract
The utility model relates to a lawn lamp for low-level illumination, which is provided with a vertical column which is vertically arranged, wherein a rectangular cavity is horizontally arranged at the upper part of the vertical column, rectangular openings are symmetrically arranged at the positions of the rectangular cavity corresponding to the side wall of the vertical column, and a fixed lamp component is embedded in the rectangular openings; the lamp component comprises a lamp shell, an aluminum substrate, LED lamp beads, a lampshade and a stripe glass plate, wherein the lamp shell is of a shell structure with an opening at one end, a V-shaped structure is arranged in the lamp shell, the aluminum substrate is fixedly arranged at the upper part of the V-shaped structure, the LED lamp beads are fixedly arranged on the aluminum substrate, the lampshade covers the outer side of the aluminum substrate, and the stripe glass plate is fixed on the end face of the lamp shell in an embedded mode and is sealed and fixed. This a lawn lamp for low level illumination, simple structure, the loading and unloading of being convenient for have also increased anti-dazzling effect at the assurance lawn lamp lighting process, improve the result of use of whole lawn lamp, the extensive popularization and use of being convenient for.
Description
Technical Field
The utility model belongs to the technical field of the technique of lamps and lanterns and specifically relates to a lawn lamp for low level illumination.
Background
With the continuous development of society, lighting fixtures are widely used in various industries. In lighting fixtures, lawn lamps are an important component. Lawn lamps used in the current market are all fixed at a low position by adopting a simple bracket, so that the lawn lamps can give a bright effect to the lawn, but can bring dazzling feeling to pedestrians; seriously affecting people's appreciation of the landscape; moreover, the lawn lamp has short service life, generally needs regular maintenance and replacement by operators, and is inconvenient to assemble and disassemble.
Disclosure of Invention
The to-be-solved technical problem of the utility model is: in order to solve the problems existing in the background technology, the lawn lamp for low-position illumination is provided, the structure is simple, the assembly and disassembly are convenient, the anti-dazzling effect is also increased in the process of ensuring the illumination of the lawn lamp, the using effect of the whole lawn lamp is improved, and the lawn lamp is convenient to widely popularize and use.
The utility model provides a technical scheme that its technical problem adopted is: a lawn lamp for low-position illumination is provided with a vertical column, wherein a rectangular cavity is horizontally arranged at the upper part of the vertical column, rectangular openings are symmetrically arranged at the positions, corresponding to the side walls of the vertical column, of the rectangular cavity, and a lamp component is embedded and fixed in the rectangular openings; the lamp component comprises a lamp shell, an aluminum substrate, LED lamp beads, a lampshade and a stripe glass plate, wherein the lamp shell is of a shell structure with an opening at one end, a V-shaped structure is arranged in the lamp shell, the aluminum substrate is fixedly arranged at the upper part of the V-shaped structure, the LED lamp beads are fixedly arranged on the aluminum substrate, the lampshade covers the outer side of the aluminum substrate, and the stripe glass plate is fixed on the end face of the lamp shell in an embedded mode and is sealed and fixed.
Further, in the above technical solution, the V-shaped structure in the lamp housing forms an angle of 45 ° with the horizontal plane.
Further, in the above technical solution, a heat dissipation plate is further fixedly disposed on one side of the aluminum substrate on the upper portion of the V-shaped structure in the lamp housing, and the heat dissipation plate is fixedly disposed on the outer side wall of the lamp housing.
Further, in the above technical solution, a movable plate is further embedded in the rectangular opening and located at the back of the lamp assembly, and the movable plate is fixedly arranged on the upright post through a fixing screw.
Further, in the above technical solution, the upper end surface of the pillar is horizontally and fixedly disposed through a sealing plate.
The utility model has the advantages that: the utility model provides a lawn lamp for low level illumination, simple structure, the loading and unloading of being convenient for have also increased at the assurance lawn lamp lighting process and have prevented dazzling effect, improve the result of use of whole lawn lamp, the extensive popularization and use of being convenient for.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments described in the present application, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.
Fig. 1 is a schematic structural diagram of the present invention;

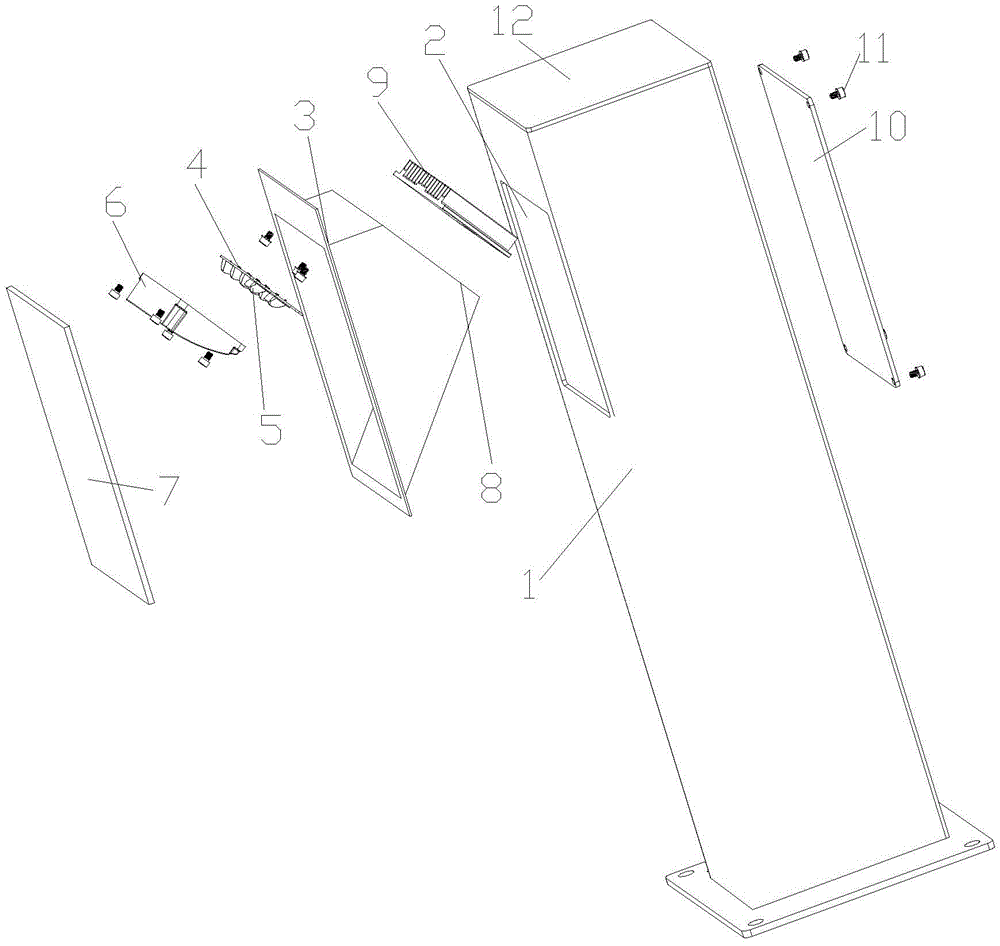

fig. 2 is a schematic diagram of the exploded structure of fig. 1.
The reference numbers in the drawings are: 1. the LED lamp comprises a stand column, 2, a rectangular opening, 3, a lamp shell, 4, an aluminum substrate, 5, LED lamp beads, 6, a lampshade, 7, a stripe glass plate, 8, a V-shaped structure, 9, a heat dissipation plate, 10, a movable plate, 11, a fixing screw, 12 and a sealing plate.
Detailed Description
In order to make the technical problem, technical solution and advantageous effects solved by the present invention more clearly understood, the following description is given in conjunction with the accompanying drawings and embodiments to further explain the present invention in detail. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
In this application, LED lamp pearl 5 is according to the direct matching installation use of purchasing back from the market of specific model.
Referring to fig. 1 and 2, a lawn lamp for low-level lighting is shown, which comprises a vertical column 1 arranged vertically, a rectangular cavity is horizontally arranged at the upper part of the vertical column 1, rectangular openings 2 are symmetrically arranged at the positions of the rectangular cavity, which correspond to the side walls of the vertical column 1, and a lamp component is embedded into the rectangular openings 2 and fixed; the lamp component comprises a lamp shell 3, an aluminum substrate 4, LED lamp beads 5, a lampshade 6 and a stripe glass plate 7, the lamp shell 3 is of a shell structure with one open end, a V-shaped structure 8 is arranged in the lamp shell 3, the aluminum substrate 4 is fixedly arranged on the upper portion of the V-shaped structure 8, the LED lamp beads 5 are fixedly arranged on the aluminum substrate 4, the lampshade 6 is covered on the outer side of the aluminum substrate 4, and the stripe glass plate 7 is fixed on the end face of the lamp shell 3 in an embedded mode and is sealed and fixed.
Wherein, V-shaped structure 8 in lamp body 3 is 45 degrees with the horizontal plane. The upper part of the V-shaped structure 8 in the lamp shell 3, which is positioned at one side of the aluminum substrate 4, is also fixedly provided with a heat dissipation plate 9, and the heat dissipation plate 9 is fixedly arranged on the outer side wall of the lamp shell 3. A movable plate 10 is embedded in the rectangular opening 2 and positioned at the back of the lamp assembly, and the movable plate 10 is fixedly arranged on the upright 1 through a fixing screw 11. The upper end face of the upright post 1 is horizontally and fixedly arranged through a closing plate 12.
The installation principle of the lawn lamp for low-position illumination is as follows:
firstly, the operating personnel need fix stand 1 through rag bolt, then carry out upper portion lamps and lanterns subassembly's fixed mounting: the lamp is characterized in that a heat dissipation plate 9 and an aluminum substrate 4 in a lamp shell 3 are fixedly installed, a lamp shade 6 is fixed by gluing, the whole lamp shell 3 is embedded into a rectangular opening 2, and the end face of the lamp shell 3 is fixed by gluing through a striped glass plate 7; the rectangular opening 2 is sealed and fixed by a closing plate 12 corresponding to the back of the lamp assembly.
The lawn lamp of low level illumination in this application has following advantage for traditional lawn lamp: the anti-dazzling effect can be improved through the design of the V-shaped structure, and the lawn illumination and the road illumination can be realized; can transversely break up the light that LED lamp pearl 5 distributed through stripe glass board 7, but do not change its longitudinal irradiation angle, tensile transverse angle, its effect of shining of improvement that can be fine avoids appearing shining the dazzling influence that brings directly, improves whole availability factor.
The above-mentioned, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. A lawn lamp for low-level lighting, comprising: the lamp comprises a vertical column, a rectangular cavity is horizontally arranged at the upper part of the vertical column, rectangular openings are symmetrically arranged at the positions, corresponding to the side walls of the vertical column, of the rectangular cavity, and a lamp component is embedded and fixed in the rectangular openings; the lamp component comprises a lamp shell, an aluminum substrate, LED lamp beads, a lampshade and a stripe glass plate, wherein the lamp shell is of a shell structure with an opening at one end, a V-shaped structure is arranged in the lamp shell, the aluminum substrate is fixedly arranged at the upper part of the V-shaped structure, the LED lamp beads are fixedly arranged on the aluminum substrate, the lampshade covers the outer side of the aluminum substrate, and the stripe glass plate is fixed on the end face of the lamp shell in an embedded mode and is sealed and fixed.
2. A lawn lamp as claimed in claim 1, wherein: the V-shaped structure in the lamp shell forms 45 degrees with the horizontal plane.
3. A lawn lamp as claimed in claim 1, wherein: and the upper part of the V-shaped structure in the lamp shell is positioned on one side of the aluminum substrate and is also fixedly provided with a heat dissipation plate, and the heat dissipation plate is fixedly arranged on the outer side wall of the lamp shell.
4. A lawn lamp as claimed in claim 1, wherein: the rectangular opening is also provided with a movable plate in an embedded manner at the back of the lamp component, and the movable plate is fixedly arranged on the upright post through a fixing screw.
5. A lawn lamp as claimed in claim 1, wherein: the upper end surface of the upright post is horizontally and fixedly arranged through a sealing plate.
