CN210471424U

CN210471424U - Medical storage rack

Info

Publication number: CN210471424U
Application number: CN201921193504.4U
Authority: CN
Inventors: 吴晓宇; 高琳; 王佐君; 徐佳佳
Original assignee: Taizhou Central Hospital Taizhou University Hospital
Current assignee: Taizhou Central Hospital Taizhou University Hospital
Priority date: 2019-07-26
Filing date: 2019-07-26
Publication date: 2020-05-08
Anticipated expiration: 2029-07-26

Abstract

The utility model discloses a medical supporter, concretely relates to medical instrument field, including placing the bottom plate, both sides are all fixed and are provided with first limiting plate around placing the bottom plate, the inside one side of keeping away from the handrail of placing the bottom plate is provided with the first groove of accomodating, first accomodating inslot slides and is provided with movable bottom plate, the inside one side of keeping away from the handrail of first limiting plate is provided with the second and accomodates the groove, the second is accomodate the groove and is linked together with the first groove of accomodating, the inside in groove is accomodate to the second slides and is provided with the third limiting plate. The utility model discloses when the medicine is more, take movable bottom plate and third limiting plate out, can increase the area of placing of supporter, improve the quantity of placing of supporter, when the medicine is less, can accomodate movable bottom plate and third limiting plate in accomodating the groove, can reduce the area of supporter, be provided with in the bottom of movable bottom plate in addition and remove the wheel, not only make things convenient for the removal of supporter, can strengthen the stability of supporter moreover.

Description

Medical storage rack

Technical Field

The utility model relates to the technical field of medical equipment, more specifically say, the utility model relates to a medical supporter.

Background

Medical instruments refer to instruments, devices, appliances, materials or other items used alone or in combination in the human body, and also include necessary software. The therapeutic effect on the body surface and the body is not obtained by means of pharmacology, immunology or metabolism, but the medical appliance product plays a certain auxiliary role. During use, the following intended purposes are intended to be achieved: prevention, diagnosis, treatment, monitoring and alleviation of diseases; diagnosis, treatment, monitoring, mitigation, compensation of injury or disability; research, substitution, regulation of anatomical or physiological processes; and (4) controlling pregnancy. The medical equipment is the most basic element of medical treatment, scientific research, teaching, institutions and clinical discipline work, namely professional medical equipment and household medical equipment. The basic condition of medical equipment for continuously improving the technical level of medical science is also an important mark of the degree of modernization, and the medical equipment becomes an important field of modern medical treatment.

The transport of medicine also is a crucial ring with placing in medical field, to the medicine that does not need special environment to preserve at present, generally directly places on putting the thing grillage to set up in the supporter bottom and remove the wheel, make things convenient for the transportation of medicine. The existing commodity shelf has single function, can not adjust the size according to the quantity of medicines, and can not effectively protect fragile medicines.

SUMMERY OF THE UTILITY MODEL

In order to overcome the above-mentioned defect of prior art, the embodiment of the utility model provides a medical supporter, through being provided with the first groove of accomodating, the groove is accomodate to the second, activity bottom plate and third limiting plate can be accomodate in the first groove of accomodating and the second is accomodate in, when the medicine is more, take activity bottom plate and third limiting plate out, can increase the area of placing of supporter, improve the quantity of placing of supporter, when the medicine is less, can accomodate activity bottom plate and third limiting plate in accomodating the groove, can reduce the area of supporter, and be provided with the removal wheel in the bottom of activity bottom plate, not only make things convenient for the removal of supporter, and can strengthen the stability of supporter.

In order to achieve the above object, the utility model provides a following technical scheme: a medical storage rack comprises a placing bottom plate and handrails, wherein the handrails are fixedly arranged at the bottom end of the placing bottom plate, first limiting plates are fixedly arranged on the front side and the rear side of the placing bottom plate, a first accommodating groove is formed in one side, far away from the handrails, in the placing bottom plate, a movable bottom plate is arranged in the first accommodating groove in a sliding mode, a second limiting plate is fixedly arranged on one side of the movable bottom plate, a second accommodating groove is formed in one side, far away from the handrails, in the first limiting plate, and communicated with the first accommodating groove, a third limiting plate is arranged in the second accommodating groove in a sliding mode, one end of the third limiting plate is fixedly connected with the second limiting plate and the movable bottom plate, first fixing holes are formed in the front end and the rear end of the placing bottom plate, a plurality of second fixing holes are uniformly arranged at intervals at the two ends of the movable bottom plate, and first moving wheels are fixedly arranged at the four corners of the, the utility model discloses a handrail, including movable bottom plate, mounting bracket, second removal wheel, slider, slide in the first spout and be provided with a plurality of guard plates, two are adjacent be provided with a plurality of regulating plates between the guard plate, the both ends of regulating plate all slide and set up in the second spout of guard plate lateral wall.

In a preferred embodiment, two handrails are arranged, a pushing handle is fixedly arranged between the two handrails, and a non-slip mat is arranged on the pushing handle.

In a preferred embodiment, the first fixing hole and the second fixing hole are identical in size and shape and are matched with fastening bolts.

In a preferred embodiment, the first moving wheel and the second moving wheel are each provided with a locking mechanism.

In a preferred embodiment, the height of the placing bottom plate from the ground is 10cm, and the placing bottom plate, the movable bottom plate, the first limiting plate, the second limiting plate and the third limiting plate are all made of wood materials.

In a preferred embodiment, the sliding blocks inside the first sliding chute and the second sliding chute are provided with threaded fixing holes.

In a preferred embodiment, the protection plate and the adjustment plate are both rubber plates, and the outer sides of the protection plate and the adjustment plate are both sleeved with flexible cotton pads.

In a preferred embodiment, the two sides of the outer end of the movable bottom plate are provided with scale marks.

The utility model discloses a technological effect and advantage:

1. the utility model discloses a be provided with first groove of accomodating, the groove is accomodate to the second, movable bottom plate and third limiting plate can be accomodate in first groove of accomodating and the groove is accomodate to the second, when the medicine is more, take movable bottom plate and third limiting plate out, can increase the area of placing of supporter, improve the quantity of placing of supporter, when the medicine is less, can accomodate movable bottom plate and third limiting plate in accomodating the groove, can reduce the area of supporter, and be provided with the removal wheel in movable bottom plate's bottom, not only make things convenient for the removal of supporter, and can strengthen the stability of supporter;

2. the utility model discloses a be provided with spout, guard plate and regulating plate, fragile medicine is placed between guard plate and regulating plate, and guard plate and regulating plate adopt rubber materials to make, and the outside cover is equipped with flexible cotton pad, can play the effect of protection to fragile medicine, and guard plate and regulating plate can be adjusted according to the size of medicine in addition, can fix the medicine, avoid the medicine to collide with the breakage.

Drawings

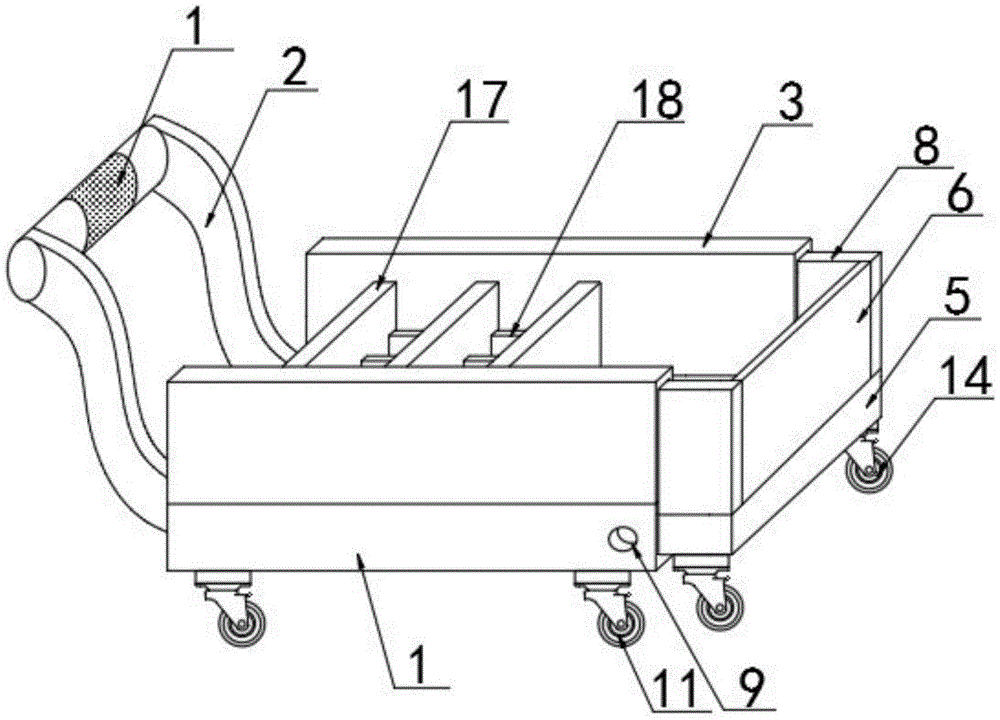

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is the structure schematic diagram of the movable bottom plate of the utility model after being disassembled.

Fig. 3 is a schematic top view of the present invention.

Fig. 4 is a schematic view of a mounting structure of the second movable wheel of the present invention.

Fig. 5 is a schematic side view of the protection plate of the present invention.

The reference signs are: the bottom plate is placed to 1, 2 handrail, 3 first limiting plate, 4 first accomodating grooves, 5 activity bottom plates, 6 second limiting plates, 7 second accomodating grooves, 8 third limiting plates, 9 first fixed orificess, 10 second fixed orificess, 11 first removal wheels, 12 mounting grooves, 13 mounting brackets, 14 second removal wheels, 15 threaded rods, 16 first spout, 17 guard plates, 18 regulating plates, 19 second spout, 20 pushing hands, 21 thread fixing holes, 22 scale marks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

According to the medical storage rack shown in fig. 1-4, the medical storage rack comprises a placing bottom plate 1 and handrails 2, the handrails 2 are fixedly arranged at the bottom end of the placing bottom plate 1, first limiting plates 3 are fixedly arranged at the front side and the rear side of the placing bottom plate 1, a first accommodating groove 4 is arranged at one side of the placing bottom plate 1, which is far away from the handrails 2, a movable bottom plate 5 is arranged in the first accommodating groove 4 in a sliding manner, a second limiting plate 6 is fixedly arranged at one side of the movable bottom plate 5, a second accommodating groove 7 is arranged at one side of the first limiting plate 3, which is far away from the handrails 2, the second accommodating groove 7 is communicated with the first accommodating groove 4, a third limiting plate 8 is arranged in the second accommodating groove 7 in a sliding manner, one end of the third limiting plate 8 is fixedly connected with the second limiting plate 6 and the movable bottom plate 5, first fixing holes 9 are arranged at the front end and, even a plurality of second fixed orifices 10 that is provided with in both ends interval of movable bottom plate 5, the equal fixed mounting in four edges in bottom of placing bottom plate 1 has first removal wheel 11, movable bottom plate 5 keeps away from bottom one side of handrail 2 and is provided with mounting groove 12, be provided with mounting bracket 13 in the mounting groove 12, the bottom fixed mounting of mounting bracket 13 has the second to remove wheel 14, the fixed threaded rod 15 that is provided with in top of mounting bracket 13, the top lateral wall setting that movable bottom plate 5 was passed on the top of threaded rod 15.

Further, the number of the handrails 2 is two, a pushing handle 20 is fixedly arranged between the two handrails 2, and an anti-skid pad is arranged on the pushing handle 20.

Further, the first fixing hole 9 and the second fixing hole 10 are identical in size and shape and are matched with fastening bolts.

Further, the first moving wheel 11 and the second moving wheel 14 are both provided with a locking mechanism.

Further, it is 10cm to place the height on bottom plate 1 apart from ground, it all adopts wooden material to make to form to place bottom plate 1, activity bottom plate 5, first limiting plate 3, second limiting plate 6 and third limiting plate 8.

Furthermore, both sides of the outer end of the movable bottom plate 5 are provided with scale marks 22.

The implementation mode is specifically as follows: the position of the movable bottom plate 5 is adjusted according to the amount of the medicines, when the adjustment is carried out, the movable bottom plate 5 is drawn, so that the movable bottom plate 5 drives the third limit plate 8 to slide in the first accommodating groove 4 and the second accommodating groove 7, after the position of the movable bottom plate 5 is adjusted, the first fixing hole 9 and the second fixing hole 10 are fixed by fastening bolts, so that the movable bottom plate 5 and the placing bottom plate 1 are fixed, then, by rotating the threaded rod 15, the threaded rod 15 drives the mounting frame 13 and the second moving wheel 14 to descend, so that the second moving wheel 14 contacts the ground, the pushing handle 20 pushes the shelf, thereby not only realizing the carrying of the medicine, but also realizing the placement of the medicine, and can be according to how much regulation supporter of medicine quantity's size, facilitate the use, through being provided with scale mark 22, conveniently adjust the size of movable bottom plate 5, make things convenient for the alignment of first fixed orifices 9 and second fixed orifices 10 moreover.

According to the medical supporter that fig. 3 and 5 show, the upper surface both ends of placing bottom plate 1 all are provided with first spout 16, slide through the slider in the first spout 16 and be provided with a plurality of guard plates 17, two adjacent be provided with a plurality of regulating plates 18 between the guard plate 17, the both ends of regulating plate 18 all slide and set up in the second spout 19 of guard plate 17 lateral wall.

Further, threaded fixing holes 21 are formed in the sliding blocks inside the first sliding chute 16 and the second sliding chute 19.

Further, guard plate 17 and regulating plate 18 are the rubber slab, just the guard plate 17 all overlaps with the regulating plate 18 outside and is equipped with flexible cotton pad.

The implementation mode is specifically as follows: when placing the medicine, if there is fragile medicine, place fragile medicine between guard plate 17 and regulating plate 18, guard plate 17 and regulating plate 18's position can be adjusted, adjusts the position of guard plate 17 and regulating plate 18 according to the size of placing the medicine for guard plate 17 and regulating plate 18 can carry out the centre gripping to fragile medicine and fix, avoid colliding with each other between the medicine or topple over in the handling, cause the damage of medicine.

The utility model discloses the theory of operation: during the use, according to the quantity of the medicine, adjust movable bottom plate 5's position back, it is fixed with first fixed orifices 9 and second fixed orifices 10 to utilize fastening bolt, if there is breakable medicine, place breakable medicine between guard plate 17 and regulating plate 18, guard plate 17 and regulating plate 18 can carry out the centre gripping to breakable medicine and fix, it topples over in or the handling each other to avoid between the medicine, cause the damage of medicine, promote the supporter through pushing hands 20, can enough realize the transport of medicine, also can realize placing of medicine, and can adjust the size of supporter according to how much of medicine quantity, and convenient to use.

The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;

secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;

and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a medical supporter, is including placing bottom plate (1) and handrail (2), handrail (2) are fixed to be set up in the bottom of placing bottom plate (1), its characterized in that: the front side and the rear side of the placing bottom plate (1) are both fixedly provided with first limiting plates (3), one side of the interior of the placing bottom plate (1) far away from the handrail (2) is provided with a first accommodating groove (4), the first accommodating groove (4) is internally provided with a movable bottom plate (5) in a sliding manner, one side of the movable bottom plate (5) is fixedly provided with a second limiting plate (6), one side of the interior of the first limiting plate (3) far away from the handrail (2) is provided with a second accommodating groove (7), the second accommodating groove (7) is communicated with the first accommodating groove (4), the interior of the second accommodating groove (7) is provided with a third limiting plate (8) in a sliding manner, one end of the third limiting plate (8) is fixedly connected with the second limiting plate (6) and the movable bottom plate (5), and the front end and the rear end of the placing bottom plate (1) are both provided with first fixing holes (9), the two ends of the movable bottom plate (5) are uniformly provided with a plurality of second fixing holes (10) at intervals, four corners of the bottom of the placing bottom plate (1) are fixedly provided with first moving wheels (11), one side of the bottom of the movable bottom plate (5), which is far away from the handrail (2), is provided with a mounting groove (12), a mounting frame (13) is arranged in the mounting groove (12), the bottom of the mounting frame (13) is fixedly provided with second moving wheels (14), the top of the mounting frame (13) is fixedly provided with a threaded rod (15), the top of the threaded rod (15) penetrates through the side wall of the top of the movable bottom plate (5), two ends of the upper surface of the placing bottom plate (1) are respectively provided with a first chute (16), a plurality of protection plates (17) are arranged in the first chute (16) in a sliding mode through a sliding block, and a plurality of adjusting plates (18) are arranged between, the two ends of the adjusting plate (18) are arranged in second sliding grooves (19) in the side walls of the protection plates (17) in a sliding mode.

2. The medical storage rack according to claim 1, wherein: the novel handrail is characterized in that two handrails (2) are arranged, a pushing handle (20) is fixedly arranged between the two handrails (2), and an anti-skid pad is arranged on the pushing handle (20).

3. The medical storage rack according to claim 1, wherein: the first fixing hole (9) and the second fixing hole (10) are identical in size and shape and are matched with fastening bolts.

4. The medical storage rack according to claim 1, wherein: and the first moving wheel (11) and the second moving wheel (14) are both provided with locking mechanisms.

5. The medical storage rack according to claim 1, wherein: the height of the placing bottom plate (1) from the ground is 10cm, and the placing bottom plate (1), the movable bottom plate (5), the first limiting plate (3), the second limiting plate (6) and the third limiting plate (8) are all made of wood materials.

6. The medical storage rack according to claim 1, wherein: and threaded fixing holes (21) are formed in the sliding blocks in the first sliding groove (16) and the second sliding groove (19).

7. The medical storage rack according to claim 1, wherein: protection plate (17) and regulating plate (18) are the rubber slab, just protection plate (17) and regulating plate (18) outside all is equipped with flexible cotton pad.

8. The medical storage rack according to claim 1, wherein: and scale marks (22) are arranged on two sides of the outer end of the movable bottom plate (5).
