Abstract

The utility model discloses an ophthalmology postoperative eye-shade relates to ophthalmology auxiliary assembly technical field. This ophthalmology postoperative eye-shade, including eye cover shell, eye cover shell is provided with two altogether, and is fixed with hollow tube and slide bar between the relative surface of two eye cover shells respectively, and one side surface of two eye cover shells is provided with public magic subsides and female magic subsides respectively. This ophthalmology postoperative eye-shade, through pasting the dressing on arc cushion, with the eye-shade clamshell in patient's eyes, paste the adhesion of pasting with female magic through public magic, can be better fixed to the eye-shade, elasticity through light spring, it is attached on patient's eyes to be convenient for drive the dressing on the arc cushion, through the elastic sealing pad, make attached edge all around of patient's eyes that the elastic sealing pad can be inseparable, prevent that some bacteriums such as sand blown by the wind from entering into patient's eyes department, thereby can be better protect patient's eyes, be convenient for patient's postoperative resumes.

Description

Ophthalmology postoperative eye-shade

Technical Field

The utility model relates to an ophthalmology auxiliary assembly technical field specifically is an ophthalmology postoperative eye-shade.

Background

Eyes are windows of people in the cognitive world, many ophthalmic diseases need to be treated through operations along with the improvement of medical level, particularly, ophthalmic microsurgery such as cataract, glaucoma, excimer laser and the like, the operation is very important for nursing the eyes after the operations, but in the prior art, the traditional eyeshade internally provided with gauze absorbent cotton is clung to the surface of the eyes, the eyeshade and the absorbent cotton need to be removed for changing the medicine and checking the eyes, which is inconvenient and increases the risk of eye infection of patients, particularly, for the younger people who have a small age after the ophthalmic microsurgery and are unconscious and ill in coordination, the postoperative conscious or unconscious eye rubbing is prevented, the operation eyes are injured, the operation effect is influenced, meanwhile, in the prior protective eyeshade after the ophthalmic operation, in the use, because the distance between two eyes of each patient is different, the distance between two eyeshades is required to be adjusted, when the prior protective eyeshade is used, the distance between the two eyeshade shells is not easy to adjust, and the usability of the protective eyeshade after the ophthalmologic operation can be greatly reduced.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides an ophthalmology postoperative protective eye cover uses the back, is convenient for adjust the distance between two eyeshade shells, increases the usability, adopts protector simultaneously, can be better protect patient's eyes.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an ophthalmology postoperative eyeshade, includes the eye cover shell, the eye cover shell is provided with two altogether, and is fixed with hollow tube and slide bar, two between the relative surface of two eye cover shells one side surface of eye cover shell is provided with public magic subsides respectively and female magic subsides, a plurality of block grooves have been seted up along the impartial distance of horizontal direction to the table wall in the upper and lower both sides of hollow tube, the upper and lower both sides surface of slide bar is close to one end edge and has all seted up the notch.

Preferably, an elastic plate is welded on the inner surface wall of one side of the notch close to the edge of the top.

Preferably, the edge of the top of the elastic plate, which is close to one end, is welded with a clamping block, and the outer surface of the clamping block is connected with the inner surface wall of the clamping groove in a clamping manner.

Preferably, a lightweight spring is fixed to the inner face wall of one of the eye-mask shells adjacent to each of the four corners.

Preferably, the light springs are provided with four light springs, an arc cushion pad is fixed at one end of each light spring, the outer surfaces of the four light springs are sleeved with rubber tubes, one ends of the rubber tubes are adhered to the outer surfaces of the arc cushion pads, and the other ends of the rubber tubes are adhered to the inner surface wall of the eye mask shell.

Preferably, the elastic sealing gaskets are adhered to the rear surfaces of the two eye-shade shells near the peripheral edges.

The utility model discloses possess following beneficial effect:

(1) this ophthalmology postoperative eye-shade, through pasting on the arc cushion with the dressing, with the eye-shade shell cover on patient's eyes, paste the adhesion of pasting with female magic through public magic, can be better fixed to the eye-shade shell, elasticity through light spring, be convenient for drive dressing on the arc cushion and attached on patient's eyes, simultaneously when changing the dressing, only need take off can change, through elastic sealing pad, make attached edge all around in patient's eyes that elastic sealing pad can be inseparable, thereby can be better seal up eyes, prevent that some bacteriums such as sand blown by wind from entering into patient's eyes department, thereby can be better protect patient's eyes, be convenient for patient's postoperative resumes.

(2) This ophthalmology postoperative eye-shade through pulling two eye-shade shells for the slide bar slides in the inside of hollow tube, when adjusting suitable position, is connected through the block in block piece and block groove, thereby can be better fix the distance between two eye-shade shells, and the patient of being convenient for uses, improves the usability of eye-shade.

Drawings

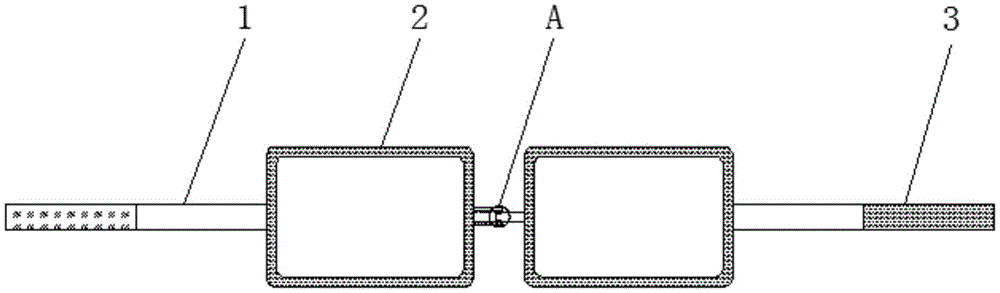

Fig. 1 is a front view of the present invention;

FIG. 2 is a top cross-sectional view of the eyeshade shell of the present invention;

fig. 3 is a rear surface sectional view of the eyeshade shell of the present invention;

fig. 4 is an enlarged view of a portion of a section in fig. 1 according to the present invention.

In the figure: 1. male magic tape; 2. an eye shield shell; 3. female magic tape; 4. a rubber tube; 5. a light spring; 6. an arc-shaped buffer pad; 7. an elastic sealing gasket; 8. a recess; 9. a clamping groove; 10. a hollow tube; 11. a clamping block; 12. an elastic plate; 13. a slide bar.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

The embodiment provides an eye post-operation protective eye shield, please refer to fig. 1-4, which comprises two eye shield cases 2, wherein two eye shield cases 2 are arranged, a hollow tube 10 and a sliding rod 13 are respectively fixed between the opposite outer surfaces of the two eye shield cases 2, the sliding rod 13 slides in the hollow tube 10 to facilitate the adjustment of the distance between the two eye shield cases 2, which facilitates the use of patients, a male magic tape 1 and a female magic tape 3 are respectively arranged on the outer surface of one side of the two eye shield cases 2, the two eye shield cases 2 are conveniently fixed by the mutual adhesion of the male magic tape 1 and the female magic tape 3, a plurality of clamping grooves 9 are arranged on the inner surface walls of the upper side and the lower side of the hollow tube 10 along the horizontal direction at equal intervals, the clamping grooves 9 are connected with the clamping blocks 11 in a clamping manner, thereby the adjusted distance between the two eye shield cases 2 can be better fixed and convenient to use, the outer surfaces of the upper side and the lower side of the sliding rod 13 are provided with notches 8 close to one end edge, the notches 8 are convenient for fixing the position of the elastic plate 12, the eye housing 2 is covered on the eyes of a patient by attaching dressing on the arc-shaped buffer cushion 6, the eye housing 2 can be better fixed by the adhesion of the male magic tape 1 and the female magic tape 3, the dressing on the arc-shaped buffer cushion 6 can be conveniently driven to be attached on the eyes of the patient by the elasticity of the light spring 5, meanwhile, the dressing can be replaced by only being taken off when being replaced, the elastic sealing gasket 7 can be closely attached at the peripheral edges of the eyes of the patient by the elastic sealing gasket 7, thereby better sealing the eyes, preventing bacteria such as wind and sand from entering the eyes of the patient, better protecting the eyes of the patient and facilitating the postoperative recovery of the patient, through pulling two eye-shade shells 2 for slide bar 13 slides in the inside of hollow tube 10, when adjusting suitable position, is connected through the block of block 11 and the block of block groove 9, thereby can be better fix the distance between two eye-shade shells 2, the patient of being convenient for uses, improves the usability of eye-shade.

An elastic plate 12 is welded on the edge of the inner surface wall of one side of the notch 8, when the sliding rod 13 is pulled, the clamping block 11 is extruded in the clamping groove 9 in a sliding manner, so that the elastic plate 12 is deformed, the clamping block 11 is convenient to separate from the clamping groove 9, the distance between the two eye shield shells 2 is convenient to adjust, the clamping block 11 is welded on the edge of the top of the elastic plate 12, which is close to one end, the outer surface of the clamping block 11 is connected with the inner surface wall of the clamping groove 9 in a clamping manner, the light springs 5 are fixed on the inner surface wall of one eye shield shell 2 close to four corners, the dressing on the arc cushion 6 can be tightly attached to the eyes of a patient through the elasticity of the light springs 5, only one eye shield shell 2 is arranged, the eye shield shell is suitable for the single-eye patient, the other eye shield shell 2 is not arranged, and the periphery of the patient, light spring 5 is provided with four altogether, and the one end of four light springs 5 is fixed with arc blotter 6, place the dressing on the arc blotter 6, when changing the dressing, only need take off, can change the dressing, convenient to use, four light springs 5's surface all overlaps and is equipped with rubber tube 4, and rubber tube 4's one end and arc blotter 6's surface adhesion, and rubber tube 4's the other end and the interior table wall adhesion of eye-shade shell 2, rubber tube 4 can be better protect light spring 5, the rear surface of two eye-shade shells 2 is close to all adhesion elastic sealing pad 7 of edge all around, elastic sealing pad 7 can be inseparable attached department all around patient's eyes, can be better carry out sealed processing, prevent that some sand blown by wind and bacterium from entering into patient's eyes and handle, the patient of being convenient for resumes.

When in use, the dressing is placed on the arc-shaped cushion pad 6, the eye mask shell 2 is covered on the eyes of a patient, the male magic tape 1 and the female magic tape 3 are adhered to each other, so that the eye mask shell 2 can be better fixed on the eyes of the patient, the dressing on the arc-shaped cushion pad 6 can be better attached on the eyes of the patient through the elasticity of the light spring 5, the use is convenient, the dressing can be closely attached around the eyes of the patient through the elastic sealing gasket 7, the sealing treatment can be better carried out, some sand and bacteria are prevented from entering the eyes of the patient to be treated, the patient can conveniently recover, when the distance between the two eye mask shells 2 is adjusted, the two eye mask shells 2 are pulled, the sliding rod 13 slides in the hollow tube 10, when the proper position is adjusted, the clamping block 11 and the clamping groove 9 are clamped and connected, so that the adjusted distance between the two eye mask shells 2 can be better fixed, is convenient for use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. An ophthalmology postoperative eye guard, includes eye housing (2), its characterized in that: eye-shade shell (2) are provided with two altogether, and are fixed with hollow tube (10) and slide bar (13) respectively between the relative surface of two eye-shade shells (2), two one side surface of eye-shade shell (2) is provided with public magic subsides (1) and female magic subsides (3) respectively, a plurality of block groove (9) have been seted up along the equal equidistance of horizontal direction to the interior table wall of upper and lower both sides of hollow tube (10), notch (8) have all been seted up near one end edge to the upper and lower both sides surface of slide bar (13).

2. The ophthalmic postoperative protective eyewear of claim 1, wherein: an elastic plate (12) is welded on the edge, close to the top, of the inner surface wall of one side of the notch (8).

3. The ophthalmic postoperative protective eyewear of claim 2, wherein: the edge of the top of the elastic plate (12), which is close to one end, is welded with a clamping block (11), and the outer surface of the clamping block (11) is clamped and connected with the inner surface wall of the clamping groove (9).

4. The ophthalmic postoperative protective eyewear of claim 1, wherein: and light springs (5) are fixed on the inner surface wall of one eye shield shell (2) close to four corners.

5. The ophthalmic postoperative protective eyewear of claim 4, wherein: the utility model discloses a light spring eye-protecting mask, including light spring (5), light spring (5) are provided with four altogether, and the one end of four light spring (5) is fixed with arc blotter (6), four the surface of light spring (5) all overlaps and is equipped with rubber tube (4), and the surface adhesion of the one end of rubber tube (4) and arc blotter (6) to the other end of rubber tube (4) and the interior table wall adhesion of eye housing (2).

6. The ophthalmic postoperative protective eyewear of claim 1, wherein: elastic sealing gaskets (7) are adhered to the rear surfaces of the two eye shield shells (2) close to the peripheral edges.
