Abstract
一种新型多腔密封铝塑铝门窗，它涉及门窗领域。它包含铝塑铝窗扇、铝塑铝窗框、铝塑铝窗梃、中空玻璃、铝塑铝窗玻璃压线、框梃隔热塑钢型材、扇隔热塑钢型材和复合等压胶条，所述铝塑铝窗梃的一侧安装有铝塑铝窗扇，另一侧安装有铝塑铝窗框，铝塑铝窗框分别与铝塑铝窗扇及铝塑铝窗框之间均安装有中空玻璃，铝塑铝窗扇、铝塑铝窗框与铝塑铝窗梃分别与中空玻璃之间设置有铝塑铝窗玻璃压线，铝塑铝窗扇与铝塑铝窗梃的内侧均设置有框梃隔热塑钢型材及扇隔热塑钢型材。本实用新型有益效果为：结构设计简单优化，密封隔热性能更加优化，颜色可选性广，隔音性能及气密性好，具有良好的整窗强度及抗风压性能好。
A novel multi-cavity sealed aluminum-plastic-aluminum door and window relates to the field of doors and windows. It includes aluminum-plastic-aluminum window sash, aluminum-plastic-aluminum window frame, aluminum-plastic-aluminum window stile, insulating glass, aluminum-plastic-aluminum window glass crimping line, frame stile heat-insulating plastic-steel profiles, fan heat-insulating plastic-steel profiles and composite isobars. The aluminum-plastic-aluminum window stile is installed with an aluminum-plastic-aluminum window sash on one side, and an aluminum-plastic-aluminum window frame is installed on the other side. Glass, aluminum-plastic-aluminum window sash, aluminum-plastic-aluminum window frame and aluminum-plastic-aluminum window stile are respectively provided with aluminum-plastic-aluminum window glass pressure lines between the insulating glass, and the inner side of the aluminum-plastic-aluminum window sash and the aluminum-plastic-aluminum window stile are provided with frames. Stile thermal insulation plastic-steel profiles and fan thermal-insulation plastic-steel profiles. The beneficial effects of the utility model are as follows: the structure design is simple and optimized, the sealing and thermal insulation performance is more optimized, the color selection is wide, the sound insulation performance and air tightness are good, and the whole window strength and wind pressure resistance performance are good.
Description
Technical Field
The utility model relates to a door and window field, concretely relates to novel sealed plastic-aluminum aluminium door and window of multicavity.
Background
The door and window is divided into an enclosure member or a partition member according to different positions, has different design requirements and has the functions of heat preservation, heat insulation, sound insulation, water resistance, fire prevention and the like, and the new requirement is energy saving, wherein the heat lost by the gap between the door and the window in a cold area accounts for about 25 percent of the total heating heat consumption; the requirement of the tightness of the door and window is an important content in the energy-saving design. The door and window section bar in the current market mainly takes a hollow cavity section bar as a main part, and the sealing property is realized. The heat preservation and sound insulation airtightness can not meet the requirements of users in severe cold regions.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's defect and not enough, provide a novel sealed aluminium-plastic-aluminium door and window of multicavity, this structural design simply optimizes, and the sealing and heat-proof quality optimizes more, and colour selectability is wide, and sound insulation performance and gas tightness are good, and it is good to have good whole window intensity and anti-wind pressure performance.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the window comprises an aluminum-plastic aluminum window sash 1, an aluminum-plastic aluminum window frame 2, an aluminum-plastic aluminum window stile 3, hollow glass 4, an aluminum-plastic aluminum window glass pressing line 5, a frame stile heat insulation plastic steel section bar 6, a sash heat insulation plastic steel section bar 7, a composite isobaric adhesive tape 8 and a hinge 10, wherein one side of the aluminum-plastic aluminum window stile 3 is provided with the aluminum-plastic aluminum window sash 1, the other side is provided with the aluminum-plastic aluminum window frame 2, the hollow glass 4 is respectively arranged between the aluminum-plastic aluminum window sash 2 and the aluminum-plastic aluminum window sash 1 as well as between the aluminum-plastic aluminum window frame 2 as well as between the aluminum-plastic aluminum window sash 1 and the aluminum-plastic aluminum window stile 3 as well as between the aluminum-plastic aluminum window sash 2 and the hollow glass 4, the frame stile heat insulation plastic steel section bar 6 and the sash heat insulation plastic steel section bar 7 are respectively arranged at the inner sides of the aluminum-plastic aluminum window sash 1 and the aluminum-plastic, the composite isobaric rubber strip 8 is completely attached to the frame stile heat insulation plastic steel section 6 and the sash heat insulation plastic steel section 7, a hinge 10 is further arranged inside the aluminum-plastic aluminum window sash 1, and the frame stile heat insulation plastic steel section 6 and the sash heat insulation plastic steel section 7 are both multi-cavity plastic steel sections.
The section structure of the frame stile heat insulation plastic steel section 6 is a PVC six-cavity structure.
And a sealing rubber strip 9 is arranged at the joint of the hollow glass 4 and the aluminum-plastic aluminum-window glass pressing line 5, and the sealing rubber strip 9 is a composite ethylene-propylene-diene monomer rubber strip.
The composite isobaric adhesive tape 8 is a three-cavity composite adhesive tape.
The sealing rubber strip 9 is a hollow cavity composite rubber strip.
The sections in the aluminum plastic aluminum window sash 1 are connected through corner connectors and four corner punch rivets.
The sections in the aluminum-plastic aluminum window frame 2 are connected through corner connectors and four corner punch rivets.
The aluminum-plastic aluminum window stile 3 is characterized in that the internal sections are connected through double-screw fixed angle pieces.
The section bar inside the aluminum-plastic aluminum window frame 2 is connected with the section bar inside the aluminum-plastic aluminum window stile 3 through a double-screw fixed angle piece.
The hollow glass 4 is three layers of hollow glass.
The utility model discloses a theory of operation: the aluminum-plastic aluminum door and window adopts a cross-section structure of composite profiles, the visible surfaces of the composite profiles are aluminum-plastic aluminum window sashes, aluminum-plastic aluminum window frames and aluminum-plastic aluminum window stiles, the aluminum-plastic profiles are all adopted, the heat insulation plastic steel profiles of the stiles and the heat insulation plastic steel profiles of the sash on the invisible surfaces adopt multi-cavity plastic steel profiles, the multi-cavity structure is relative to the hollow cavity structure, the temperature and the sound inside the cavity are not easy to dissipate, the excellent heat insulation performance is achieved, meanwhile, the composite isobaric adhesive tape is a three-cavity composite adhesive tape, the unique three-sealing design enables the composite isobaric adhesive tape to be completely attached to the heat insulation plastic steel profiles of the stiles and the heat insulation plastic steel profiles of the sash, the original point contact is optimized to be the whole-surface contact, the water-air separation effect is achieved.
After the technical scheme is adopted, the utility model discloses beneficial effect does: the structural design is simple to optimize, and the sealing and heat-insulating property is optimized more, and colour selectivity is wide, and sound insulation performance and gas tightness are good, and it is good to have good whole window intensity and anti-wind pressure performance.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.
Fig. 1 is a schematic structural diagram of the present invention;

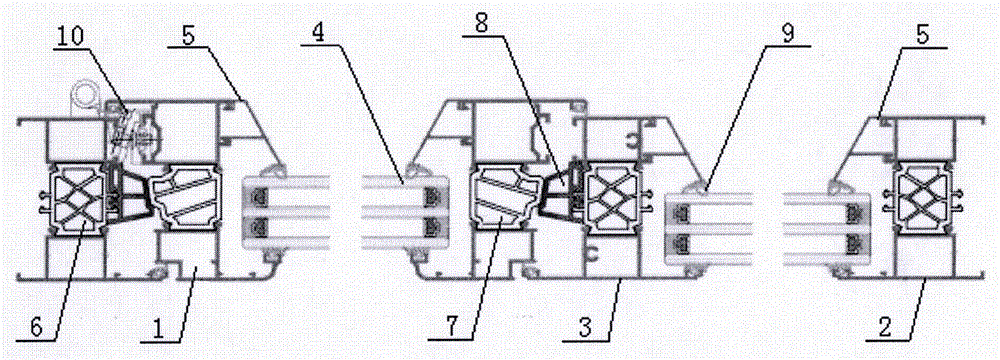

fig. 2 is a cross-sectional view corresponding to fig. 1.
Description of reference numerals: the window frame comprises an aluminum-plastic aluminum window sash 1, an aluminum-plastic aluminum window frame 2, an aluminum-plastic aluminum window stile 3, hollow glass 4, an aluminum-plastic aluminum window glass pressing line 5, a frame stile heat insulation plastic steel section 6, a sash heat insulation plastic steel section 7, a composite isobaric adhesive tape 8, a hinge 10 and a sealing adhesive tape 9.
Detailed Description
Referring to fig. 1 to 2, the technical solution adopted by the present embodiment is: the window comprises an aluminum-plastic aluminum window sash 1, an aluminum-plastic aluminum window frame 2, an aluminum-plastic aluminum window stile 3, hollow glass 4, an aluminum-plastic aluminum window glass pressing line 5, a frame stile heat insulation plastic steel section 6, a sash heat insulation plastic steel section 7, a composite isobaric adhesive tape 8 and a hinge 10, wherein one side of the aluminum-plastic aluminum window stile 3 is provided with the aluminum-plastic aluminum window sash 1, the other side is provided with the aluminum-plastic aluminum window frame 2, the aluminum-plastic aluminum window sash 1, the aluminum-plastic aluminum window frame 2 and the aluminum-plastic aluminum window stile 3 are all visible surfaces, aluminum alloy is adopted, the color selectivity is wide, the surface treatment forms are various, the requirements of matching of various colorful doors and windows of different buildings and outer walls are met, the window is suitable for high-grade residential doors and windows, the aluminum-plastic aluminum window sash 1 is an inward opening and inward falling type window sash, the hollow glass 4 is respectively arranged between the aluminum-plastic aluminum window sash 2 and the aluminum-plastic aluminum window sash 1 and the aluminum-plastic aluminum window frame 2, the aluminum-plastic aluminum, the aluminum-plastic aluminum window sash 1 and the aluminum-plastic aluminum window stile 3 are both provided with a frame stile heat insulation plastic steel section bar 6 and a sash heat insulation plastic steel section bar 7 at the inner sides, the aluminum-plastic aluminum window sash 2 is also provided with the frame stile heat insulation plastic steel section bar 6 at the inner sides, a composite isobaric adhesive tape 8 is embedded between the frame stile heat insulation plastic steel section bar 6 and the sash heat insulation plastic steel section bar 7, the composite isobaric adhesive tape 8 is completely attached to the frame stile heat insulation plastic steel section bar 6 and the sash heat insulation plastic steel section bar 7, the whole surface contact is optimized by the original point contact, a hinge 10 is further arranged inside the aluminum-plastic aluminum window sash 1, the frame stile heat insulation plastic steel section bar 6 and the sash heat insulation plastic steel section bar 7 are both multi-cavity plastic steel section bars, and the aluminum-plastic.
The section structure of the frame stile heat insulation plastic steel section 6 is a PVC six-cavity structure, a unique scientific formula system is adopted, the heat conductivity coefficient is low, the heat insulation effect is good, the defect of large heat loss of an aluminum door window or a bridge-cut aluminum door window in a severe cold area is overcome, the condensation phenomenon on the door window is reduced, and the heat insulation and energy saving effects of the door window are improved.
The joint of the hollow glass 4 and the aluminum-plastic aluminum window glass pressing line 5 is provided with a sealing rubber strip 9, and the sealing rubber strip 9 is a composite ethylene propylene diene monomer rubber strip and has the characteristics of ozone resistance, heat resistance, weather resistance and excellent aging resistance.
The composite isobaric adhesive tape 8 is a three-cavity composite adhesive tape.
The sealing rubber strip 9 is a hollow cavity composite rubber strip.
The sections in the aluminum plastic aluminum window sash 1 are connected through corner connectors and four corner punch rivets.
The sections in the aluminum-plastic aluminum window frame 2 are connected through corner connectors and four corner punch rivets.
The aluminum-plastic aluminum window stile 3 is characterized in that the internal sections are connected through double-screw fixed angle pieces.
The section bar of 2 inside aluminium-plastic aluminium window frames and the section bar of 3 inside aluminium-plastic aluminium window stile pass through two screw fixation angle pieces and connect, have increaseed whole window intensity to connect 2 whole injecting glue in bight and handle, the anti-wind is pressed and sealing performance is better.
The hollow glass 4 is three-layer hollow glass, and the three-layer hollow glass obviously improves the sound insulation effect of the door and window and improves the indoor living comfort level.
The utility model discloses a theory of operation: the aluminum-plastic aluminum door and window adopts a cross-section structure of composite profiles, the visible surfaces of the composite profiles are aluminum-plastic aluminum window sashes, aluminum-plastic aluminum window frames and aluminum-plastic aluminum window stiles, the aluminum-plastic profiles are all adopted, the heat insulation plastic steel profiles of the stiles and the heat insulation plastic steel profiles of the sash on the invisible surfaces adopt multi-cavity plastic steel profiles, the multi-cavity structure is relative to the hollow cavity structure, the temperature and the sound inside the cavity are not easy to dissipate, the excellent heat insulation performance is achieved, meanwhile, the composite isobaric adhesive tape is a three-cavity composite adhesive tape, the unique three-sealing design enables the composite isobaric adhesive tape to be completely attached to the heat insulation plastic steel profiles of the stiles and the heat insulation plastic steel profiles of the sash, the original point contact is optimized to be the whole-surface contact, the water-air separation effect is achieved.
After the technical scheme is adopted, the utility model discloses beneficial effect does: the structural design is simple to optimize, and the sealing and heat-insulating property is optimized more, and colour selectivity is wide, and sound insulation performance and gas tightness are good, and it is good to have good whole window intensity and anti-wind pressure performance.
The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention as long as they do not depart from the spirit and scope of the technical solutions of the present invention.
Claims (10)
1. The utility model provides a novel sealed plastic-aluminum aluminium door and window of multicavity which characterized in that: the window comprises an aluminum-plastic aluminum window sash (1), an aluminum-plastic aluminum window frame (2), an aluminum-plastic aluminum window stile (3), hollow glass (4), aluminum-plastic aluminum window glass press lines (5), a frame stile heat insulation plastic steel section bar (6), a sash heat insulation plastic steel section bar (7), a composite isobaric adhesive tape (8) and a hinge (10), wherein one side of the aluminum-plastic aluminum window stile (3) is provided with the aluminum-plastic aluminum window sash (1), the other side is provided with the aluminum-plastic aluminum window frame (2), the hollow glass (4) is respectively arranged between the aluminum-plastic aluminum window sash (2) and the aluminum-plastic aluminum window sash (1) and between the aluminum-plastic aluminum window frame (2) and the hollow glass (4) respectively, the aluminum-plastic aluminum window press lines (5) are arranged between the aluminum-plastic aluminum window sash (1) and the aluminum-plastic aluminum window stile (3) and the hollow glass (4), the frame stile heat insulation plastic steel section bar (6) and the sash heat insulation plastic steel section bar (, the inboard of aluminium-plastic aluminium window frame (2) also is provided with thermal-insulated plastic steel section bar of frame club (6), and it has compound isobaric adhesive tape (8) to embed between thermal-insulated plastic steel section bar of frame club (6) and the thermal-insulated plastic steel section bar of fan (7), and compound isobaric adhesive tape (8) are laminated completely and are connected in thermal-insulated plastic steel section bar of frame club (6) and thermal-insulated plastic steel section bar of fan (7), and the inside of aluminium-plastic aluminium casement (1) still is provided with hinge (10), thermal-insulated plastic steel section bar of frame club (6) and thermal-insulated plastic steel section bar of fan (7) be multic.
2. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the section structure of the frame stile heat insulation plastic steel section bar (6) is a PVC six-cavity structure.
3. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: and a sealing rubber strip (9) is arranged at the joint of the hollow glass (4) and the aluminum-plastic aluminum window glass pressing line (5), and the sealing rubber strip (9) is a composite ethylene propylene diene monomer rubber strip.
4. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the composite isobaric rubber strip (8) is a three-cavity composite rubber strip.
5. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 3, wherein: the sealing rubber strip (9) is a hollow cavity composite rubber strip.
6. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the inner sections of the aluminum-plastic aluminum window sash (1) are connected through corner connectors and four corner punch rivets.
7. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the inner sections of the aluminum-plastic aluminum window frame (2) are connected through corner connectors and four corner punch rivets.
8. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the inner section bars of the aluminum-plastic aluminum window stile (3) are connected through double-screw fixed angle-adding pieces.
9. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the section bar in the aluminum-plastic aluminum window frame (2) is connected with the section bar in the aluminum-plastic aluminum window stile (3) through double-screw fixed angle pieces.
10. A novel multi-cavity sealed aluminum-plastic-aluminum door window according to claim 1, wherein: the hollow glass (4) is three layers of hollow glass.
