CN210373039U - Ultrathin high-brightness electrodeless dimming color-mixing panel lamp

Info

Publication number: CN210373039U
Application number: CN201921315120.5U
Authority: CN
Inventors: 鲁小东; 朱炼垠; 方铮; 李桂明; 叶飞; 周坚风; 陈东东
Original assignee: Hangzhou Yimei Optoelectronics Technology Co ltd
Current assignee: Hangzhou Yimei Optoelectronics Technology Co ltd
Priority date: 2019-08-14
Filing date: 2019-08-14
Publication date: 2020-04-21
Anticipated expiration: 2029-08-14

Abstract

The utility model discloses an ultra-thin bright electrodeless mixing of colors panel light of adjusting luminance, including lamp body and installation piece, the back of lamp body and the positive swing joint of installation piece, the utility model relates to a mixing of colors panel light technical field adjusts luminance. This ultra-thin high bright electrodeless mixing of colors panel light of adjusting luminance, through lamp body inner wall middle part fixedly connected with fixed plate, the top and the equal fixedly connected with connecting block in bottom of the fixed plate back both sides, the back of connecting block and the positive swing joint of installation piece, and the back of installation piece passes through connecting bolt fixed connection with the inside of wall, the positive swing joint of lamp body inner wall has the lamp shade, such device structural design can let installer convenient adjust the luminance mixing of colors panel light and carry out fixed mounting on the wall, in addition, when adjusting luminance mixing of colors panel light inside lamp strip breaks down, can be very convenient dismantle the lamp shade, make things convenient for the staff to maintain the mixing of colors panel light of adjusting luminance, the practical function is better.

Description

Ultrathin high-brightness electrodeless dimming color-mixing panel lamp

Technical Field

The utility model relates to a mixing of colors panel light technical field of adjusting luminance specifically is an ultra-thin bright electrodeless mixing of colors panel light of adjusting luminance.

Background

The LED panel light is a high-grade indoor lighting lamp, the outer frame of the LED panel light is formed by aluminum alloy through anodic oxidation, the light source is LED, the whole lamp is attractive and simple in design and luxurious in atmosphere, the good lighting effect is achieved, the beautiful feeling can be brought to people, the LED panel light is unique in design, an even plane light-emitting effect is formed after the light passes through a light guide plate with high light transmittance, the illumination uniformity is good, light is soft and comfortable, the eye fatigue can be effectively relieved, the LED panel light can also prevent radiation, and the skin of pregnant women, the old and children cannot be stimulated.

The appearance of the high-brightness electrodeless dimming color-mixing panel lamp used in the current market is thicker, the high-brightness electrodeless dimming color-mixing panel lamp is only suitable for being used at the top of an office, some offices can install the high-brightness electrodeless dimming color-mixing panel lamp on partial wall surfaces at present to increase the attractiveness and brightness of the office, but the current high-brightness electrodeless dimming color-mixing panel lamp is thicker, the attractiveness of the office can be seriously influenced, in addition, the installation of the high-brightness electrodeless dimming color-mixing panel lamp on the wall surface is also more troublesome, and the attractiveness of the wall surface is required to be ensured while the convenient installation of the high-brightness electrodeless dimming color-mixing panel lamp is improved.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides an ultra-thin high bright electrodeless mixing of colors panel light of adjusting luminance has solved present high bright electrodeless mixing of colors panel light thickness and can seriously influence the aesthetic property of office, in addition, to high bright electrodeless mix colors panel light installation on the wall also comparatively trouble, the relatively poor problem of practical effect of adjusting luminance.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an ultrathin highlight electrodeless dimming color-mixing panel lamp comprises a lamp shell and an installation block, wherein the back of the lamp shell is movably connected with the front of the installation block, the middle part of the inner wall of the lamp shell is fixedly connected with a fixed plate, the top and the bottom of the two sides of the back of the fixed plate are fixedly connected with a connecting block, the back of the connecting block is movably connected with the front of the installation block, the back of the installation block is fixedly connected with the inside of a wall surface through a connecting bolt, the front of the inner wall of the lamp shell is movably connected with a lamp shade, the top and the bottom of the two sides of the lamp shell are movably connected with movable blocks, movable grooves matched with the movable blocks are formed in the bottom and the bottom of the two sides of the lamp shell, the top and the bottom of the inner wall of each movable groove are respectively in sliding connection with the top and the bottom of the movable block, a fixed block is fixedly, and the left end of two movable rods all runs through the fixed block and extends to the left side of fixed block, the left top of movable block and the equal fixedly connected with spring in bottom, two the left end of spring all with the right side fixed connection of fixed block to the inner wall of two springs respectively with the sliding surface connection of two movable rods, two the movable rod extends to the equal fixedly connected with fixture block of the left one end of fixed block, the draw-in groove with fixture block looks adaptation is all seted up to the top and the bottom of lamp shade inner wall both sides.

Preferably, the front of fixed plate is provided with LED lamp strip, the front that LED lamp strip is located the fixed plate is provided with four groups to LED lamp strip is located the front of fixed plate and sets up from last equidistance down.

Preferably, both sides of the bottom of the fixing plate are provided with wire holes, and the inner walls of the wire holes are in contact with the surface of the power supply wire.

Preferably, four groups of connecting blocks are arranged on the back surface of the fixing plate, four groups of mounting blocks are arranged at positions corresponding to the connecting blocks, and the connecting blocks and the mounting blocks are U-shaped blocks.

Preferably, the movable block is an irregular rectangular block, and the right side of the movable slot is slightly smaller than the left side.

Preferably, the top and the bottom of the two sides of the lampshade are both provided with grooves matched with the clamping blocks, and the top and the bottom of the inner wall of each groove are respectively contacted with the top and the bottom of each clamping block.

Preferably, the thickness of lamp body is 3.5cm, the front of fixed plate is provided with control circuit and power supply circuit.

Advantageous effects

The utility model provides an ultra-thin bright electrodeless mixing of colors panel light of adjusting luminance. Compared with the prior art, the method has the following beneficial effects:

(1) the ultrathin high-brightness stepless dimming and toning panel lamp is characterized in that a fixed plate is fixedly connected to the middle part of the inner wall of a lamp shell, connecting blocks are fixedly connected to the top and the bottom of the two sides of the back of the fixed plate, the back of each connecting block is movably connected with the front of an installation block, the back of each installation block is fixedly connected with the inside of a wall surface through a connecting bolt, a lamp shade is movably connected to the front of the inner wall of the lamp shell, movable blocks are movably connected to the top and the bottom of the two sides of the lamp shell, movable rods are fixedly connected to the top and the bottom of the left side of a movable plate, clamping blocks are fixedly connected to one ends of the two movable rods extending to the left side of the fixed block, clamping grooves matched with the clamping blocks are formed in the top and the bottom of the two sides of the inner wall surface of the lamp shade, the lamp shade can be detached conveniently, the maintenance of the dimming color-mixing panel lamp by workers is facilitated, and the practical effect is good.

(2) This ultra-thin high bright electrodeless mixing of colors panel light of adjusting luminance, front through the fixed plate is provided with LED lamp strip, the front that LED lamp strip is located the fixed plate is provided with four groups, and the front that LED lamp strip is located the fixed plate sets up from last equidistance down, the wire guide has all been seted up to the both sides of fixed plate bottom, and the inner wall of wire guide contacts with the surface of power wire, the thickness of lamp body is 3.5cm, the front of fixed plate is provided with control circuit and power supply circuit, such device structural design makes the thickness of adjusting luminance mixing of colors panel light reduce greatly, the mixing of colors panel light of will adjusting luminance is installed not only can provide luminance for the office on the wall and supply, can.

Drawings

FIG. 1 is a perspective view of the structure of the present invention;

fig. 2 is a cross-sectional view of the lamp housing structure of the present invention;

fig. 3 is a side view of the internal structure of the lamp housing and the mounting block of the present invention;

FIG. 4 is an enlarged view of a portion of FIG. 2;

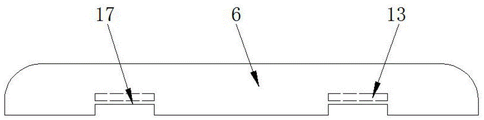

fig. 5 is a side view of the structure of the lampshade of the present invention;

fig. 6 is a perspective view of the fixture block structure of the present invention.

In the figure: the LED lamp comprises a lamp housing 1, a mounting block 2, a fixing plate 3, a connecting block 4, a connecting bolt 5, a connecting bolt 6, a cover 7, a movable block 8, a movable groove 9, a fixing block 10, a movable rod 11, a spring 12, a clamping block 13, a clamping groove 14, an LED lamp strip 15, a wire guide hole 16, an arc-shaped groove 17.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: an ultrathin high-brightness electrodeless dimming color-mixing panel lamp comprises a lamp shell 1 and an installation block 2, wherein the thickness of the lamp shell 1 is 3.5cm, the front side of a fixing plate 3 is provided with a control circuit and a power circuit, the back side of the lamp shell 1 is movably connected with the front side of the installation block 2, the middle part of the inner wall of the lamp shell 1 is fixedly connected with the fixing plate 3, the front side of the fixing plate 3 is provided with LED lamp strips 14, the LED lamp strips 14 are positioned on the front side of the fixing plate 3 and are arranged at equal intervals from top to bottom, both sides of the bottom of the fixing plate 3 are provided with wire holes 15, the inner walls of the wire holes 15 are contacted with the surface of a power wire, the tops and the bottoms of both sides of the back side of the fixing plate 3 are fixedly connected with connection blocks 4, the four groups of the connection blocks 4 are positioned, the connecting block 4 and the mounting block 2 are both U-shaped blocks, the back of the connecting block 4 is movably connected with the front of the mounting block 2, the back of the mounting block 2 is fixedly connected with the inside of the wall surface through the connecting bolt 5, each mounting block 2 is connected with the wall surface through the two connecting bolts 5, the stability of the panel lamp can be effectively ensured, the front of the inner wall of the lamp shell 1 is movably connected with the lamp shade 6, the top and the bottom of the two sides of the lamp shade 6 are both provided with grooves 16 matched with the clamping blocks 12, the top and the bottom of the inner wall of the groove 16 are respectively contacted with the top and the bottom of the clamping blocks 12, the top and the bottom of the two sides of the lamp shell 1 are both movably connected with movable blocks 7, the movable blocks 7 are irregular rectangular blocks, the right side of the movable groove 8 is slightly smaller than the left side, the movable blocks 7 can only move in the movable groove 8 and can not, and the bottom of the two sides of the lamp shell 1 are both provided with a movable groove 8 matched with the movable block 7, the top and the bottom of the inner wall of the movable groove 8 are respectively connected with the top and the bottom of the movable block 7 in a sliding manner, the left side between the top and the bottom of the inner wall of the movable groove 8 is fixedly connected with a fixed block 9, the top and the bottom of the left side of the movable block 7 are both fixedly connected with movable rods 10, the left ends of the two movable rods 10 penetrate through the fixed block 9 and extend to the left side of the fixed block 9, the movable rods 10 are connected with the inside of the fixed block 9 in a sliding manner, the inside of the fixed block 9 is provided with movable holes matched with the movable rods 10, the top and the bottom of the left side of the movable block 7 are both fixedly connected with springs 11, the left ends of the two springs 11 are both fixedly connected with the right side of the fixed block 9, the inner walls of the two springs, the top and the bottom of the two sides of the inner wall of the lampshade 6 are both provided with a clamping groove 13 matched with the clamping block 12, and the content which is not described in detail in the specification belongs to the prior art known by the person skilled in the art.

When in use, an installer connects the power line with the power circuit inside the panel lamp by passing through the wire hole 15, determines the fixed position of the mounting block 2 on the wall surface in advance according to the position relation between the connecting blocks 4 at the back of the fixing plate 3, and clamps the back of the connecting block 4 with the front of the mounting block 2, so as to easily complete the fixed mounting of the panel lamp, when the LED lamp strip 14 in the panel lamp fails, a maintenance person can press the movable block 7 towards the inside of the lamp housing 1, the movable block 7 pushes the movable rod 10 to move towards one side of the LED lamp strip 14 in the movable hole in the fixed block 9, the movable rod 10 pushes the clamping block 12, at the moment, one side of the clamping block 12 is separated from the inside of the clamping groove 13, the maintenance person can take the lampshade 6 out of the inside of the lamp housing 1, the internal faults of the panel lamp are maintained, and the whole working principle of the ultrathin high-brightness electrodeless dimming and color mixing panel lamp is realized.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an ultra-thin bright electrodeless mixing of colors panel light of adjusting luminance, includes lamp body (1) and installation piece (2), the back of lamp body (1) and the positive swing joint of installation piece (2), its characterized in that: the lamp shell comprises a lamp shell (1), a fixed plate (3) is fixedly connected to the middle of the inner wall of the lamp shell (1), connecting blocks (4) are fixedly connected to the top and the bottom of the two sides of the back of the fixed plate (3), the back of each connecting block (4) is fixedly connected with the front of an installation block (2), the back of the installation block (2) is fixedly connected with the inside of a wall through connecting bolts (5), a lampshade (6) is movably connected to the front of the inner wall of the lamp shell (1), movable blocks (7) are movably connected to the top and the bottom of the two sides of the lamp shell (1), movable grooves (8) matched with the movable blocks (7) are formed in the bottom and the bottom of the two sides of the lamp shell (1), the top and the bottom of the inner wall of each movable groove (8) are respectively connected with the top and the bottom of the movable blocks (7) in a sliding mode, the left top of movable block (7) and the equal fixedly connected with movable rod (10) in bottom to the left end of two movable rod (10) all runs through fixed block (9) and extends to the left side of fixed block (9), the left top of movable block (7) and the equal fixedly connected with spring (11) in bottom, two the left end of spring (11) all with the right side fixed connection of fixed block (9), and the inner wall of two spring (11) respectively with the sliding surface connection of two movable rod (10), two movable rod (10) extend to the equal fixedly connected with fixture block (12) of the left one end of fixed block (9), draw-in groove (13) with fixture block (12) looks adaptation are all seted up to the top and the bottom of lamp shade (6) inner wall both sides.

2. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: the front of fixed plate (3) is provided with LED lamp strip (14), the front that LED lamp strip (14) are located fixed plate (3) is provided with four groups to LED lamp strip (14) are located the front of fixed plate (3) and are from last to equidistant setting down.

3. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: wire holes (15) are formed in two sides of the bottom of the fixing plate (3), and the inner walls of the wire holes (15) are in contact with the surface of a power supply wire.

4. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: the back that connecting block (4) are located fixed plate (3) is provided with four groups to installation piece (2) are located the corresponding position of connecting block (4) and are provided with four groups, the appearance of connecting block (4) and installation piece (2) is U type piece.

5. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: the appearance of activity piece (7) is the rectangle piece to the right side in activity groove (8) is little less than the left side, arc wall (16) have all been seted up to the top and the bottom at activity groove (8) inner wall back.

6. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: the top and the bottom of lamp shade (6) both sides all set up recess (17) with fixture block (12) looks adaptation to the top and the bottom of recess (17) inner wall contact with the top and the bottom of fixture block (12) respectively.

7. The ultra-thin high brightness electrodeless dimming toning panel lamp according to claim 1, wherein: the thickness of lamp body (1) is 3.5cm, the front of fixed plate (3) is provided with control circuit and power supply circuit.
