CN210355229U

CN210355229U - Novel procreation internal medicine is used medicine and is smoked treatment nursing equipment

Info

Publication number: CN210355229U
Application number: CN201920707318.1U
Authority: CN
Inventors: 程永红; 张宏
Original assignee: Affiliated Hospital of University of Qingdao
Current assignee: Affiliated Hospital of University of Qingdao
Priority date: 2019-05-17
Filing date: 2019-05-17
Publication date: 2020-04-21
Anticipated expiration: 2029-05-17

Abstract

The utility model discloses a novel procreation internal medicine is used medicine and is smoked treatment care apparatus relates to care apparatus technical field, and it includes the bottom plate, the upper surface of bottom plate and the lower fixed surface of two backup pads are connected, and the opposite face of two backup pads respectively with drive arrangement's left and right sides face fixed connection, two output shaft fixedly connected with threaded rods of drive arrangement, the right-hand member of threaded rod and rotating device's left end fixed connection, the right flank of rotating device joint at the drive arrangement inner wall. This novel procreation internal medicine uses medicine to smoke treatment care apparatus, through the mutually supporting between biax motor, threaded rod, first fixed block, first round pin axle, connecting rod, second round pin axle, second fixed block and the first tray, and accomplished the adjustment of inner space, not only can adjust its inner space according to actual demand, still reduced the limitation of using to this care apparatus's practicality has further been improved.

Description

Novel procreation internal medicine is used medicine and is smoked treatment nursing equipment

Technical Field

The utility model relates to a nursing equipment technical field specifically is a novel procreation internal medicine uses medicine fumigation treatment nursing equipment.

Background

In-process of the smoked treatment of internal medicine of reproduction, generally need certain nursing materials, and generally can use nursing materials to place it and propelling movement to appointed administrative or technical offices in order to carry, traditional nursing materials can carry out categorised space of putting, instrument and medicine can be put to its every independent space classification, but the size is fixed between every thing board compartment of putting, only can place different types of nursing materials according to the size of putting the compartment in the thing board, can not adjust space size according to real-time demand, not only make the use limitation higher, nursing materials's practicality has still been reduced, therefore, the urgent need for a novel internal medicine of reproduction uses medicine to smoke treatment nursing materials.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model is not enough to prior art, the utility model provides a novel procreation internal medicine is with smoked treatment care apparatus, traditional care apparatus has been solved and although can carry out categorised space of putting, its every independent space can be categorised puts instrument and medicine, but every is put the size between thing board separate space and is fixed, only can place different types of nursing materials according to the size of putting the separate space in the thing board, can not adjust the space size according to real-time demand, not only make the use limitation higher, the problem of care apparatus's practicality has still been reduced.

(II) technical scheme

In order to achieve the above purpose, the utility model adopts the technical proposal that: the utility model provides a novel procreation internal medicine uses medicine and smokes treatment care apparatus, comprising a base plate, the upper surface of bottom plate and the lower fixed surface of two backup pads are connected, and the opposite face of two backup pads respectively with drive arrangement's left and right sides face fixed connection, two output shaft fixedly connected with threaded rods of drive arrangement, the right-hand member of threaded rod and rotating device's left end fixed connection, the right flank of rotating device joint at the drive arrangement inner wall, threaded rod threaded connection is in the screw cap, two upper and lower fixed surface fixedly connected with of screw cap have two first fixed blocks.

The front of first fixed block is through the back swing joint of first round pin axle and connecting rod, and outside two connecting rods passed two through-holes respectively and extended to two through-holes, the upper surface at drive arrangement is seted up to the through-hole, and the back of two connecting rods is through a second round pin axle and same second fixed block swing joint, the first tray of last fixed surface of second fixed block is connected with, two sliders of the left and right sides face fixedly connected with of first tray, slider sliding connection is in the spout, and the opposite face at two backup pads is seted up respectively to two spouts.

Preferably, the upper surface joint of bottom plate has the second bearing, a screw thread section of thick bamboo has been cup jointed in the second bearing, the surface joint of a screw thread section of thick bamboo has the commentaries on classics handle, screw thread section of thick bamboo female connection has the screw thread post, the top fixedly connected with handle of screw thread post, the lower surface of handle is connected with the upper surface fixed of bottom plate through two telescopic links, the surface of handle is provided with anti-skidding line.

Preferably, the driving device comprises a double-shaft motor, two output shafts of the double-shaft motor are respectively and fixedly connected with opposite surfaces of the two threaded rods, the double-shaft motor is arranged in the case, and the left side surface and the right side surface of the case are respectively and fixedly connected with opposite surfaces of the two supporting plates.

Preferably, two through holes are formed in the upper surface and the lower surface of the case, a power supply is arranged on the left side face of the left supporting plate, a switch is arranged on the left side face of the power supply, the output end of the power supply is electrically connected with the input end of the switch through a wire, and the output end of the switch is electrically connected with the input end of the double-shaft motor through a wire.

Preferably, the rotating device comprises a rotating shaft, the left end of the rotating shaft is fixedly connected with the right end of the threaded rod, the rotating shaft is sleeved in the first bearing, and the first bearing is clamped on the right side face of the inner wall of the case.

Preferably, the lower fixed surface of bottom plate is connected with four pulleys, the upper surface of bottom plate is provided with the debris box, the left surface of debris box sets up the right flank at right side backup pad, and the upper surface of two backup pads is provided with same second tray, and the opposite face of two backup pads is provided with a third tray.

(III) advantageous effects

The beneficial effects of the utility model reside in that:

1. the novel medical fumigation treatment nursing equipment for the department of internal procreation is characterized in that through the mutual matching of a double-shaft motor, a threaded rod, a first fixed block, a first pin shaft, a connecting rod, a second pin shaft, a second fixed block and a first tray, when the internal space needs to be adjusted, medical personnel control the work of the double-shaft motor to enable the double-shaft motor to drive the two threaded rods to rotate, the two threaded rods respectively rotate in two first bearings through two rotating shafts, the two threaded rods further drive two threaded caps to move relatively under the effect of threaded connection, the two threaded caps both drive the two first fixed blocks to move relatively, the four first fixed blocks respectively drive four connecting rods to move relatively through four first pin shafts, the four connecting rods push the two second fixed blocks to move relatively through the two second pin shafts, and the two second fixed blocks push the two first trays to move back to back, when two first trays move to suitable position, medical personnel control biax motor stop work to accomplished the adjustment of inner space, not only can adjust its inner space according to actual demand, still reduced the limitation of using, thereby further improved this nursing equipment's practicality.

2. This novel procreation internal medicine is used medicine and is smoked treatment care apparatus for through mutually supporting between first round pin axle and the second round pin axle, make the connecting rod carry out the inclined movement through first round pin axle and second round pin axle, and then make the connecting rod can promote first tray and remove, not only provide good operating condition for the removal of first tray, still further ensured the work of first tray space adjustment.

3. This novel procreation internal medicine is with smoked treatment care apparatus, through changeing the handle, mutually support between screw cap and the screw thread post, and the surface of changeing the handle is provided with anti-skidding line, make medical personnel's palm and the frictional force increase of changeing the handle, thereby make things convenient for medical personnel control to change to drive a screw thread section of thick bamboo more and rotate, make a screw thread section of thick bamboo at the second bearing internal rotation again, make a screw thread section of thick bamboo drive screw thread post rebound, make the screw thread post drive handle rebound, when removing to suitable position, medical personnel stall changes the handle, thereby can adjust the height of handle, thereby can be applicable to the medical personnel of different heights as required, thereby the work of giving medical personnel has brought conveniently.

Drawings

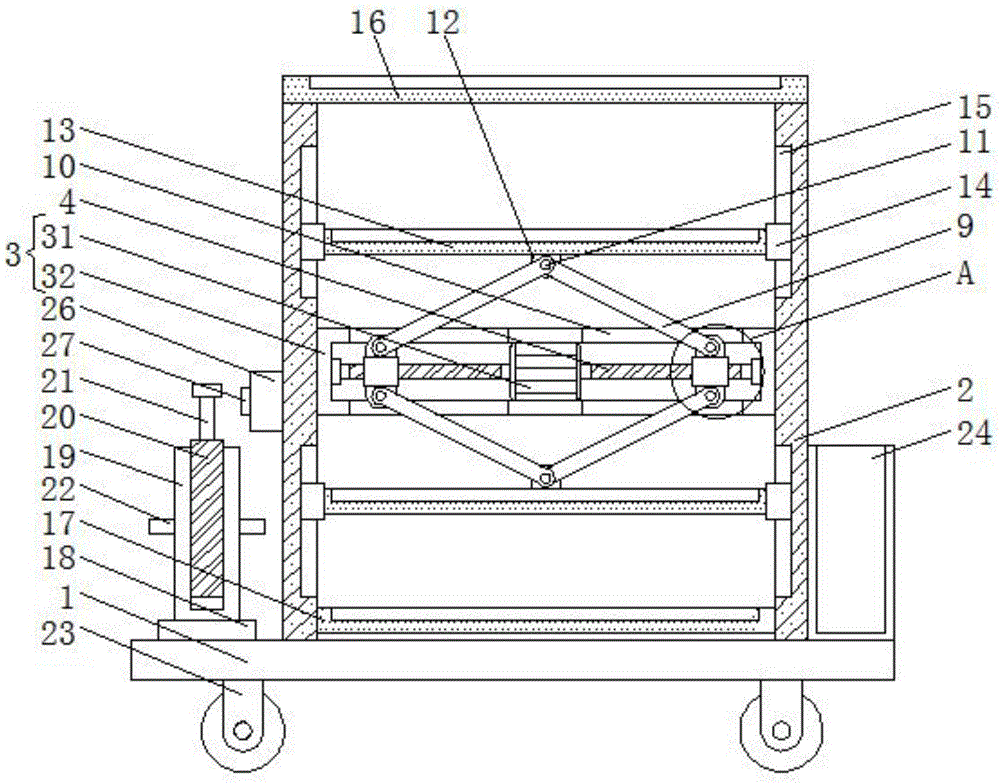

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

fig. 2 is a left-side view schematically illustrating the structure of the present invention;

fig. 3 is an enlarged schematic structural diagram of a position a of the present invention.

In the figure: the device comprises a base plate 1, a support plate 2, a driving device 3, a double-shaft motor 31, a chassis 32, a threaded rod 4, a rotating device 5, a rotating shaft 51, a first bearing 52, a threaded cap 6, a first fixing block 7, a first pin 8, a connecting rod 9, a through hole 10, a second pin 11, a second fixing block 12, a first tray 13, a sliding block 14, a sliding groove 15, a second tray 16, a third tray 17, a second bearing 18, a threaded cylinder 19, a threaded column 20, a handle 21, a rotating handle 22, a pulley 23, a sundry box 24, a telescopic rod 25, a power supply 26 and a switch 27.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-3, the utility model provides a technical solution: a novel medical fumigation treatment nursing device for reproductive internal medicine comprises a base plate 1, the upper surface of the base plate 1 is connected with a second bearing 18 in a clamping manner, through the arrangement of the second bearing 18, a threaded cylinder 19 can rotate in the second bearing 18, so that the threaded cylinder 19 can be ensured to drive a threaded column 20 to move upwards while rotating, the adjustment work of a handle 21 is facilitated, the threaded cylinder 19 is connected in the second bearing 18 in a sleeving manner, a rotating handle 22 is connected to the outer surface of the threaded cylinder 19 in a clamping manner, the threaded column 20 is connected in the threaded cylinder 19 in an internal thread manner, through the mutual matching between the rotating handle 22 and the threaded column 20, anti-skidding lines are arranged on the outer surface of the rotating handle 22, the friction force between a palm of a medical worker and the rotating handle 22 is increased, the rotating handle 22 can be controlled to drive the threaded cylinder 19 to rotate more conveniently by the medical worker, the threaded cylinder 19 is enabled to rotate in the second bearing 18, the threaded cylinder 19, so that the threaded column 20 drives the handle 21 to move upwards, when the handle is moved to a proper position, the medical staff stops rotating the rotating handle 22, thereby the height of the handle 21 can be adjusted, thereby the handle can be suitable for the medical staff with different heights as required, thereby bringing convenience to the work of the medical staff, the top end of the threaded column 20 is fixedly connected with the handle 21, the lower surface of the handle 21 is fixedly connected with the upper surface of the bottom plate 1 through two telescopic rods 25, by arranging the telescopic rods 25, the situation that the threaded cylinder 19 drives the threaded column 20 to rotate is avoided, thereby the work of the handle 21 moving up and down is better ensured, the outer surface of the handle 21 is provided with anti-skid grains, by arranging the anti-skid grains on the surface of the handle 21, the friction force between the palm of the medical staff and the handle 21 is increased, thereby the control of the medical staff on the handle 21 is more convenient, the upper surface of the bottom, and the left side of the left support plate 2 is provided with a power supply 26, through the arrangement of the power supply 26, the double-shaft motor 31 is conveniently supplied with power, thereby ensuring the normal work of the double-shaft motor 31, the left side of the power supply 26 is provided with a switch 27, through the arrangement of the switch 27, the medical personnel can more conveniently control the working state of the double-shaft motor 31, the output end of the power supply 26 is electrically connected with the input end of the switch 27 through a lead, the output end of the switch 27 is electrically connected with the input end of the double-shaft motor 31 through a lead, the opposite surfaces of the two support plates 2 are respectively fixedly connected with the left side surface and the right side surface of the driving device 3, the driving device 3 comprises the double-shaft motor 31, two output shafts of the double-shaft motor 31 are respectively fixedly connected with the opposite surfaces of the two threaded rods 4, thereby ensuring the stable operation of the dual-shaft motor 31, the left and right side surfaces of the case 32 are respectively fixedly connected with the opposite surfaces of the two supporting plates 2, the upper and lower surfaces of the case 32 are respectively provided with two through holes 10, by arranging the through holes 10, the connecting rod 9 can pass through the through holes 10 to be connected with the second fixed block 12, thereby providing a certain moving range for the connecting rod 9, ensuring the normal operation of the connecting rod 9, two output shafts of the driving device 3 are fixedly connected with two threaded rods 4, the right end of the threaded rod 4 is fixedly connected with the left end of the rotating device 5, the rotating device 5 comprises a rotating shaft 51, the left end of the rotating shaft 51 is fixedly connected with the right end of the threaded rod 4, the rotating shaft 51 is sleeved in the first bearing 52, by arranging the first bearing 52 and the rotating shaft 51, the rotating shaft 51 rotates more stably in the first bearing 52, thereby ensuring the threaded rod 4, first bearing 52 joint is in the right flank of quick-witted case 32 inner wall, and rotating device 5 joint is in the right flank of drive arrangement 3 inner wall, and threaded rod 4 threaded connection is in screw cap 6, and two first fixed blocks 7 of upper and lower two fixed surface fixedly connected with of screw cap 6.

The front surface of the first fixed block 7 is movably connected with the back surface of the connecting rod 9 through a first pin shaft 8, the two connecting rods 9 respectively pass through the two through holes 10 and extend out of the two through holes 10, the through holes 10 are arranged on the upper surface of the driving device 3, the back surfaces of the two connecting rods 9 are movably connected with the same second fixed block 12 through a second pin shaft 11, through the mutual matching between the first pin shaft 8 and the second pin shaft 11, the connecting rod 9 can obliquely move through the first pin shaft 8 and the second pin shaft 11, and further the connecting rod 9 can push the first tray 13 to move, thereby not only providing good working conditions for the movement of the first tray 13, but also further ensuring the work of space adjustment of the first tray 13, the upper surface of the second fixed block 12 is fixedly connected with the first tray 13, and the left side surface and the right side surface of the first tray 13 are fixedly connected with two sliding blocks 14, the sliding block 14 is connected in the sliding groove 15 in a sliding manner, the sliding block 14 slides more stably in the sliding groove 15 by arranging the sliding groove 15 and the sliding block 14, so that the moving stability of the first tray 13 is ensured, meanwhile, the situation that the threaded rod 4 drives the threaded cap 6 to rotate is indirectly avoided, so that the more stable work of the threaded cap 6 is ensured, the two sliding grooves 15 are respectively arranged on the opposite surfaces of the two supporting plates 2, the four pulleys 23 are fixedly connected to the lower surface of the bottom plate 1, medical staff can push the device to move by the pulleys 23 by arranging the pulleys 23, so that the medical staff can push the device more labor-saving and convenient, the sundry box 24 is arranged on the upper surface of the bottom plate 1, and the medical staff can collect the used medical waste by arranging the sundry box 24, so that the medical staff can conveniently collect the medical waste in a centralized manner, the left surface of sundries box 24 sets up the right flank at right side backup pad 2, and the upper surface of two backup pads 2 is provided with same second tray 16, through setting up second tray 16 and third tray 17 to be convenient for medical personnel to the placing of medical supplies, and the opposite face of two backup pads 2 is provided with a third tray 17.

The utility model discloses an operating procedure does:

s1, when the internal space needs to be adjusted, the medical staff controls the double-shaft motor 31 to work, so that the double-shaft motor 31 drives the two threaded rods 4 to rotate, so that the two threaded rods 4 rotate in the two first bearings 52 through the two rotating shafts 51 respectively, so that the two threaded rods 4 drive the two threaded caps 6 to move relatively under the action of threaded connection, so that the two screw caps 6 drive the two first fixing blocks 7 to move relatively, the four first fixing blocks 7 drive the four connecting rods 9 to move relatively through the four first pin shafts 8, so that the four connecting rods 9 push the two second fixing blocks 12 to move relatively through the two second pin shafts 11, so that the two second fixing blocks 12 push the two first trays 13 to move back to back, when the two first trays 13 are moved to the proper positions, the medical staff controls the double-shaft motor 31 to stop working, so that the adjustment of the internal space is completed;

s2, when medical supplies need to be placed, medical staff can place nursing supplies, medicines and medical tools on the first tray 13, the second tray 16 and the third tray 17 respectively through classification;

s3, when the height of the handle 21 needs to be adjusted, the rotating handle 22 is held by medical personnel, the friction force between the palm of the medical personnel and the rotating handle 22 is increased, the rotating handle 22 is controlled to drive the threaded cylinder 19 to rotate more conveniently by the medical personnel, the threaded cylinder 19 rotates in the second bearing 18, the threaded cylinder 19 drives the threaded column 20 to move upwards, the threaded column 20 drives the handle 21 to move upwards, when the handle is moved to a proper position, the medical personnel stops rotating the rotating handle 22, the height of the handle 21 can be adjusted, and the handle can be suitable for the medical personnel with different heights as required.

The above-mentioned embodiments further describe the objects, technical solutions and advantages of the present invention in detail, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements and the like made within the spirit and principle of the present invention should be included in the scope of the present invention.

Claims

1. The utility model provides a novel procreation internal medicine is smoked treatment care apparatus with medicine, includes bottom plate (1), its characterized in that: the upper surface of the bottom plate (1) is fixedly connected with the lower surfaces of the two supporting plates (2), opposite surfaces of the two supporting plates (2) are fixedly connected with the left side surface and the right side surface of the driving device (3) respectively, two output shafts of the driving device (3) are fixedly connected with two threaded rods (4), the right end of each threaded rod (4) is fixedly connected with the left end of the rotating device (5), the rotating device (5) is clamped on the right side surface of the inner wall of the driving device (3), the threaded rods (4) are in threaded connection in the threaded caps (6), and the upper surface and the lower surface of each threaded cap (6) are fixedly connected with two first fixing blocks (7);

the front of first fixed block (7) is through the back swing joint of first round pin axle (8) and connecting rod (9), and two connecting rod (9) pass two through-holes (10) respectively and extend to outside two through-holes (10), the upper surface at drive arrangement (3) is seted up in through-hole (10), and the back of two connecting rod (9) is through a second round pin axle (11) and same second fixed block (12) swing joint, the first tray (13) of last fixed surface of second fixed block (12), two sliders (14) of left and right sides face fixedly connected with of first tray (13), slider (14) sliding connection is in spout (15), and sets up the opposite face in two backup pads (2) respectively in two spout (15).

2. The novel fumigating treatment nursing equipment for the medicine for the reproductive medicine as claimed in claim 1, which is characterized in that: the upper surface joint of bottom plate (1) has second bearing (18), a screw thread section of thick bamboo (19) has been cup jointed in second bearing (18), the surface joint of a screw thread section of thick bamboo (19) has commentaries on classics handle (22), a screw thread section of thick bamboo (19) female connection has screw thread post (20), the top fixedly connected with handle (21) of screw thread post (20), the lower surface of handle (21) is through the upper surface fixed connection of two telescopic links (25) and bottom plate (1), the surface of handle (21) is provided with anti-skidding line.

3. The novel fumigating treatment nursing equipment for the medicine for the reproductive medicine as claimed in claim 1, which is characterized in that: the driving device (3) comprises a double-shaft motor (31), two output shafts of the double-shaft motor (31) are fixedly connected with opposite surfaces of the two threaded rods (4) respectively, the double-shaft motor (31) is arranged in the case (32), and the left side surface and the right side surface of the case (32) are fixedly connected with opposite surfaces of the two supporting plates (2) respectively.

4. The novel fumigating treatment nursing equipment for the medicine in the reproductive medicine department, which is characterized in that: two through-holes (10) have all been seted up on the upper and lower two surfaces of quick-witted case (32), and the left surface of left side support plate (2) is provided with power (26), the left surface of power (26) is provided with switch (27), the output of power (26) passes through the wire and is connected with the input electricity of switch (27), the output of switch (27) passes through the wire and is connected with the input electricity of biax motor (31).

5. The novel fumigating treatment nursing device for the medicine in the reproductive medicine department, which is characterized in that: rotating device (5) are including pivot (51), the left end of pivot (51) and the right-hand member fixed connection of threaded rod (4), pivot (51) cup joint in first bearing (52), first bearing (52) joint is at the right flank of quick-witted case (32) inner wall.

6. The novel fumigating treatment nursing equipment for the medicine for the reproductive medicine as claimed in claim 1, which is characterized in that: the lower fixed surface of bottom plate (1) is connected with four pulleys (23), the upper surface of bottom plate (1) is provided with debris box (24), the left surface of debris box (24) sets up the right flank in right side backup pad (2), and the upper surface of two backup pads (2) is provided with same second tray (16), and the opposite face of two backup pads (2) is provided with a third tray (17).
