CN210353287U

CN210353287U - Sun-proof cotton woven jump suit for girls

Info

Publication number: CN210353287U
Application number: CN201920981141.4U
Authority: CN
Inventors: 谢肇昌
Original assignee: Jielong Garment Shenzhen Co Ltd
Current assignee: Jielong Garment Shenzhen Co Ltd
Priority date: 2019-06-26
Filing date: 2019-06-26
Publication date: 2020-04-21
Anticipated expiration: 2029-06-26

Abstract

The utility model discloses a sun-proof girl's cotton shuttle union suit relates to children's clothing's technical field, and it includes the last clothing portion and the trousers portion of tube-shape, sews up between last clothing portion and the trousers portion and is connected with the beam waist, and the lower extreme middle part department of trousers portion is provided with crotch portion, and the medial surface of crotch portion front piece is sewed up and is connected with a plurality of box along crotch portion sideline, and crotch portion rear piece is sewed up and is connected with the crotch piece, has sewed up on the crotch piece a plurality of and the pin thread of box lock adaptation, and the upper portion of last clothing portion can be dismantled and be connected with two baldrics. The utility model discloses a lock of pin thread and box is connected, can dismantle the crotch piece and connect in trousers portion, and the children of being convenient for wear to take off jump suit.

Description

Sun-proof cotton woven jump suit for girls

Technical Field

The utility model belongs to the technical field of children's clothing technique and specifically relates to a sun-proof girl's cotton woven jumpsuit is related to.

Background

Children's garments are various in form, mainly comfortable and light, and common garments are divided into a jacket and trousers, while jumpsuits are novel garments which combine the jacket and trousers into one garment.

Chinese patent with patent publication No. CN202222447U proposes a simple jump suit, which comprises a jacket and trousers, wherein the jacket and the trousers are of an integrated structure, an elastic band is arranged at the intersection of the jacket and the trousers, the jacket is a V-shaped neckline, and at least five lotus leaf edge decorative layers are arranged on the jacket. The utility model has the characteristics of the design is simple.

The above prior art solutions have the following drawbacks: children are very inconvenient when wearing the jumpsuit, can not finish independently, are not favorable to the cultivation of children's independence, and will take off whole jumpsuit when needing to be convenient, and the practicality is low excessively.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a convenient sun-proof girl's cotton woven jumpsuit of putting on and taking off.

The utility model aims at realizing through the following technical scheme:

the utility model provides a sun-proof girl's cotton woven jump suit, includes the last clothing portion and the trousers portion of tube-shape, go up clothing portion with sew up between the trousers portion and be connected with the beam waist, the lower extreme middle part department of trousers portion is provided with crotch portion, the medial surface of crotch portion forepart is sewed up and is connected with a plurality of edges the box of crotch portion sideline, crotch portion forepart back part is sewed up and is connected with the crotch piece, sew up on the crotch piece a plurality of with the pin thread of box lock adaptation, the upper portion of last clothing portion can be dismantled and be connected with two baldrics.

By adopting the technical scheme, when the jump suit is worn by a child, the child can penetrate through the upper opening of the upper part of the coat part, the buckled connection of the male buttons and the female buttons can be released, the jump suit is sleeved from the top of the head of the child after the crotch piece is pulled, the male buttons and the female buttons are buckled and connected after the dressing is finished, and then the coat part is fixed on the upper body of the child through the shoulder straps, so that the jump suit is firmly worn on the child; when the jumpsuit needs to be taken off, the buckled connection of the male buckles and the female buckles is only needed to be removed, and then the jumpsuit is directly lifted until the jumpsuit is separated from the body of a child, so that the jumpsuit can be conveniently worn and taken off, and the child can independently complete the wearing and taking off of the jumpsuit; simultaneously when children need be convenient, also only need independently to remove the lock of a plurality of pin thread and a plurality of box and be connected, mention trousers portion again, need not to take off whole jumpsuit, more convenient and practical.

Further setting the following steps: the front part and the back part of the upper edge of the upper garment part are fixedly connected with two buckles, hanging straps penetrate through the two buckles of the back part of the upper garment part, and strap knots used for preventing the hanging straps from falling off the buckles are arranged at one ends of the hanging straps close to the back part of the upper garment part.

By adopting the technical scheme, the two hanging straps are respectively penetrated into the two belt buckles of the back part of the jacket part, so that the hanging straps are penetrated into the two belt buckles of the front part of the jacket part after crossing over the shoulders of the child, and then the hanging straps are tied to enable one ends, far away from the belt knots, of the hanging straps to be fixed on the belt buckles of the front part of the jacket part, so that the jacket part can be hung on the shoulders of the child by the hanging straps, and the phenomenon that the jump suit slips off when the child moves is avoided as much as possible; the strap knot can prevent the hanging strip from completely passing through the buckle at the back of the jacket part, so that the hanging strip loses effective hanging connection with the jacket part.

Further setting the following steps: the outer side of the upper end of the upper clothes part is detachably connected with sleeve shoulders which are made of chiffon and used for covering the skin of the shoulders along the circumferential direction of the upper clothes part.

Through adopting above-mentioned technical scheme, when summer sun was too poisonous and spicy, the naked building of children's shoulder skin was outside, was burnt by the ultraviolet ray easily, can connect the sleeve shoulder in coat portion upper end this moment to protect children's shoulder skin, improved jump suit's sun-proof ability.

Further setting the following steps: the upper end of the coat part is provided with a plurality of buckling holes along the circumferential direction, and the inner side of the lower end of the sleeve shoulder is connected with a plurality of buttons matched with the buckling holes in a sewing mode.

By adopting the technical scheme, the buttons and the button holes are respectively buckled and connected, so that the sleeve shoulders can be fixedly connected to the upper end of the coat part, the knots of the hanging strips and the buttons of the front part of the coat part can be removed, the two hanging strips are taken down, and the sleeve shoulders play a role in preventing the jump-down of the jump-suit.

Further setting the following steps: the upper end of the upper garment part is connected with an annular lotus leaf edge along the circumferential direction in a sewing mode.

By adopting the technical scheme, after the sleeve shoulder is connected to the jumpsuit, the lotus leaf side can be turned to the inner side of the upper garment part, so that the phenomenon that the buttons are buckled and connected with the button holes and then penetrate through the inner side of the upper garment part to frequently rub with the skin of a child to damage the skin of the child is avoided as much as possible; meanwhile, after the sleeve shoulder is taken down, the lotus leaf edge can be turned to the outer side of the upper garment part so as to shield the plurality of button holes.

Further setting the following steps: elastic belts are arranged at the front part and the rear part of the corset.

Through adopting above-mentioned technical scheme, the elastic webbing can make the beam waist paste as far as possible and tightly tighten the effect at children's waist, plays the secondary to the jumpsuit, further avoids the jumpsuit whole to drop as far as possible.

Further setting the following steps: the front part of the trousers part is provided with at least one pocket.

Through adopting above-mentioned technical scheme, set up the pocket and can be used to place article commonly used or food, improved jump suit's practicality.

To sum up, the utility model discloses a beneficial technological effect does:

1. when the children wear to take off the jump suit, the buckling connection of the plurality of male buttons and the plurality of female buttons can be firstly released, then the jump suit is sleeved on the head of the children or the whole jump suit is lifted, the children can independently complete the wearing and taking off actions, the jump suit is more convenient, and meanwhile, when the children need to take off the buckling connection of the plurality of male buttons and the plurality of female buttons, the lap of the jump suit is lifted to the waist, so that the practicability is higher;

2. the detachable sleeve shoulders and the detachable hanging strips enable the jumpsuit to be worn in various temperature environments, and the matching performance is stronger;

3. the lotus leaf edge can be used for shielding the button hole, and direct friction between the button and the skin of the child can be avoided, so that the comfort of the jumpsuit is greatly improved.

Drawings

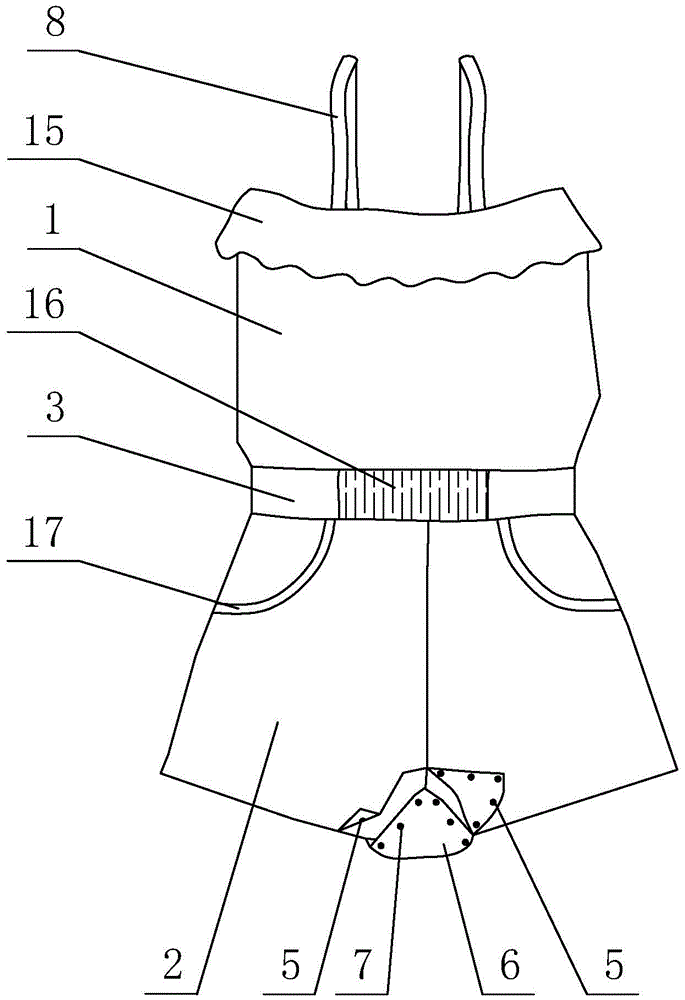

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the overall structure of the present invention after the lotus leaf edges are removed;

fig. 3 is the overall structure diagram of the utility model after the shoulder straps are removed and the sleeve shoulder is mounted.

Reference numerals: 1. a garment-applying section; 2. a trousers part; 3. girdling; 5. A female buckle; 6. a crotch panel; 7. a male buckle; 8. shoulder straps; 9. a buckle; 10. a sling; 12. sleeve shoulders; 13. buckling holes; 14. a button; 15. a lotus leaf edge; 16. an elastic band; 17. a pocket.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Referring to fig. 1, for the utility model discloses a sun-proof girl's cotton shuttle even trousers, jacket portion 1 and trousers portion 2 including the tube-shape, jacket portion 1 and trousers portion 2 are cotton shuttle and form, it has beam waist 3 to sew up between jacket portion 1 and the trousers portion 2, beam waist 3 all is fold form and sew up and be connected with elastic band 16 in its front cut and back cut department, the lower extreme middle part department of trousers portion 2 is provided with l crotch portion, the medial surface of crotch portion front cut is sewed up and is connected with a plurality of box 5 along the crotch portion sideline, vertical sewing up on the crotch portion back cut is connected with crotch piece 6, the one side that box 5 was kept away from to crotch piece 6 has been sewed up a plurality of pin thread 7 with box 5 lock adaptation, pin thread 7 and box 5 make up the snap-fastener among the prior art, the snap-fastener is also called snap-lock, the front cut on trousers portion 2 upper portion still sews up and is connected with two pockets 17.

When the jumpsuit is worn by a child, the lower limbs of the child can penetrate through the opening at the upper part of the coat part 1, the buckled connection of the male buttons 7 and the female buttons 5 can be released, the crotch piece 6 is pulled, the opening at the lower end of the jumpsuit is sleeved from the top of the head of the child, and the male buttons 7 and the female buttons 5 are buckled and connected after the jumpsuit is worn, so that the jumpsuit is worn; when the jumpsuit needs to be taken off, the plurality of male buttons 7 and the plurality of female buttons 5 are just needed to be firstly released from buckling connection, and then the jumpsuit is directly lifted until the jumpsuit is separated from the body of a child, so that the jumpsuit can be conveniently put on and taken off, and the child can independently complete putting on and taking off of the jumpsuit; meanwhile, when the children need to be convenient, the buckling connection of the male buckles 7 and the female buckles 5 is automatically released, and then the trousers part 2 is lifted to the waist without taking off the whole jumpsuit, so that the trousers are more convenient and practical; the elastic band 16 can make the corset 3 tightly stick to the waist of the child as much as possible, and has the tightening effect on the jumpsuit, so that the phenomenon that the jumpsuit integrally falls off when the child moves is avoided as much as possible, and the pocket 17 is used for placing common articles or food, thereby improving the practicability of the jumpsuit.

Referring to fig. 1 and 2, two shoulder straps 8 are detachably connected to the upper end of the upper garment portion 1, two ring-shaped buckles 9 are fixedly connected to the outer sides of the front part and the back part of the upper edge of the upper garment portion 1, a hanging strip 10 is arranged in the two buckles 9 of the back part of the upper garment portion 1 in a penetrating manner, and a strap knot (not shown in the figure) for preventing the hanging strip 10 from falling off the buckles 9 is arranged at one end of the hanging strip 10 close to the back part of the upper garment portion 1.

The two hanging straps 10 are respectively penetrated into the two buckles 9 on the back part of the coat part 1, so that the hanging straps 10 are penetrated into the two buckles 9 on the front part of the coat part 1 after passing over the shoulders of the child, and then the hanging straps 10 are tied into knots to ensure that one ends of the hanging straps 10 far away from the knots are fixed on the buckles 9 on the front part of the coat part 1, so that the hanging straps 10 can hang the coat part 1 on the shoulders of the child, a fixing effect is realized on the jumpsuit, and the jumpsuit is further prevented from sliding down when the child moves; the strap knot prevents the strap 10 from passing completely through the buckle 9 at the back of the top garment portion 1, so that the strap 10 loses its effective attachment to the top garment portion 1.

Referring to fig. 1 and 3, the outer side of the upper end of the upper garment portion 1 is detachably connected with a sleeve 12 made of snowspun yarn and used for covering shoulder skin along the circumferential direction of the upper garment portion, the sleeve 12 is cylindrical and provided with a collar used for the head to stretch into, the lower end of the sleeve is connected with the upper opening of the upper garment portion 1 in an adaptive manner, cuffs are sewn and connected to the two sides of the upper end of the sleeve 12, a plurality of button holes 13 are formed in the outer side of the upper end of the upper garment portion 1 along the circumferential direction of the upper garment portion, a plurality of buttons 14 matched with the button holes 13 in an adaptive manner are sewn and connected to the inner side of the lower end of the sleeve 12, and an annular lotus leaf.

When the sun is too hot or the weather turns cold in summer, the skin of the shoulders of the children is exposed outside and is easily burnt or cooled by ultraviolet rays, at the moment, the buttons 14 and the button holes 13 can be respectively buckled and connected, so that the sleeve shoulders 12 are fixedly connected to the upper end of the coat part 1, the knots of the hanging strips 10 and the belt buckles 9 of the front part of the coat part 1 can be removed, the two hanging strips 10 are taken down, and the sleeve shoulders 12 play a role in preventing the jump-suit from slipping off so as to protect the skin of the shoulders of the children, thereby improving the sun-proof performance of the jump-suit, realizing the various collocation of the jump-suit and having stronger practicability; after connecting sleeve shoulder 12 on the jump suit, can overturn lotus leaf limit 15 to 1 inboard of supreme clothing portion to avoid button 14 and knot hole 13 lock to be connected the back as far as and run through 1 inboard of supreme clothing portion, frequently rub with children's skin, cause the damage to children's skin, the back is taken off to sleeve shoulder 12 simultaneously, can overturn lotus leaf limit 15 to 1 outside of supreme clothing portion again, in order to play the effect of sheltering from to a plurality of knot holes 13.

The implementation principle and the beneficial effects of the embodiment are as follows:

when the jump suit is worn by a child, the buckled connection of the male buttons 7 and the female buttons 5 is released, the jump suit is sleeved from the top of the child after the crotch piece 6 is shifted, the male buttons 7 and the female buttons 5 are buckled and connected after the jump suit is worn, and then the coat part 1 is fixed on the child upper body through the shoulder straps 8, so that the jump suit is firmly worn on the child; when the jumpsuit needs to be taken off, the plurality of male buttons 7 and the plurality of female buttons 5 are just needed to be released from buckling connection, and then the jumpsuit is directly lifted until the jumpsuit is separated from the body of the child, so that the jumpsuit can be conveniently put on and taken off, and the child can independently complete putting on and taking off of the jumpsuit; and when children need be convenient, also only need independently to remove a plurality of pin thread 7 and the lock of a plurality of box 5 and be connected, mention trousers portion 2 again, need not to take off whole jumpsuit for jumpsuit is more practical.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. The utility model provides a sun-proof girl's cotton shuttle jump suit which characterized in that: including the jacket portion (1) and the trousers portion (2) of tube-shape, jacket portion (1) with it has beam waist (3) to sew up to be connected with between trousers portion (2), the lower extreme middle part department of trousers portion (2) is provided with crotch portion (4), the medial surface of crotch portion (4) front part of a garment is sewed up and is connected with a plurality of edges female buckle (5) of crotch portion (4) sideline, crotch portion (4) back part of a garment is sewed up and is connected with crotch piece (6), sew up on crotch piece (6) a plurality of with male buckle (7) of female buckle (5) lock adaptation, the upper portion of jacket portion (1) can be dismantled and be connected with two baldrics (8).

2. A cotton woven jump suit for sun protection girls according to claim 1 wherein: the front part and the back part of the upper edge of the upper garment part (1) are fixedly connected with two belt buckles (9), the upper garment part (1) is provided with hanging straps (10) in the two belt buckles (9) of the back part of the upper garment part, and one end, close to the back part of the upper garment part (1), of each hanging strap (10) is provided with a belt knot (11) for preventing the hanging straps (10) from falling off the belt buckles (9).

3. A cotton woven jump suit for sun protection girls according to claim 1 wherein: the outer side of the upper end of the upper clothes part (1) is detachably connected with a sleeve shoulder (12) which is made of chiffon and used for covering the skin of the shoulder part along the circumferential direction.

4. A cotton woven jump suit for sun protection girls according to claim 3 wherein: a plurality of button holes (13) are formed in the upper end of the upper garment part (1) along the circumferential direction of the upper garment part, and a plurality of buttons (14) which are matched with the button holes (13) in a buckled mode are connected to the inner side of the lower end of the sleeve shoulder (12) in a sewn mode.

5. The sun-blocking girl cotton woven jumpsuit of claim 4, wherein: the upper end of the upper garment part (1) is connected with an annular lotus leaf edge (15) along the circumferential direction in a sewing way.

6. A cotton woven jump suit for sun protection girls according to claim 1 wherein: elastic belts (16) are arranged at the front part and the rear part of the corset (3).

7. A cotton woven jump suit for sun protection girls according to claim 1 wherein: at least one pocket (17) is arranged at the front part of the trousers part (2).
