Abstract
The utility model discloses an indoor outer dual-purpose high-voltage board, including base and group battery, the base bottom left and right sides all is provided with the auto-lock gyro wheel, and the left and right sides of base up end all is provided with the pneumatic cylinder, the high-voltage board body is through first bolt fastening on the hydraulic stem, and the threaded rod has all been run through to the high-voltage board body bottom left and right sides, the downside of the high-voltage board body is provided with the nut, and nut threaded connection is on the threaded rod, the group battery passes through the second bolt fastening in the internal bottom of high-voltage board, and all seted up the draw-in groove on the lateral wall about the high-voltage board body, and the block is connected with the loading board between. This indoor outer dual-purpose high-voltage board rotates the second bolt and can fixes the group battery to convenient power supply removes the device accessible auto-lock gyro wheel to use under outdoor no power's the environment afterwards.
Description
Technical Field
The utility model relates to a high-voltage board technical field specifically is an indoor outer dual-purpose high-voltage board.
Background
The high-voltage power distribution cabinet can be used for on-off, control or protection in power generation, power transmission, power distribution, electric energy conversion and consumption of a power system, and is mainly suitable for various different places such as power plants, transformer substations, power system substations, petrochemical industry, metallurgical steel rolling, light industrial textiles, factories and mining enterprises, residential districts, high-rise buildings and the like.
The height of the wiring harness of the connecting device of the existing high-voltage cabinet cannot be determined, if the connecting wiring harness is located at a higher position, the wiring harness is not easy to be connected into equipment in the high-voltage cabinet, and the device is mostly fixed, so that the wiring harness is not easy to move to the outdoor for working, therefore, the wiring harness is not convenient to use, and the existing equipment needs to be improved aiming at the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an indoor outer dual-purpose high-voltage board to solve the current high-voltage board that proposes in the above-mentioned background art and because of connecting device's pencil height is indefinite and can't confirm its height of locating, when connecting the pencil is in higher position, be difficult for being connected to this pencil in the equipment of high-voltage board, and the device is mostly fixed, thereby be difficult to remove it to the outdoor problem of carrying out work.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a high-voltage board of indoor outer dual-purpose, includes base and group battery, the base bottom left and right sides all is provided with the auto-lock gyro wheel, and the left and right sides of base up end all is provided with the pneumatic cylinder, and the upside of pneumatic cylinder is connected with the high-voltage board body through the hydraulic stem simultaneously, the high-voltage board body is fixed on the hydraulic stem through first bolt, and the high-voltage board body bottom left and right sides all runs through threaded rod, the downside of the high-voltage board body is provided with the nut, and nut threaded connection is on the threaded rod, and the front side of the high-voltage board body is connected with the cabinet door through hinge rotation simultaneously, the group battery passes through the second bolt fastening in the internal bottom of high-voltage board body, and has all seted up the draw-in.
Preferably, the hydraulic cylinder and the high-voltage cabinet body form a telescopic structure through a hydraulic rod, and first bolts are symmetrically arranged on the hydraulic rod.
Preferably, the threaded rod is connected with the nut in a threaded manner, and the number of the threaded rod and the number of the nut are four.
Preferably, the cabinet door is rotatably connected with the high-voltage cabinet body through a hinge.
Preferably, the battery pack is electrically connected with the hydraulic cylinder, and the battery pack is in threaded connection with the high-voltage cabinet body through the second bolt.
Preferably, the bearing plate is connected with the high-voltage cabinet body in a clamping manner through the clamping groove.
Compared with the prior art, the beneficial effects of the utility model are that: the high-voltage cabinet for indoor and outdoor use,
(1) the high-voltage cabinet body can move upwards so as to adjust the placing height of the related equipment and facilitate the butt joint with the wire harness without a high position;
(2) the high-voltage cabinet body and the rotating nut are arranged, and the rotating nut can enable the high-voltage cabinet body to move upwards after the high-voltage cabinet body moves upwards to a proper height until the high-voltage cabinet body is attached to the lower end face of the high-voltage cabinet body, so that the reinforcing effect is achieved;
(3) be provided with auto-lock gyro wheel, group battery, second bolt and shutter, rotate the second bolt and can fix the group battery to convenient power supply uses under the environment with the device accessible auto-lock gyro wheel removal to outdoor no power afterwards.
Drawings

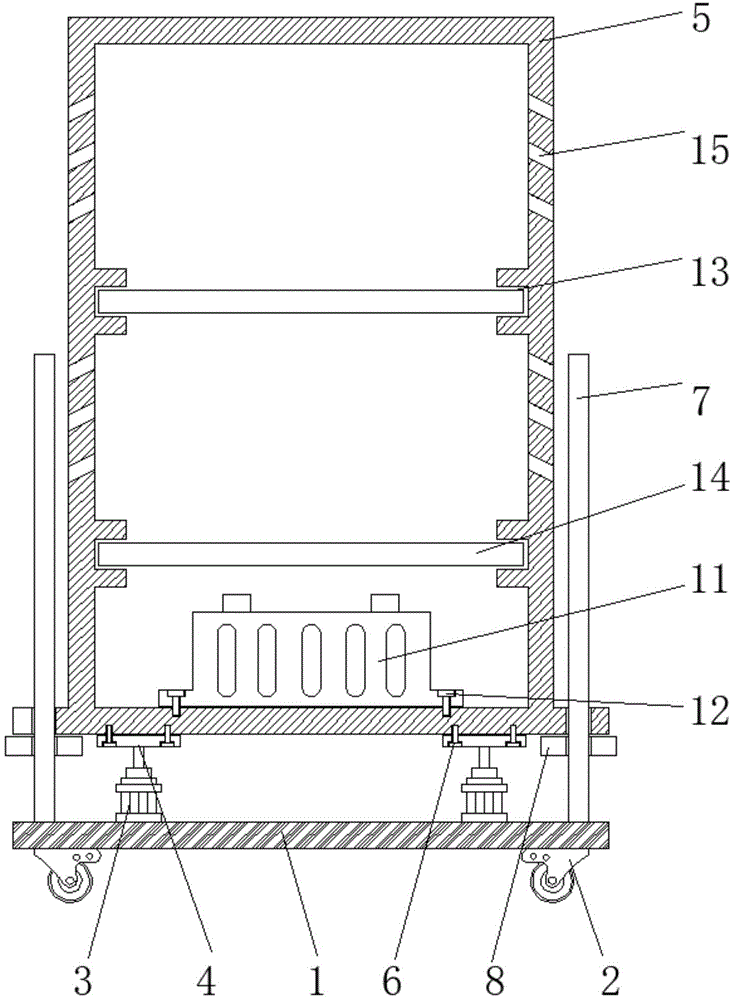

Fig. 1 is a schematic view of the front cross-sectional structure of the present invention;
FIG. 2 is a schematic view of the front view of the present invention;
fig. 3 is a schematic side view of the present invention.
In the figure: 1. the base, 2, auto-lock gyro wheel, 3, pneumatic cylinder, 4, hydraulic stem, 5, the high-pressure cabinet body, 6, first bolt, 7, threaded rod, 8, nut, 9, hinge, 10, cabinet door, 11, group battery, 12, second bolt, 13, draw-in groove, 14, loading board, 15, shutter.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a high-voltage cabinet for indoor and outdoor use is disclosed, as shown in figure 1, the left and right sides of the bottom of a base 1 are provided with self-locking rollers 2, the left and right sides of the upper end surface of the base 1 are provided with hydraulic cylinders 3, meanwhile, the upper sides of the hydraulic cylinders 3 are connected with a high-voltage cabinet body 5 through hydraulic rods 4, the hydraulic cylinders 3 and the high-voltage cabinet body 5 form a telescopic structure through the hydraulic rods 4, first bolts 6 are symmetrically arranged on the hydraulic rods 4, the high-voltage cabinet body 5 can move upwards under the action of the hydraulic cylinders 3 and the hydraulic rods 4 so as to drive internal equipment to move to a proper height and facilitate work at a specified position, the high-voltage cabinet body 5 is fixed on the hydraulic rods 4 through the first bolts 6, threaded rods 7 penetrate through the left and right sides of the bottom of the high-voltage cabinet body 5, the threaded rods 7 are in threaded connection with nuts 8, four threaded rods 7 and nuts 8 are, therefore, after the high-voltage cabinet body 5 is moved to a proper position, the nut 8 can be rotated to move upwards until the nut is attached to the lower end face of the high-voltage cabinet body 5, and the purpose of reinforcement is achieved.
According to fig. 1 and fig. 2, the downside of the high-voltage cabinet body 5 is provided with nut 8, and nut 8 threaded connection is on threaded rod 7, the front side of the high-voltage cabinet body 5 is connected with cabinet door 10 through hinge 9 rotation simultaneously, cabinet door 10 is connected for rotating through the connected mode between hinge 9 and the high-voltage cabinet body 5, cabinet door 10 can rotate forward under the effect of hinge 9, thereby make things convenient for the installation of equipment, after the installation, backward rotate cabinet door 10, thereby play certain isolation protection to equipment.
According to the drawings of fig. 1, fig. 2 and fig. 3, the battery pack 11 is fixed at the bottom inside the high-voltage cabinet 5 through the second bolt 12, the left and right side walls of the high-voltage cabinet 5 are both provided with the clamping grooves 13, the clamping grooves 13 are connected with the bearing plate 14 in a clamping manner, the battery pack 11 is electrically connected with the hydraulic cylinder 3, the battery pack 11 is in a threaded connection with the high-voltage cabinet 5 through the second bolt 12, when the device is in an outdoor power-free environment, the battery pack 11 can be fixed by rotating the second bolt 12, then the battery pack 11 can convert direct current into alternating current under the action of the inverter to supply the hydraulic cylinder 3 for use, so that the device is convenient to normally use, the bearing plate 14 is in a clamping connection with the high-voltage cabinet 5 through the clamping grooves 13, and the bearing plate 14 can be clamped and fixed on the high-voltage cabinet 5 through the clamping, and all can the erection equipment on two loading boards 14 to reach the purpose of categorised accomodating, shutter 15 has all been seted up to the terminal surface about the high-voltage board body 5.
The working principle is as follows: when the indoor and outdoor dual-purpose high-voltage cabinet is used, when the indoor and outdoor dual-purpose high-voltage cabinet is required to be used, the high-voltage cabinet is connected to an external power supply, the cabinet door 10 is rotated forwards under the action of the hinge 9, the bearing plate 14 is clamped into the clamping groove 13, the relevant equipment is installed and fixed on the bearing plate 14, then the first bolt 6 is screwed down, the high-voltage cabinet body 5 is fixed on the hydraulic rod 4, the hydraulic cylinder 3 is started, the hydraulic cylinder 3 drives the hydraulic rod 4 to extend, the high-voltage cabinet body 5 is driven to move upwards until the high-voltage cabinet body is moved to a proper position, then the nut 8 is screwed down, a certain reinforcing effect is achieved on the placement of the high-voltage cabinet body 5, when the high-voltage cabinet is required to be placed outdoors for use, the second bolt 12 is screwed down, the battery pack 11 is fixed in the high-voltage cabinet body 5, at the moment, the battery pack 11 can convert direct current into alternating current to be, and the louvers 15 allow the air to circulate and thus dissipate heat during use of the device, which is not described in detail herein and is well known to those skilled in the art.
The terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for ease of description, but are not intended to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the scope of the invention.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides an indoor outer dual-purpose high-voltage board, includes base (1) and group battery (11), its characterized in that: the cabinet is characterized in that self-locking rollers (2) are arranged on the left side and the right side of the bottom of the base (1), hydraulic cylinders (3) are arranged on the left side and the right side of the upper end face of the base (1), the upper sides of the hydraulic cylinders (3) are connected with a high-voltage cabinet body (5) through hydraulic rods (4), the high-voltage cabinet body (5) is fixed on the hydraulic rods (4) through first bolts (6), threaded rods (7) penetrate through the left side and the right side of the bottom of the high-voltage cabinet body (5), nuts (8) are arranged on the lower side of the high-voltage cabinet body (5), the nuts (8) are in threaded connection with the threaded rods (7), meanwhile, a cabinet door (10) is rotatably connected to the front side of the high-voltage cabinet body (5) through hinges (9), a battery pack (11) is fixed at the inner bottom of the high-voltage cabinet body (5), simultaneously the block is connected with loading board (14) between draw-in groove (13), shutter (15) have all been seted up to the terminal surface about the high-voltage board body (5).
2. An indoor and outdoor high-voltage cabinet according to claim 1, characterized in that: the hydraulic cylinder (3) and the high-voltage cabinet body (5) form a telescopic structure through a hydraulic rod (4), and first bolts (6) are symmetrically arranged on the hydraulic rod (4).
3. An indoor and outdoor high-voltage cabinet according to claim 1, characterized in that: the threaded rod (7) and the nut (8) are connected in a threaded mode, and the number of the threaded rod (7) and the number of the nut (8) are four.
4. An indoor and outdoor high-voltage cabinet according to claim 1, characterized in that: the cabinet door (10) is rotatably connected with the high-voltage cabinet body (5) through a hinge (9).
5. An indoor and outdoor high-voltage cabinet according to claim 1, characterized in that: the battery pack (11) is electrically connected with the hydraulic cylinder (3), and the battery pack (11) is in threaded connection with the high-voltage cabinet body (5) through the second bolt (12).
6. An indoor and outdoor high-voltage cabinet according to claim 1, characterized in that: the bearing plate (14) is connected with the high-voltage cabinet body (5) in a clamping manner through the clamping groove (13).
