CN210335875U - A height-adjustable working platform for hardware processing

Info

Publication number: CN210335875U
Application number: CN201921281237.6U
Authority: CN
Inventors: 陈佳伟
Original assignee: Suzhou Versheng Precision Machinery Technology Co Ltd
Current assignee: Suzhou Versheng Precision Machinery Technology Co Ltd
Priority date: 2019-08-08
Filing date: 2019-08-08
Publication date: 2020-04-17
Anticipated expiration: 2029-08-08

Abstract

The utility model discloses a height-adjustable working platform for hardware processing, which comprises a working platform, wherein a plurality of grooves are arranged inside the working platform, a connecting plate is inserted into the interior of the working platform, and the connecting plate is located under the groove, and is connected to the inside of the working platform. A number of moving blocks are fixedly connected to the top of the plate. Both ends of the moving blocks are fixedly connected with connecting blocks. The top of the connecting blocks are fixedly connected with springs. The upper ends of the springs are fixedly connected to the workbench. The table changer is clamped to some tools with bumps, and the work surface can be flattened by moving the block to provide different work surfaces. By designing a moving box to make it move up and down with the worktable to adjust the height, and the horizontal line where the moving box is located is not on the same horizontal line, the worktable can be inclined to generate an angle, so that the worktable can provide a variety of working environments. .

Description

But height-adjusting's workstation for hardware processing

Technical Field

The utility model relates to a hardware processing technology field specifically is a but height-adjusting's work platform for hardware processing.

Background

The hardware processing is to process raw materials into various parts according to the drawing or sample of a customer by using machines such as a lathe, a milling machine, a drilling machine, polishing and the like, wherein the machining comprises the following steps: screws, motor shafts, model car parts, fishing gear parts, sound box product shells, mobile power supply shells and the like. The hardware can use a working platform during processing.

At present, the current work platform for hardware processing in market does not have the height-adjusting function when using, just fixed height, can lead to the staff like this when needs height-adjusting, need dismantle many spare parts just can adjust, can reduce the efficiency of work like this, and general work platform does not have angle regulation's function moreover. Therefore, the technical personnel in the field provide a height-adjustable hardware processing working platform to solve the problems in the background art.

Disclosure of Invention

An object of the utility model is to provide a but height-adjusting's work platform for hardware processing to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a height-adjustable working platform for hardware machining comprises a working table, wherein a plurality of grooves are formed in the working table, a connecting plate is inserted into the working table and is located below the grooves, a plurality of moving blocks are fixedly connected above the connecting plate, connecting blocks are fixedly connected to two ends of each moving block, springs are fixedly connected above the connecting blocks, and the upper ends of the springs are fixedly connected with the working table; when the workbench is used, the tool with the bottom provided with the convex blocks can be conveniently clamped and connected through the grooves, when the smooth workbench surface is needed, the connecting plate is lifted by hands, the connecting plate rises to drive the moving block to overcome the acting force of the spring, the upper end of the moving block moves to the inside of the groove, and the upper surface of the moving block and the upper surface of the workbench are parallel and level to form a complete plane.

The equal a plurality of rotation seats of the equal fixedly connected with in both ends of workstation rotate the seat inside and be connected with the connecting seat, and the equal fixedly connected with in one side that the workstation was kept away from to the connecting seat removes the case, removes the vertical a plurality of support columns of inserting of incasement portion, and the inside bottom fixed mounting that removes the case has the motor, and the motor is located one side of support column, and the front end fixedly connected with gear of motor, one side of support column are equipped with the tooth's socket, and the gear passes through tooth. The motor of the inside of each movable box of controller control starts, drives the gear through the motor and rotates, and the gear meshes with the support column, so the movable box reciprocates along the support column, and the support column reciprocates and drives the workstation through connecting seat and rotation seat and reciprocates the height that changes the workstation, and two movable boxes place height difference about controlling through the controller control make table surface produce the angle and form an inclined plane round rotating the seat.

As a further aspect of the present invention: one side that the inside of removal case is located the support column rotates and is connected with the column that rolls, and the column that rolls all contacts with the inner wall and the support column of removal case. The rolling column is positioned between the supporting column and the moving box, so that sliding friction between the supporting column and the moving box is converted into sliding friction to reduce moving friction.

As a further aspect of the present invention: the equal fixedly connected with limiting plate in upper end of support column, the length and width of limiting plate all is greater than the length and width of support column. The limiting plate can limit the movable box to move out of the supporting column.

As a further aspect of the present invention: the worktable is characterized in that a lug is fixedly connected to one side of the worktable, a buckle is rotatably connected to one side of the connecting plate outside the worktable, and the buckle is clamped with the lug. The buckle is buckled on the convex block to play a role in fixing the position of the connecting plate.

As a further aspect of the present invention: the upper end of the limiting plate is fixedly provided with a controller, and the controller is electrically connected with the motor. The motor can be conveniently controlled by the controller.

As a further aspect of the present invention: the bottom of support column all fixedly connected with spliced pole, the lower extreme fixedly connected with universal wheel of spliced pole. The universal wheels can be used for conveniently pushing the workbench to move to other working areas or changing the position of the workbench due to the volume of the placed object.

Compared with the prior art, the beneficial effects of the utility model are that:

1. through the groove, the worktable can be clamped with tools with convex blocks, and the worktable can be leveled through the movable block, so that different worktable surfaces are provided.

2. The movable box is designed to drive the workbench to move up and down to adjust the height when moving up and down, and the workbench can be inclined to form an angle by the fact that the horizontal line of the position of the movable box is not in the same horizontal line, so that the workbench can provide various working environments.

Drawings

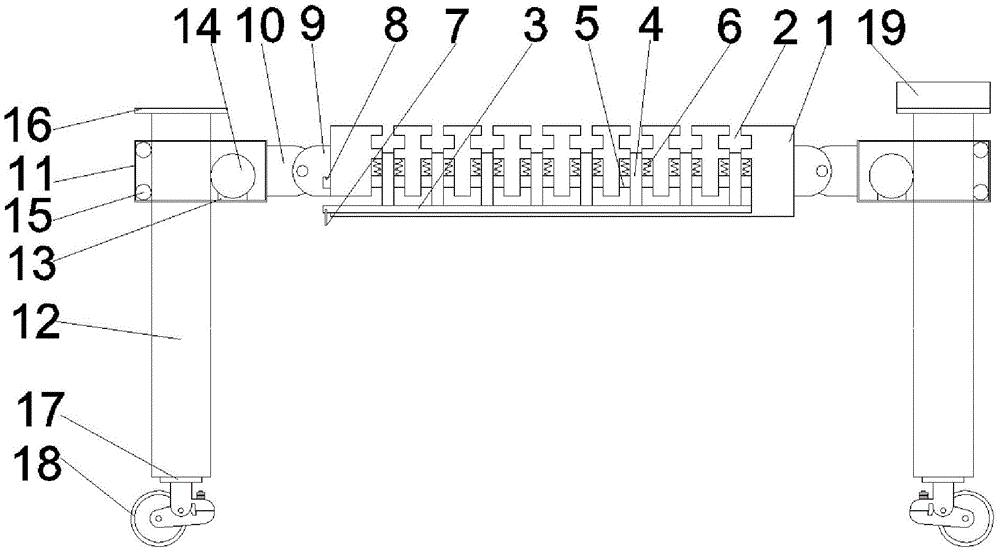

Fig. 1 is a schematic structural diagram of a height-adjustable hardware processing working platform.

Fig. 2 is a front view of a height-adjustable hardware machining work platform.

Fig. 3 is a perspective view of a height-adjustable hardware processing work platform.

In the figure: 1. a work table; 2. a groove; 3. a connecting plate; 4. a moving block; 5. connecting blocks; 6. a spring; 7. buckling; 8. a bump; 9. a rotating seat; 10. a connecting seat; 11. a mobile box; 12. a support pillar; 13. a motor; 14. a gear; 15. a rolling post; 16. a limiting plate; 17. connecting columns; 18. a universal wheel; 19. and a controller.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 3, in the embodiment of the present invention, the present invention includes a workbench 1, a plurality of grooves 2 are formed inside the workbench 1, a connecting plate 3 is inserted into the workbench 1, the connecting plate 3 is located below the grooves 2, a plurality of moving blocks 4 are fixedly connected above the connecting plate 3, connecting blocks 5 are fixedly connected to both ends of each of the moving blocks 4, springs 6 are fixedly connected above the connecting blocks 5, and the upper ends of the springs 6 are fixedly connected to the workbench 1; when the workbench is used, the tool with the bottom provided with the convex blocks can be conveniently clamped and connected through the groove 2, when the workbench is required to be smooth, the connecting plate 3 is lifted by a hand, the connecting plate 3 is lifted to drive the moving block 4 to overcome the acting force of the spring 6 to ascend, the upper end of the moving block 4 is moved to the inside of the groove 2, and the upper surface of the moving block 4 and the upper surface of the workbench 1 are parallel and level to form a complete plane.

The equal fixedly connected with in both ends of workstation 1 rotates seat 9, rotates the inside rotation of seat 9 and is connected with connecting seat 10, the equal fixedly connected with in one side that workstation 1 was kept away from to connecting seat 10 removes case 11, remove the inside vertical a plurality of support columns 12 that have inserted of case 11, the inside bottom fixed mounting of removing case 11 has motor 13, motor 13 is located one side of support column 12, the front end fixedly connected with gear 14 of motor 13, one side of support column 12 is equipped with the tooth's socket, gear 14 passes through tooth's socket and the meshing of support column 12. The controller 19 controls the motor 13 inside each moving box 11 to start, the motor 13 drives the gear 14 to rotate, the gear 14 is meshed with the supporting column 12, the moving boxes 11 move up and down along the supporting column 12, the supporting column 12 moves up and down, the connecting seat 10 and the rotating seat 9 drive the workbench 1 to move up and down to change the height of the workbench 1, and the controller 19 controls the left moving box 11 and the right moving box 11 to be different in height, so that the workbench forms an inclined plane by generating an angle around the rotating seat.

The inside of the mobile box 11 is located on one side of the support column 12 and is rotatably connected with a rolling column 15, and the rolling column 15 is in contact with the inner wall of the mobile box 11 and the support column 12. By the rolling column 15 being located between the support column 12 and the moving box 11, the sliding friction of the support column 12 and the moving box 11 is converted into the friction force of the sliding friction reducing movement.

The upper ends of the supporting columns 12 are fixedly connected with limiting plates 16, and the length and the width of the limiting plates 16 are larger than those of the supporting columns 12. The movement of the movable box 11 to the outside of the support column 12 can be restricted by the restriction plate 16.

The automatic welding device is characterized in that a convex block 8 is fixedly connected to one side of the workbench 1, a buckle 7 is rotatably connected to one side of the connecting plate 3 outside the workbench 1, and the buckle 7 is connected with the convex block 8 in a clamping mode. The function of fixing the position of the connecting plate 3 is realized by buckling the buckle 7 on the convex block 8.

The upper end of the limiting plate 16 is fixedly provided with a controller 19, and the controller 19 is electrically connected with the motor 13. Control of the motor 13 may be facilitated by a controller 19.

The bottom end of the support column 12 is fixedly connected with a connecting column 17, and the lower end of the connecting column 17 is fixedly connected with a universal wheel 18. The universal wheels 18 can be used for conveniently pushing the workbench 1 to move to other work areas or changing the position of the workbench 1 due to the volume of placed objects.

The utility model discloses a theory of operation is:

when the workbench is used, a plurality of tools with bumps at the bottom can be conveniently clamped and connected through the groove 2, when a smooth workbench surface is needed, the connecting plate 3 is lifted by hands, the connecting plate 3 is lifted to drive the moving block 4 to lift by overcoming the acting force of the spring 6, the upper end of the moving block 4 moves to the inside of the groove 2, the upper surface of the moving block 4 is flush with the upper surface of the workbench 1 to form a complete plane, the buckle 7 is buckled on the bump 8 to play a role in fixing the position of the connecting plate 3, when the height needs to be adjusted, the motor 13 in each moving box 11 is controlled to be started through the controller 19, the gear 14 is driven by the motor 13 to rotate, the gear 14 is meshed with the supporting column 12, so the moving box 11 moves up and down along the supporting column 12, the supporting column 12 moves up and down to drive the workbench 1 to move up and down through the, the rolling column 15 is positioned between the supporting column 12 and the moving box 11, the sliding friction between the supporting column 12 and the moving box 11 is converted into the friction force for reducing the sliding friction to move, and when the worktable needs to be inclined, the controller 19 controls the left moving box and the right moving box 11 to be different in height, so that the worktable surface forms an inclined plane around the rotating seat at an angle.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A working platform for hardware processing with adjustable height, comprising a working platform (1), characterized in that, a plurality of grooves (2) are provided inside the working platform (1), and the interior of the working platform (1) is inserted into There is a connecting plate (3), the connecting plate (3) is located below the groove (2), a plurality of moving blocks (4) are fixedly connected above the connecting plate (3), and both ends of the moving blocks (4) are fixedly connected with a the connection block (5), the upper part of the connection block (5) is fixedly connected with a spring (6), and the upper end of the spring (6) is fixedly connected with the workbench (1);

Both ends of the workbench (1) are fixedly connected with a plurality of rotating seats (9), and a connecting seat (10) is rotatably connected inside the rotating seat (9), and the connecting seat (10) is away from the side of the workbench (1). A moving box (11) is fixedly connected with each other, a plurality of supporting columns (12) are vertically inserted into the moving box (11), and a motor (13) is fixedly installed at the inner bottom end of the moving box (11). On one side of the column (12), the front end of the motor (13) is fixedly connected with a gear (14), one side of the support column (12) is provided with a tooth slot, and the gear (14) meshes with the support column (12) through the tooth slot.

2. A kind of height-adjustable hardware processing work platform according to claim 1, characterized in that, a rolling column (15) is rotatably connected to one side of the support column (12) inside the moving box (11) ), the rolling column (15) is in contact with the inner wall of the moving box (11) and the supporting column (12).

3. The height-adjustable working platform for hardware processing according to claim 1, wherein the upper ends of the support columns (12) are all fixedly connected to a limit plate (16), and the limit plate (16) Both the length and width are greater than the length and width of the support column (12).

4. The height-adjustable working platform for hardware processing according to claim 1, characterized in that, one side of the working platform (1) is fixedly connected with a bump (8), and one side of the connecting plate (3) is fixedly connected with a bump (8). The side is located outside the worktable (1) and is rotatably connected with a buckle (7), and the buckle (7) is engaged with the convex block (8).

5. The height-adjustable working platform for hardware processing according to claim 3, wherein a controller (19) is fixedly installed on the upper end of the limit plate (16), and the controller (19) is connected to the motor. (13) Electrical connection.

6. The height-adjustable hardware processing work platform according to claim 1, wherein the bottom ends of the support columns (12) are all fixedly connected with connecting columns (17), and the connecting columns (17) The lower end is fixedly connected with a universal wheel (18).
