Abstract
本实用新型公开了一种多功能工业蛋白粉生产用喷雾干燥机，包括进气管、主体、盘旋管、出料机构、输料绞龙、回收机构、保温棉和螺旋散热管，所述进气管的右侧连接到主体的壁体内，处理室内部的左侧安装有过滤网；所述主体上方的中间设置有离心喷雾器，第一连接管上安装有抽料泵；所述主体的下方设置有收集口，收集口的下方连接到出料机构；所述主体上方的右侧连接有第二连接管，第三连接管的左侧连接到回收机构内部的上方；所述回收机构的右侧上方安装有第四连接管，第四连接管上安装有第三风机。本实用新型通过设置的回收机构能够对排放气体中的蛋白粉粉尘进行过滤，回收排放气体中的蛋白粉粉尘。
The utility model discloses a multifunctional spray dryer for industrial protein powder production. The right side of the main body is connected to the wall of the main body, and a filter screen is installed on the left side of the inside of the processing chamber; a centrifugal sprayer is arranged in the middle above the main body, and a pumping pump is installed on the first connecting pipe; the lower part of the main body is arranged with a A collection port, the lower part of the collection port is connected to the discharge mechanism; the right side above the main body is connected with a second connection pipe, and the left side of the third connection pipe is connected to the upper part of the inside of the recovery mechanism; the upper right side of the recovery mechanism A fourth connection pipe is installed, and a third fan is installed on the fourth connection pipe. The utility model can filter the protein powder dust in the exhaust gas through the set recovery mechanism, and recover the protein powder dust in the exhaust gas.
Description
Technical Field
The utility model relates to an industrial protein powder production field specifically is a spray drier is used in production of multi-functional industrial protein powder.
Background
The industrial protein powder is mainly used for increasing nutrition of various animal feeds and increasing protein content, and can also be used for fire-fighting material addition, electrolytic plating and the like, the industrial protein powder is generally white powder or light yellow powder, is easy to dissolve in water and absorb moisture, and is prepared by hydrolysis, enzymolysis, filtration, deep processing and high-temperature spray drying under strictly controlled conditions. Most of the existing spray dryers for industrial protein powder are single in structure and functionality, insufficient in drying, and simultaneously, a large amount of protein powder dust is contained in gas discharged after drying, so that resource waste is caused, and meanwhile, certain pollution is easily caused to the environment by the protein powder dust.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a spray drier is used in production of multi-functional industrial protein powder to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a spray dryer for producing multifunctional industrial protein powder comprises an air inlet pipe, a main body, a spiral pipe, a discharging mechanism, a conveying auger, a recovery mechanism, heat preservation cotton and a spiral radiating pipe, wherein the right side of the air inlet pipe is connected into the wall body of the main body; a centrifugal sprayer is arranged in the middle above the main body, a first connecting pipe is connected above the centrifugal sprayer, a material pumping pump is mounted on the first connecting pipe, the left side of the first connecting pipe is connected to a material liquid barrel, a first motor is mounted in the middle above the material liquid barrel, a controller is arranged in the middle of the left side of the main body, and the controller is a PLC (programmable logic controller); a collecting port is arranged below the main body, the lower part of the collecting port is connected to the discharging mechanism, a second motor is installed on the left side of the discharging mechanism, and a second rotating shaft is inserted into the right side of the second motor; a second connecting pipe is connected to the right side above the main body, a second fan is mounted on the second connecting pipe, the right side of the second connecting pipe is connected to the lower portion of the left side of the recovery mechanism, a supporting plate is mounted in the middle of the interior of the recovery mechanism, a filter bag is mounted in the middle of the supporting plate, a third connecting pipe is mounted in the middle of the upper portion of the recovery mechanism, the left side of the third connecting pipe is connected to the upper portion of the interior of the recovery mechanism, and a gas compressor and a pulse valve are mounted on the third connecting; retrieve the right side top of mechanism and install the fourth connecting pipe, install the third fan on the fourth connecting pipe, all wrapped up the heat preservation cotton on the outer wall of fourth connecting pipe and second connecting pipe, the below of fourth connecting pipe is connected to the right side of spiral cooling tube, and spiral cooling tube twines in discharge mechanism's the outside, and the left side below of spiral cooling tube is provided with the gas vent.
As a further aspect of the present invention: the lower part of the first motor is spliced with a first rotating shaft, the left side and the right side of the first rotating shaft are uniformly provided with a plurality of stirring rods, and one side of the spiral pipe close to the inner wall of the main body is uniformly provided with a plurality of nozzles.
As a further aspect of the present invention: the second rotating shaft is provided with a material conveying auger, the right side of the second rotating shaft is connected with the discharging mechanism through a bearing seat, and the right side below the discharging mechanism is provided with a discharging port.
As a further aspect of the present invention: the gas compressor is located the right side top of pulse valve, and the pulse valve is located retrieves the mechanism, retrieves the below of mechanism and is provided with the mouth of retrieving, is provided with the control valve on retrieving the mouth.
As a further aspect of the present invention: the controller is electrically connected with the first motor, the second motor, the first fan, the second fan, the third fan and the heater through electric leads.
Compared with the prior art, the utility model can filter the protein powder dust in the exhaust gas through the arranged recovery mechanism, and recover the protein powder dust in the exhaust gas; the protein powder liquid in the liquid material barrel can be stirred by arranging the stirring rod, so that the protein powder liquid uniformly enters the main body, and the protein powder liquid is prevented from precipitating at the bottom of the liquid material barrel; the filter screen can be pulled out more easily through the arranged pull ring, and the filter screen is convenient to clean; the plurality of nozzles are uniformly distributed, so that the atomized protein powder material liquid in the main body can be dried more uniformly, and the drying effect is better; the spiral radiating pipe can recycle the waste heat in the exhaust gas, so that the protein powder is dried more fully, and the energy is saved and the environment is protected; the loss of waste heat in the gas can be reduced through the arranged heat insulation cotton; the conveying auger through setting up not only can carry out the automatic ejection of compact of carrying to albumen powder, but also can overturn albumen powder, makes the drying effect of albumen powder better.
Drawings

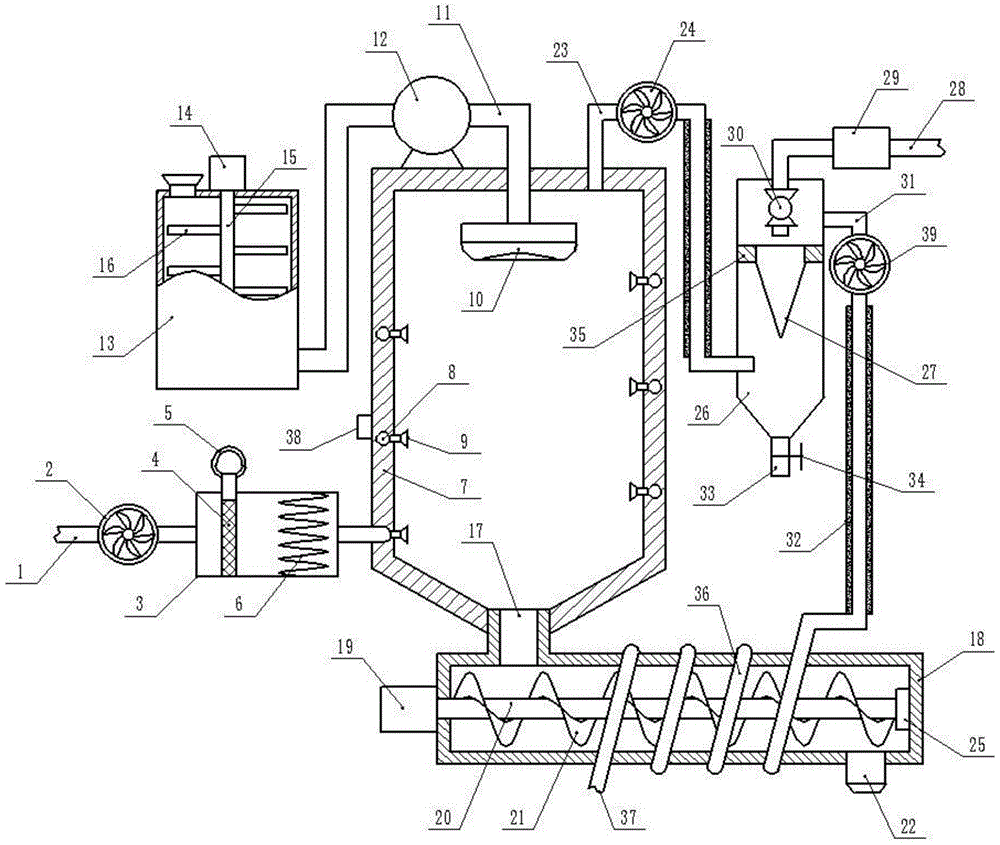

FIG. 1 is a schematic structural diagram of a spray dryer for producing multifunctional industrial protein powder.
FIG. 2 is a schematic view of a top-view cross-sectional structure of a main body of a spray dryer for producing multifunctional industrial protein powder.
FIG. 3 is a schematic structural diagram of a discharging mechanism in a spray dryer for multifunctional industrial protein powder production.
In the figure: 1. an air inlet pipe; 2. a first fan; 3. a processing chamber; 4. a filter screen; 5. a pull ring; 6. a heater; 7. a main body; 8. a coiled pipe; 9. a nozzle; 10. a centrifugal sprayer; 11. a first connecting pipe; 12. a material pumping pump; 13. a feed liquid barrel; 14. a first motor; 15. a first rotating shaft; 16. a stirring rod; 17. a collection port; 18. a discharging mechanism; 19. a second motor; 20. a second rotating shaft; 21. a material conveying auger; 22. a discharge port; 23. a second connecting pipe; 24. a second fan; 25. a bearing seat; 26. a recovery mechanism; 27. a filter bag; 28. a third connecting pipe; 29. a gas compressor; 30. a pulse valve; 31. a fourth connecting pipe; 32. heat preservation cotton; 33. a recovery port; 34. a control valve; 35. a support plate; 36. a spiral radiating pipe; 37. an exhaust port; 38. a controller; 39. and a third fan.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Referring to fig. 1-3, a spray dryer for producing multifunctional industrial protein powder comprises an air inlet pipe 1, a main body 7, a spiral pipe 8, a discharging mechanism 18, a material conveying auger 21, a recovery mechanism 26, heat insulation cotton 32 and a spiral radiating pipe 36; the right side of intake pipe 1 is connected to the wall body of main part 7 in, be provided with the coiled pipe 8 in the wall body of main part 7, the right side and the coiled pipe 8 of intake pipe 1 are connected, install first fan 2 and treatment chamber 3 respectively in the intake pipe 1, first fan 2 is located the left side of treatment chamber 3, filter screen 4 is installed in the inside left side of treatment chamber 3, the top of filter screen 4 is provided with pull ring 5, can filter the air that gets into through setting up filter screen 4 and purify, pull ring 5 through setting up can more conveniently pull out filter screen 4 and clear up, heater 6 is installed on the right side of filter screen 4, the model of heater 6 is ZJY-2.5.
A centrifugal sprayer 10 is arranged in the middle above the main body 7, a first connecting pipe 11 is connected above the centrifugal sprayer 10, a material pumping pump 12 is installed on the first connecting pipe 11, the left side of the first connecting pipe 11 is connected to a feed liquid barrel 13, a first motor 14 is installed in the middle above the feed liquid barrel 13, the model of the first motor 14 is Y160M-6, 7.5KW and 1500r/min, a first rotating shaft 15 is inserted below the first motor 14, a plurality of stirring rods 16 are uniformly arranged on the left side and the right side of the first rotating shaft 15, protein powder material liquid in the feed liquid barrel 13 can be stirred by arranging the stirring rods 16, so that the protein powder material liquid uniformly enters the main body 7, the protein powder is prevented from precipitating at the bottom of the feed liquid barrel 13, a plurality of nozzles 9 are uniformly arranged on one side of the spiral pipe 8 close to the inner wall of the main body 7, the atomized protein powder in the main body 7 can be more uniformly dried by uniformly arranging the plurality of nozzles 9, the drying effect is better, the controller 38 is arranged in the middle of the left side of the main body 7, the controller 38 is a PLC controller, and the model of the controller 38 is 6AG1052-2MD00-2BY 5.
The collecting port 17 is arranged below the main body 7, the discharging mechanism 18 is connected to the lower portion of the collecting port 17, the second motor 19 is installed on the left side of the discharging mechanism 18, the model number of the second motor 19 is Y160M1-2,11KW and 3000r/min, the second rotating shaft 20 is inserted into the right side of the second motor 19, the material conveying auger 21 is installed on the second rotating shaft 20, the right side of the second rotating shaft 20 is connected with the discharging mechanism 18 through a bearing seat 25, and the discharging port 22 is arranged on the right side below the discharging mechanism 18.
The right side of main part 7 top is connected with second connecting pipe 23, install second fan 24 on the second connecting pipe 23, the right side of second connecting pipe 23 is connected to the left side below of retrieving mechanism 26, the backup pad 35 is installed to the inside centre of retrieving mechanism 26, filter bag 27 is installed to the centre of backup pad 35, third connecting pipe 28 is installed in the centre of the top of retrieving mechanism 26, the left side of third connecting pipe 28 is connected to the inside top of retrieving mechanism 26, install gas compressor 29 and pulse valve 30 on the third connecting pipe 28 respectively, gas compressor 29 is located the right side top of pulse valve 30, pulse valve 30 is located retrieves mechanism 26, the below of retrieving mechanism 26 is provided with retrieves mouth 33, be provided with control valve 34 on retrieving mouth 33.
The fourth connecting pipe 31 is installed above the right side of the recycling mechanism 26, the third fan 39 is installed on the fourth connecting pipe 31, the third fan 39 and the first fan 2, the model of the second fan 24 is YWF4E-630S, the heat insulation cotton 32 is wrapped on the outer walls of the fourth connecting pipe 31 and the second connecting pipe 23, the loss of gas waste heat in the second connecting pipe 23 and the fourth connecting pipe 31 can be reduced by arranging the heat insulation cotton 32, the lower part of the fourth connecting pipe 31 is connected to the right side of the spiral radiating pipe 36, the spiral radiating pipe 36 is wound on the outer side of the discharging mechanism 18, the gas waste heat can be reused for the protein powder in the discharging mechanism 18 by arranging the spiral radiating pipe 36, the drying effect of the protein powder is better, the energy is more energy-saving and environment-friendly, the exhaust port 37 is arranged below the left side of the spiral radiating pipe 36, the controller 38 is respectively connected with the first motor 14 through, The second motor 19, the first fan 2, the second fan 24, the third fan 39 and the heater 6 are electrically connected.
In the use process of the utility model, the first motor 14 rotates to drive the first rotating shaft 15 to rotate, the first rotating shaft 15 drives the stirring rod 16 to rotate, the stirring rod 16 uniformly stirs the protein powder liquid in the liquid barrel 13, and then the protein powder liquid is sprayed into the main body 7 through the centrifugal sprayer 10 under the action of the material pumping pump 12; air is introduced into the processing chamber 3 under the action of the first fan 2, the air is filtered by the filter screen 4 and heated by the heater 6, enters the spiral pipe 8 and is sprayed into the main body 7 through the nozzle 9, the protein powder liquid sprayed in the main body 7 is dried, the dried protein powder enters the discharging mechanism 18 through the collecting port 17, the second rotating shaft 20 is driven to rotate under the action of the second motor 19, the second rotating shaft 20 drives the material conveying auger 21 to rotate, and the protein powder is conveyed to the right side by the material conveying auger 21; the gaseous effect that produces after the drying in the main part 7 enters into in retrieving mechanism 26 through second fan 24, gaseous after the filter bag 27 filters, gaseous effect that receives third fan 39 enters into spiral radiating pipe 36 in, waste heat in the gas continues to be discharged through gas vent 37 after being recycled by discharge mechanism 18, the albumen powder dust in the filter bag 27 filtered gas is attached to the surface at filter bag 27, behind the outer surface accumulation a certain amount of albumen powder dust of filter bag 27, make compressed gas impact filter bag 27 through pulse valve 30 effect, make the albumen powder dust drop, and retrieve through retrieving mouth 33.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.
Claims (5)
1. A spray dryer for producing multifunctional industrial protein powder comprises an air inlet pipe (1), a main body (7), a coiled pipe (8), a discharging mechanism (18), a conveying auger (21), a recovery mechanism (26), heat-insulating cotton (32) and a spiral radiating pipe (36), and is characterized in that the right side of the air inlet pipe (1) is connected into the wall body of the main body (7), the coiled pipe (8) is arranged in the wall body of the main body (7), the right side of the air inlet pipe (1) is connected with the coiled pipe (8), a first fan (2) and a treatment chamber (3) are respectively arranged on the air inlet pipe (1), the first fan (2) is positioned on the left side of the treatment chamber (3), a filter screen (4) is arranged on the left side inside the treatment chamber (3), a pull ring (5) is arranged above the filter screen (4), and a heater (6) is arranged on the right side of the; a centrifugal sprayer (10) is arranged in the middle above the main body (7), a first connecting pipe (11) is connected above the centrifugal sprayer (10), a material pumping pump (12) is mounted on the first connecting pipe (11), the left side of the first connecting pipe (11) is connected to a material liquid barrel (13), a first motor (14) is mounted in the middle above the material liquid barrel (13), a controller (38) is arranged in the middle of the left side of the main body (7), and the controller (38) is a PLC (programmable logic controller); a collecting port (17) is arranged below the main body (7), the lower part of the collecting port (17) is connected to a discharging mechanism (18), a second motor (19) is installed on the left side of the discharging mechanism (18), and a second rotating shaft (20) is inserted into the right side of the second motor (19); a second connecting pipe (23) is connected to the right side above the main body (7), a second fan (24) is installed on the second connecting pipe (23), the right side of the second connecting pipe (23) is connected to the lower portion of the left side of the recovery mechanism (26), a supporting plate (35) is installed in the middle of the interior of the recovery mechanism (26), a filter bag (27) is installed in the middle of the supporting plate (35), a third connecting pipe (28) is installed in the middle of the upper portion of the recovery mechanism (26), the left side of the third connecting pipe (28) is connected to the upper portion of the interior of the recovery mechanism (26), and a gas compressor (29) and a pulse valve (30) are installed on the third connecting pipe (28); retrieve the right side top of mechanism (26) and install fourth connecting pipe (31), install third fan (39) on fourth connecting pipe (31), all wrap up thermal insulation cotton (32) on the outer wall of fourth connecting pipe (31) and second connecting pipe (23), the below of fourth connecting pipe (31) is connected to the right side of spiral cooling tube (36), spiral cooling tube (36) twine in the outside of discharge mechanism (18), the left side below of spiral cooling tube (36) is provided with gas vent (37).
2. The spray dryer for producing the multifunctional industrial protein powder as claimed in claim 1, wherein a first rotating shaft (15) is inserted below the first motor (14), a plurality of stirring rods (16) are uniformly arranged on the left side and the right side of the first rotating shaft (15), and a plurality of nozzles (9) are uniformly arranged on one side of the spiral pipe (8) close to the inner wall of the main body (7).
3. The spray dryer for producing the multifunctional industrial protein powder as claimed in claim 1, wherein the second rotating shaft (20) is provided with a material conveying auger (21), the right side of the second rotating shaft (20) is connected with the discharging mechanism (18) through a bearing seat (25), and the right side below the discharging mechanism (18) is provided with a discharging port (22).
4. The spray dryer for producing multifunctional industrial protein powder as claimed in claim 1, wherein the gas compressor (29) is located above the right side of the pulse valve (30), the pulse valve (30) is located in the recovery mechanism (26), the recovery port (33) is arranged below the recovery mechanism (26), and the control valve (34) is arranged on the recovery port (33).
5. The spray dryer for producing the multifunctional industrial protein powder as claimed in claim 1, wherein the controller (38) is electrically connected with the first motor (14), the second motor (19), the first fan (2), the second fan (24), the third fan (39) and the heater (6) through electrical conductors.
