CN210329846U

CN210329846U - Space-saving multifunctional storage wardrobe

Info

Publication number: CN210329846U
Application number: CN201920148571.8U
Authority: CN
Inventors: 郝旭军; 赵晋华; 杜少佳
Original assignee: Taiyuan Crowdsourcing Cluster Technology Service Co Ltd
Current assignee: Taiyuan Crowdsourcing Cluster Technology Service Co Ltd
Priority date: 2019-01-28
Filing date: 2019-01-28
Publication date: 2020-04-17
Anticipated expiration: 2029-01-28

Abstract

The utility model discloses a the utility model provides a can practice thrift multi-functional wardrobe of accomodating in space, including the cabinet body and base, the fixed long wardrobe that is equipped with in inside of the cabinet body, the bottom mounting of long wardrobe is equipped with by the cabinet, and one side of long wardrobe is fixed and is equipped with two short wardrobes, and the bottom mounting of the cabinet body is equipped with the sundries cabinet, the bottom of the cabinet body and the top fixed connection of base, the fixed drawer that is equipped with in inside of base, the opposite side of drawer and one side fixed connection of fan room, the fixed fan fixed plate that is equipped with in inside of fan room. The utility model relates to a can practice thrift multi-functional wardrobe of accomodating in space owing to adopt the convex design of 90 degrees, can put in idle corner, fully used the idle area of corner, saved the interior space, its mellow circular arc molding does not influence the placeeing of other adjacent articles, and space utilization is high, can give the internal portion air supply of cabinet through base internally mounted's fan, can prevent that the internal portion of cabinet's clothing from weing and going mildy in rainy day.

Description

Space-saving multifunctional storage wardrobe

Technical Field

The utility model relates to a accomodate the wardrobe, in particular to can practice thrift multi-functional wardrobe of accomodating in space belongs to furniture articles for use technical field.

Background

The wardrobe is a cabinet for storing clothes, generally takes stainless steel, solid wood, toughened glass and hardware accessories as materials, generally takes a wardrobe body, a door panel, silent wheels and a door curtain as components, is internally provided with accessories such as a clothes hanging rod, a trousers rack, a pull basket, a disinfection lamp and the like, adopts the processes of punching, assembling, riveting, welding and the like, has the functions of inflaming retarding, rat proofing, dust proofing, moth proofing, moisture proofing, cleanness, beauty, convenient movement and the like, has a large-capacity intelligent disinfection wardrobe, a power-free through glass cabinet, a stainless steel wardrobe, an ultraviolet disinfection clean-keeping wardrobe, a moisture-proof multifunctional wardrobe, a man-woman wardrobe, a drying wardrobe and a folding wardrobe, is one of furniture commonly used in families, is mostly in a rectangular shape, has a large size, occupies a large indoor space, cannot place other articles if the wardrobe is placed on one side of a corner if the wardrobe is placed in the corner, and the occupied area is increased in an invisible way, and a common storage wardrobe does not have the function of air-drying clothes, and if the clothes are easy to get mildewed in rainy days.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a can practice thrift multi-functional wardrobe of accomodating in space to the common wardrobe of accomodating that proposes in solving above-mentioned background accounts for the space, and does not have the problem of the function of air-drying the clothing.

In order to achieve the above object, the utility model provides a following technical scheme: a multifunctional storage wardrobe capable of saving space comprises a wardrobe body and a base, wherein a long wardrobe is fixedly arranged inside the wardrobe body, a quilt cabinet is fixedly arranged at the bottom end of the long wardrobe, two short wardrobes are fixedly arranged on one side of the long wardrobe body, a sundries cabinet is fixedly arranged at the top end of the wardrobe body, a first blank space is fixedly arranged inside the sundries cabinet, second blank spaces are fixedly arranged on two sides of the first blank space, the bottom end of the wardrobe body is fixedly connected with the top end of the base, a drawer is fixedly arranged inside the base, the other side of the drawer is fixedly connected with one side of a fan chamber, a fan fixing plate is fixedly arranged inside the fan chamber, four corners of the fan fixing plate are fixedly connected with four corners at the bottom end of the fan through fixing bolts, an air outlet pipe of the fan is fixedly connected with the bottom end of an air outlet, and a switch panel is fixedly arranged on the, the surface of the switch panel is fixedly provided with a fan switch, and the fan is electrically connected with the power supply through the fan switch.

As an optimal technical scheme of the utility model, the inside of long wardrobe and the inside of two short wardrobes are all fixed and are equipped with three first draw-in groove and three second draw-in groove, and one of them first draw-in groove and one of them second draw-in groove block respectively with the both ends of peg and be connected.

As an optimal technical solution of the utility model, one side of base bottom and one side of sundries cabinet bottom are all fixed and are equipped with the sliding door track, two the sliding door track respectively with the top of two sliding doors and the bottom sliding connection of two sliding doors.

As an optimized technical proposal of the utility model, the side cabinets are fixed on both sides of the drawer.

As an optimal technical scheme of the utility model, one side of fan room articulates there is the access door, the fixed thermovent of having seted up of opposite side of fan room.

As an optimized technical scheme of the utility model, the fixed surface of air outlet covers there is the protection network.

As an optimized technical proposal of the utility model, a plurality of through holes are fixedly arranged at the bottom end of the long wardrobe, the bottom end of the sundries cabinet and the bottom end of one of the short wardrobes

Compared with the prior art, the beneficial effects of the utility model are that: the utility model relates to a multifunctional storage wardrobe capable of saving space, which adopts a 90-degree arc design, can be placed at an idle corner, fully utilizes the idle area at the corner, saves the indoor space, the rounded arc shape does not affect the placement of other adjacent objects, the space utilization rate is high, the fan arranged in the base can supply air to the interior of the cabinet body, can prevent clothes in the wardrobe body from being affected with damp and mildewing in rainy days, the wardrobe body is internally provided with a long wardrobe and a short wardrobe respectively, can be put in order according to the category, the bottom end of the wardrobe is fixedly provided with a quilt cabinet which can be used for storing an idle quilt, the inside of the sundries cabinet is fixedly provided with a first blank space, the two sides of the first blank space are both fixedly provided with a second blank space, the small articles which are not used can be placed according to the class rules, and the drawer is fixedly arranged in the base and can be used for placing important articles into the drawer and locking the drawer.

Drawings

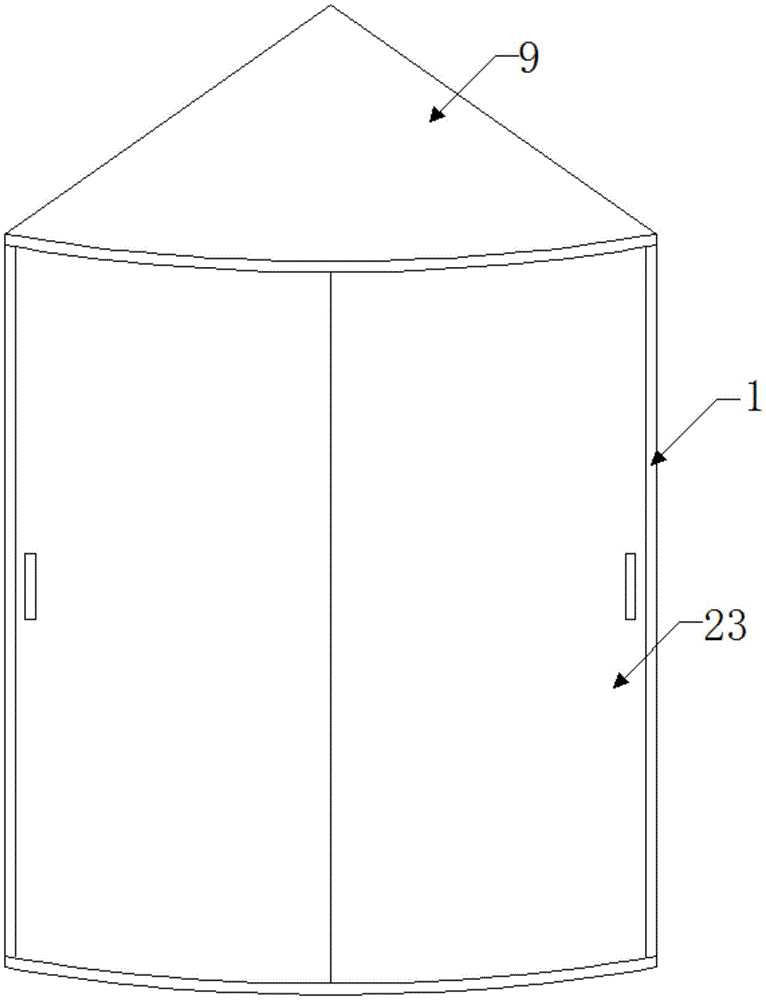

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of the cabinet body of the present invention;

fig. 3 is a schematic structural diagram of the base of the present invention.

In the figure: 1. a cabinet body; 2. a wardrobe is lengthened; 3. a first card slot; 4. a second card slot; 5. a hanging rod; 6. a quilt cabinet; 7. a short wardrobe; 8. a switch panel; 9. a sundries cabinet; 10. a first space; 11. a second space; 12. a base; 13. a drawer; 14. a side cabinet; 15. a sliding door track; 16. a fan chamber; 17. a fan fixing plate; 18. a fan; 19. fixing the bolt; 20. an access door; 21. a heat dissipation port; 22. an air outlet; 23. a sliding door.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the utility model provides a multifunctional storage wardrobe capable of saving space, comprising a wardrobe body 1 and a base 12, wherein a long wardrobe 2 is fixedly arranged inside the wardrobe body 1, a quilt 6 is fixedly arranged at the bottom end of the long wardrobe 2, two short wardrobes 7 are fixedly arranged at one side of the long wardrobe 2, a sundries cabinet 9 is fixedly arranged at the top end of the wardrobe body 1, a first blank 10 is fixedly arranged inside the sundries cabinet 9, second blanks 11 are fixedly arranged at both sides of the first blank 10, the bottom end of the wardrobe body 1 is fixedly connected with the top end of the base 12, a drawer 13 is fixedly arranged inside the base 12, the other side of the drawer 13 is fixedly connected with one side of a fan chamber 16, a fan fixing plate 17 is fixedly arranged inside the fan chamber 16, four corners of the fan fixing plate 17 are fixedly connected with four corners of the bottom end of a fan 18 through fixing bolts 19, an air outlet pipe of the fan 18 is fixedly connected with the bottom, the inner wall of base 12 one side is fixed and is equipped with flush mounting plate of switch 8, and flush mounting plate of switch 8's fixed surface is equipped with the fan switch, and fan 18 passes through fan switch and power electric connection.

Preferably, the inside of long wardrobe 2 and the inside of two short wardrobes 7 all fixedly are equipped with three first draw-in grooves 3 and three second draw-in groove 4, and one of them first draw-in groove 3 and one of them second draw-in groove 4 block with the both ends card of peg 5 respectively and are connected, are convenient for install and dismantle, and can adjust the height of peg 5.

Preferably, the sliding door rails 15 are fixedly arranged on one side of the bottom end of the base 12 and one side of the bottom end of the sundries cabinet 9, the two sliding door rails 15 are respectively connected with the top ends of the two sliding doors 23 and the bottom ends of the two sliding doors 23 in a sliding manner, so that the sliding doors 23 can be opened and closed conveniently, and the opening and closing process does not occupy the space outside the cabinet body 1.

Preferably, the side cabinets 14 are fixedly arranged on two sides of the drawer 13, so that the storage space of the base 12 is enriched.

Preferably, one side of the fan chamber 16 is hinged with an access door 20, the fan 18 can be overhauled through the access door 20, and the other side of the fan chamber 16 is fixedly provided with a heat dissipation opening 21, so that the fan 18 which works for a long time can quickly dissipate heat.

Preferably, the surface of the air outlet 22 is fixedly covered with a protective net to prevent the clothes inside the cabinet 1 from falling to the fan chamber 16.

Preferably, the bottom end of the long wardrobe 2, the bottom end of the sundries cabinet 9 and the bottom end of one of the short wardrobes 7 are all fixedly provided with a plurality of through holes, so that the ventilation effect is good, and the wind generated by the fan 18 can be blown to the sundries cabinet 9.

When the multifunctional storage wardrobe is used, the wardrobe body 1 is placed at a free corner in a room, the two sliding doors 23 are pushed to the same direction, long clothes can be hung on the hanging rod 5, the wardrobe body can be lifted by changing the positions of the hanging rod 5, the first clamping groove 3 and the second clamping groove 4, the wardrobe 6 can be used for storing idle quilts, then the two sliding doors 23 are pushed to the other direction, short clothes can be hung in the two short wardrobes 7 through the hanging rod 5, the sundries cabinet 9 at the top end of the wardrobe body 1 can be used for classifying and placing sundries, important personal articles can be placed in the drawer 13 and locked, then the two sliding doors 23 are closed, if the wardrobe is in rainy days or when the clothes are not completely dried, the fan switch can be opened through the switch panel 8, the fan 18 with the model number of SK800 starts to supply air, the air generated by the fan 18 reaches the sundries cabinet body 9 through the wardrobe body 1, the clothes which are not completely dried in the cabinet body 1 and the sundries cabinet 9 can be quickly dried.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.

In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A multifunctional storage wardrobe capable of saving space comprises a wardrobe body (1) and a base (12), and is characterized in that a long wardrobe (2) is fixedly arranged inside the wardrobe body (1), a quilt cabinet (6) is fixedly arranged at the bottom end of the long wardrobe (2), two short wardrobes (7) are fixedly arranged on one side of the long wardrobe (2), a sundries cabinet (9) is fixedly arranged at the top end of the wardrobe body (1), a first blank (10) is fixedly arranged inside the sundries cabinet (9), second blanks (11) are fixedly arranged on two sides of the first blank (10), the bottom end of the wardrobe body (1) is fixedly connected with the top end of the base (12), a drawer (13) is fixedly arranged inside the base (12), the other side of the drawer (13) is fixedly connected with one side of a fan chamber (16), a fan fixing plate (17) is fixedly arranged inside the fan chamber (16), four corners of fan fixed plate (17) all are through four corner fixed connection of fixing bolt (19) and fan (18) bottom, the bottom fixed connection of the play tuber pipe of fan (18) and air outlet (22), the inner wall of base (12) one side is fixed and is equipped with flush mounting plate (8), the fixed surface of flush mounting plate (8) is equipped with the fan switch, fan (18) are through fan switch and power electric connection.

2. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: the inside of long wardrobe (2) and the inside of two short wardrobes (7) all are fixed and are equipped with three first draw-in groove (3) and three second draw-in groove (4), and one of them first draw-in groove (3) and one of them second draw-in groove (4) block respectively with the both ends card of peg (5) and be connected.

3. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: and one side of the bottom end of the base (12) and one side of the bottom end of the sundries cabinet (9) are respectively fixedly provided with a sliding door track (15), and the two sliding door tracks (15) are respectively connected with the top ends of the two sliding doors (23) and the bottom ends of the two sliding doors (23) in a sliding manner.

4. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: and side cabinets (14) are fixedly arranged on two sides of the drawer (13).

5. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: one side of the fan chamber (16) is hinged with an access door (20), and the other side of the fan chamber (16) is fixedly provided with a heat dissipation opening (21).

6. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: and a protective net is fixedly covered on the surface of the air outlet (22).

7. The multifunctional space-saving storage wardrobe according to claim 1, characterized in that: the bottom end of the long wardrobe (2), the bottom end of the sundries cabinet (9) and the bottom end of one of the short wardrobes (7) are all fixedly provided with a plurality of through holes.
