Abstract
The utility model discloses an emergency tracheotomy operation device; comprises a storage table, a lifting device, an operating table and a storage box; the lifting device is arranged at the rear middle part of the upper end surface of the object placing table; the operating rack is arranged right above the object placing table, and the rear middle part of the lower bottom surface of the operating rack is connected with the top of the lifting device; the upper end surface of the storage box is abutted against the lower bottom surface of the operating platform, and the front middle part of the upper end surface of the storage box is rotatably connected with the front middle part of the operating platform through a rotating shaft piece; the front middle part of the upper end surface of the operating platform is fixedly provided with an operating handle connected with the rotating shaft piece; the effect is as follows: the operation table can be moved to the upper part of the sickbed by moving the object placing table to the bottom of the sickbed, the height of the lifting device is adjusted to be suitable for adjusting the operation table to place tracheotomy first-aid articles so as to facilitate the tracheotomy of a doctor to a patient, the object placing box is rotated out of the lower bottom surface of the operation table, so that the doctor can conveniently take the medical articles required by the tracheotomy, and the trouble of temporarily moving the medical nursing cart provided with the tracheotomy first-aid box to the side of the sickbed is saved.
Description
Technical Field
The utility model relates to a medical equipment technical field, specifically say, relate to an urgent trachea opens operating means.
Background
In otorhinolaryngology departments of various hospitals, for emergency patients needing to open trachea urgently, an operation table is often required to be moved to the upper part of a sickbed to be close to the neck of the patient lying on the sickbed, a medical nursing cart is also required to be used for carrying a tracheotomy first-aid kit containing tracheotomy medical articles to the side of the sickbed, and then a doctor opens the corresponding tracheotomy first-aid kit to take the needed medical articles to be placed on the corresponding operation table for the urgent tracheotomy of the patient.
Although widely used, the above-described operating modes still have certain drawbacks and disadvantages.
Particularly, on the one hand, to the emergency treatment patient who needs promptly to open the trachea, temporarily divide to move an operation panel and a medical nursing shallow to the sick bed of placing the autogenous cutting first-aid kit around for can waste a large amount of time, make high-efficient first aid, on the other hand, move an operation panel and a medical nursing shallow to the sick bed temporarily, make occupation space big, and, the doctor still need look for interim required medical article when opening corresponding autogenous cutting first-aid kit, make the troublesome poeration and waste time and energy.
Therefore, aiming at the current situation, it is necessary to design an emergency tracheotomy operation device with an operation table and a storage box pre-equipped with tracheotomy first-aid products, so as to form efficient first-aid, and to make the occupied space of medical equipment small and the tracheotomy first-aid products convenient to take.
SUMMERY OF THE UTILITY MODEL
The utility model aims to overcome the defects of the prior art and provide an emergency tracheotomy operation device.
The utility model provides a technical scheme that prior art problem adopted is: an emergency tracheotomy operation device comprises a storage table for placing medical equipment, a lifting device, an operation table for promoting tracheotomy and a storage box with an open upper end for placing tracheotomy first-aid products;
the lifting device is vertically fixed in the middle of the rear part of the upper end surface of the object placing table; the operating platform is erected right above the object placing platform, and the rear middle part of the lower bottom surface of the operating platform is connected with the top of the lifting device; the upper end surface of the storage box is abutted against the lower bottom surface of the operating platform, and the front middle part of the upper end surface of the storage box is rotatably connected with the front middle part of the operating platform through a rotating shaft piece which penetrates through the front middle part of the operating platform from top to bottom; an operating handle connected with the rotating shaft piece is fixedly arranged in the front middle part of the upper end face of the operating platform;
when the operating handle is rotated, the storage box can be rotated to enable the upper end opening to be completely exposed out of the lower bottom surface of the operating platform.
The above technical solution is further described as follows:
preferably, the device further comprises four universal rotating wheels with braking members; the four universal rotating wheels are correspondingly and fixedly arranged at four corners of the lower bottom surface of the object placing table.
Preferably, the lifting device comprises a lifting rod, a supporting rod with a hollow structure and a locking bolt for fixing the lifting rod and the supporting rod;
the upper end of the lifting rod is fixedly connected with the rear middle part of the lower bottom surface of the operating platform, and the lower end of the lifting rod is sleeved in the supporting rod with a hollow structure; the lower end of the supporting rod is fixedly connected with the rear middle part of the upper end surface of the object placing table; the locking bolt is fixedly arranged outside the upper end of the supporting rod and penetrates through the supporting rod to abut against the lower end of the lifting rod.
Preferably, the operating table comprises a table top, a guard arranged on the periphery of the upper end face of the table top, and a baffle vertically fixed on the front side of the upper end face of the table top; the baffle is parallel with the front side of the upper end surface of the table board and is adjacent to the operating handle.
Preferably, two longitudinal partition plates are arranged in parallel in the storage box along the front-back direction, so that the storage box is divided into a chamber A, a chamber B and a chamber C from left to right;
two transverse clapboards are arranged in the cavity A side by side along the left-right direction so as to divide the cavity A into a first placing grid for placing the simple autogenous cutting bag, a second placing grid for placing the cricothyroid membrane puncture suit and a third placing grid for placing the sterile cotton swab and the 0.5% iodophor bottle from front to back;
two transverse partition plates are arranged in the cavity B side by side along the left-right direction so as to divide the cavity B into a fourth placing grid for placing a laryngoscope, an alligator forceps and a bite block, a fifth placing grid for placing a tracheal intubation catheter, an intubation tube core, a tracheotomy tube with an air bag, a sputum suction tube and a disposable suction tube and a sixth placing grid for placing an oropharynx air duct and a nasopharynx air duct from front to back;
two transverse clapboards are arranged in the chamber C side by side along the left-right direction so as to divide the chamber C into a seventh placing grid for placing a standby battery, a flashlight and a head lamp, an eighth placing grid for placing sterile gloves and a ninth placing grid for placing a autogenous cutting mask from front to back.
Preferably, the front edge of the opening at the upper end of the storage box is provided with an indication label corresponding to the positions of the first placing lattice, the fourth placing lattice and the seventh placing lattice respectively, wherein the indication label is used for indicating information of articles stored in the placing lattices at the opposite positions;
the middle parts of the upper end surfaces of the transverse partition boards are respectively provided with an indicating label for indicating the information of the articles stored in the corresponding placing grids at the rear sides of the transverse partition boards;
an elastic containing bag for containing the iodophor bottle is fixedly arranged on the inner wall of the third placing grid;
the middle part of the left inner wall of the article placing box, the middle parts of the opposite inner walls of the two transverse partition plates and the middle part of the right inner wall of the article placing box are respectively provided with a sliding chute along the length direction, and the middle parts of the two sides of the plurality of transverse partition plates are respectively provided with a sliding block which can slide back and forth and is clamped in the sliding chutes at the opposite positions in an outward protruding way; when the transverse partition plates slide forwards and backwards, the first placing grid, the second placing grid, the third placing grid, the fourth placing grid, the fifth placing grid, the sixth placing grid, the seventh placing grid, the eighth placing grid and the ninth placing grid are adjustable in size.
Preferably, the elastic bag comprises a flexible bag body, fixing blocks vertically fixed at the two side edges of the flexible bag body respectively, and elastic bands arranged around an opening at the upper end of the flexible bag body;
the two fixing blocks are respectively fixed on the inner wall of the third placing grid so that the elastic containing bag and the third placing grid are integrated;
when the elastic bands are in a natural state or a contraction state, the flexible bag body is horizontally stacked from the upper end opening to the bottom of the flexible bag body, so that the flexible bag body is attached to the inner wall of the third placing grid.
Preferably, the front ends of the two side surfaces of the table top are respectively provided with a locking piece for locking the storage box.
Preferably, the locking piece comprises a lock cylinder fixedly arranged at the front end of the side surface of the table top and a lock bolt fixed outside the lock cylinder and capable of rotating along the side surface of the table top;
when a management key is inserted into the lock cylinder and the lock cylinder is screwed, the lock bolt can rotate from the horizontal direction to the vertical direction, so that the object placing box is locked and limited on the lower bottom surface of the operating platform or is stopped and limited to be exposed out of the lower bottom surface of the operating platform.
Preferably, the object placing table, the lifting device, the operating table and the object placing box are all made of stainless steel materials.
The utility model has the advantages that:
one of the two aspects of the present invention provides an emergency tracheotomy operation device, which, when in specific implementation, on one hand, when the platform is moved to the bottom of the sickbed, the platform can be moved to the upper part of the sickbed to close the neck of the patient, and when the height of the lifting device is adjusted, the platform can be adjusted to a proper height to place the tracheotomy first-aid appliance for the patient to perform the tracheotomy operation, on the other hand, the upper end of the device, which is rotatable and used for placing the tracheotomy first-aid appliance, is formed into an open storage box, when not in use, the storage box can be rotated to the bottom surface under the platform, so that the external space is not occupied, when in use, the device can be directly rotated out of the bottom surface of the platform, so that the doctor can conveniently take the medical articles needed by the tracheotomy operation, and the trouble of temporarily moving the medical nursing cart with the tracheotomy first-aid box to the side of the sickbed is eliminated, make operation labour saving and time saving then make can save tracheotomy emergency time greatly for can form high-efficient first aid, and then, the utility model discloses an organic whole is multi-purpose, and the practicality is strong, excellent in use effect.
Secondly, in this technical scheme, on the one hand, the utility model discloses still include four correspondences set firmly in put the universal rotating wheel that has the stopper in thing platform bottom surface four corners, make convenient for the utility model discloses a pass and fixed, make the utility model discloses it is convenient to transport, on the other hand, the baffle that sets up is convenient for keep apart put the thing box with make used medical article for the trachea of surely using on the mesa for anti-pollution effectual, and, be provided with the placing grid that is used for placeeing different medical article for the trachea of surely using in putting the thing box, every placing grid leading edge is equipped with an instruction label that is used for instructing the article information of depositing in the corresponding placing grid respectively, so, even make the medical article of surely using the trachea place the well-arranged and clearly, make convenient and swift get and deposit, and a plurality of horizontal separators all can slide around, so, even make first placing grid, Second place check, third place check, fourth place check, fifth place check, sixth place check, seventh place check, eighth place check reach ninth place check size is adjustable, makes all can come nimble the regulation according to the occupation space of actual deposit article in it, makes the use have more practicality and hommization, simultaneously, the elasticity accomodate the bag that sets up is at the splendid attire then be the state of tightening up behind the iodophor bottle, makes the iodophor bottle fixity of splendid attire good and the isolation good, makes can not bump and friction and lead to being bumped or even hit the breakage, and when not splendid attire iodophor bottle, corresponding elasticity accomodate the bag can contract automatically and be the level and pile up the state to laminate mutually with corresponding place check inner wall, make and not occupy the inner space, do not influence the depositing of other article in the corresponding place check, and then, the utility model discloses an excellent use effect can be reached.
Drawings

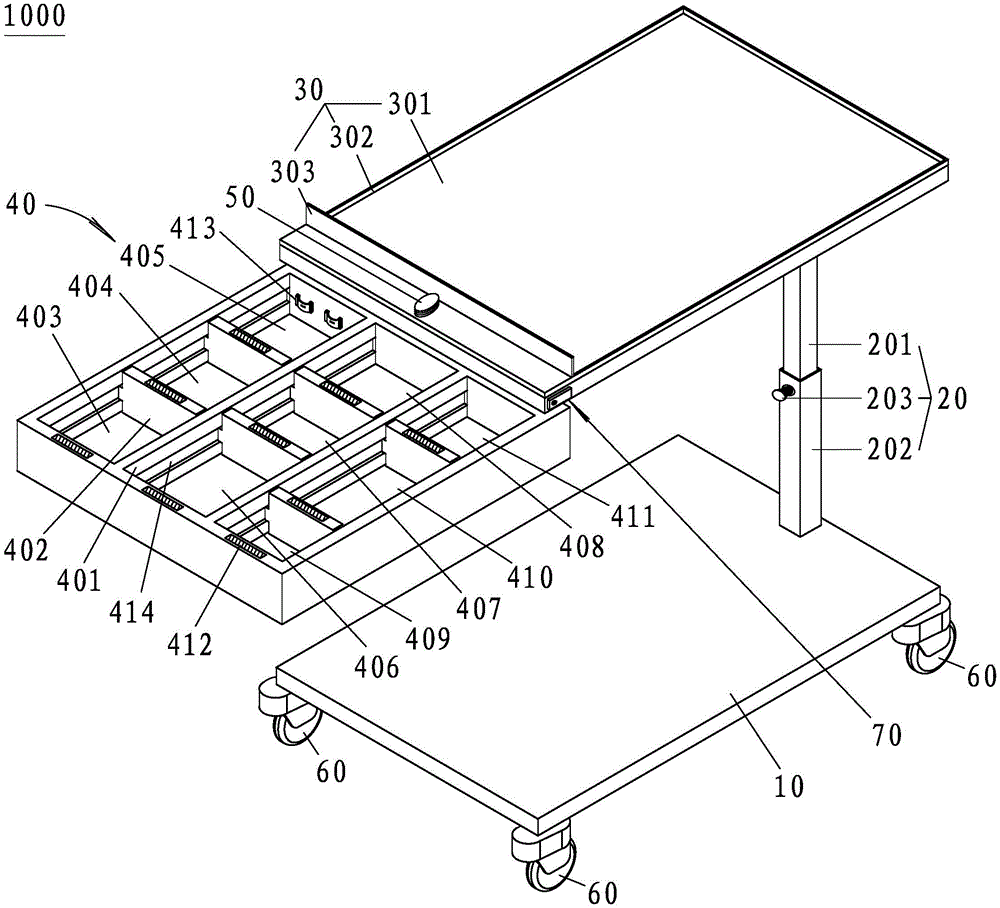

Fig. 1 is a schematic view of the overall structure of the emergency tracheotomy device of the invention;
fig. 2 is a using state diagram of the emergency tracheotomy operating device of the invention when rotating out of the storage box;
fig. 3 is an enlarged view of the elastic storage bag according to the embodiment of the present invention;
fig. 4 is an enlarged view of the locking member according to an embodiment of the present invention;
fig. 5 is a reference diagram of the emergency tracheotomy device in use when moving to an emergency cot;
the objects, features and advantages of the present invention will be further described with reference to the accompanying drawings.
Reference numerals:
an emergency tracheotomy operating device 1000;
a placement table 10;
a lifting device 20;
a lifter 201; a support bar 202; a lock bolt 203;
an operation table 30;
a mesa 301; a skirt 302; a baffle 303;
a storage box 40;
a longitudinal partition 401; a transverse partition 402; a first placement grid 403; a second grid of placements 404; a third placemat 405; a fourth placemat 406; a fifth lattice 407; a sixth drop box 408; a seventh grid 409; an eighth placemat 410; a ninth lattice 411; an indicator tab 412; an elastic storage bag 413; a flexible bag body 4131; a fixed block 4132; elastic bands 4133; a chute 414;
an operating handle 50;
a universal swivel wheel 60;
a locking member 70;
a lock cylinder 701; a latch 702;
an emergency cot 2000.
Detailed Description
The technical solutions of the present invention will be described in detail below with reference to the accompanying drawings and specific embodiments, so as to clearly and intuitively understand the inventive substance of the present invention.
Shown in conjunction with fig. 1, 2, 3, 4 and 5;
the utility model provides an emergency tracheotomy operation device 1000, which comprises a placing table 10 for placing medical equipment, a lifting device 20, an operation table 30 for promoting tracheotomy and a placing box 40 with an open upper end for placing tracheotomy first-aid products;
wherein, the lifting device 20 is vertically fixed at the rear middle part of the upper end surface of the object placing table 10; the operating platform 30 is erected right above the object placing platform 10, and the rear middle part of the lower bottom surface of the operating platform is connected with the top of the lifting device 20; the upper end surface of the storage box 40 is abutted against the lower bottom surface of the operating platform 30, and the front middle part of the upper end surface of the storage box 40 is rotatably connected with the front middle part of the operating platform 30 through a rotating shaft piece which penetrates through the front middle part of the operating platform 30 from top to bottom; an operating handle 50 connected with the rotating shaft member is fixedly arranged in the front middle part of the upper end face of the operating platform 30;
when the operating handle 50 is rotated, the storage box 40 can be rotated to expose the upper opening of the storage box to the bottom surface of the operating platform 30.
Based on the above, it can be clear that, the utility model discloses when concrete implementation, then be used for as emergency patient tracheotomy emergency tracheotomy 1000 uses with the operation device that opens.
On the one hand, when the placing table 10 is moved to the bottom of the sickbed, i.e. the operation table 30 can be moved to the upper part of the sickbed and close to the neck of the patient, when the height of the lifting device 20 is adjusted, the operation table 30 can be conveniently adjusted to the proper height for placing the first-aid product for tracheotomy of the patient by the doctor.
On the other hand, the utility model discloses form into open thing box 40 of putting from the rotatable upper end that is used for putting autogenous cutting first aid articles for use, so, when not using, it can be rotatory extremely to put thing box 40 bottom surface under the operation panel 30 for do not occupy the exterior space, when using, directly with it rotatory extremely outside the bottom surface under the operation panel 30 can, make the doctor of being convenient for stand at the sick bed side and take along with hand put the required medical article of tracheotomy that deposit in advance in the thing box 40, and make to save and remove the medical nursing shallow to the sick bed side of placing autogenous cutting first aid kit temporarily trouble, make operation labour saving and time saving then make and greatly save tracheotomy first aid time, make and form high-efficient first aid.
Furthermore, the utility model discloses an organic whole is multi-purpose, and the practicality is strong, excellent in use effect.
Preferably, in the present technical solution, the present invention further comprises four universal rotating wheels 60 with braking members; the four universal rotating wheels 60 are correspondingly and fixedly arranged at four corners of the lower bottom surface of the object placing table 10.
So, then make and be convenient for the utility model discloses a pass and fix, make the utility model discloses it is convenient to transport.
Furthermore, in the present embodiment, the lifting device 20 includes a lifting rod 201, a supporting rod 202 with a hollow structure, and a locking bolt 203 for fixing the lifting rod 201 and the supporting rod 202;
the upper end of the lifting rod 201 is fixedly connected with the rear middle part of the lower bottom surface of the operating platform 30, and the lower end of the lifting rod is sleeved in the supporting rod 202 with a hollow structure; the lower end of the support rod 202 is fixedly connected with the rear middle part of the upper end surface of the object placing table 10; the locking bolt 203 is fixedly arranged outside the upper end of the support rod 202, and penetrates through the support rod 202 to abut against the lower end of the lifting rod 201.
Therefore, when the locking bolt 203 is loosened, the height of the lifting rod 201 can be adjusted, and then the height of the operating platform 30 can be adjusted.
It should be emphasized that, in the present embodiment, the console 30 includes a table top 301, a protective enclosure 302 disposed on the periphery of the upper end surface of the table top 301, and a baffle 303 vertically fixed on the front side of the upper end surface of the table top 301; the baffle 303 is parallel to the front side of the upper end surface of the table board 301 and is adjacent to the operating handle 50.
Therefore, the enclosure 302 is arranged so that medical articles required by tracheotomy placed on the table board 301 are not easy to slide off, and the baffle 303 is arranged so as to be convenient for isolating the storage box 40 from the used medical articles for tracheotomy on the table board 301, so that the anti-pollution effect is good.
In this embodiment, two longitudinal partitions 401 are disposed in parallel in the storage box 40 along the front-rear direction to divide the interior of the storage box 40 into a chamber a, a chamber B and a chamber C from left to right;
two transverse clapboards 402 are arranged in the cavity A side by side along the left-right direction so as to divide the cavity A into a first placing grid 403 for placing a simple autogenous cutting bag, a second placing grid 404 for placing a cricothyroid membrane puncture suit and a third placing grid 405 for placing a sterile cotton swab and a 0.5% iodophor bottle from front to back;
two transverse partition plates 402 are arranged in the cavity B side by side along the left-right direction so as to divide the cavity B into a fourth placing grid 406 for placing a laryngoscope, an alligator forceps and a bite block, a fifth placing grid 407 for placing a tracheal intubation tube, an intubation tube core, a tracheotomy tube with an air bag, a sputum suction tube and a disposable suction tube and a sixth placing grid 408 for placing an oropharyngeal airway and a nasopharyngeal airway from front to back;
two transverse partition boards 402 are arranged in the chamber C side by side along the left-right direction, so that the chamber C is divided into a seventh placing grid 409 for placing a standby battery, a flashlight and a head lamp, an eighth placing grid 410 for placing sterile gloves and a ninth placing grid 411 for placing an autogenous cutting mask from front to back.
And the front edge of the upper opening of the storage box 40 is provided with an indication label 412 corresponding to the positions of the first placing lattice 403, the fourth placing lattice 406 and the seventh placing lattice 409 for indicating the information of the articles stored in the placing lattices at the relative positions;
the middle parts of the upper end surfaces of the transverse partition boards 402 are respectively provided with an indicating label 412 for indicating the information of the articles stored in the corresponding placing lattices at the rear sides;
an elastic containing bag 413 for containing an iodophor bottle is fixedly arranged on the inner wall of the third placing grid 405;
the middle part of the left inner wall of the article placing box 40, the middle parts of the opposite inner walls of the two transverse partition boards 402 and the middle part of the right inner wall of the article placing box 40 are respectively provided with a sliding groove 414 along the length direction thereof, and the middle parts of the two sides of the plurality of transverse partition boards 402 are respectively provided with a sliding block which can slide back and forth and is clamped in the sliding groove 414 at the opposite position in an outward protruding manner; when the plurality of transverse partition boards 402 slide back and forth, the first lattice 403, the second lattice 404, the third lattice 405, the fourth lattice 406, the fifth lattice 407, the sixth lattice 408, the seventh lattice 409, the eighth lattice 410, and the ninth lattice 411 may be adjusted in size.
Thirdly, in the technical scheme, the elastic bag comprises a flexible bag body 4131, fixing blocks 4132 vertically fixed to two side edges of the flexible bag body 4131 respectively, and elastic bands 4133 arranged around an opening at the upper end of the flexible bag body 4131;
the two fixing blocks 4132 are respectively fixed on the inner wall of the third compartment 405, so that the elastic storage bag 413 and the third compartment 405 are integrated;
when the elastic band 4133 is in a natural state or a contracted state, the flexible bag 4131 is horizontally stacked from the upper opening to the bottom thereof so as to be attached to the inner wall of the third lattice 405.
With respect to the above, it is understood that:
on one hand, because the placing grids for placing different medical articles for the tracheotomy are arranged in the placing box 40, the front edge of each placing grid is respectively provided with an indicating label 412 for indicating the information of the articles stored in the corresponding placing grid, so that the medical articles for the tracheotomy can be placed orderly and clearly, and the tracheotomy can be conveniently and quickly taken and stored.
On the other hand, the plurality of transverse partition boards 402 can slide back and forth, so that the sizes of the first placing grid 403, the second placing grid 404, the third placing grid 405, the fourth placing grid 406, the fifth placing grid 407, the sixth placing grid 408, the seventh placing grid 409, the eighth placing grid 410 and the ninth placing grid 411 can be adjusted, and the sizes can be flexibly adjusted according to the occupied space for actually storing articles, so that the use is more practical and humanized.
Simultaneously, the elasticity storage bag 413 that sets up is in the splendid attire then be the state of tightening up behind the iodophor bottle for the iodophor bottle fixity of splendid attire is good and the isolation is good, makes can not bump and rub and lead to being crashed or even hit the breakage, and when not splendid attire iodophor bottle, corresponding elasticity storage bag 413 can contract automatically and pile up the state to being the level, and laminate mutually with corresponding placing grid inner wall, makes not occupy inner space, does not influence depositing of other article in the corresponding placing grid.
Furthermore, the utility model discloses an excellent in use effect can be reached.
In addition, in the specific implementation, the front ends of the two side surfaces of the table 301 are respectively provided with a locking member 70 for locking the storage box 40.
Specifically, in the present embodiment, the locking member 70 includes a lock cylinder 701 fixed to a front end of a side surface of the table top 301, and a lock bolt 702 fixed to an outside of the lock cylinder 701 and rotatable along the side surface of the table top 301;
when a management key is inserted into the lock cylinder 701 and the lock cylinder 701 is screwed, the lock bolt 702 can rotate from the horizontal direction to the vertical direction, so as to lock and limit the storage box 40 on the lower bottom surface of the console 30 or stop and limit the storage box 40 from being exposed out of the lower bottom surface of the console 30.
Specifically, on one hand, a management key is inserted into the lock cylinder 701, the lock cylinder 701 is screwed, so that the lock bolt 702 rotates to the horizontal direction, the storage box 40 rotates to the lower bottom surface of the console 30, and then the lock bolt 702 is controlled to rotate to the vertical direction, so that the storage box 40 can be locked and limited on the lower bottom surface of the console 30 to be stored, and the first-aid supplies are convenient to manage due to good sealing performance; on the other hand, the lock bolt 702 is controlled to rotate from the vertical direction to the horizontal direction, the storage box 40 is rotated 180 degrees to be exposed out of the lower bottom surface of the console 30, and then the lock bolt 702 is rotated to the vertical direction, so that the storage box 40 can be stopped and limited to be exposed out of the lower bottom surface of the console 30 for use.
It should be further noted that, in the specific implementation, the object placing table 10, the lifting device 20, the operation table 30 and the object placing box 40 of the present invention are made of stainless steel.
So, the utility model has the advantages of hard texture, firmness, durability and long service life.
Other embodiments, etc., will not be described herein.
To sum up, the utility model has the advantages that the whole structure is simple, easy to implement, easy to operate, the practicality is strong, and the specificity is strong, and low in manufacturing cost all need not increase too many cost in the improvement of institutional advancement and technique, makes the utility model discloses must have fine market spreading value, the utility model discloses can very welcome, can effectively popularize.
The above only is the preferred embodiment of the present invention, not limiting the patent protection scope of the present invention, all the changes of the equivalent structure or equivalent flow path made by the contents of the specification and the drawings, or the direct or indirect application in other related technical fields, are included in the patent protection scope of the present invention.
Claims (10)
1. An emergency tracheotomy device, comprising: comprises a placing table for placing medical equipment, a lifting device, an operating table for tracheotomy and a placing box with an opening formed at the upper end for placing tracheotomy first-aid products;
the lifting device is vertically fixed in the middle of the rear part of the upper end surface of the object placing table; the operating platform is erected right above the object placing platform, and the rear middle part of the lower bottom surface of the operating platform is connected with the top of the lifting device; the upper end surface of the storage box is abutted against the lower bottom surface of the operating platform, and the front middle part of the upper end surface of the storage box is rotatably connected with the front middle part of the operating platform through a rotating shaft piece which penetrates through the front middle part of the operating platform from top to bottom; an operating handle connected with the rotating shaft piece is fixedly arranged in the front middle part of the upper end face of the operating platform;
when the operating handle is rotated, the storage box can be rotated to enable the upper end opening to be completely exposed out of the lower bottom surface of the operating platform.
2. The emergency tracheotomy device of claim 1, wherein: the universal rotating wheel with the braking parts is also provided; the four universal rotating wheels are correspondingly and fixedly arranged at four corners of the lower bottom surface of the object placing table.
3. The emergency tracheotomy handling device of claim 2, wherein: the lifting device comprises a lifting rod, a supporting rod with a hollow structure and a locking bolt for fixing the lifting rod and the supporting rod;
the upper end of the lifting rod is fixedly connected with the rear middle part of the lower bottom surface of the operating platform, and the lower end of the lifting rod is sleeved in the supporting rod with a hollow structure; the lower end of the supporting rod is fixedly connected with the rear middle part of the upper end surface of the object placing table; the locking bolt is fixedly arranged outside the upper end of the supporting rod and penetrates through the supporting rod to abut against the lower end of the lifting rod.
4. The emergency tracheotomy handling device of claim 2, wherein: the operating table comprises a table top, a guard arranged on the periphery of the upper end face of the table top and a baffle vertically fixed on the front side of the upper end face of the table top; the baffle is parallel with the front side of the upper end surface of the table board and is adjacent to the operating handle.
5. The emergency tracheotomy device according to any of claims 2-4, characterized in that: two longitudinal partition plates are arranged in the storage box in parallel along the front-back direction, so that the storage box is divided into a chamber A, a chamber B and a chamber C from left to right;
two transverse clapboards are arranged in the cavity A side by side along the left-right direction so as to divide the cavity A into a first placing grid for placing the simple autogenous cutting bag, a second placing grid for placing the cricothyroid membrane puncture suit and a third placing grid for placing the sterile cotton swab and the 0.5% iodophor bottle from front to back;
two transverse partition plates are arranged in the cavity B side by side along the left-right direction so as to divide the cavity B into a fourth placing grid for placing a laryngoscope, an alligator forceps and a bite block, a fifth placing grid for placing a tracheal intubation catheter, an intubation tube core, a tracheotomy tube with an air bag, a sputum suction tube and a disposable suction tube and a sixth placing grid for placing an oropharynx air duct and a nasopharynx air duct from front to back;
two transverse clapboards are arranged in the chamber C side by side along the left-right direction so as to divide the chamber C into a seventh placing grid for placing a standby battery, a flashlight and a head lamp, an eighth placing grid for placing sterile gloves and a ninth placing grid for placing a autogenous cutting mask from front to back.
6. The emergency tracheotomy device of claim 5, wherein: the front edge of the opening at the upper end of the article placing box is provided with an indicating label for indicating the information of articles stored in the placing grids at the opposite positions corresponding to the positions of the first placing grid, the fourth placing grid and the seventh placing grid;
the middle parts of the upper end surfaces of the transverse partition boards are respectively provided with an indicating label for indicating the information of the articles stored in the corresponding placing grids at the rear sides of the transverse partition boards;
an elastic containing bag for containing the iodophor bottle is fixedly arranged on the inner wall of the third placing grid;
the middle part of the left inner wall of the article placing box, the middle parts of the opposite inner walls of the two transverse partition plates and the middle part of the right inner wall of the article placing box are respectively provided with a sliding chute along the length direction, and the middle parts of the two sides of the plurality of transverse partition plates are respectively provided with a sliding block which can slide back and forth and is clamped in the sliding chutes at the opposite positions in an outward protruding way; when the transverse partition plates slide forwards and backwards, the first placing grid, the second placing grid, the third placing grid, the fourth placing grid, the fifth placing grid, the sixth placing grid, the seventh placing grid, the eighth placing grid and the ninth placing grid are adjustable in size.
7. The emergency tracheotomy device of claim 6, wherein: the elastic storage bag comprises a flexible bag body, fixing blocks and elastic bands, wherein the fixing blocks are vertically fixed on the two side edges of the flexible bag body respectively, and the elastic bands are arranged at an opening at the upper end of the flexible bag body in a surrounding mode;
the two fixing blocks are respectively fixed on the inner wall of the third placing grid so that the elastic containing bag and the third placing grid are integrated;
when the elastic bands are in a natural state or a contraction state, the flexible bag body is horizontally stacked from the upper end opening to the bottom of the flexible bag body, so that the flexible bag body is attached to the inner wall of the third placing grid.
8. The emergency tracheotomy device of claim 4, wherein: the front ends of the two side surfaces of the table board are respectively provided with a locking piece for locking the storage box.
9. The emergency tracheotomy handling device of claim 8, wherein: the locking piece comprises a lock cylinder fixedly arranged at the front end of the side surface of the table top and a lock bolt fixed outside the lock cylinder and capable of rotating along the side surface of the table top;
when a management key is inserted into the lock cylinder and the lock cylinder is screwed, the lock bolt can rotate from the horizontal direction to the vertical direction, so that the object placing box is locked and limited on the lower bottom surface of the operating platform or is stopped and limited to be exposed out of the lower bottom surface of the operating platform.
10. The emergency tracheotomy handling device of claim 9, wherein: the object placing table, the lifting device, the operating table and the object placing box are all made of stainless steel materials.
