Abstract
The utility model discloses a medical low-temperature storage box for drug inspection, which comprises a shell, a fixed plate, a heat preservation inner container, a semiconductor refrigeration piece, a radiating fin, a radiating fan, a radiating hole, a storage battery, a heat preservation cover body, a hasp lock, a first storage rack, a limiting ring and a second storage rack, wherein the lower end of the inner wall of the shell is fixed with the fixed plate, the upper surface of the fixed plate is fixed with the heat preservation inner container, the bottom of the heat preservation inner container is embedded and fixed with the semiconductor refrigeration piece, the refrigeration end of the semiconductor refrigeration piece is communicated with the inner wall of the heat preservation inner container, the bottom of the semiconductor refrigeration piece passes through the fixed plate, one end of the lower surface of the fixed plate, which is close to the semiconductor refrigeration piece, is fixed with the radiating fin, the medical low-temperature storage box for drug inspection has a smaller size and is convenient for people to carry and use, the speed of the temperature rise in the heat-preservation liner is slowed down, so that people can use the liner in an emergency.
Description
Technical Field
The utility model relates to a low temperature storage box technical field specifically is a medical low temperature storage box is used in medicine inspection.
Background
In order to prevent the medicine harmful to the health of people from flowing into the interior, according to the regulation of the drug management law of the people's republic of China, imported medicines (medicinal materials) and exported finished medicines must be imported and exported after being inspected and qualified by a drug quarantine office at the bank, and a quality management organization set up by pharmaceutical enterprises for ensuring the quality of the medicines is responsible for quality monitoring in the whole process of medicine production, material auditing, product release and field inspection. Mainly inspect the medicine content, the purity, etc. need preserve the sample of inspection after the inspection, and some medicines need keep warm under the low temperature state, and then need preserve through the cryopreservation case in order not to destroy the sample, and current cryopreservation box shape is great, and people of not being convenient for carry to when the preservation case electric quantity is not enough, the temperature rise is too fast in the incubator, the emergency of being not convenient for to deal with. Therefore, a medical low-temperature preservation box for drug inspection is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a medicine inspection is with medical low temperature storage case to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a medical low-temperature storage box for drug inspection comprises a shell, a fixing plate, a heat-insulating inner container, a semiconductor refrigerating sheet, a radiating fin, a radiating fan, a radiating hole, a storage battery, a heat-insulating cover body, a hasp lock, a first storage rack, a limiting ring and a second storage rack, wherein the fixing plate is fixed at the lower end of the inner wall of the shell, the heat-insulating inner container is fixed on the upper surface of the fixing plate, the semiconductor refrigerating sheet is fixed at the bottom of the heat-insulating inner container in an embedded manner, the refrigerating end of the semiconductor refrigerating sheet is communicated with the inner wall of the heat-insulating inner container, the bottom of the semiconductor refrigerating sheet penetrates through the fixing plate, the radiating fin is fixed at one end, close to the semiconductor refrigerating sheet, of the lower surface of the fixing plate and is in contact with one side of the semiconductor refrigerating sheet, the radiating fin is fixed at one side of the radiating fan, the heat preservation cover body is fixed with the shell through the hasp lock, the lower end of the inner wall of the heat preservation liner is fixedly provided with a first storage rack, the middle part of the inner wall of the heat preservation liner is fixedly provided with a limiting ring, and the upper surface of the limiting ring is provided with a second storage rack.
Preferably, a partition board is fixed at the bottom of the inner wall of the shell and is fixedly connected with the fixing board.
Preferably, the lower surface of the heat-preservation cover body is fixedly embedded with a temperature sensor, and the upper surface of the heat-preservation cover body is fixedly embedded with a control panel.
Preferably, a strap is fixed to the outer side of the housing.
Preferably, an ice box is placed at the bottom of the inner wall of the heat-preservation liner, and a notch is formed in one end, close to the semiconductor refrigeration piece, of the ice box.
Preferably, the upper surface of the second storage rack is fixed with a surrounding rack, and the surrounding rack is connected with the heat-preservation liner in a sliding manner.
Compared with the prior art, the beneficial effects of the utility model are that:
1. when the utility model is used, a sample is placed on the first storage rack and the second storage rack, the second storage rack can be taken out from the heat-insulating inner container, so that people can put the sample in the first storage rack, the heat-insulating cover body is covered after the sample is stored, the heat-insulating inner container is sealed, the refrigerating end of the semiconductor refrigerating sheet is communicated with the heat-insulating inner container, so that the semiconductor refrigerating sheet cools the heat-insulating inner container, the hot end of the semiconductor refrigerating sheet is connected with a radiating fin, one end of the radiating fin is fixed with a radiating fan, the heat absorbed by the radiating fin is taken out of the shell from the radiating hole by the radiating fan, the semiconductor refrigerating sheet is radiated, so that the refrigerating end of the semiconductor refrigerating sheet refrigerates, the temperature in the heat-insulating inner container is detected by a temperature sensor, the temperature is displayed by a control panel, and the semiconductor refrigerating sheet, the radiating fan, the temperature sensor and the control panel are all, the device is small in size and convenient to carry and use by people.
2. The utility model discloses when the electric quantity that leads to the battery because of long-time the use is not enough, because placed the ice chest on the fixed plate, when semiconductor refrigeration piece cools off in to the heat preservation inner bag, also freeze the ice chest, when semiconductor refrigeration piece broke down or the battery did not have the electricity, the ice chest after freezing can continue to release cold volume, carries out the maintenance of temperature to the heat preservation inner bag, slows down the speed that is high on the temperature in the heat preservation inner bag to people's emergent use.
Drawings

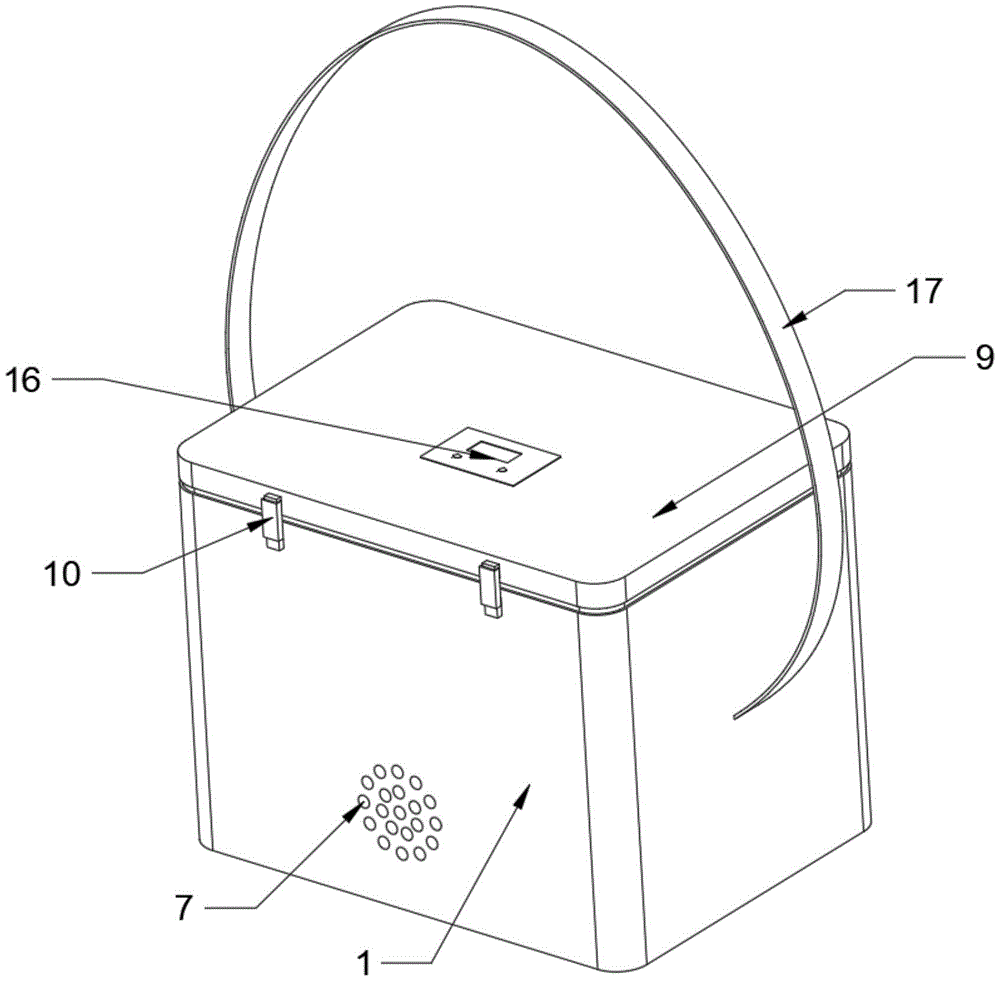

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic view of the cross-sectional structure of the present invention.
In the figure: 1. a housing; 2. a fixing plate; 3. a heat preservation liner; 4. a semiconductor refrigeration sheet; 5. a heat sink; 6. a heat dissipation fan; 7. heat dissipation holes; 8. a storage battery; 9. a heat-preserving cover body; 10. a hasp lock; 11. a first storage rack; 12. a limiting ring; 13. a second storage rack; 14. a partition plate; 15. a temperature sensor; 16. a control panel; 17. a harness; 18. an ice box; 19. and (5) enclosing the frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: a medical low-temperature storage box for drug inspection comprises a shell 1, a fixing plate 2, a heat-insulating inner container 3, a semiconductor refrigeration piece 4, a radiating fin 5, a radiating fan 6, radiating holes 7, a storage battery 8, a heat-insulating cover body 9, a hasp lock 10, a first storage rack 11, a limiting ring 12 and a second storage rack 13, wherein the fixing plate 2 is fixed at the lower end of the inner wall of the shell 1, the heat-insulating inner container 3 is fixed on the upper surface of the fixing plate 2, the semiconductor refrigeration piece 4 is fixedly embedded at the bottom of the heat-insulating inner container 3, the refrigeration end of the semiconductor refrigeration piece 4 is communicated with the inner wall of the heat-insulating inner container 3, the bottom of the semiconductor refrigeration piece 4 penetrates through the fixing plate 2, the radiating fin 5 is fixed at one end of the lower surface of the fixing plate 2 close to the semiconductor refrigeration piece 4, the radiating fin 5 is in contact with one side of the, the bottom of the inner wall of the shell 1 is fixedly provided with a storage battery 8, one end of the top of the shell 1 is rotatably connected with a heat-insulating cover body 9 through a hinge, the heat-insulating cover body 9 is fixed with the shell 1 through a hasp lock 10, the lower end of the inner wall of the heat-insulating liner 3 is fixedly provided with a first storage rack 11, the middle part of the inner wall of the heat-insulating liner 3 is fixedly provided with a limiting ring 12, the upper surface of the limiting ring 12 is provided with a second storage rack 13, when in use, a sample is placed on the first storage rack 11 and the second storage rack 13, the second storage rack 13 can be taken out of the heat-insulating liner 3, so that people can place the sample in the first storage rack 11, after storage, the heat-insulating cover body 9 is covered, the interior of the heat-insulating liner 3 is sealed, the refrigerating end of the semiconductor refrigerating sheet 4 is communicated with the interior of the heat-insulating liner 3, so that the semiconductor refrigerating sheet 4 cools the interior of the heat, the heat absorbed by the radiating fins 5 is extracted out of the shell 1 from the radiating holes 7 through the radiating fan 6, the semiconductor refrigerating sheet 4 is radiated, so that the refrigerating of the refrigerating end is facilitated, the temperature in the heat preservation liner 3 is detected through the temperature sensor 15 and is displayed through the control panel 16, and the semiconductor refrigerating sheet 4, the radiating fan 6, the temperature sensor 15 and the control panel 16 are all powered through the storage battery 8.
The bottom of the inner wall of the shell 1 is fixedly provided with a partition plate 14, and the partition plate 14 is fixedly connected with the fixing plate 2, so that the hot ends of the storage battery 8 and the semiconductor refrigerating sheet 4 are conveniently separated, and the ambient temperature of the storage battery 8 is prevented from being higher.
A temperature sensor 15 is embedded and fixed on the lower surface of the heat-preservation cover body 9, and a control panel 16 is embedded and fixed on the upper surface of the heat-preservation cover body 9, so that the temperature in the heat-preservation liner 3 can be conveniently detected.
The outer side of the shell 1 is fixed with a strap 17, which is convenient for people to carry the shell 1.
The ice box 18 has been placed to 3 inner wall bottoms of heat preservation inner bag, and the one end that the ice box 18 is close to semiconductor refrigeration piece 4 is equipped with the breach, is convenient for store cold volume, cools off heat preservation inner bag 3 when making semiconductor refrigeration piece 4 break down or battery 8 do not have the electricity.
The enclosing frame 19 is fixed on the upper surface of the second storage frame 13, and the enclosing frame 19 is in sliding connection with the heat-preservation liner 3, so that people can take the second storage frame 13 out of the heat-preservation liner 3 conveniently.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a medicine inspection is with medical low temperature storage box, includes shell (1), fixed plate (2), heat preservation inner bag (3), semiconductor refrigeration piece (4), fin (5), heat dissipation fan (6), louvre (7), battery (8), heat preservation lid (9), hasp lock (10), first storage rack (11), spacing ring (12) and second storage rack (13), its characterized in that: the heat preservation device is characterized in that a fixing plate (2) is fixed to the lower end of the inner wall of the shell (1), a heat preservation inner container (3) is fixed to the upper surface of the fixing plate (2), a semiconductor refrigerating sheet (4) is embedded and fixed to the bottom of the heat preservation inner container (3), the refrigerating end of the semiconductor refrigerating sheet (4) is communicated with the inner wall of the heat preservation inner container (3), the fixing plate (2) penetrates through the bottom of the semiconductor refrigerating sheet (4), a radiating fin (5) is fixed to one end, close to the semiconductor refrigerating sheet (4), of the lower surface of the fixing plate (2), the radiating fin (5) is in contact with one side of the semiconductor refrigerating sheet (4), a radiating fan (6) is fixed to one side of the radiating fin (5), a radiating hole (7) is formed in one end, close to the radiating fan (6), a storage battery (8) is fixed to the bottom of the inner wall of the, the heat-insulation cover body (9) is fixed with the shell (1) through the hasp lock (10), a first storage rack (11) is fixed to the lower end of the inner wall of the heat-insulation inner container (3), a limiting ring (12) is fixed to the middle of the inner wall of the heat-insulation inner container (3), and a second storage rack (13) is placed on the upper surface of the limiting ring (12).
2. The medical cryopreservation box for drug testing according to claim 1, wherein: a partition plate (14) is fixed at the bottom of the inner wall of the shell (1), and the partition plate (14) is fixedly connected with the fixing plate (2).
3. The medical cryopreservation box for drug testing according to claim 1, wherein: the lower surface of the heat-insulation cover body (9) is fixedly embedded with a temperature sensor (15), and the upper surface of the heat-insulation cover body (9) is fixedly embedded with a control panel (16).
4. The medical cryopreservation box for drug testing according to claim 1, wherein: a strap (17) is fixed on the outer side of the shell (1).
5. The medical cryopreservation box for drug testing according to claim 1, wherein: an ice box (18) is placed at the bottom of the inner wall of the heat-insulating inner container (3), and a notch is formed in one end, close to the semiconductor refrigerating sheet (4), of the ice box (18).
6. The medical cryopreservation box for drug testing according to claim 1, wherein: and an enclosing frame (19) is fixed on the upper surface of the second storage frame (13), and the enclosing frame (19) is in sliding connection with the heat-insulating inner container (3).
