Abstract
The utility model discloses a cake packing carton comprises box body and handle formula chassis two parts, and the box body is open-sided hexahedron carton, and the box body top surface is equipped with two flutings, and handle formula chassis includes the bottom plate, and the both sides of bottom plate are equipped with a pair of curb plate of bilateral symmetry, a pair of roof, a pair of handle board, are equipped with the handle structure on the handle board, and a pair of roof on handle formula chassis can pass two flutings of box body top surface respectively. When cakes are put in, the cakes are placed on the bottom plate of the handle type chassis, the box body is folded into a hexahedral paper box, the side opening is opened, the handle type chassis is moved, a pair of top plates of the handle type chassis respectively penetrate through the two grooves on the top surface of the box body, and the side opening is closed; the consumer can carry the cake through the handle after purchasing, also can take out, put back the cake through removing the handle after opening the side opening.
Description
Technical Field
The utility model relates to the field of packaging technology, more specifically say so and relate to a cake packing carton.
Background
At present, western cakes appear in many occasions such as wedding, celebration, party and the like. The cake room is mainly packaged in two ways for selling cakes. The other is a packing box for taking out cakes from the top, the cakes are firstly placed on a base plate, then a blocking wall is placed around the side face of the cakes, finally a top cover is covered and a ribbon is tied up for fixation, the cake box takes the ribbon as a handle, and after the cakes are taken out and eaten, the remaining cakes are not easy to pack and seal again. The other type is a hexahedron packing box for taking out cakes from the side surface, and the packing box is usually not provided with a handle on the top surface and can be conveniently carried by a matched packing bag. The existing cake packaging box has the defects of convenient carrying, taking and recycling.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the cake packaging box is composed of a box body and a handle type chassis, the box body and the handle type chassis can be folded into a flat plate shape before being used, the storage and transportation cost is saved, the handle and the chassis are combined into the handle type chassis, and the cake packaging box can be conveniently taken out and put back by a consumer.
In order to solve the above problem, the utility model discloses a following scheme realizes:
a cake packing box is composed of a box body and a handle type base plate, wherein the box body is a hexahedral paper box with an opening on the side face, two slots are formed in the top face of the box body, the handle type base plate comprises a bottom plate, a pair of side plates, a pair of top plates and a pair of handle plates are arranged on the two sides of the bottom plate in bilateral symmetry, a handle structure is arranged on each handle plate, and the pair of top plates on the handle type base plate can penetrate through the two slots in the top face of the box.
Preferably, the width of the slot on the top surface of the box body is 1.2-1.5 times of the thickness of the paperboard.
Preferably, a pair of side plates of the handle chassis is trapezoidal.
Before boxing, the box body and the handle type chassis can be separately stacked in the processes of transporting and storing the packing boxes, so that the transportation space is saved, and the transportation cost is reduced; when cakes are put in, the cakes are placed on the bottom plate of the handle type chassis, the box body is folded into a hexahedral paper box, the side opening is opened, the handle type chassis is moved, a pair of top plates of the handle type chassis respectively penetrate through the two slots on the top surface of the box body, and the side opening is closed; the consumer can carry the cake through the handle after purchasing, also can take out, put back the cake through removing the handle after opening the side opening.
The utility model discloses can reach following technological effect:
the technical scheme is characterized by comprising a box body and a handle type chassis, wherein the box body and the handle type chassis can be folded into flat plates before use, the storage and transportation cost is saved, the handle and the chassis are combined into the handle type chassis, and the structure not only can be convenient for a consumer to carry a cake, but also can be convenient for taking out and putting back the cake.
Drawings

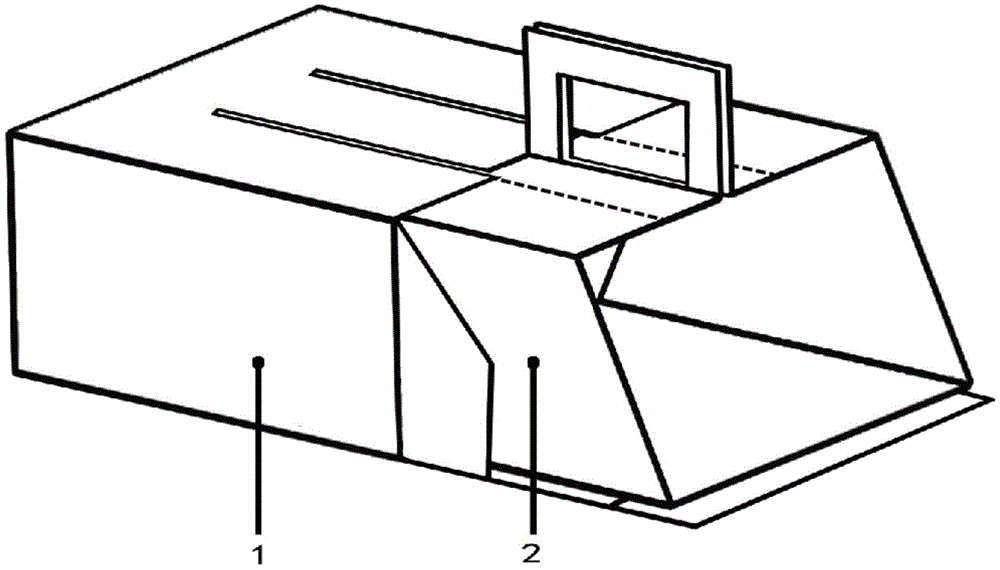

FIG. 1 is a schematic view of the structure of the cake packaging box in an open state;
FIG. 2 is a schematic view of the closed structure of the cake packaging box of the present invention;
FIG. 3 is a schematic view of a planar unfolding structure of a handle-type chassis of the cake packaging box of the present invention;
fig. 4 is a schematic view of the planar unfolding structure of the cake packaging box body of the present invention.
Detailed Description
The following detailed description of the present invention is made in conjunction with the accompanying drawings and specific embodiments.
As shown in figures 1 and 2, the cake packaging box is composed of a box body 1 and a handle type bottom plate 2, wherein the box body 1 is a hexahedral paper box with an opening at the side surface, and two grooves 11 (shown in figure 4) are arranged on the top surface of the box body 1.
As shown in fig. 3, the handle-type chassis 2 includes a bottom plate 21, a pair of side plates 22, a pair of top plates 23, and a pair of handle plates 24, which are disposed on two sides of the bottom plate 21 and are bilaterally symmetric, wherein a handle structure is disposed on the handle plates 24, and the pair of top plates 23 of the handle-type chassis can respectively pass through the two slots 11 on the top surface of the box body 1. The pair of side panels 22 of the handle chassis 2 are trapezoidal in shape.
The width of the slot 11 on the top surface of the box body 1 is 1.2 times of the thickness of the paper board.
Before boxing, the box body 1 and the handle type chassis 2 can be separately stacked in the processes of transporting and storing the packing boxes, so that the transportation space is saved, and the transportation cost is reduced; when cakes are put in, the cakes are placed on the bottom plate 21 of the handle type chassis 2, the box body 1 is folded into a hexahedral paper box, the side opening is opened, the handle type chassis 2 is moved, a pair of top plates 23 of the handle type chassis 2 respectively penetrate through the two slots 11 on the top surface of the box body 1, and the side opening is closed; the consumer can carry the cake through the handle after purchasing, also can take out, put back the cake through removing the handle after opening the side opening.
Claims (3)
1. A cake packing box is characterized by comprising a box body and a handle type chassis, wherein the box body is a hexahedral paper box with an opening on the side surface, two slots are formed in the top surface of the box body, the handle type chassis comprises a bottom plate, a pair of side plates, a pair of top plates and a pair of handle plates are arranged on two sides of the bottom plate in bilateral symmetry, a handle structure is arranged on each handle plate, and the pair of top plates on the handle type chassis can respectively penetrate through the two slots in the top end of the box body.
2. The cake packaging box according to claim 1, wherein the width of the top end slot of the box body is 1.2-1.5 times the thickness of the paperboard.
3. A cake packaging box according to claim 1, wherein a pair of side plates of said handle type chassis is trapezoidal.
