Abstract
The utility model discloses a simple and easy medical nursing bed, including the bed board, the lower extreme of bed board is equipped with running gear, the left side of bed board is equipped with the opening, it is connected with the pivot to rotate on the lateral wall around the open-ended, coaxial fixedly connected with fly leaf in the pivot, the below of fly leaf is equipped with the adjustment mechanism who adjusts it, the upper end of bed board is equipped with carries out fixed establishment to the patient. The utility model has the advantages that the adjusting mechanism is arranged, so that the movable plate can be adjusted, and the patient can conveniently be in a comfortable posture; through setting up fixed establishment, can fix the comparatively weak patient of control power, prevent that the patient from moving about, influencing the treatment.
Description
Technical Field
The utility model relates to the technical field of medical equipment, especially, relate to a simple and easy medical nursing bed.
Background
The medical bed is a hospital bed for short, and is a hospital bed product used in places such as hospitals, nursing homes, community outpatients and the like. The production of the medical bed strictly conforms to the national standard, but the function and the structure of the medical bed are single, the medical bed basically meets the requirements of all medical institutions, and the medical bed is not suitable for being used at home.
The medical nursing bed in some existing small clinics has no adjusting effect and can not be lifted, so that the nursing bed can only be laid down when being used for lifting water; in addition, some patients are not strong in control force and easy to move randomly, and the existing medical nursing bed does not have a fixing effect, so that treatment is affected.
To this end, we propose a simple medical care bed to solve the above problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a simple medical nursing bed.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a simple and easy medical nursing bed, includes the bed board, the lower extreme of bed board is equipped with running gear, the left side of bed board is equipped with the opening, it is connected with the pivot to rotate on the lateral wall around the open-ended, coaxial fixedly connected with fly leaf in the pivot, the below of fly leaf is equipped with the adjustment mechanism who adjusts it, the upper end of bed board is equipped with carries out fixed establishment to the patient.
Preferably, the walking mechanism comprises supporting rods fixedly connected with four corners of the lower end of the bed board, two supporting rods on the left side and the right side are rotatably connected with first rotating shafts, and the first rotating shafts are coaxially and fixedly connected with walking wheels.
Preferably, adjustment mechanism includes the second axis of rotation of being connected with the bed board internal rotation, it is connected with first threaded rod to rotate on the open-ended lower side wall, be connected through the drive mechanism transmission between second axis of rotation and the first threaded rod, sliding connection has the threaded sleeve on the lateral wall around the open-ended, threaded connection between first threaded rod and the threaded sleeve, the lower extreme sliding connection of threaded sleeve and fly leaf.
Preferably, the transmission mechanism comprises a first helical gear coaxially and fixedly connected with the left end of the second rotating shaft, a second helical gear is coaxially and fixedly connected to the first threaded rod, and the first helical gear is meshed with the second helical gear.
Preferably, the lower side wall of the movable plate is provided with a first sliding groove, a first sliding block matched with the first sliding groove is arranged in the first sliding groove, and the first sliding block is rotatably connected with the upper end of the threaded sleeve.
Preferably, fixed establishment include with the upper end of bed board around the equal fixed connection's of both sides riser, two sliding connection has the arc between the riser, wherein one be equipped with the second spout in the riser, be equipped with assorted second slider with it in the second spout, arc and second slider fixed connection, the bottom of second spout is rotated and is connected with the second threaded rod, be equipped with the screw hole in the second slider, screw hole and second threaded rod threaded connection.
Compared with the prior art, the beneficial effects of the utility model are that:
1. by arranging the adjusting mechanism, the effect of adjusting the movable plate can be achieved, and a patient can conveniently be in a comfortable posture;
2. through setting up fixed establishment, can fix the comparatively weak patient of control power, prevent that the patient from moving about, influencing the treatment.
Drawings

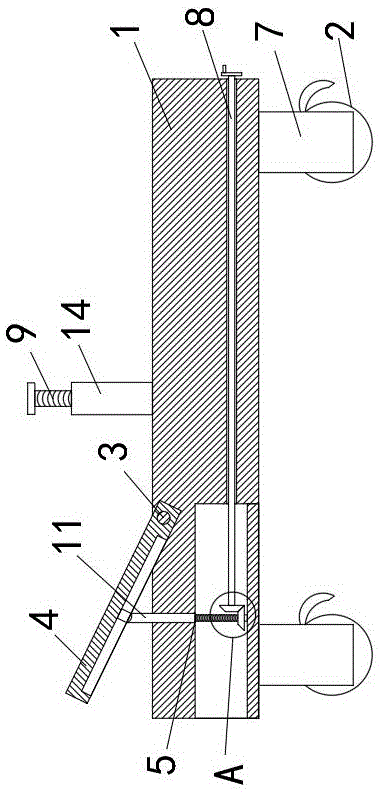

FIG. 1 is a perspective view of a simplified medical nursing bed according to the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1;
fig. 3 is a schematic structural view of a fixing mechanism of a simple medical nursing bed provided by the utility model.
In the figure: 1 bed board, 2 running gear, 3 pivot, 4 fly leafs, 5 adjustment mechanism, 6 fixed establishment, 7 bracing pieces, 8 second axis of rotation, 9 first threaded rod, 10 drive mechanism, 11 threaded sleeve, 12 first helical gear, 13 second helical gear, 14 risers, 15 arcwalls, 16 second threaded rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a simple medical nursing bed comprises a bed board 1, a walking mechanism 2 is arranged at the lower end of the bed board 1, specifically, the walking mechanism 2 comprises support rods 7 fixedly connected with four corners of the lower end of the bed board 1, a first rotating shaft is rotatably connected between the two support rods 7 at the left side and the right side, walking wheels are coaxially and fixedly connected to the two first rotating shafts, an opening is arranged at the left side of the bed board 1, a rotating shaft 3 is rotatably connected to the front side wall and the rear side wall of the opening, and a movable plate 4 is coaxially and fixedly connected to the rotating shaft.
The utility model discloses in, the below of fly leaf 4 is equipped with adjustment mechanism 5 that adjusts it, it is required to explain, adjustment mechanism 5 includes the second axis of rotation 8 of being connected with the 1 internal rotation of bed board, the coaxial fixedly connected with first in command of right-hand member of second axis of rotation 8, it is connected with first threaded rod 9 to rotate on the open-ended lower lateral wall, be connected through the transmission of drive mechanism 10 between second axis of rotation 8 and the first threaded rod 9, it is worth mentioning that, drive mechanism 10 includes the first helical gear 12 with the coaxial fixed connection of the left end of second axis of rotation 8, coaxial fixedly connected with second helical gear 13 on the first threaded rod 9, first helical gear 12 meshes with second helical gear 13 mutually.
In the utility model, the front and back side walls of the opening are connected with a screw sleeve 11 in a sliding way, it is noted that the lower side wall of the movable plate 4 is provided with a first sliding groove, a first sliding block matched with the first sliding groove is arranged in the first sliding groove, the first sliding block is connected with the upper end of the screw sleeve 11 in a rotating way, a first threaded rod 9 is connected with the screw sleeve 11 in a threaded way, the screw sleeve 11 is connected with the lower end of the movable plate 4 in a sliding way, the upper end of the bed plate 1 is provided with a fixing mechanism 6 for patients, it is noted that the fixing mechanism 6 comprises vertical plates 14 fixedly connected with the front and back sides of the upper end of the bed plate 1, an arc plate 15 is connected between the two vertical plates 14 in a sliding way, one vertical plate 14 is provided with a second sliding groove, a second sliding block matched with the second sliding groove is arranged in the second sliding groove, the upper end of the second rotating shaft 16 is coaxially and fixedly connected with a second handle, a threaded hole is formed in the second sliding block, and the threaded hole is in threaded connection with the second threaded rod 16.
When the utility model is used, the first handle is rotated, the first handle drives the second rotating shaft 8, the second rotating shaft 8 drives the first helical gear 12 to rotate, the first helical gear 12 drives the second helical gear 13 to rotate, the second helical gear 13 drives the first threaded rod 9 to rotate, the first threaded rod 9 drives the threaded sleeve 11 to move upwards, and the threaded sleeve 11 drives the movable plate 4 to rotate, thereby adjusting the posture of a patient; then rotate the second handle, the second handle drives second threaded rod 16 and rotates, and second threaded rod 16 drives the second slider and removes, and the second slider drives arc 15 and removes, and arc 15 fixes the patient to do not influence the treatment.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a simple and easy medical nursing bed, includes bed board (1), its characterized in that, the lower extreme of bed board (1) is equipped with running gear (2), the left side of bed board (1) is equipped with the opening, it is connected with pivot (3) to rotate on the lateral wall around the open-ended, coaxial fixedly connected with fly leaf (4) on pivot (3), the below of fly leaf (4) is equipped with adjustment mechanism (5) that adjust it, the upper end of bed board (1) is equipped with carries out fixed establishment (6) to the patient.
2. The simple medical nursing bed as claimed in claim 1, wherein the walking mechanism (2) comprises support rods (7) fixedly connected with four corners of the lower end of the bed board (1), a first rotating shaft is rotatably connected between the two support rods (7) at the left and right sides, and walking wheels are coaxially and fixedly connected to the two first rotating shafts.
3. The simple medical nursing bed as claimed in claim 1, wherein the adjusting mechanism (5) comprises a second rotating shaft (8) rotatably connected to the bed board (1), a first threaded rod (9) is rotatably connected to the lower sidewall of the opening, the second rotating shaft (8) is in transmission connection with the first threaded rod (9) through a transmission mechanism (10), threaded sleeves (11) are slidably connected to the front and rear sidewalls of the opening, the first threaded rod (9) is in threaded connection with the threaded sleeves (11), and the threaded sleeves (11) are slidably connected to the lower end of the movable plate (4).
4. The simple medical nursing bed of claim 3, wherein the transmission mechanism (10) comprises a first bevel gear (12) coaxially and fixedly connected with the left end of the second rotating shaft (8), a second bevel gear (13) coaxially and fixedly connected with the first threaded rod (9), and the first bevel gear (12) is meshed with the second bevel gear (13).
5. The simple medical nursing bed according to claim 1, wherein a first sliding slot is formed on the lower side wall of the movable plate (4), a first sliding block matched with the first sliding slot is arranged in the first sliding slot, and the first sliding block is rotatably connected with the upper end of the threaded sleeve (11).
6. The simple medical nursing bed as claimed in claim 1, wherein the fixing mechanism (6) comprises vertical plates (14) fixedly connected to the front and rear sides of the upper end of the bed plate (1), an arc-shaped plate (15) is slidably connected between the two vertical plates (14), a second sliding groove is formed in one vertical plate (14), a second sliding block matched with the second sliding groove is formed in the second sliding groove, the arc-shaped plate (15) is fixedly connected with the second sliding block, a second threaded rod (16) is rotatably connected to the bottom of the second sliding groove, a threaded hole is formed in the second sliding block, and the threaded hole is in threaded connection with the second threaded rod (16).
