Abstract
The utility model discloses a head operation support, at first can guarantee the stable support of whole support, secondly provide the operation environment that patient relaxed, also provide comparatively convenient operation environment for the doctor to the not enough of prior art. In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a head operation support comprises an installation base and a supporting part, wherein the installation base comprises a pair of parallel pipelines, and the supporting part is arranged at the front end of each pipeline. The utility model discloses a such technical scheme, at first whole support body simple to operate, the installation finishes the back very stable, can not overturn owing to touch at the operation in-process. The structure ensures that the operation patient still has larger head space under the covering of the sterile cloth, the suffocation feeling can not be generated due to the undersize space, and the sufficiency of oxygen supply is also ensured.
Description
Technical Field
The utility model relates to a medical instrument, concretely relates to head operation support.
Background
In brain surgery, a sterile part is required to cover the head of a patient for smooth surgery. But this results in a very depressed patient, breathing difficulty and a very difficult mood.
In response to this problem, prior art designs have raised the sterile part of the rack. For example, patent 201320184501.0 entitled "oxygen-absorbable head operation support" discloses a support, in particular an oxygen-absorbable head operation support, belonging to the technical field of medical apparatus. According to the technical proposal provided by the utility model, the oxygen-absorbable head operation bracket comprises a bracket body; the rack body comprises two arc-shaped supporting tubes, supporting bottom plates which are fixedly connected are arranged at two ends of each arc-shaped supporting tube, and a tray support for placing a tray is arranged between the arc-shaped supporting tubes; the lower part of one arc-shaped supporting tube is provided with an oxygen inhalation interface which is communicated with the arc-shaped supporting rod, the inner side surface of the arc-shaped supporting rod is provided with oxygen inhalation holes, and the oxygen inhalation holes are communicated with the oxygen inhalation interface through the arc-shaped supporting rod. The utility model discloses simple structure is compact, and convenient to use improves operation efficiency, and accommodation is wide, safe and reliable.
However, the stent in this technique does not play an additional role other than the supporting role. The base plate is narrow and may tip over if not in place or touched during surgery. Although the tray support is arranged on the surgical operation table, the tray support is naturally shielded when the sterile cloth is covered by the sterile cloth because the arc-shaped supporting tube is required to support the sterile cloth during the surgical operation. This results in the tray support not being able to achieve the desired effect at all. Finally, the specific structure of the utility model can not ensure the stability when being placed on the sickbed.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a head operation support, at first can guarantee the stable support of whole support, secondly provide the operation environment that patient relaxed, also provide comparatively convenient operation environment for the doctor to the not enough of prior art.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a head surgical support comprises an installation base and a supporting part, wherein the installation base comprises a pair of parallel pipelines, at least two fixing columns are arranged below each pipeline, the pipelines are fixed on a fixing plate through the fixing columns, the fixing plate is a hard plate with a smooth upper surface, the front end of each pipeline is provided with the supporting part, the supporting part is a hollow support body, and the top of the outer side of the supporting part is provided with a clamp body for fixing sterile cloth.
Preferably, the cross section of the supporting part is rectangular or annular, and the width of the supporting part is not less than 10 cm. Too wide a support occupies too much space, which affects the operation. Too small a support reduces the portion of the sterile cloth supported, resulting in reduced headroom and increased patient discomfort.
Preferably, a row of LED lamps is annularly arranged on the inner side of the supporting part. The LED lamp can increase the luminance of aseptic cloth cover part, reduces patient's oppression and feels, also can be used for carrying out the suggestion of operation time simultaneously for patient can know the operation progress.
Preferably, a sound box is arranged in the pipeline. This can relieve the patient from the urgency of the music.
Furthermore, the side surface of the pipeline is also provided with an installation jack, and a detachable tool tray is arranged in the installation jack. The tool tray is used for temporarily visiting some surgical supplies, and is convenient for a doctor to operate.
Preferably, the thickness of the tool tray does not exceed 1/2 the height of the duct and the width of the tool tray does not exceed 5 cm. Too thick a tool tray can result in excessive mass and difficulty in securing the tubing. Too wide a width can result in too much lateral space being occupied and inconvenience for a doctor at the bedside to stand.
Preferably, the pipeline top is equipped with the adjustment hole corresponding to the fixed column portion, and the fixed column side is equipped with the screw thread and the top passes through the bolt fastening. The structure can not only adjust the distance between the pipeline and the fixing plate, but also adjust the horizontal state of the supporting part.
Preferably, the side of the pipeline facing to the operation patient is provided with a flexible pad strip. The pipeline is hard for ensuring the strength. The patient may move about and touch the tube after surgery. The flexible pad strip is arranged on the side, close to the patient, of the pipeline, so that the pain of the patient during collision can be effectively reduced.
The utility model discloses a such technical scheme, at first whole support body simple to operate, the installation finishes the back very stable, can not overturn owing to touch at the operation in-process. The structure ensures that the operation patient still has larger head space under the covering of the sterile cloth, the suffocation feeling can not be generated due to the undersize space, and the sufficiency of oxygen supply is also ensured. The rest of the devices ensure that the patient is relaxed in the mental state during the operation and also provide enough convenience for the operating doctor.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

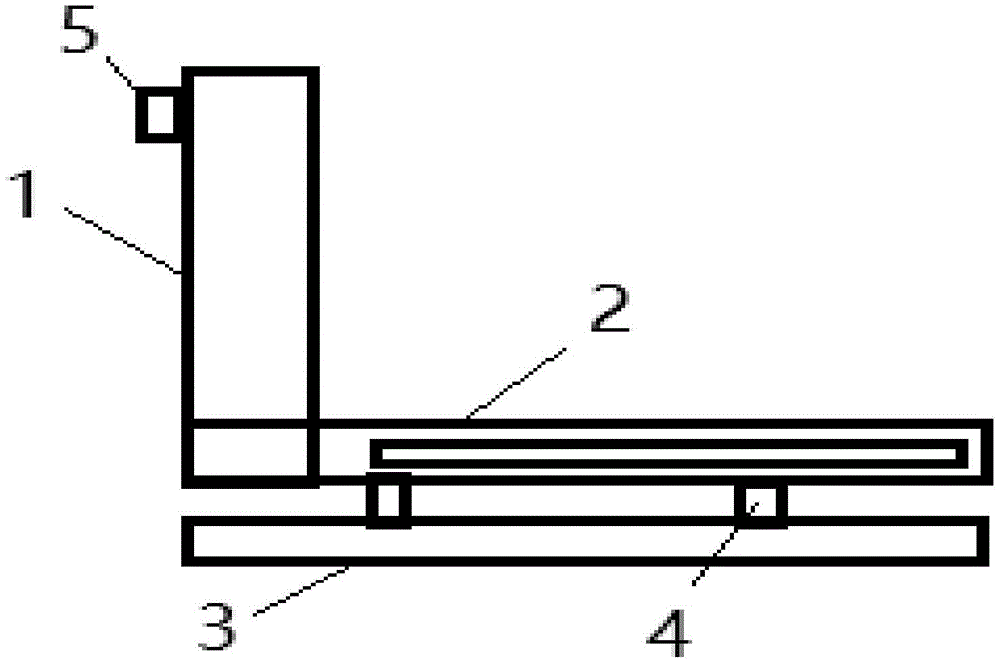

Fig. 1 is a schematic side view of a head surgery support according to the present invention.
Fig. 2 is a front structural view of the head surgical support of the present invention.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 and 2, the utility model relates to a head operation support comprises installation base and supporting part 1, wherein the installation base is pipeline 2 including a pair of parallel arrangement, and every pipeline 2 below is equipped with two piece at least fixed columns 4, and pipeline 2 fixes on fixed plate 3 through fixed column 4, fixed plate 3 is the glossy hard board of upper surface, 2 front ends of pipeline are equipped with supporting part 1, supporting part 1 is the cavity support body, 1 outside top of supporting part is equipped with the clamp 5 that is used for fixed aseptic cloth. The cross section of the supporting part 1 is rectangular or annular, and the width of the supporting part 1 is not less than 10 cm. A row of LED lamps is annularly arranged on the inner side of the supporting part 1. A sound box is arranged in the pipeline 2. The side of the pipeline 2 is also provided with an installation jack, and a detachable tool tray 6 is arranged in the installation jack. The thickness of the tool tray 6 does not exceed 1/2 the height of the pipe 2 and the width of the tool tray 6 does not exceed 5 cm. The pipeline 2 top corresponds 4 portions of fixed column and is equipped with the adjustment hole, and 4 sides of fixed column are equipped with the screw thread and the top passes through the bolt fastening. One side of the pipeline 2 facing to the operation patient is provided with a flexible filler strip.
Example 1:
for patients moving from other places to the operating room, the utility model is already installed on the sickbed. The head of the patient is placed in the supporting part 1 during the operation. When in operation, a doctor clamps one side of the sterile cloth on the clamp body 5, and the sterile cloth is supported by the support part 1, so that the patient is ensured to have a larger breathing space under the covering of the sterile cloth. And the supporting part 1 is hollow, so that smooth air circulation is ensured, and the patient does not feel uncomfortable. The surgeon can use the tool tray 6 to speed up the procedure during the procedure. The patient can learn the progress of the operation from the indication of the LED lamp or the sound box in the tube 2 if necessary without waiting for any purpose.
The LED lights may also be used to emit some soft light to stabilize the patient's mood. The sound box can also play soft music to relieve the nervous mood of the patient. Since the LED light is covered under the sterile cloth, such light does not affect the doctor's operation. Similarly, the enclosure is located in the conduit 2, close to the patient's ear and away from the doctor. The music in the sound box is played at a smaller volume, so that the doctor can not be influenced to perform the operation.
Example 2:
if the patient is directly operated on the sickbed, the head operation bracket is installed before the operation. At the moment, the mattress on the bed is only needed to be pulled up, and the head position of the patient is lifted at the same time. The fixing plate 3 is arranged between the bed board and the mattress. Since the upper surface of the fixing plate 3 is a smooth plane, the position of the patient's head can be finely adjusted by pulling the pad. After the adjustment is finished, the bolt on the fixing column 4 is rotated through the adjusting hole of the fixing column 4, the pipeline 2 is adjusted downwards until the pipeline 2 and the fixing plate 3 clamp the bedding together, and the bracket is mounted and can be used for operation. When in operation, a doctor clamps one side of the sterile cloth on the clamp body 5, and the sterile cloth is supported by the support part 1, so that the patient is ensured to have a larger breathing space under the covering of the sterile cloth. And the supporting part 1 is hollow, so that smooth air circulation is ensured, and the patient does not feel uncomfortable. The surgeon can use the tool tray 6 to speed up the procedure during the procedure. The patient can learn the progress of the operation from the indication of the LED lamp or the sound box in the tube 2 if necessary without waiting for any purpose.
The LED lights may also be used to emit some soft light to stabilize the patient's mood. The sound box can also play soft music to relieve the nervous mood of the patient. Since the LED light is covered under the sterile cloth, such light does not affect the doctor's operation. Similarly, the enclosure is located in the conduit 2, close to the patient's ear and away from the doctor. The music in the sound box is played at a smaller volume, so that the doctor can not be influenced to perform the operation.
In this document, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (8)
1. A head surgical support, characterized by: the aseptic cloth fixing device is characterized by comprising a mounting base and a supporting part (1), wherein the mounting base is a pipeline (2) comprising a pair of parallel arrangements, at least two fixing columns (4) are arranged below each pipeline (2), the pipeline (2) is fixed on a fixing plate (3) through the fixing columns (4), the fixing plate (3) is a hard plate with a smooth upper surface, the supporting part (1) is arranged at the front end of the pipeline (2), the supporting part (1) is a hollow frame body, and a clamp body (5) for fixing aseptic cloth is arranged at the top of the outer side of the supporting part (1).
2. A head surgical support according to claim 1, wherein: the cross section of the supporting part (1) is rectangular or annular, and the width of the supporting part (1) is not less than 10 cm.
3. A head surgical support according to claim 2, wherein: the inner side of the supporting part (1) is annularly provided with a row of LED lamps.
4. A head surgical support as claimed in claim 1, 2 or 3, wherein: a sound box is arranged in the pipeline (2).
5. A head surgical support according to claim 1, wherein: the side surface of the pipeline (2) is also provided with an installation jack, and a detachable tool tray (6) is arranged in the installation jack.
6. A head surgical support according to claim 5, wherein: the thickness of the tool tray (6) does not exceed 1/2 of the height of the pipeline (2), and the width of the tool tray (6) does not exceed 5 cm.
7. A head surgical support according to claim 1, wherein: an adjusting hole is formed in the upper portion of the pipeline (2) corresponding to the fixing column (4), threads are arranged on the side face of the fixing column (4), and the top of the fixing column is fixed through a bolt.
8. A head surgical support according to claim 1, wherein: one side of the pipeline (2) facing to the operation patient is provided with a flexible filler strip.
