CN210185748U

CN210185748U - An oral care package suitable for oral care of comatose patients

Info

Publication number: CN210185748U
Application number: CN201920357248.1U
Authority: CN
Inventors: Ying Ou; 欧颖; Ying He; 何英; Ke Zhao; 赵珂
Original assignee: West China Hospital of Sichuan University
Current assignee: West China Hospital of Sichuan University
Priority date: 2019-03-20
Filing date: 2019-03-20
Publication date: 2020-03-27
Anticipated expiration: 2029-03-20

Abstract

The utility model discloses an oral care bag suitable for oral care for comatose patients, comprising a storage box, wherein tweezers, cotton balls and fingertip toothbrushes are stored in the storage box; the storage box comprises a box body and a box cover, wherein The box body is provided with a plurality of partition plates; the fingertip toothbrush includes a finger cover, a plurality of cleaning protrusions are arranged on the belly surface of the finger cover head, and a wiping part is arranged on the back of the finger cover head. The utility model saves space and reduces the danger caused by using tweezers and cotton balls for cleaning.

Description

Oral care package suitable for carry out oral care to coma patient

Technical Field

The utility model relates to the field of medical equipment, especially, relate to an oral care package suitable for carry out oral care to stupor patient.

Background

The daily oral care package is a disposable treatment towel wrapping object after an outer packaging bag is removed, the size of the treatment towel is about 50 x 70cm, the space for normal operation is a bedside table of a patient and is 50 x 50cm, instruments and equipment such as a water cup, a paper towel and an electrocardiogram monitoring device of the patient can be placed on the table top, the space for operation is greatly reduced, the treatment towel is easy to touch table top objects in the process of opening the treatment towel to cause pollution, meanwhile, the treatment towel is usually made of non-woven fabrics, if the table top is filled with water or other liquid, the treatment towel is easy to wet to cause pollution of the operation package, and when the outer packaging bag is opened, if an operator does not stably hold or only holds a part of the treatment towel, the objects inside the treatment towel are easy to fall.

The oral care bag which is commonly used clinically only comprises a cotton ball and tweezers which are matched to clean the oral cavity of a patient, and the tweezers are made of metal materials and are very easy to touch the mucosa or the gum of the patient in the operation process, so bleeding or ulcer occurs; for unconscious patients, if the cotton ball is dropped carelessly during the operation, the cotton ball is easy to fall into the trachea, and related complications or error accidents are caused.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing an oral care package suitable for carry out oral care to the coma patient, save space, reduce the danger that uses tweezers cotton ball to clear up and bring.

In order to achieve the purpose, the utility model adopts the following technical proposal to realize:

the utility model discloses an oral care bag suitable for oral care of a coma patient, which comprises a storage box, wherein tweezers, cotton balls and fingertip toothbrushes are stored in the storage box; the storage box comprises a box body and a box cover, wherein a plurality of partition plates are arranged in the box body, the partition plates divide the inner cavity of the box body into a long tool storage area and a small tool storage area along the width direction, and the small tool storage area comprises a finger sleeve storage area and a cotton ball storage area which are arranged along the length direction of the storage box; the fingertip toothbrush comprises a finger sleeve, a plurality of cleaning bulges are arranged on the finger belly surface of the head of the finger sleeve, and a wiping part is arranged on the back surface of the finger of the head of the finger sleeve.

Preferably, the box cover comprises a flanging facing the box body, and the box cover is connected with the box body through the flanging in a clamping manner.

Preferably, the outer surface of the box body is provided with a clamping hook, and the box body and the box cover are connected in a clamping mode through the clamping hook.

Preferably, the head of the forceps is blunt, and the head of the forceps is sleeved with a silica gel sleeve.

Preferably, the height of the partition plate is equal to that of the box body, and the partition plate and the box body are integrally manufactured.

Preferably, the small tool storage area further comprises a garbage storage area.

Preferably, the wiping part is made of cloth or sponge.

Preferably, the finger stall is made of a silica gel material.

Preferably, the treatment towel is in a roll shape, the treatment towel and the tweezers are placed in the long tool storage area, a plurality of fingertip toothbrushes are placed in the fingertip storage area, and a plurality of cotton balls are placed in the cotton ball storage area.

The utility model has the advantages that:

1. this practicality saves space, reduces the risk of being overturned, guarantees operation article's security.

2. The utility model discloses use the finger toothbrush of silica gel material, can avoid stabbing the patient, the toothbrush directly overlaps on the finger, does not press from both sides tightly and lead to the condition emergence that the cotton ball dropped when also can avoid pressing from both sides the cotton ball with tweezers.

3. The finger toothbrush of the utility model is designed to be a finger belly which can help the patient to brush teeth, and the back side can use the wiping part to immediately clear away the dirt brushed after the teeth are brushed.

Drawings

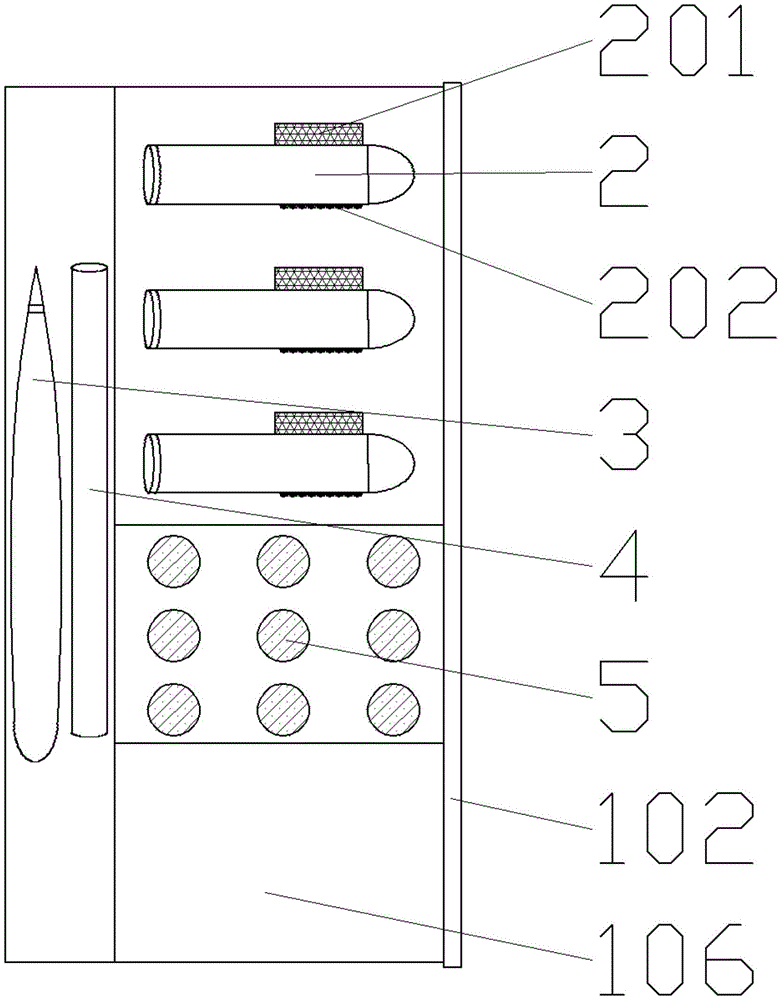

FIG. 1 is a schematic view of the present invention;

fig. 2 is a schematic view of a storage box according to the first embodiment;

fig. 3 is a schematic view of the storage box according to the second embodiment.

In the figure: 101-box body, 102-box cover, 103-flanging, 104-separation plate, 105-clamping hook, 106-garbage storage area, 2-fingertip toothbrush, 201-wiping part, 202-cleaning bulge, 3-forceps, 4-treatment towel and 5-cotton ball.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings.

As shown in fig. 1 and 2, the embodiment includes a storage box, wherein tweezers 3, a cotton ball 5 and a fingertip toothbrush 2 are stored in the storage box; the storage box comprises a box body 101 and a box cover 102, wherein a plurality of partition plates 104 are arranged in the box body 101, the partition plates 104 divide the inner cavity of the box body 101 into a long tool storage area and a small tool storage area along the width direction, and the small tool storage area comprises a finger stall storage area and a cotton ball storage area which are arranged along the length direction of the storage box; the fingertip toothbrush 2 comprises a finger sleeve, a plurality of cleaning bulges 202 are arranged on the finger belly surface of the head part of the finger sleeve, the back of the finger of the head of the finger sleeve is provided with a wiping part 201, the box cover 102 comprises a flange 103 facing the box body 101, the box cover 102 is connected with the box body 101 in a clamping way through a flanging 103, the head of the tweezers 3 is blunt, the head of the tweezers 3 is sleeved with a silica gel sleeve, the height of the separation plate 104 is equal to that of the box body 101, the divider plate 104 is made integral with the box 101, the gadget storage area further comprises a waste storage area 106, the wiping part 201 is made of cloth or sponge, the finger sleeve is made of silica gel material, and the treatment towel 4 is also included, the treatment piece of cloth 4 is roll-shaped, place treatment piece of cloth 4 and tweezers 3 in the long instrument save area, place a plurality of fingertip toothbrushes 2 in the dactylotheca save area, place a plurality of cotton balls 5 in the cotton ball save area.

As shown in fig. 1 and 3, the second embodiment is different from the first embodiment in that a snap hook 105 is disposed on an outer surface of the box body 101, and the box body 101 and the box cover 102 are snap-connected by the snap hook 105.

Of course, the present invention may have other embodiments, and those skilled in the art may make various corresponding changes and modifications according to the present invention without departing from the spirit and the essence of the present invention, and these corresponding changes and modifications should fall within the protection scope of the appended claims.

Claims

1. An oral care package suitable for oral care to a comatose patient, characterized in that: comprises a storage box, wherein tweezers (3), cotton balls (5) and a fingertip toothbrush (2) are stored in the storage box;

the storage box comprises a box body (101) and a box cover (102), wherein a plurality of partition plates (104) are arranged in the box body (101), the partition plates (104) divide the inner cavity of the box body (101) into a long tool storage area and a small tool storage area along the width direction, and the small tool storage area comprises a finger stall storage area and a cotton ball storage area which are arranged along the length direction of the storage box;

the fingertip toothbrush (2) comprises a finger sleeve, a plurality of cleaning bulges (202) are arranged on the finger belly surface of the head of the finger sleeve, and a wiping part (201) is arranged on the finger back surface of the head of the finger sleeve.

2. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the box cover (102) comprises a flanging (103) facing the box body (101), and the box cover (102) is connected with the box body (101) through the flanging (103) in a clamping mode.

3. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the outer surface of the box body (101) is provided with a clamping hook (105), and the box body (101) and the box cover (102) are connected in a clamping mode through the clamping hook (105).

4. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the head of the tweezers (3) is blunt, and the head of the tweezers (3) is sleeved with a silica gel sleeve.

5. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the partition plate (104) and the box body (101) are equal in height, and the partition plate (104) and the box body (101) are manufactured integrally.

6. The oral care kit suitable for use in oral care of a comatose patient according to claim 5, wherein: the gadget storage area further comprises a trash storage area (106).

7. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the wiping part (201) is made of cloth or sponge.

8. The oral care kit suitable for use in oral care of a comatose patient according to claim 1, wherein: the finger stall is made of silica gel material.

9. The oral care kit suitable for use in oral care of a comatose patient according to any one of claims 1-8, wherein: still including treatment piece of cloth (4), treatment piece of cloth (4) are roll-like, place treatment piece of cloth (4) and tweezers (3) in the long instrument save area, place a plurality of fingertip toothbrushes (2) in the dactylotheca save area, place a plurality of cotton balls (5) in the cotton ball save area.
