Abstract
The utility model relates to a promote pump station technical field, specifically a sewage promotes pump station for it is higher to solve current sewage promotes pump station and clear away debris and silt cost of labor, and clear away the problem that debris and silt are inefficient. The utility model comprises a pump station body and a horizontal sliding mechanism, wherein the horizontal sliding mechanism is provided with a first lifting mechanism, the lower end of the first lifting mechanism is detachably provided with an impurity removal frame component, and the impurity removal frame component can be positioned below the water inlet of a water inlet pipe; the bottom surface in the pump station body is provided with a sludge collecting groove, a sludge collecting box is installed in the sludge collecting groove, and the sludge collecting box is connected with a second lifting mechanism. The utility model transports the impurity removing frame component with sundries to the maintenance hole through the horizontal sliding mechanism and the vertical lifting mechanism; can transport the collection mud case to maintenance mouth department through second elevating system to can improve the efficiency of detaching interior debris of sewage promotion pump station and silt.
Description
Technical Field
The utility model relates to a promote pump station technical field, more specifically relate to a sewage promotes pump station.
Background
Sewage treatment refers to a process of purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people. In the link of sewage treatment, sometimes the pressure of sewage is insufficient and the sewage can not enter the next stage for treatment, so that a midway pump station needs to be set, namely a lifting pump station, to lift the sewage, and the sewage lifting pump station is an important component of a sewage system.
The promotion pump station that has detach debris function among the prior art includes the glass steel cylinder, the glass steel well lid, coupling device, the block terminal, stealthily dirty pump group, pipe-line system, it has water inlet and delivery port to open in the glass steel cylinder, the glass steel well lid is laid on glass steel cylinder upper portion, coupling device lays in glass steel cylinder lower part, stealthily dirty pump group is fixed and is connected with the delivery port through pipe-line system through coupling device, still include rotatory centrifugal impeller and crushing grid, rotatory centrifugal impeller is for the single channel structure of rotatory form to be furnished with on stealthily dirty pump group, it sets up in the glass steel cylinder and arranges in water inlet department to smash the grid. This promotion pump station can be with domestic waste such as plastic bag, braided bag, toilet paper and municipal garden rubbish smash into the fine powder in the sewage through smashing the grid, discharges along with sewage together.
However, above-mentioned sewage promotes the pump station and does not have the corresponding device that can detach interior debris of pump station body and silt, and debris and silt when this sewage promotes in the pump station are too much, need expend a large amount of human costs and clear away debris and silt in the sewage promotes the pump station, and the efficiency of detaching interior debris of sewage promotes the pump station and silt is not high. Therefore, there is an urgent need for a sewage lifting pump station which requires less manpower cost and has higher efficiency in removing the impurities and the sludge.
SUMMERY OF THE UTILITY MODEL
Based on above problem, the utility model provides a sewage promotes pump station for it is higher to solve current sewage promotes pump station and clear away debris and silt cost of labor, and clear away the problem that debris and silt are inefficient. The utility model is provided with the impurity removing frame component below the water inlet of the water inlet pipe, and the impurity removing frame component with impurities can be transported to the access hole through the horizontal sliding mechanism and the vertical lifting mechanism; have the collection mud groove of being convenient for gather silt through the bottom surface at the pump station body to install the collection mud case in the collection mud groove, can transport the collection mud case to access hole department through second elevating system, so can be more convenient detach debris and silt in this sewage promotion pump station, thereby can spend less human cost just can drive debris and silt in the sewage promotion pump station, and then can improve the efficiency of detaching debris and silt in the sewage promotion pump station.
The utility model discloses a realize above-mentioned purpose and specifically adopt following technical scheme:
a sewage lifting pump station comprises a pump station body, wherein a water inlet pipe is arranged on the pump station body, an overhauling platform is arranged in the pump station body, a first overhauling port and a second overhauling port are formed in the overhauling platform, a horizontal sliding mechanism is arranged above the overhauling platform on the inner wall of the pump station body, a first lifting mechanism is arranged on the horizontal sliding mechanism, an impurity removing frame assembly is detachably arranged at the lower end of the first lifting mechanism, and the impurity removing frame assembly can be positioned below a water inlet of the water inlet pipe; this internal bottom surface of pump station is opened there is the mud collection groove, install the mud collection case in the mud collection groove, be connected with second elevating system on the mud collection case, impurity removal frame subassembly and mud collection case can be respectively through first access hole, second access hole.
The working principle is as follows: before sewage flows into the pump station body from a water inlet of the water inlet pipe, the sewage flows into the impurity removing frame assembly firstly, impurities in the sewage can stay in the impurity removing frame assembly, when a certain amount of impurities in the impurity removing frame assembly are removed, a worker can start the horizontal sliding mechanism to move the impurity removing frame assembly to correspond to the first access opening, then start the first lifting mechanism to bring the impurity removing frame assembly to the first access opening, remove the impurities in the impurity removing frame assembly, and then convey the impurity removing frame assembly to the position below the water inlet of the water inlet pipe through the first lifting mechanism and the horizontal sliding mechanism;
when sewage enters the pump station body, sludge in the sewage slowly deposits at the bottom of the pump station body for a long time, a sludge collecting groove convenient for collecting the sludge is formed in the bottom surface in the pump station body, and a sludge collecting box is installed in the sludge collecting groove, so the sludge in the sewage can be slowly collected in the sludge collecting box, when the sludge in the sludge collecting box reaches a certain amount, a worker starts a second lifting mechanism, the sludge collecting box is brought to a second access hole by the second lifting mechanism, the worker removes the sludge in the sludge collecting box, and then the sludge collecting box is placed in the sludge collecting groove again by the second lifting mechanism. Through the operation, the work of the sewage lifting pump station does not need to be stopped frequently, and a large amount of manpower is spent to clear away the sundries and the silt inside the sewage lifting pump station, so that the sundries and the silt in the sewage lifting pump station can be removed more conveniently, the sundries and the silt in the sewage lifting pump station can be removed with less manpower cost, and the efficiency of removing the sundries and the silt in the sewage lifting pump station can be improved.
As a preferred mode, the horizontal sliding mechanism comprises a first supporting plate installed on the inner wall of the pump station body, a sliding groove is formed in the top surface of the first supporting plate in the horizontal direction, a strip-shaped through groove is formed in the sliding groove, a sliding plate capable of sliding along the sliding groove is installed in the sliding groove, and a power mechanism is connected to the side face of the sliding plate.
As a preferred mode, the power mechanism comprises a rack arranged on a sliding plate, a motor plate is arranged on the inner wall of the pump station body, a first rotating motor is arranged on the motor plate, and a gear meshed with the rack is arranged on the first rotating motor.
As a preferable mode, the first lifting mechanism includes a first rotating shaft sequentially penetrating through the sliding plate, the strip-shaped through groove and the first access opening, the first rotating shaft is connected with the sliding plate through a thread, the lower end of the first rotating shaft is connected with a first connecting block, the bottom surface of the first connecting block is connected with the impurity removing frame assembly, the upper end of the first rotating shaft is connected with a second rotating motor, the bottom surface of the first connecting block is connected with a first connecting rod, the first connecting rod is connected with the first connecting block through a thread, and the lower end of the first connecting rod is connected with the impurity removing frame assembly.
As a preferred mode, edulcoration frame subassembly includes edulcoration frame and edulcoration frame down, the edulcoration frame is installed in the lower part of last edulcoration frame down, go up the buffer board of installing the slope in the edulcoration frame, it has a plurality of buffering holes to open on the buffer board, it has a plurality of filtration holes and a plurality of filtration hole down to open respectively on edulcoration frame and the edulcoration frame down, the diameter of going up the filtration hole is greater than the diameter of filtration hole down.
As a preferred mode, the second lifting mechanism comprises a second supporting plate which is arranged on the inner wall of the pump station body and located above the maintenance platform, the second supporting plate is penetrated by a second rotating shaft arranged along the vertical direction, the second rotating shaft is in threaded connection with the second supporting plate, a third rotating motor is arranged at the upper end of the second rotating shaft, the lower end of the third rotating shaft is connected with a mud collecting box through a connecting mechanism, and the top surface of the pump station body is further provided with a power box communicated with the inside of the pump station body.
As a preferable mode, the connecting mechanism includes a second connecting block installed at the lower end of the second rotating shaft, the second connecting block is connected with the sludge collecting tank through a second connecting rod, and the second connecting rod is connected with the second connecting block through a thread.
As a preferred mode, the sludge collecting groove comprises a sludge collecting section, an inclined section and a horizontal section which are sequentially arranged from bottom to top, and the sludge collecting box is arranged in the sludge collecting section.
As a preferred mode, collection mud case includes from the bottom up shaping in proper order as an organic whole flourishing mud portion with advance mud portion, the upper end opening of advancing mud portion, and it has a plurality of mud holes to advance to open on the lateral wall of mud portion.
The utility model has the advantages as follows:
(1) the impurity removing frame assembly is arranged below the water inlet of the water inlet pipe, water flowing into the pump body from the water inlet flows into the impurity removing frame assembly firstly, impurities in sewage are filtered through the impurity removing frame assembly, the impurity removing frame assembly can be conveyed to the maintenance opening through the horizontal sliding mechanism and the vertical lifting mechanism, then impurities in the impurity removing frame assembly are removed, so that the impurities in the sewage lifting pump station can be removed more conveniently, and therefore the labor cost for removing the impurities in the sewage lifting pump station can be reduced, and the efficiency for removing the impurities in the sewage lifting pump station is improved.
(2) The utility model discloses in open through the bottom surface at the pump station body has the mud collecting tank of gathering silt of being convenient for to install a mud collection box at a mud collecting tank, when silt in a mud collection box reachs a quantitative, start vertical elevating system and transport a mud collection box to access hole department, so conveniently detach the silt in the sewage lifting pump station more, thereby can reduce the human cost who detaches silt in the sewage lifting pump station and improve the efficiency of detaching silt in the sewage lifting pump station.
(3) In the utility model, the bottom surface of the first connecting block is connected with the first connecting rod, and the first connecting rod is connected with the first connecting block through the screw thread, so that on one hand, the impurity removing frame component is more convenient to detach from or install on the connecting block, and on the other hand, different impurity removing frame components can be conveniently replaced on the connecting block so as to meet the impurity removing requirement for different sewage; the bottom surface of second connecting block is connected with the second connecting rod, and the second connecting rod passes through threaded connection with the second connecting block, and more convenient collection mud case on the one hand like this is dismantled from the second connecting block or is installed and go, and on the other hand can conveniently change different collection mud cases on the second connecting block to satisfy the silt of detaching in the different sewage.
(4) The utility model discloses well collection mud groove includes the collection mud section that from the bottom up set gradually, slope section and horizontal segment, and the collection mud case is installed in collection mud section, and submersible sewage pump installs on the horizontal segment. Silt is from the slow gliding of the slope section of album mud groove to album mud section department, and the collection mud case is installed in album mud section department, so silt in the sewage can slow gathering in album mud case, makes the silt gathering in the sewage promotion pump station in album mud case like this more easily.
Drawings

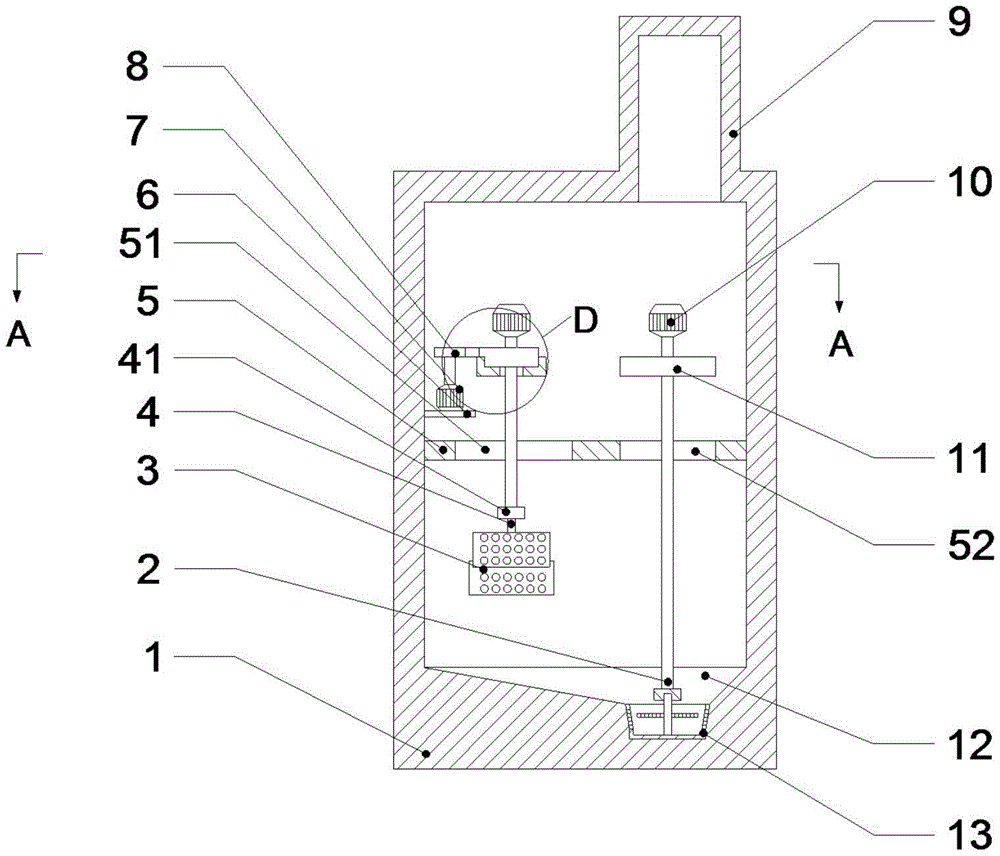

FIG. 1 is a schematic side sectional view of the present invention;
FIG. 2 is a schematic cross-sectional view taken along line A-A of FIG. 1 according to the present invention;
FIG. 3 is a schematic cross-sectional view taken along line B-B of FIG. 2 according to the present invention;
FIG. 4 is a schematic cross-sectional view taken at C-C of FIG. 2 according to the present invention;
FIG. 5 is a schematic view of a sectional structure of the impurity removing frame assembly, the first connecting rod and the second connecting rod of the present invention when they are connected;
FIG. 6 is a schematic view of the front sectional structure of the sludge collecting tank, the second connecting rod and the second connecting block of the present invention;
FIG. 7 is a schematic view of the bottom structure of the pump station body of the present invention;
fig. 8 is an enlarged schematic view of the present invention at D in fig. 1;
fig. 9 is an enlarged schematic view of fig. 3 at E according to the present invention;
reference numerals: 1 pump station body, 2 second rotation axis, 3 edulcoration frame subassembly, edulcoration frame under 31, filter the hole under 311, edulcoration frame on 32, filter the hole on 321, 4 head rods, 41 first connecting blocks, 5 overhaul platforms, 51 first access hole, 52 second access hole, 6 motor boards, 7 first rotating electrical machines, 8 gears, 9 headstock, 10 third rotating electrical machines, 11 second backup pads, 12 mud collecting groove, 121 mud collecting section, 122 slope section, 123 horizontal segment, 13 mud collecting box, 131 flourishing mud portion, 132 advances mud portion, 1321 advances mud hole, 14 inlet tubes, 141 water inlet, 15 sliding plates, 16 second rotating electrical machines, 17 rack, 18 first rotation axis, 19 second connecting rods, 191 second connecting blocks, 20 first backup pads, 201 bar-shaped through groove, 202 spout.
Detailed Description
For a better understanding of the present invention, the present invention will be described in further detail with reference to the accompanying drawings and the following embodiments.
Example 1:
as shown in fig. 1-9, a sewage lifting pump station comprises a pump station body 1, a water inlet pipe 14 is arranged on the pump station body 1, an overhaul platform 5 is arranged in the pump station body 1, a first overhaul port 51 and a second overhaul port 52 are formed in the overhaul platform 5, a horizontal sliding mechanism is arranged on the inner wall of the pump station body 1 above the overhaul platform 5, a first lifting mechanism is arranged on the horizontal sliding mechanism, an impurity removing frame assembly 3 is detachably arranged at the lower end of the first lifting mechanism, and the impurity removing frame assembly 3 can be positioned below a water inlet 141 of the water inlet pipe 14; the bottom surface in the pump station body 1 is opened there is mud collecting tank 12, installs mud collecting tank 13 in the mud collecting tank 12, is connected with second elevating system on the mud collecting tank 13, and edulcoration frame subassembly 3 and mud collecting tank 13 can be respectively through first access hole 51, second access hole 52.
The working principle is as follows: before sewage flows into the pump station body 1 from the water inlet 141 of the water inlet pipe 14, the sewage flows into the impurity removing frame assembly 3 firstly, impurities in the sewage can stay in the impurity removing frame assembly 3, when the impurities in the impurity removing frame assembly 3 reach a certain amount, a worker can start the horizontal sliding mechanism to move the impurity removing frame assembly 3 to correspond to the first access opening 51, then start the first lifting mechanism to bring the impurity removing frame assembly 3 to the first access opening 51, remove the impurities in the impurity removing frame assembly 3, and then convey the impurity removing frame assembly 3 to the position below the water inlet 141 of the water inlet pipe 14 through the first lifting mechanism and the horizontal sliding mechanism;
when sewage enters the pump station body 1, sludge in the sewage slowly deposits at the bottom of the pump station body 1 for a long time, because the bottom surface in the pump station body 1 is provided with the sludge collecting groove 12 convenient for collecting the sludge, and the sludge collecting box 13 is arranged in the sludge collecting groove 12, the sludge in the sewage can be slowly collected in the sludge collecting box 13, when the sludge in the sludge collecting box 13 reaches a certain amount, a worker starts the second lifting mechanism, the second lifting mechanism brings the sludge collecting box 13 to the second overhaul port 52, the worker removes the sludge in the sludge collecting box 13, and then the sludge collecting box 13 is placed in the sludge collecting groove 12 through the second lifting mechanism. Through the operation, the work of the sewage lifting pump station does not need to be stopped frequently, and a large amount of manpower is spent to clear away the sundries and the silt inside the sewage lifting pump station, so that the sundries and the silt in the sewage lifting pump station can be removed more conveniently, the sundries and the silt in the sewage lifting pump station can be removed with less manpower cost, and the efficiency of removing the sundries and the silt in the sewage lifting pump station can be improved.
The other parts of this embodiment are the same as embodiment 1, and are not described herein again.
Example 2:
as shown in fig. 1 to 9, on the basis of the above embodiments, the present embodiment provides a preferable mechanism of a horizontal sliding mechanism, that is, the horizontal sliding mechanism includes a first support plate 20 installed on the inner wall of the pump station body 1, a sliding slot 202 is opened on the top surface of the first support plate 20 in the horizontal direction, a strip-shaped through slot 201 is opened in the sliding slot 202, a sliding plate 15 capable of sliding along the sliding slot 202 is installed in the sliding slot 202, a power mechanism is connected to the side surface of the sliding plate 15, the power mechanism includes a rack 17 installed on the sliding plate 15, a motor plate 6 is installed on the inner wall of the pump station body 1, a first rotating motor 7 is installed on the motor plate 6, and a gear 8 engaged with the rack 17 is installed on the first rotating. The first rotating motor 7 is a conventional motor which is easily available on the market and can be selected from 6812ZY150W, but the type of the motor is not limited to 6812ZY 150W.
The preferable mechanism of a first elevating system is given, that is, the first elevating system includes a first rotating shaft 18 sequentially passing through the sliding plate 15, the strip-shaped through groove 201 and the first access hole 51, the first rotating shaft 18 is in threaded connection with the sliding plate 15, the lower end of the first rotating shaft 18 is connected with a first connecting block 41, the bottom surface of the first connecting block 41 is connected with the impurity removal frame assembly 3, the upper end of the first rotating shaft 18 is connected with a second rotating motor 16, the bottom surface of the first connecting block 41 is connected with a first connecting rod 4, the first connecting rod 4 is in threaded connection with the first connecting block 41, and the lower end of the first connecting rod 4 is connected with the impurity removal frame assembly 3. The second rotating motor 16 rotates to drive the rotating shaft to rotate, and since the rotating shaft is connected with the sliding plate 15 through threads, the rotating shaft moves upwards or downwards during the rotation process, and finally drives the impurity removing frame to move up and down in the vertical direction, wherein the second rotating motor 16 is a conventional motor which is easily available on the market and can be selected from 6812ZY150W, but the type of the motor is not limited thereto. In addition, the second rotating electrical machine 16 and the rotating shaft may be connected by a coupling, so that when the rotating shaft rotates, the second rotating electrical machine 16 does not rotate along with the rotating shaft, in short, the second rotating electrical machine 16 does not rotate along with the rotating shaft, and the circuit design of the second rotating electrical machine 16 is known by those skilled in the art, and therefore, no further description is provided herein; in addition, the bottom surface of the connecting block is connected with a connecting rod, the connecting rod is connected with the connecting block through threads, and the lower end of the connecting rod is connected with the impurity removal frame. More convenient edulcoration frame like this is dismantled from the connecting block or is installed and go on, and on the other hand can conveniently change different edulcoration frames on the connecting block to satisfy the edulcoration to different sewage.
Preferably, edulcoration frame subassembly 3 is including last edulcoration frame 32 and lower edulcoration frame 31, and lower edulcoration frame 31 is installed in the lower part of last edulcoration frame 32, goes up and installs the buffer board of slope in the edulcoration frame 32, and it has a plurality of buffering holes to open on the buffer board, goes up to open respectively on edulcoration frame 32 and the lower edulcoration frame 31 has a plurality of upper filtering holes 321 and a plurality of lower filtering holes 311, and the diameter of upper filtering holes 321 is greater than the diameter of lower filtering holes 311. Can detach great debris in the sewage through last edulcoration frame 32, can remove the littleer debris of aquatic through edulcoration frame 31 down, like this can be easier detach debris in the sewage, can pass through threaded connection between edulcoration frame 31 and last edulcoration frame 32 down in addition, be convenient for down the dismantlement between edulcoration frame 31 and last edulcoration frame 32.
The other parts of this embodiment are the same as embodiment 1, and are not described herein again.
Example 3:
as shown in fig. 1 to 9, on the basis of the above embodiments, the present embodiment provides a preferable mechanism of the second lifting mechanism, that is, the second lifting mechanism includes a second support plate 11 installed on the inner wall of the pump station body 1 and located above the maintenance platform 5, the second support plate 11 is penetrated by a second rotating shaft 2 arranged along the vertical direction, the second rotating shaft 2 is connected with the second support plate 11 through a screw thread, a third rotating motor 10 is installed at the upper end of the second rotating shaft 2, the lower end is connected with a mud collecting tank 13 through a connecting mechanism, and a power tank 9 communicated with the inside of the pump station body 1 is further arranged on the top surface of the pump station body 1. When the sludge in the sludge collection tank 13 reaches a certain amount, a worker starts the third rotating motor 10, the third rotating motor 10 rotates to drive the second rotating shaft 2 to rotate, and the second rotating shaft 2 moves upwards while rotating due to the threaded connection between the second rotating shaft 2 and the second support plate 11, and the rotation of the second rotating motor 16 is stopped until the sludge collection tank 13 reaches the second access opening 52; after the staff clears away the silt in the mud collection box 13 again, start second rotating electrical machines 16 in proper order and rotate to opposite direction again, second rotation axis 2 can drive mud collection box 13 and move down when rotatory, finally places mud collection box 13 in mud collection groove 12.
Preferably, the connection mechanism includes a second connection block 191 installed at a lower end of the second rotation shaft 2, the second connection block 191 is connected to the sludge collection tank 13 by a second connection rod 19, and the second connection rod 19 is connected to the second connection block 191 by a screw. So that on the one hand, the sludge collecting tank 13 is more convenient to be detached from or installed on the second connecting block 191, and on the other hand, different sludge collecting tanks 13 can be conveniently replaced on the second connecting block 191 so as to meet the requirement of removing sludge in different sewage.
The other parts of this embodiment are the same as embodiment 1, and are not described herein again.
Example 4:
as shown in fig. 1 to 9, on the basis of the above-mentioned embodiments, the present embodiment provides a preferable structure of the sludge collecting trough, that is, the sludge collecting trough 12 comprises a sludge collecting section 121, an inclined section 122 and a horizontal section 123 which are arranged in sequence from bottom to top, and the sludge collecting tank 13 is installed in the sludge collecting section 121. The sludge slowly slides down from the inclined section 122 of the sludge collection tank 12 to the sludge collection section 121, and the sludge collection tank 13 is installed at the sludge collection section 1213, so the sludge in the sewage is slowly collected in the sludge collection tank 13, which makes it easier for the sludge in the sewage lift pump station to be collected in the sludge collection tank 13.
Preferably, the mud collecting box 13 includes a mud containing part 131 and a mud inlet part 132 which are sequentially formed as a whole from bottom to top, the upper end of the mud inlet part 132 is open, and a plurality of mud inlet holes 1321 are formed on the side wall of the mud inlet part 132. Sludge in the sewage can enter the sludge holding portion 131 from the opening of the sludge inlet portion 132 and the sludge inlet hole 1321, so that the sludge can slowly accumulate in the sludge holding portion 131.
The other parts of this embodiment are the same as embodiment 1, and are not described herein again.
The embodiment of the present invention is the above. The specific parameters in the above embodiments and examples are only for the purpose of clearly showing the verification process of the present invention, and are not used to limit the protection scope of the present invention, which is still subject to the claims, and all the equivalent structural changes made by using the contents of the specification and drawings of the present invention should be included in the protection scope of the present invention.
Claims (9)
1. The utility model provides a sewage lifting pump station, includes pump station body (1), be equipped with inlet tube (14) on pump station body (1), be equipped with in pump station body (1) and overhaul platform (5), its characterized in that: the maintenance platform (5) is provided with a first maintenance opening (51) and a second maintenance opening (52), a horizontal sliding mechanism is mounted on the inner wall of the pump station body (1) above the maintenance platform (5), a first lifting mechanism is mounted on the horizontal sliding mechanism, an impurity removal frame assembly (3) is detachably mounted at the lower end of the first lifting mechanism, and the impurity removal frame assembly (3) can be located below a water inlet (141) of the water inlet pipe (14); the mud collecting tank is characterized in that a mud collecting groove (12) is formed in the bottom surface of the pump station body (1), a mud collecting box (13) is installed in the mud collecting groove (12), a second lifting mechanism is connected to the mud collecting box (13), and the impurity removing frame assembly (3) and the mud collecting box (13) can respectively pass through a first access hole (51) and a second access hole (52).
2. The sewage lifting pump station according to claim 1, wherein: horizontal sliding mechanism is including installing first backup pad (20) on pump station body (1) inner wall, the top surface of first backup pad (20) is opened at the horizontal direction has spout (202), it has bar logical groove (201) to open in spout (202), install in spout (202) and follow spout (202) gliding sliding plate (15), the side of sliding plate (15) is connected with power mechanism.
3. The sewage lifting pump station according to claim 2, wherein: the power mechanism comprises a rack (17) installed on a sliding plate (15), a motor plate (6) is installed on the inner wall of the pump station body (1), a first rotating motor (7) is installed on the motor plate (6), and a gear (8) meshed with the rack (17) is installed on the first rotating motor (7).
4. The sewage lifting pump station according to claim 3, wherein: the first lifting mechanism comprises a first rotating shaft (18) which sequentially penetrates through a sliding plate (15), a strip-shaped through groove (201) and a first access hole (51), the first rotating shaft (18) is in threaded connection with the sliding plate (15), the lower end of the first rotating shaft (18) is connected with a first connecting block (41), the bottom surface of the first connecting block (41) is connected with an impurity removal frame assembly (3), the upper end of the first rotating shaft (18) is connected with a second rotating motor (16), the bottom surface of the first connecting block (41) is connected with a first connecting rod (4), the first connecting rod (4) is in threaded connection with the first connecting block (41), and the lower end of the first connecting rod (4) is connected with the impurity removal frame assembly (3).
5. The sewage lifting pump station according to claim 4, wherein: edulcoration frame subassembly (3) are including last edulcoration frame (32) and lower edulcoration frame (31), install the lower part at last edulcoration frame (32) down edulcoration frame (31), it has a plurality of filtration holes (321) and a plurality of filtration holes (311) down to open respectively on edulcoration frame (32) and lower edulcoration frame (31), the diameter of going up filtration holes (321) is greater than the diameter of filtration holes (311) down.
6. The sewage lifting pump station according to claim 1, wherein: second elevating system is including installing second backup pad (11) on pump station body (1) inner wall and being located maintenance platform (5) top, second backup pad (11) are passed along second rotation axis (2) that vertical direction set up, pass through threaded connection between second rotation axis (2) and second backup pad (11), third rotating electrical machines (10) are installed to the upper end of second rotation axis (2), and mud collection case (13) is connected through coupling mechanism to the lower extreme, pump station body (1) top surface still be equipped with pump station body (1) inside communicating headstock (9).
7. The sewage lifting pump station according to claim 6, wherein: the connecting mechanism comprises a second connecting block (191) installed at the lower end of the second rotating shaft (2), the second connecting block (191) is connected with the sludge collecting box (13) through a second connecting rod (19), and the second connecting rod (19) is connected with the second connecting block (191) through threads.
8. The sewage lifting pump station according to claim 1, wherein: the mud collecting groove (12) comprises a mud collecting section (121), an inclined section (122) and a horizontal section (123) which are sequentially arranged from bottom to top, and the mud collecting box (13) is installed in the mud collecting section (121).
9. The sewage lifting pump station according to claim 8, wherein: collection mud case (13) include from the bottom up shaping in proper order as an organic whole flourishing mud portion (131) and advance mud portion (132), the upper end opening of advancing mud portion (132), and it has a plurality of mud holes (1321) of advancing to open on the lateral wall of advancing mud portion (132).
