Anal patch

Technical Field

The utility model relates to the field of medical care appliances, in particular to an anal patch.

Background

The anorectal patient needs to keep the wound dry, clean and breathable to promote healing, but the anus is adjacent to the vulva and the urethral orifice, so that the anus is easily infiltrated by urine or the wound is easily infected by bacteria in the vulva, and meanwhile, the anus is uneven and frequently moves, so that the bandaging gauze is easily dropped. Therefore, there is a need for an adhesive patch that is effective in reducing infection and that can securely hold wound dressings for anal patients. When traditional anus patient changed dressings, mainly leaned on increasing winding adhesive tape to increase wound dressing's fixity, reduced the infection through increasing the dressing frequency in order to change wetted dressing in time. Therefore, we improve the above and provide an anal patch.

SUMMERY OF THE UTILITY MODEL

In order to solve the defects existing in the prior art, the utility model provides an anal patch.

In order to solve the technical problem, the utility model provides a following technical scheme:

the utility model relates to an anus can paste, including the band-aid main part, four corners of band-aid main part are all fixed and are equipped with gluey subsides, the adhesive surface of gluing pastes has the release film, the middle part of band-aid main part sets up the fold, the opening has been seted up at the top of band-aid main part, the opening upper shield is equipped with first cotton that absorbs water, the inboard edge part of first cotton that absorbs water is equipped with bonding zone, bonding zone and band-aid main part bond, and bonding zone encircles the opening edge and set up, the fold level is in the opening setting.

As an optimal technical scheme of the utility model, the cotton inboard of first absorption and the fixed second that is equipped with in middle part that is located the bonding region cotton that absorbs water, just the second absorbs water cotton and opening phase-match setting.

As an optimal technical scheme of the utility model, the fixed semicircle cotton that is equipped with in first cotton bottom of absorbing water, just the semicircle cotton is located the bottom in bonding region.

As an optimal technical scheme of the utility model, it is provided with four from the type membrane, and four pastes and four from the type membrane one-to-ones setting.

As an optimal technical scheme of the utility model, band-aid main part and glue and paste all adopt the non-woven fabrics to make.

As an optimized technical scheme of the utility model, three rows of a plurality of bleeder vents have been seted up on the sticker.

The utility model has the advantages that: the anus plaster adopts a butterfly design and the first absorbent cotton to effectively avoid the pollution of the anus, solve the problem that the plaster is easy to fall off, and increase the comfort and compliance of patients; the adhesive bandage main body is convenient to extend through the arranged folds, so that the anus can be adhered to a wound in a certain range, and the practicability is enhanced.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

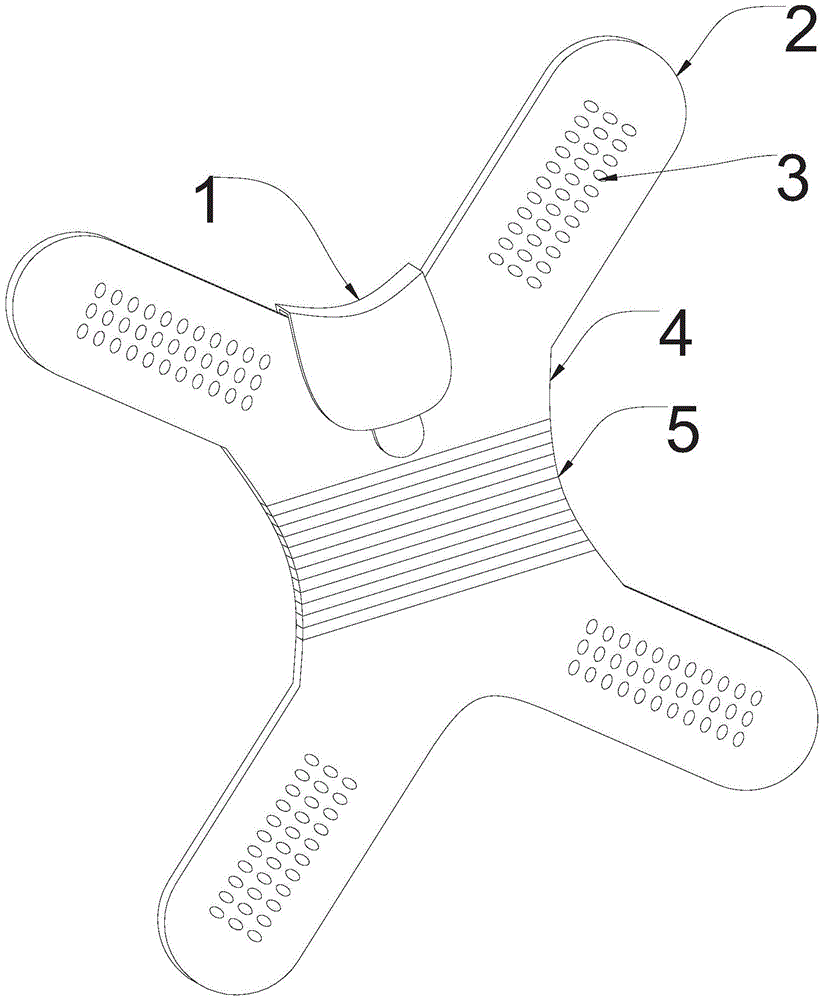

fig. 1 is a schematic front structure view of an anal patch of the present invention;

fig. 2 is a schematic view of the splitting structure of the main body of the adhesive bandage and the first absorbent cotton of the anal patch of the present invention;

fig. 3 is a back structure diagram of the anal patch of the present invention;

FIG. 4 is a schematic view of the detachable structure of the adhesive patch and the release film of the anal patch of the present invention;

fig. 5 is a schematic side view of the first absorbent cotton of the anal patch of the present invention;

fig. 6 is a schematic view of the cross-sectional structure of the first absorbent cotton of the anal patch of the present invention.

In the figure: 1. first absorbent cotton; 2. gluing; 3. air holes are formed; 4. a bandage main body; 5. folding; 6. a release film; 7. second absorbent cotton; 8. semi-circular cotton; 9. a bonding region; 10. and (4) opening.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

Example (b): as shown in fig. 1, fig. 2, fig. 3, fig. 4, fig. 5 and fig. 6, the utility model relates to an anus can paste, including band-aid main body 4, four corners of band-aid main body 4 are all fixed and are equipped with glue 2, the adhesive side of glue 2 bonds and has from type membrane 6, the middle part of band-aid main body 4 sets up fold 5, opening 10 has been seted up at the top of band-aid main body 4, opening 10 upper shield is equipped with first absorbent cotton 1, the inboard edge part of first absorbent cotton 1 is equipped with bonding zone 9, bonding zone 9 bonds with band-aid main body 4, and bonding zone 9 encircles opening 10 edge setting, fold 5 is level in opening 10 setting, the first absorbent cotton 1 that is equipped with is used for absorbing the urine that flows to perineum department, it is inboard to prevent that urine from entering band-aid main body 4, and then prevent that patient's the surface of a wound from receiving the pollution.

Wherein, the inboard of first cotton 1 that absorbs water and the middle part that is located bonding region 9 are fixed to be equipped with the cotton 7 that absorbs water of second, and the cotton 7 that absorbs water of second and opening 10 phase-match setting, and the second that sets up absorbs water cotton 7 can effectually compensate the breach that opening 10 caused, and is more comfortable during the use.

Wherein, the fixed semicircle cotton 8 that is equipped with in bottom of first cotton 1 that absorbs water, and semicircle cotton 8 is located the bottom of adhesive area 9, but when the first cotton 1 that absorbs water absorbs too much urine need not to change this anus, can make adhesive area 9 and adhesive bandage main part 4 separation through tearing semicircle cotton 8 this moment, and then realize tearing first cotton 1 that absorbs water, reduced the frequency that changes this anus can paste promptly, alleviate patient's burden.

Wherein, be provided with four from type membrane 6, and four glue 2 and four from the setting of type membrane 6 one-to-one, from type membrane 6 through four that set up, but not a holistic from type membrane for it changes in the operation when pasting, the concrete reason is, because glue 2 is provided with four, if adopt a holistic from type membrane, four glue 2's of gluing face all exposes this moment, because disease surface of a wound position is complicated, can lead to four to glue 2 to bond each other, influence this anus can paste the progress of pasting, and the practicality.

Wherein, the adhesive bandage main body 4 and the adhesive bandage 2 are both made of non-woven fabrics, and the non-woven fabrics are more compatible with skin.

Wherein, three rows of a plurality of air holes 3 are arranged on the adhesive plaster 2, so that the adhesive plaster 2 has the effects of ventilation, firmness and skin friendliness.

When the wound dressing is in work, the folds 5 are extended according to the size of the wound of a patient, so that the wound dressing main body 4 can be attached to the wound, and the problem that the wound dressing main body 4 is too large and too small is solved; then the release films 6 positioned at two sides of the opening 10 are torn off, the adhesive plaster 2 at the position is adhered to the inner sides of two big legs, the first absorbent cotton 1 is positioned at the perineum, then the other two release films 6 are torn off, and the adhesive plaster 2 at the position is adhered to the position from the anus to the coccyx, so that the adhering process of the anal patch is realized, the first absorbent cotton 1 is arranged for absorbing urine flowing to the perineum, and the urine is prevented from entering the inner side of the adhesive bandage main body 4, so that the wound surface of a patient is prevented from being polluted; when need not to change this anus and can paste but first cotton 1 that absorbs water absorbs too much urine, can make bonding region 9 and adhesive bandage main part 4 separation this moment through tearing semicircle cotton 8, and then realize tearing first cotton 1 that absorbs water, reduced the frequency that this anus of change can paste promptly, alleviate patient's burden.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides an anus can paste, includes adhesive bandage main part (4), its characterized in that, four corners of adhesive bandage main part (4) are all fixed and are equipped with adhesive bandage (2), the adhesive tape face of adhesive bandage (2) bonds and has from type membrane (6), the middle part of adhesive bandage main part (4) sets up fold (5), opening (10) have been seted up at the top of adhesive bandage main part (4), opening (10) upper shield is equipped with first cotton (1) that absorbs water, the inboard edge part of first cotton (1) that absorbs water is equipped with bonding zone (9), bonding zone (9) bond with adhesive bandage main part (4), and bonding zone (9) encircle opening (10) edge setting, fold (5) are the level in opening (10) setting.

2. The anal patch as claimed in claim 1, wherein a second absorbent cotton (7) is fixedly arranged on the inner side of the first absorbent cotton (1) and in the middle of the bonding area (9), and the second absorbent cotton (7) is matched with the opening (10).

3. The anal patch as claimed in claim 1, wherein the bottom of the first absorbent cotton (1) is fixedly provided with semicircular cotton (8), and the semicircular cotton (8) is positioned at the bottom of the bonding area (9).

4. The anal patch as claimed in claim 1, wherein the number of the release films (6) is four, and the four adhesive patches (2) are arranged corresponding to the four release films (6) one by one.

5. The anal patch according to claim 1, wherein the main body (4) and the adhesive patch (2) are made of non-woven fabrics.

6. The anal patch according to claim 1, wherein the adhesive patch (2) is provided with three rows of a plurality of air holes (3).
