Abstract

The utility model discloses a multi-functional clean face brush of washing face has installed a plurality of brush heads on the casing, including first brush head on the casing top, the second brush head is at the casing lateral wall, and the brush hair variation in size of each brush head is also different to the clean degree of skin, massage effect, and the material of silica gel is higher to the softness of skin, and is little to the irritability of skin, is fit for various skin types. The wide degree and the safety degree of the use of the device are simultaneously higher, the operation is simple, and the device is integrated and multipurpose. The mode of electrically driving the brush hair and the brush head to vibrate enhances the cleaning force of the face washing brush and prevents grease from blocking pores.

Description

Multifunctional face cleaning and face washing brush

Technical Field

The utility model relates to a clean field of face especially relates to a multi-functional clean face brush of washing.

Background

Traditional face brush only is provided with rotatable brush head at the tip of handle, and its clean function is single, can not clear up skin in proper order step by step, can not thoroughly clear away the harmful substance on the face, unnecessary grease, remaining cosmetics, and adaptability is relatively poor, can't satisfy current market demand.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the technical problem mentioned above, and provides a multifunctional face-cleaning face-washing brush, which can carry out deep cleaning on skin through redesigning and reforming a connecting rod on the face-washing brush.

The utility model discloses a realize through following technical scheme:

a multifunctional face cleaning and face washing brush comprises a handle, wherein a first brush head is arranged at the top end of the handle, and a second brush head is arranged on the side wall of the handle.

Preferably, the second brush head comprises two, and one of the two brush heads has thinner bristles and the other brush head has thicker bristles.

Preferably, the bristles of the first brush head and the second brush head are thinner on one hand and thicker on the other hand.

Preferably, the bristles of the first head are thinner than the bristles of the second head.

Preferably, the handle is provided with a first power part which can drive the first brush head to rotate.

Preferably, the handle is provided with a second power part which can drive the second brush head to vibrate.

Preferably, the handle is provided with a third power part which can drive the first brush head to vibrate and rotate.

Preferably, the handle comprises a support frame at the front end, and a concave part for accommodating the second brush head is formed in the support frame.

Preferably, the handle comprises a front end body and a rear end body, the front end body and the rear end body are connected through a plurality of connecting rods arranged around the axis of the handle, and the second brush head is sleeved outside the connecting rods.

The beneficial effects are that: compared with the prior art, the utility model discloses a multi-functional clean face brush of washing face, it cooperatees through first brush head and second brush head, can adapt to the cleanness of a plurality of positions of people's facial, the clean face mode is various, and combine vibration clean face and rotation clean face, further promote the product suitability, the product has different reply modes also relatively more to sensitive muscle, oily skin, perceptual skin, mixed nature skin etc. the face brush is washed to the tradition relatively, its extensive degree of use is higher, easy operation, integrative multi-purpose.

Drawings

The following detailed description of embodiments of the invention is provided in conjunction with the accompanying drawings, in which:

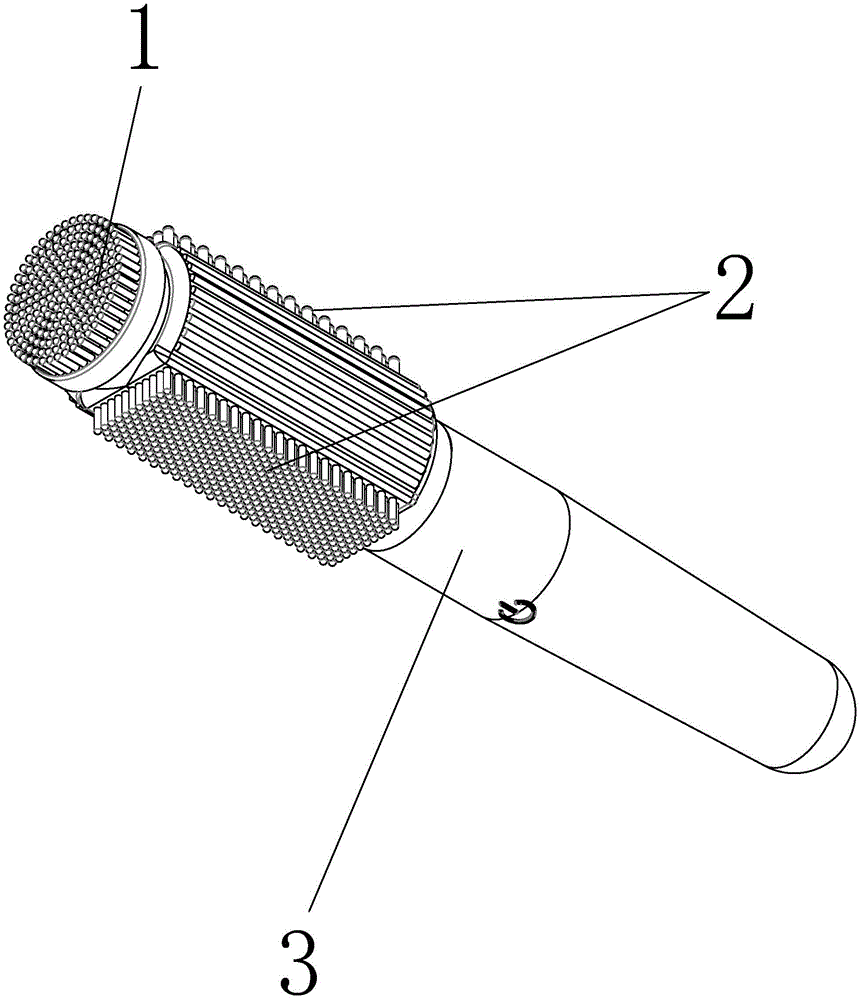

FIG. 1 is a schematic view of the external structure of a multifunctional electric face-cleaning device;

FIG. 2 is a schematic structural view of an electric device (mode one) of the multifunctional electric face-cleaning and face-washing brush;

FIG. 3 is a schematic structural view of an electric device (mode two) of the multifunctional electric face-cleaning and face-washing brush;

fig. 4 is a sectional view of the multifunctional electric device (mode two) of the electric face-cleaning face-washing brush A-A.

Detailed Description

As shown in fig. 1-4, a multifunctional face-cleaning face-washing brush comprises a handle 3, a first brush head 1 is arranged at the end of the handle 3, bristles of the first brush head 1 can be uniformly arranged on the top end of the handle 3 in a concentric circle arrangement mode, a second brush head 2 is arranged on the side wall of the handle 3, and the bristles of the second brush head 2 are integrally arranged in a rectangular shape and uniformly arranged on the side wall of the handle 3. The arrangement of the multiple brush heads is more convenient to use, the brush heads are different in type and cleaning effect, and the requirements of various skin types on facial care are met.

The second brush head 2 can be sleeved on one side of the handle 3 corresponding to the first brush head 1.

As shown in figure 1, the second brush head 2 preferably comprises two or more, and one of the two brush heads has thinner bristles and the other brush head has thicker bristles; when the thickness of the brush head is larger than that of the brush heads, the thickness degree can be sequentially decreased or increased. The bristles of the first brush head 1 are also preferably of a different thickness than the bristles of the second brush head 2, the bristles of the first brush head 1 preferably being thinner than the bristles of the second brush head 2. The effects of cleaning, massaging and nursing the skin are different due to the thickness of the bristles, and a user can select between the first brush head 1 and the second brush head 2 or between the second brush heads 2 according to the requirements of the user and different nursing positions.

The bristles of the first brush head 1 are thinner than the bristles of the second brush head 2. First brush head 1 is fit for carrying out the degree of depth clean to skin, can clean the local of the difficult clearance of corresponding face, can let the inside accumulational metabolic waste of skin get rid of inside the skin from facial massage is effectual through first brush head 1.

As shown in fig. 2, a first power part which can drive the first brush head 1 to rotate is preferably arranged on the handle 3, and the first power part is preferably fixed inside the handle 3 and is used for driving the first brush head 1 to rotate, so that the first brush head 1 can better clean the face of a human body.

As shown in fig. 1-2, the first power member may further include a rotating motor 5, an output shaft 4. There is a rotation motor 5 in handle 3 inside, and handle 3 is inside to set up four spacing archs 7 and to fix respectively at the front end and the rear end of rotating motor 5, stretches out an output shaft 4 on rotating motor 5 and links to each other in first brush head 1 is inside, and the output shaft 4 of rotating motor 5 can be dismantled through the screw with first brush head 1 and be connected, perhaps can dismantle the connection through the buckle mode. When the rotating motor 5 works, the output shaft 4 is driven to rotate, and the first brush head 1 fixed with the output shaft 4 also rotates along with the output shaft. The rotating motor 5 is preferably a micro motor.

As shown in fig. 2-4, the handle 3 is provided with a second power member for driving the second brush head 2 to vibrate.

The second power member preferably comprises a vibration motor 6, the second brush head 2 is sleeved on a support frame 9 on the outer side wall of the handle 3, a vibration motor 6 is arranged in a gap between the second brush head 2 and the handle 3, and when the vibration motor 6 works, the second brush head 2 vibrates. At this moment, the handle 3 preferably includes the support frame 9 of front end, offers the concave part that the second brush head 2 cover of holding was established on the support frame 9, and the second brush head 2 is established to the cover on the support frame 9, can set up the clearance between the concave part of second brush head 2 and support frame 9 for the vibration of the second brush head 2 of holding.

As shown in fig. 1, 3 and 4, the second power member may also include a vibration motor 6, but there are connecting rods 8 on the outer wall of the handle 3, the connecting rods 8 are used to fix the respective unit second brush heads 2, and there is a vibration motor 6 in the gap between the connecting rods 8 and the second brush heads 2, and when the vibration motor 6 is operated, the second brush heads 2 vibrate.

The handle is provided with a third power part which can drive the first brush head to vibrate and rotate.

As shown in fig. 1, fig. 3 and fig. 4, the third power component includes a rotating motor 5, an output shaft 4 and a vibrating motor 6, four limit protrusions 7 are arranged inside a handle 3 and are respectively fixed at the upper end and the lower end of the rotating motor 5, the rotating motor 5 is in contact with a second brush head 2 in a sleeved mode, a connecting rod 8 is arranged on the outer wall of the handle 3, the connecting rod 8 is used for respectively fixing the second brush head 2 of each unit, a vibrating motor 6 is arranged in a gap between the connecting rod 8 and the second brush head 2, when the vibrating motor 6 and the rotating motor 5 work, the vibrating motor 6 drives the second brush head 2 to vibrate, the second brush head 2 drives the rotating motor 5 to vibrate, the rotating motor 5 drives the output shaft 4 to rotate and vibrate, and therefore the first brush head 1 is driven to rotate and vibrate.

As shown in fig. 3 and 4, the handle 3 may include a front end body and a rear end body, the front end body and the rear end body are connected through a plurality of connecting rods 8 arranged around the axis of the handle 3, and the second brush head 2 is sleeved outside the connecting rods 8. At this moment, the inside of second brush head 2 is provided with the bar arch, and the bar arch inwards wears out from the clearance between adjacent connecting rod 8, and the bar arch can be used for fixed rotation motor 5, and spacing arch then can set up on the bellied inner wall of bar.

The first brush head 1 and the second brush head 2 can be made of silica gel, the connecting rod made of silica gel has softness, and the adopted silica gel is softer than common materials and has much less irritation to skin. Compared with the cleaning capability, the silica gel type brush hair is easier to clean, and the skin is not easy to be infected due to the residue of the last cleaning when the skin is cleaned.

The rotation of first brush head 1 also can be realized through the vibration of second brush head 2, specifically can be, the second brush head 2 cover is established at the support frame 9 of 3 front ends of handle, be provided with vibrating motor 6 between second brush head 2 and the support frame 9, specifically can be as the mode in figure 4, fix at this moment and brush the inside base that is of head at the second, be provided with the connecting axle on the base, first brush head 1 is rotatable to be set up on the connecting axle, drive base and connecting axle vibration through vibrating motor 6, first brush head 1 rotates relative to the connecting axle under the vibration effect this moment.

The above embodiments are not limited to the technical solutions of the embodiments themselves, and the embodiments may be combined with each other into a new embodiment. The above embodiments are only used for illustrating the technical solutions of the present invention and are not limited thereto, and any modification or equivalent replacement that does not depart from the spirit and scope of the present invention should be covered by the scope of the technical solutions of the present invention.

Claims

1. The utility model provides a multi-functional clean face brush of washing face which characterized in that, includes handle (3), and handle (3) top is provided with first brush head (1), and handle (3) lateral wall is provided with second brush head (2).

2. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the second brush head (2) comprises two brush heads, wherein one of the brush heads is thinner, and the other brush head is thicker.

3. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the bristles of the first brush head (1) and the second brush head (2) are thinner on one side and thicker on the other side.

4. A multifunctional face-cleaning face-washing brush as claimed in claim 3, characterized in that the bristles of the first brush head (1) are thinner than the bristles of the second brush head (2).

5. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the handle (3) is provided with a first power member which can drive the first brush head (1) to rotate.

6. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the handle (3) is provided with a second power part which can drive the second brush head (2) to vibrate.

7. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the handle (3) is provided with a third power member which can drive the first brush head (1) to vibrate and rotate.

8. The multifunctional face-cleaning face-washing brush as claimed in claim 1, wherein the handle (3) comprises a support frame (9) at the front end, and a concave part for accommodating the second brush head (2) is formed on the support frame (9).

9. The multifunctional face-cleaning face-washing brush as claimed in claim 1, characterized in that the handle (3) comprises a front body and a rear body, the front body and the rear body are connected through a plurality of connecting rods (8) arranged around the axis of the handle (3), and the second brush head (2) is sleeved outside the connecting rods (8).
