The utility model discloses an agitating unit is used in monosodium glutamate production, including box and first motor, its characterized in that, the one end key-type connection of first motor output shaft has first transmission shaft, and has cup jointed the action wheel on the circumference outer wall of first transmission shaft, the conveyer belt has been cup jointed on one side outer wall of action wheel, and has cup jointed from the driving wheel on the one side inner wall that the action wheel was kept away from to the conveyer belt, cup jointed first fixed axle on the circumference inner wall from the driving wheel, and the one end welding of first fixed axle is on one side outer wall of box, the one end welding that first fixed axle was kept away from to the box has the motor case, and the welding has the second fixed axle on one side outer wall of motor case. The utility model discloses utilize first motor can drive the box and rotate to can make the complete stirring of monosodium glutamate raw materials glutamic acid, conveniently carry out complete mixing with glutamic acid, avoid the part to omit not stirred.

Description

Agitating unit is used in monosodium glutamate production
Technical Field
The utility model relates to a agitating unit technical field especially relates to an agitating unit is used in monosodium glutamate production.
Background
Monosodium glutamate is one of flavoring, and the main ingredient is sodium glutamate. The monosodium glutamate has the main function of enhancing the delicate flavor of food, is used in Chinese dishes mostly and can also be used for soup and sauce, the monosodium glutamate is used in the glutamic acid fermentation industry, and a stirring device is required to be used for promoting fermentation when the glutamic acid is fermented.
Through the retrieval, chinese patent is CN 204996377U's patent discloses a agitating unit for monosodium glutamate production, including jar body and with jar body threaded connection's end cover, still include the support and install the motor in the end cover upper end, the pivot end of motor is connected with electric telescopic handle, electric telescopic handle's one end threaded connection has first puddler, its in-process that uses mostly has following not enough: the whole monosodium glutamate raw materials cannot be stirred when the monosodium glutamate raw materials are mildly stirred, so that part of the raw materials are not stirred, and in sum, most of the existing stirring devices for monosodium glutamate production cannot well meet the actual requirements.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a stirring device for monosodium glutamate production.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an agitating unit is used in monosodium glutamate production, includes box and first motor, its characterized in that, the one end key-type connection of first motor output shaft has first transmission shaft, and has cup jointed the action wheel on the circumference outer wall of first transmission shaft, the conveyer belt has been cup jointed on the outer wall of one side of action wheel, and has cup jointed from the driving wheel on the conveyer belt keeps away from one side inner wall of action wheel, cup jointed first fixed axle on the circumference inner wall from the driving wheel, and the one end welding of first fixed axle is on one side outer wall of box, the one end welding that first fixed axle was kept away from to the box has the motor case, and the welding has the second fixed axle on one side outer wall.
Furthermore, a fixing frame is sleeved on the outer wall of one side of the first motor, and a fixing plate is fixed on the outer wall of the bottom of the fixing frame through bolts.
Furthermore, the supporting plates are welded on two sides of the outer wall of the top of the fixing plate, and the first fixing shaft and the second fixing shaft are respectively inserted into the outer wall of one side of the supporting plate on the left side and the right side.
Furthermore, the welding has the feeder hopper on the bottom outer wall of box, and pegs graft on the bottom outer wall of box and have the unloading pipe.
Further, a second motor is fixed on the inner wall of one side of the motor box through bolts, a first end key of an output shaft of the second motor is connected with a second transmission shaft, and one end of the second transmission shaft is located inside the box body.
Furthermore, the connecting rods are welded on the outer walls of the two sides of the second transmission shaft, and spiral sheets are welded on the outer walls of the second transmission shaft and the circumference of the connecting rods.
Further, still include rubber pad and stock chest, the rubber pad bonds on the bottom outer wall of fixed plate, and the stock chest is located the top of fixed plate.
The utility model has the advantages that:
1. through the first motor, action wheel and the follow driving wheel that set up, utilize first motor can drive the box and rotate to must make the complete stirring of monosodium glutamate raw materials glutamic acid, conveniently carry out complete mixing with glutamic acid, avoid partly to omit not stirred.
2. Through the first motor, the second motor and the connecting rod that set up, the rotation direction of first motor and second motor is different to make the inside raw materials of box stand the stirring of second transmission shaft and connecting rod to it again when stirring, mix more evenly.
3. Through the rubber pad and the stock chest that set up, the stock chest can save the material that the fermentation work was accomplished, and the rubber pad makes the device more stable in the course of the work, can not shake, and the device convenient to use satisfies people's demand.
Drawings
Fig. 1 is a schematic view of a partial cross-sectional structure of an embodiment 1 of a stirring device for monosodium glutamate production provided by the present invention;

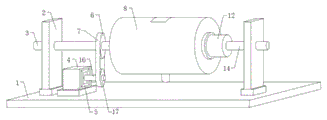

fig. 2 is a schematic view of a simple three-dimensional structure of an embodiment 1 of a stirring device for monosodium glutamate production provided by the present invention;
fig. 3 is a schematic view of a simple three-dimensional structure of an embodiment 2 of the stirring device for monosodium glutamate production according to the present invention.
In the figure: the automatic feeding device comprises a fixing plate 1, a supporting plate 2, a first fixing shaft 3, a fixing frame 4, a first motor 5, a driven wheel 6, a conveying belt 7, a box body 8, a connecting rod 9, a spiral sheet 10, a second transmission shaft 11, a motor box 12, a second motor 13, a second fixing shaft 14, a discharging pipe 15, a first transmission shaft 16, a driving wheel 17, a rubber pad 18 and a storage tank 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
Example 1
Referring to fig. 1 and 2, a stirring device for monosodium glutamate production, comprising a box body 8 and a first motor 5, wherein one end of an output shaft of the first motor 5 is connected with a first transmission shaft 16 in a key manner, a driving wheel 17 is sleeved on the circumferential outer wall of the first transmission shaft 16, a conveyor belt 7 is sleeved on the outer wall of one side of the driving wheel 17, a driven wheel 6 is sleeved on the inner wall of one side of the conveyor belt 7, which is far away from the driving wheel 17, a first fixed shaft 3 is sleeved on the circumferential inner wall of the driven wheel 6, one end of the first fixed shaft 3 is welded on the outer wall of one side of the box body 8, a motor box 12 is welded at one end of the box body 8, which is far away from the first fixed shaft 3, a second fixed shaft 14 is welded on the outer wall of one side of the motor box 12, when glutamic acid is fermented, the first motor 5 is started, the first motor 5 drives, so that the first fixed shaft 3, the box body 8 and the second fixed shaft 14 rotate at a constant speed, and the materials in the box body 8 are stirred.
In the utility model, a fixed frame 4 is sleeved on the outer wall of one side of a first motor 5, a fixed plate 1 is fixed on the outer wall of the bottom of the fixed frame 4 through bolts, supporting plates 2 are welded on both sides of the outer wall of the top of the fixed plate 1, a first fixed shaft 3 and a second fixed shaft 14 are respectively inserted on the outer walls of one side of the supporting plates 2 on the left side and the right side, a feeding hopper is welded on the outer wall of the bottom of a box body 8, a blanking pipe 15 is inserted on the outer wall of the bottom of the box body 8, a second motor 13 is fixed on the inner wall of one side of a motor box 12 through bolts, a key of an output shaft of the second motor 13 is connected with a second transmission shaft 11, one end of the second transmission shaft 11 is positioned inside the box body 8, connecting rods 9 are welded on the outer walls of both sides of the second transmission shaft 11, and spiral pieces 10 are welded, second motor 13 rotates along the opposite direction of first motor 5, and second motor 13 drives the rotation of second transmission shaft 11 to drive the rotation of connecting rod 9, utilize flight 10 to carry out intensive mixing to the raw materials.
The working principle is as follows: during the use, with equipment external power supply, open the feeder hopper of box 8, put into glutamic acid, then close the feeder hopper, start first motor 5, first motor 5 drives the rotation of first transmission shaft 16, thereby drive the rotation of action wheel 17, thereby drive conveyer belt 7 and follow the rotation of driving wheel 6, and then make first fixed axle 3, box 8 and second fixed axle 14 carry out at the uniform velocity rotation, thereby make the inside material of box 8 stir, then start second motor 13, second motor 13 rotates along the opposite direction of first motor 5, second motor 13 drives the rotation of second transmission shaft 11, thereby drive the rotation of connecting rod 9, utilize flight 10 to carry out intensive mixing to the raw materials, until the fermentation is accomplished, then close the power, make the unloading pipe 15 of box 8 be located under, then open unloading pipe 15 and collect the material.
Example 2
Referring to fig. 3, the stirring device for monosodium glutamate production in this embodiment, compared to embodiment 1, further includes a rubber pad 18 and a storage tank 19, the rubber pad 18 is adhered to the outer wall of the bottom of the fixing plate 1, and the storage tank 19 is located above the fixing plate 1.
The working principle is as follows: during the use, stock chest 19 is put on the surface of fixed plate 1, conveniently collects the material, and rubber pad 18 increases the frictional force on device and ground, makes the device more stable in the course of the work, and work is safer.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (7)

1. A stirring device for monosodium glutamate production, which comprises a box body (8) and a first motor (5), it is characterized in that one end of the output shaft of the first motor (5) is connected with a first transmission shaft (16) through a key, a driving wheel (17) is sleeved on the circumferential outer wall of the first transmission shaft (16), a conveyor belt (7) is sleeved on the outer wall of one side of the driving wheel (17), and the inner wall of one side of the conveyor belt (7) far away from the driving wheel (17) is sleeved with a driven wheel (6), a first fixed shaft (3) is sleeved on the circumferential inner wall of the driven wheel (6), one end of the first fixed shaft (3) is fixedly connected on the outer wall of one side of the box body (8), one end of the box body (8) far away from the first fixed shaft (3) is fixedly connected with a motor box (12), and a second fixed shaft (14) is fixedly connected to the outer wall of one side of the motor box (12).
2. The stirring device for monosodium glutamate production according to claim 1, wherein a fixing frame (4) is sleeved on the outer wall of one side of the first motor (5), and a fixing plate (1) is fixed on the outer wall of the bottom of the fixing frame (4) through a bolt.
3. The stirring device for monosodium glutamate production according to claim 2, wherein the supporting plates (2) are welded on both sides of the top outer wall of the fixing plate (1), and the first fixing shaft (3) and the second fixing shaft (14) are respectively inserted on the outer walls of one side of the supporting plates (2) on the left and right sides.
4. The stirring device for monosodium glutamate production according to any one of claims 1 to 3, wherein a feeding hopper is welded on the outer wall of the bottom of the box body (8), and a discharging pipe (15) is inserted on the outer wall of the bottom of the box body (8).
5. The stirring device for monosodium glutamate production according to claim 1, wherein a second motor (13) is fixed on the inner wall of one side of the motor box (12) through bolts, and one end of the output shaft of the second motor (13) is keyed with a second transmission shaft (11), and one end of the second transmission shaft (11) is located inside the box body (8).
6. The stirring device for monosodium glutamate production according to claim 5, wherein the second transmission shaft (11) is welded with the connecting rod (9) on the outer wall of both sides, and the second transmission shaft (11) and further the connecting rod (9) are welded with the spiral piece (10) on the outer wall of the circumference.
7. The stirring device for monosodium glutamate production according to claim 2, further comprising a rubber pad (18) and a storage tank (19), wherein the rubber pad (18) is bonded on the outer wall of the bottom of the fixing plate (1), and the storage tank (19) is located above the fixing plate (1).
