CN210088580U

CN210088580U - Ultrathin LED energy-saving bracket lamp with glass tube

Info

Publication number: CN210088580U
Application number: CN201920773848.6U
Authority: CN
Inventors: 王礼财
Original assignee: Jiangsu Gamma Photoelectric Technology Co Ltd
Current assignee: Jiangsu Gamma Photoelectric Technology Co Ltd
Priority date: 2019-05-27
Filing date: 2019-05-27
Publication date: 2020-02-18
Anticipated expiration: 2029-05-27

Abstract

The utility model relates to a LED lamps and lanterns technical field just discloses an ultra-thin LED energy-saving support lamp of glass pipe, which comprises an outer shell, the equal movable mounting in the left and right sides of shell has the connecting seat, left side electrical socket has been seted up in the left side of connecting seat, the right side fixed mounting of connecting seat has connecting plug, the bottom fixed mounting of shell has the lamp shade that is located two relative one sides of connecting seat, two the equal fixed mounting in one relative one side of connecting seat has the control box that is located the shell inside, two the equal fixed mounting in one relative one side of connecting seat has the grafting piece that is located the lamp shade inside, the inner wall fixed mounting of shell has spacing, the bottom movable mounting of spacing has the lamp plate that is located shell inner wall bottom, the bottom fixed mounting of lamp plate has the LED luminescence chip. The glass tube ultrathin LED energy-saving bracket lamp is simple to operate, and convenient to install, detach and replace by a user.

Description

Ultrathin LED energy-saving bracket lamp with glass tube

Technical Field

The utility model relates to a LED lamps and lanterns technical field specifically is an ultra-thin LED energy-saving support lamp of glass pipe.

Background

The LED energy-saving lamp is an electroluminescent semiconductor material chip, is solidified on a support by using silver glue or white glue, is connected with a chip and a circuit board by using silver wires or gold wires, is sealed by epoxy resin at the periphery to play a role of protecting an internal core wire, and is finally provided with a shell, so the LED energy-saving lamp has good anti-seismic performance, has various types and comprises a ceiling lamp, a down lamp, a bulb lamp, a support lamp, a kitchen lamp, a flat lamp and the like.

The existing LED energy-saving bracket lamp is relatively troublesome to operate when being installed and detached, and is inconvenient for a user to replace the LED energy-saving bracket lamp, so that the glass tube ultrathin LED energy-saving bracket lamp is provided.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides an ultra-thin LED electricity-saving stand lamp of glass pipe possesses the advantage such as be convenient for change, has solved current LED electricity-saving stand lamp and has operated more troublesome when installation and dismantlement, and the person of not being convenient for carries out the problem of changing to LED electricity-saving stand lamp.

(II) technical scheme

In order to realize the purpose of being convenient for to change, the utility model provides a following technical scheme: a glass tube ultrathin LED energy-saving bracket lamp comprises a shell, wherein connecting seats are movably mounted on the left side and the right side of the shell, a power supply jack is formed in the left side of each connecting seat, a connecting plug is fixedly mounted on the right side of each connecting seat, a lampshade is fixedly mounted at one side, opposite to the two connecting seats, of each connecting seat, a control box is fixedly mounted at one side, opposite to the two connecting seats, of each connecting seat, an inserting block is fixedly mounted at one side, opposite to the lampshade, of each connecting seat, a limiting strip is fixedly mounted on the inner wall of the shell, a lamp plate is movably mounted at the bottom of the limiting strip and is positioned at the bottom of the inner wall of the shell, an LED light-emitting chip extending to the bottom of the shell is fixedly mounted at the bottom of the shell, a stabilizing box is fixedly, the bottom fixed mounting of mounting panel has the fixed fixture block that extends to the inside of stabilizing the box, the inside movable mounting who stabilizes the box has the activity fixture block that is located the fixed fixture block left and right sides respectively, one side fixed mounting that activity fixture block is close to fixed fixture block has the stopper, one side movable mounting that fixed fixture block was kept away from to activity fixture block has the stabilized spring that is located the inside of stabilizing the box.

Preferably, the number of the limiting strips is two, and the two limiting strips are uniformly distributed on the front side and the rear side of the inner wall of the shell.

Preferably, the bottom of the shell is provided with a through hole, and the LED light-emitting chip is positioned inside the through hole.

Preferably, the top of the shell and the inside of the stabilizing box are both provided with inserting holes, and the inserting holes are matched with the fixed clamping blocks.

Preferably, the inside of stabilizing the box is seted up and is located the spliced eye left and right sides activity hole, activity hole and activity fixture block looks adaptation.

Preferably, the bottom surface of the fixed fixture block is an arc surface, circular grooves are formed in the left side and the right side of the fixed fixture block, one end, close to the fixed fixture block, of the limiting block is a hemisphere, and the circular grooves are matched with the hemisphere.

(III) advantageous effects

Compared with the prior art, the utility model provides an ultra-thin LED energy-saving bracket lamp of glass pipe possesses following beneficial effect:

the glass tube ultrathin LED energy-saving bracket lamp is characterized in that the fixing clamping block is aligned to the inserting hole and then the shell is pushed, so that the fixed clamping block enters the inside of the inserting hole, after the fixed clamping block completely enters the inside of the inserting hole, the LED energy-saving bracket lamp can be successfully installed, otherwise, the LED energy-saving bracket lamp can be detached, the operation is simple, the installation, the detachment and the replacement are convenient for a user, when the fixed clamping block completely enters the inside of the inserting hole, the movable clamping block can always bear a force close to the fixed clamping block under the action of the stabilizing spring, thereby leading the limiting block to be always stressed by a force close to the fixed clamping block and to be tightly attached to the inner part of the circular groove, therefore, the fixing clamping block can be fixed, the LED energy-saving support lamp can be fixed finally, and the limiting block can be tightly attached to the inside of the circular groove under the action of the stabilizing spring, so that the LED energy-saving support lamp can be very stable after being installed.

Drawings

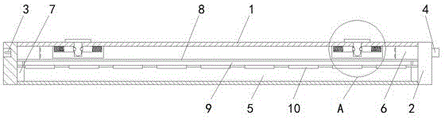

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is an enlarged schematic view of the structure at a position a of the present invention.

In the figure: the LED lamp comprises a shell 1, a connecting seat 2, a power jack 3, a connecting plug 4, a lampshade 5, a control box 6, an inserting block 7, a limiting strip 8, a lamp panel 9, an LED light-emitting chip 10, a stabilizing box 11, a movable clamping block 13, a limiting block 14, a stabilizing spring 15, a mounting plate 17 and a fixing clamping block 18.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a glass tube ultrathin LED energy-saving bracket lamp comprises a shell 1, wherein connecting seats 2 are movably mounted on the left side and the right side of the shell 1, a power jack 3 is arranged on the left side of the connecting seat 2 on the left side, a connecting plug 4 is fixedly mounted on the right side of the connecting seat 2 on the right side, a lampshade 5 positioned on one opposite side of the two connecting seats 2 is fixedly mounted at the bottom of the shell 1, a control box 6 positioned in the shell 1 is fixedly mounted on one opposite side of the two connecting seats 2, an inserting block 7 positioned in the lampshade 5 is fixedly mounted on one opposite side of the two connecting seats 2, a limiting strip 8 is fixedly mounted on the inner wall of the shell 1, the number of the limiting strips 8 is two, the two limiting strips 8 are uniformly distributed on the front side and the rear side of the inner wall of the shell 1, a lamp plate 9 positioned at the bottom of the inner wall of the, the bottom of the shell 1 is provided with a through hole, the LED light-emitting chip 10 is positioned inside the through hole, the inside of the shell 1 is fixedly provided with a stabilizing box 11, the top of the shell 1 is movably provided with a mounting plate 17, the mounting plate 17 is mounted on a wall body, the bottom of the mounting plate 17 is fixedly provided with a fixed fixture block 18 extending to the inside of the stabilizing box 11, the top of the shell 1 and the inside of the stabilizing box 11 are both provided with splicing holes matched with the fixed fixture block 18, the inside of the stabilizing box 11 is movably provided with movable fixture blocks 13 respectively positioned at the left side and the right side of the fixed fixture block 18, the inside of the stabilizing box 11 is provided with movable holes positioned at the left side and the right side of the splicing holes, the movable holes are matched with the movable fixture blocks 13, one side of the movable fixture block 13 close to the fixed fixture block 18 is fixedly provided with a limiting block 14, the bottom surface of the, the circular groove is matched with the hemispherical body, one side of the movable clamping block 13, which is far away from the fixed clamping block 18, is movably provided with the stabilizing spring 15 positioned in the stabilizing box 11, the glass tube ultrathin LED energy-saving bracket lamp is successfully installed after the fixed clamping block 18 completely enters the inserting hole by aligning the fixed clamping block 18 with the inserting hole and then pushing the shell 1, and the LED energy-saving bracket lamp can be successfully installed and can be detached otherwise, so that the operation is simple, a user can conveniently install, detach and replace the glass tube ultrathin LED energy-saving bracket lamp, and after the fixed clamping block 18 completely enters the inserting hole, the movable clamping block 13 can always bear the force close to the fixed clamping block 18 under the action of the stabilizing spring 15, so that the limiting block 14 always bears the force close to the fixed clamping block 18, the limiting block 14 is tightly attached to the inside of the circular groove, and the fixed clamping block 18 can be fixed, finally, the LED energy-saving support lamp can be fixed, and the limiting block 14 can be tightly attached to the inside of the circular groove under the action of the stabilizing spring 15, so that the LED energy-saving support lamp can be very stable after being installed.

In conclusion, the glass tube ultrathin LED energy-saving bracket lamp is characterized in that the fixed fixture block 18 is aligned to the insertion hole, then the shell 1 is pushed, so that the fixed fixture block 18 enters the insertion hole, after the fixed fixture block 18 completely enters the insertion hole, the LED energy-saving bracket lamp can be successfully installed, otherwise, the LED energy-saving bracket lamp can be detached, the operation is simple, a user can conveniently install, detach and replace the glass tube ultrathin LED energy-saving bracket lamp, after the fixed fixture block 18 completely enters the insertion hole, the movable fixture block 13 is always subjected to a force close to the fixed fixture block 18 under the action of the stabilizing spring 15, so that the limiting block 14 is always subjected to a force close to the fixed fixture block 18, the limiting block 14 is tightly attached to the inside of the circular groove, the fixed fixture block 18 can be fixed, finally, the LED energy-saving bracket lamp can be fixed, and the limiting block 14 can be tightly attached to the inside of the circular groove, the LED energy-saving bracket lamp can be very stable after being installed, and the problems that the existing LED energy-saving bracket lamp is troublesome to operate and inconvenient to replace when being installed and detached and is inconvenient for a user are solved.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an ultra-thin LED energy-saving support lamp of glass pipe, includes shell (1), its characterized in that: the LED lamp is characterized in that the left side and the right side of the shell (1) are respectively and movably provided with a connecting seat (2), the left side of the connecting seat (2) is provided with a power supply jack (3), the right side of the connecting seat (2) is fixedly provided with a connecting plug (4), the bottom of the shell (1) is fixedly provided with a lampshade (5) positioned on one side opposite to the two connecting seats (2), two sides opposite to the connecting seats (2) are respectively and fixedly provided with a control box (6) positioned in the shell (1), two sides opposite to the connecting seats (2) are respectively and fixedly provided with an inserting block (7) positioned in the lampshade (5), the inner wall of the shell (1) is fixedly provided with a limiting strip (8), the bottom of the limiting strip (8) is movably provided with a lamp plate (9) positioned at the bottom of the inner wall of the shell (1), the bottom of the lamp plate (9) is fixedly provided with, the inside fixed mounting of shell (1) has stable box (11), the top movable mounting of shell (1) has mounting panel (17), the bottom fixed mounting of mounting panel (17) has fixed fixture block (18) that extend to stable box (11) inside, the inside movable mounting of stable box (11) has movable fixture block (13) that are located fixed fixture block (18) left and right sides respectively, one side fixed mounting that movable fixture block (13) are close to fixed fixture block (18) has stopper (14), one side movable mounting that fixed fixture block (18) was kept away from in activity fixture block (13) has and is located stable box (11) inside stable spring (15).

2. The glass tube ultrathin LED energy-saving bracket lamp as claimed in claim 1, characterized in that: the number of the limiting strips (8) is two, and the two limiting strips (8) are uniformly distributed on the front side and the rear side of the inner wall of the shell (1).

3. The glass tube ultrathin LED energy-saving bracket lamp as claimed in claim 1, characterized in that: the bottom of the shell (1) is provided with a through hole, and the LED light-emitting chip (10) is located inside the through hole.

4. The glass tube ultrathin LED energy-saving bracket lamp as claimed in claim 1, characterized in that: the top of the shell (1) and the inside of the stabilizing box (11) are both provided with inserting holes, and the inserting holes are matched with the fixed clamping blocks (18).

5. The glass tube ultrathin LED energy-saving bracket lamp as claimed in claim 4, characterized in that: the inside of stabilizing box (11) is seted up and is located the spliced eye left and right sides activity hole, and the activity hole is with activity fixture block (13) looks adaptation.

6. The glass tube ultrathin LED energy-saving bracket lamp as claimed in claim 1, characterized in that: the bottom surface of the fixed clamping block (18) is an arc surface, circular grooves are formed in the left side and the right side of the fixed clamping block (18), one end, close to the fixed clamping block (18), of the limiting block (14) is a hemisphere, and the circular grooves are matched with the hemisphere.
