Abstract

The utility model discloses a mechatronics of universities and universities of professorship class student electromechanical product design platform, the on-line screen storage device comprises a base, the intermediate position department at base top is provided with the external screw thread pipe, and the outside of external screw thread pipe is provided with adjusting nut, the bilateral symmetry of external screw thread pipe is provided with a word groove, and the top of a word inslot portion adjusting nut all is provided with the slider, the inside of external screw thread pipe is provided with the support column. The utility model discloses install the screw rod, and be provided with the internal thread pipe in the outside of screw rod, rotation through the screw rod, it removes to drive the internal thread pipe, and use with the cooperation of both connecting rods on the internal thread pipe, the vertical inclination of design board that is can adjust, it is more convenient to use, cavity bottom annular slab and the setting of circular slab, spring, fixture block through the circular slab inside use with the draw-in groove cooperation on the annular slab, make the horizontal angle of cavity top design board to adjust, conveniently contrast the reference.

Description

Electromechanical product design platform for electromechanical students in universities and colleges of professorship
Technical Field
The utility model relates to a design platform technical field specifically is electromechanical product design platform of electromechanical class student of colleges and universities of professorship.
Background
Electromechanical products, it uses machinery to indicate, electrical apparatus, all kinds of agricultural implement machinery that electronic equipment produced, electrical apparatus, production facility and the machines for daily use of electronic performance, and to electromechanical class student, before electromechanical products's production preparation, need design the product, confirm the specification and the size of product, ensure the quality of product, but traditional design platform, the design face is fixed, can't carry out angle modulation according to the user demand to the vertical of design face, it is comparatively inconvenient to use, and can't adjust the horizontal angle of design face, inconvenient contrast in the production process and refer to, traditional high fixed in addition, can't adjust according to student's height, the practicality is lower.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a mechatronics class student of universities and colleges of professorship electromechanical product design platform to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the electromechanical product design platform for the electromechanical students in the universities and universities comprises a base, wherein an external threaded pipe is arranged in the middle of the top of the base, adjusting nuts are arranged on the outer side of the external threaded pipe, linear grooves are symmetrically formed in two sides of the external threaded pipe, sliding blocks are arranged above the adjusting nuts in the linear grooves, supporting columns are arranged inside the external threaded pipe, the bottoms of the supporting columns are fixedly connected with the sliding blocks, circular plates are arranged on the tops of the supporting columns, hollow plates are arranged on the tops of the circular plates and attached to the circular plates, annular plates are arranged at the bottoms of the outer sides of the hollow plates, clamping grooves are uniformly formed in the inner sides of the annular plates, limiting grooves are uniformly formed in the outer sides of the circular plates, springs are arranged inside the limiting grooves, clamping blocks are arranged at the ends, close to the annular plates, of the springs, and bearing seats are arranged at the ends, close to the annular plates, and the inside of bearing frame is provided with the screw rod, the one end that the bearing frame was kept away from to the screw rod extends to the outside of well hollow plate, and the one end that the bearing frame was kept away from to the screw rod is provided with adjust knob, the outside of screw rod is provided with the internal thread pipe, and the both ends symmetry in the internal thread pipe outside is provided with the connecting rod, the both ends symmetry that well hollow plate top is close to bearing frame one side articulates there is the spout, and well one side that the bearing frame was kept away from at the hollow plate top articulates there is the design board, the spout is all run through to the one end that the.
Preferably, the bottom of base is provided with the rubber pad, and the bottom of rubber pad is provided with anti-skidding line.
Preferably, the outer side of the adjusting nut is symmetrically provided with a holding rod.
Preferably, reinforcing ribs are symmetrically arranged on two sides of the top of the supporting column, and one ends, far away from the supporting column, of the reinforcing ribs are fixedly connected with the circular plate.
Preferably, both ends at well hollow plate top all are provided with the tool groove, and the both ends at tool groove top all are provided with the slide rail, be provided with the slide between the slide rail.
Preferably, eight groups of clamping grooves are arranged, and the angle between every two adjacent clamping grooves is 45 degrees.
Compared with the prior art, the beneficial effects of the utility model are that: this electromechanical class student of colleges and universities of professorship electromechanical product design platform installs the screw rod, and be provided with the internal thread pipe in the outside of screw rod, rotation through the screw rod, it removes to drive the internal thread pipe, and use with both connecting rods cooperation on the internal thread pipe, the vertical inclination of design board can adjust, it is more convenient to use, the setting of well hollow plate bottom annular slab and circular slab, through the inside spring of circular slab, the draw-in groove cooperation use on fixture block and the annular slab, make the horizontal angle of well hollow plate top design board can adjust, conveniently contrast the reference, the setting of external thread pipe outside adjusting nut, rotation through adjusting nut uses with the slider cooperation on the support column, make the device can promote the slider and remove at a word inslot portion, adjusting device's height then, the practicality of device has been improved.
Drawings

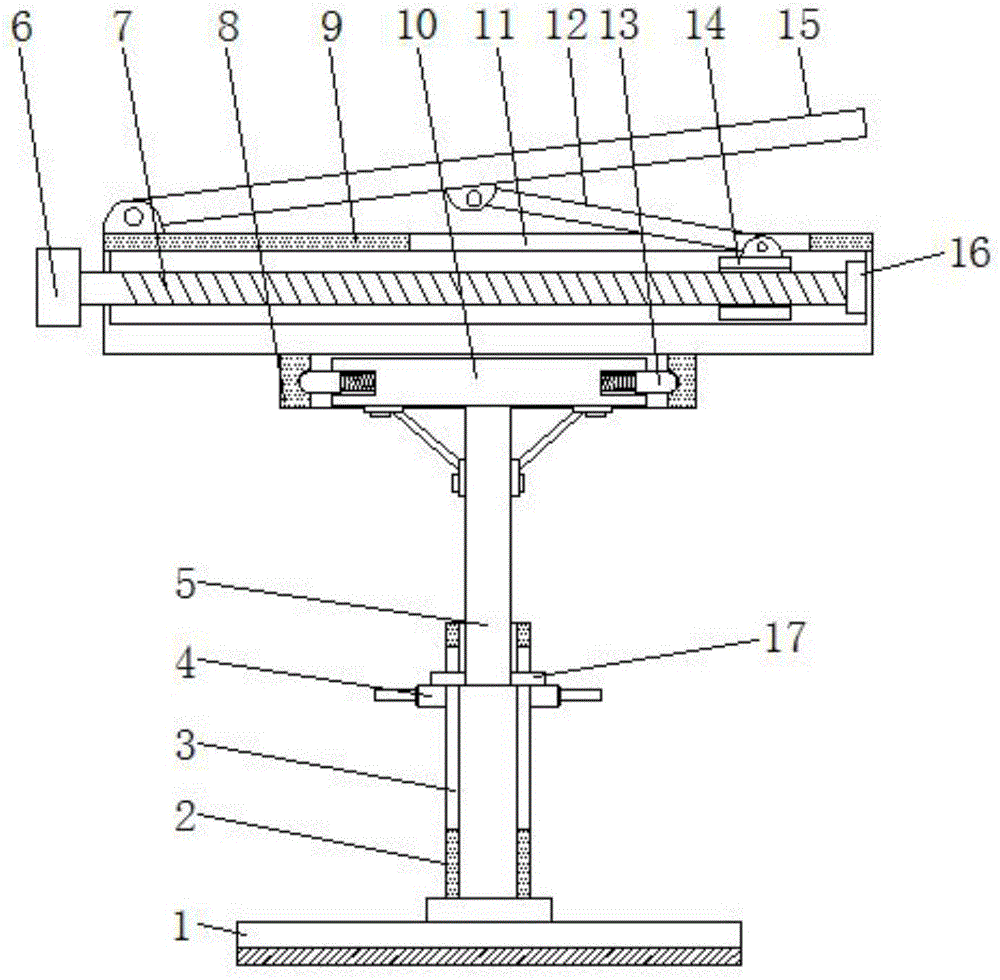

Fig. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a schematic top view of the hollow plate of the present invention;
fig. 3 is a schematic view of a partial structure of the present invention.
In the figure: 1. a base; 2. an externally threaded tube; 3. a straight slot; 4. adjusting the nut; 5. a support pillar; 6. adjusting a knob; 7. a screw; 8. an annular plate; 9. a hollow plate; 10. a circular plate; 11. a chute; 12. a connecting rod; 13. a clamping block; 14. an internally threaded tube; 15. designing a plate; 16. a bearing seat; 17. a slider; 18. a card slot; 19. a limiting groove; 20. a spring; 21. a slide plate; 22. a slide rail; 23. a tool slot.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides an embodiment: the electromechanical product design platform for the electromechanical students of the universities and universities comprises a base 1, wherein an external threaded pipe 2 is arranged in the middle of the top of the base 1, adjusting nuts 4 are arranged on the outer side of the external threaded pipe 2, linear grooves 3 are symmetrically arranged on two sides of the external threaded pipe 2, sliding blocks 17 are arranged above the adjusting nuts 4 in the linear grooves 3, supporting columns 5 are arranged in the external threaded pipe 2, the bottoms of the supporting columns 5 are fixedly connected with the sliding blocks 17, circular plates 10 are arranged on the tops of the supporting columns 5, hollow plates 9 are arranged on the tops of the circular plates 10, the hollow plates 9 are attached to the circular plates 10, annular plates 8 are arranged on the bottoms of the outer sides of the hollow plates 9, clamping grooves 18 are uniformly arranged on the inner sides of the annular plates 8, limiting grooves 19 are uniformly arranged on the outer sides of the circular plates 10, springs 20 are arranged in the limiting grooves 19, clamping blocks 13 are arranged at one ends, close to the annular plates, the inside one end of well hollow plate 9 is provided with bearing frame 16, and the inside of bearing frame 16 is provided with screw rod 7, the one end that bearing frame 16 was kept away from to screw rod 7 extends to the outside of well hollow plate 9, and the one end that bearing frame 16 was kept away from to screw rod 7 is provided with adjust knob 6, the outside of screw rod 7 is provided with internal thread pipe 14, and the both ends symmetry in the internal thread pipe 14 outside is provided with connecting rod 12, the both ends symmetry that well hollow plate 9 top is close to bearing frame 16 one side articulates there is spout 11, and one side that well hollow plate 9 top was kept away from bearing frame 16 articulates there is design board 15, spout 11 is all run through to the one end that internal thread pipe 14 was kept away from to.
In this implementation: the bottom of base 1 is provided with the rubber pad, and the bottom of rubber pad is provided with anti-skidding line, the stability and the anti-skidding effect of device have been improved, adjusting nut 4's outside symmetry is provided with the holding rod, the altitude mixture control of the device of being convenient for, the bilateral symmetry at support column 5 top is provided with the stiffening rib, and the stiffening rib keeps away from support column 5's one end all with circular slab 10 fixed connection, the stability of support column 5 has been improved, the both ends at well hollow plate 9 top all are provided with tool groove 23, and the both ends at tool groove 23 top all are provided with slide rail 22, be provided with slide 21 between the slide rail 22, be convenient for save the designing tool, draw-in groove 18 is provided with eight groups, and the angle between the adjacent draw-in groove 18.
The working principle is as follows: before use, the device is placed at a fixed position, when the device is used, the adjusting nut 4 on the outer side of the external threaded pipe 2 is rotated, the adjusting nut 4 drives the sliding block 17 on the supporting column 5 to move inside the linear groove 3, the extending height of the supporting column 5 and the height of the design plate 15 are adjusted according to the height of a student, after the height adjustment of the device is completed, the adjusting knob 6 is rotated to drive the screw 7 to rotate, the internal threaded pipe 14 on the screw 7 is limited through the two groups of connecting rods 12, so that the internal threaded pipe 14 moves on the screw 7, one end of each connecting rod 12 is fixed at the bottom of the design plate 15, the internal threaded pipe 14 moves to support the design plate 15 by matching with the connecting rods 12, the vertical inclined plane of the design plate 15 is adjusted according to the angle required by the student, then the design is carried out, after the design is completed, the hollow plate 9 in the, the horizontal rotation angle of the design plate 15 is adjusted, the spring 20 in the limiting groove 19 pushes the clamping block 13 to be inserted into the clamping groove 18, the rotation angle of the annular plate 8 is automatically fixed, and the teacher can conveniently check the design and the students can conveniently refer to the design.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims (6)

1. Electromechanical class student of universities and colleges of professorship electromechanical product design platform includes base (1), its characterized in that: the middle position department at base (1) top is provided with external screw thread pipe (2), and the outside of external screw thread pipe (2) is provided with adjusting nut (4), the bilateral symmetry of external screw thread pipe (2) is provided with word groove (3), and the top of the inside adjusting nut (4) of word groove (3) all is provided with slider (17), the inside of external screw thread pipe (2) is provided with support column (5), and the bottom of support column (5) all with slider (17) fixed connection, the top of support column (5) is provided with circular slab (10), and the top of circular slab (10) is provided with well hollow plate (9), well hollow plate (9) and circular slab (10) laminating, the bottom in well hollow plate (9) outside is provided with annular slab (8), and the inboard of annular slab (8) evenly is provided with draw-in groove (18), the outside of circular slab (10) evenly is provided with spacing groove (19), and the inside of spacing groove (19) all is provided with spring (20), the one end that spring (20) is close to annular plate (8) all is provided with fixture block (13), the inside one end of well hollow plate (9) is provided with bearing frame (16), and the inside of bearing frame (16) is provided with screw rod (7), the one end that bearing frame (16) were kept away from to screw rod (7) extends to the outside of well hollow plate (9), and the one end that bearing frame (16) were kept away from to screw rod (7) is provided with adjust knob (6), the outside of screw rod (7) is provided with internal thread pipe (14), and the both ends symmetry in internal thread pipe (14) outside is provided with connecting rod (12), the both ends symmetry that well hollow plate (9) top was close to bearing frame (16) one side articulates there are spout (11), and well hollow plate (9) top was kept away from one side of bearing frame, the one end that internal thread pipe (14) was kept away from in connecting rod (12) all runs through spout (11), and the one end that internal thread pipe (14) was kept away from in connecting rod (12) all articulates with design board (15).
2. The electromechanical product design platform for electromechanical students of higher vocational schools according to claim 1, wherein: the bottom of the base (1) is provided with a rubber pad, and the bottom of the rubber pad is provided with anti-skidding lines.
3. The electromechanical product design platform for electromechanical students of higher vocational schools according to claim 1, wherein: the outer side of the adjusting nut (4) is symmetrically provided with holding rods.
4. The electromechanical product design platform for electromechanical students of higher vocational schools according to claim 1, wherein: reinforcing ribs are symmetrically arranged on two sides of the top of the supporting column (5), and one ends, far away from the supporting column (5), of the reinforcing ribs are fixedly connected with the circular plate (10).
5. The electromechanical product design platform for electromechanical students of higher vocational schools according to claim 1, wherein: both ends at cavity slab (9) top all are provided with instrument groove (23), and both ends at instrument groove (23) top all are provided with slide rail (22), be provided with slide (21) between slide rail (22).
6. The electromechanical product design platform for electromechanical students of higher vocational schools according to claim 1, wherein: eight groups of clamping grooves (18) are arranged, and the angle between every two adjacent clamping grooves (18) is 45 degrees.
CN201920263818.0U 2019-03-02 2019-03-02 Electromechanical product design platform for electromechanical students in universities and colleges of professorship Active CN210073024U (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN201920263818.0U CN210073024U (en) 2019-03-02 2019-03-02 Electromechanical product design platform for electromechanical students in universities and colleges of professorship

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201920263818.0U CN210073024U (en) 2019-03-02 2019-03-02 Electromechanical product design platform for electromechanical students in universities and colleges of professorship

Publications (1)

Publication Number Publication Date
CN210073024U true CN210073024U (en) 2020-02-14

Family

ID=69433128

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201920263818.0U Active CN210073024U (en) 2019-03-02 2019-03-02 Electromechanical product design platform for electromechanical students in universities and colleges of professorship

Country Status (1)

Country Link
CN (1) CN210073024U (en)
