The utility model discloses a movable floor LED advertising machine, which relates to the field of advertising machines and comprises a base, wherein the top end of the base is fixedly connected with a machine body shell, it is characterized in that four corners of the bottom end of the base are respectively provided with a movable wheel, an LED display screen is fixedly connected in the machine body shell, the joint of the machine body shell of the display screen is provided with toughened glass, the back side of the machine body shell is fixedly connected with a back plate, the back plate is provided with a heat dissipation hole, the top end of the base is provided with a plurality of fixing screw holes, the top end of the base is provided with a wire guide hole, the top end of the base is fixedly provided with a connecting port, the movable wheel is a universal wheel, engine body shell makes for aluminum alloy material, the backplate is made for aluminum alloy material, the beneficial effects of the utility model are that, solved the problem that current LED display screen outward appearance is beautiful inadequately and inconvenient removal, made the LED display screen can regard as a novel mobilizable advertisement machine that falls to the ground of section.
Description
Technical Field
The utility model relates to an advertisement machine field specifically is a mobilizable LED advertisement machine that falls to ground.
Background
The floor type advertising machine belongs to a relatively large advertising machine, is relatively huge in appearance and higher in cost than a common advertising machine, is generally used in places with relatively large flow of people, such as supermarkets, banks, enterprises, hospitals, schools, airports, bus stations and other large places, and is a tool for merchants to sell products and improve brand images. The landing advertisement machine can realize network interconnection and has excellent effect on advertisement propaganda.
At present, most of movable floor advertising machines on the market are liquid crystal advertising machines, and most of LED display screens are fixedly installed due to the characteristics of the LED display screens. The invention solves the problems that the LED display screen has the appearance of an advertising machine and is inconvenient to move.
SUMMERY OF THE UTILITY MODEL
The utility model provides a mobilizable LED advertisement machine that falls to ground has solved the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a mobilizable LED advertisement machine that falls to ground, includes the base, the top fixed connection engine body shell of base, its characterized in that, the bottom four corners of base all are equipped with removes the wheel, fixed connection LED display screen in the engine body shell, and the engine body shell's of LED display screen junction is equipped with toughened glass, engine body shell's rear side fixed connection backplate has seted up the louvre on the backplate.
As an optimized technical scheme of the utility model, a plurality of fixed screws have been seted up on the top of base.
As an optimized technical proposal of the utility model, the top end of the base is provided with a wire hole.
As an optimized technical scheme of the utility model, the fixed connection port that is equipped with in top of base.
As an optimal technical scheme of the utility model, it is the universal wheel to remove the wheel.
As an optimal technical scheme of the utility model, engine body shell is made for aluminum alloy material.
As an optimized technical scheme of the utility model, the backplate is made for aluminum alloy material.
The utility model discloses have following useful part: the beneficial effects of the utility model are that, solved the problem that current LED display screen outward appearance is beautiful inadequately and inconvenient removal, made the LED display screen can regard as a novel mobilizable advertisement machine that falls to the ground of section.
Drawings

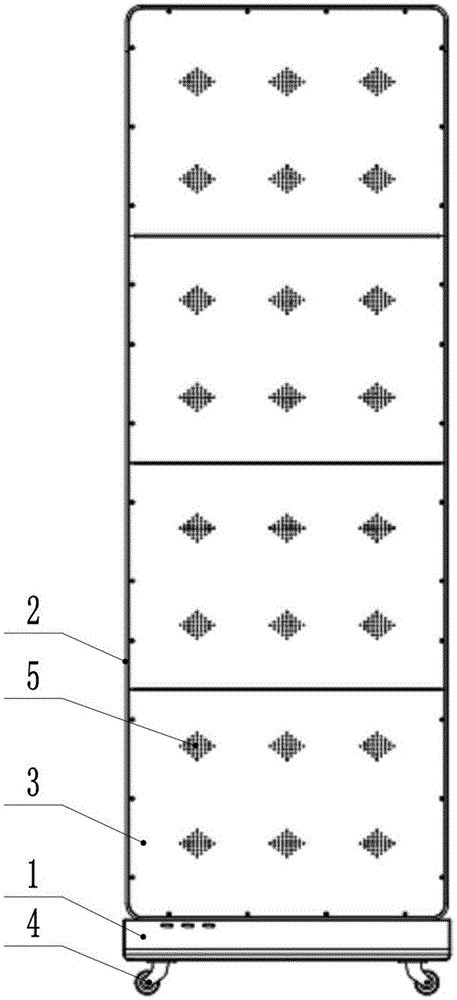

Fig. 1 is a rear view of a movable floor LED advertising machine.
Fig. 2 is a side view of a mobile floor LED advertising machine.
Fig. 3 is a front view of a movable floor LED advertising machine.
Fig. 4 is a schematic perspective view of a base in a movable floor LED advertising machine.
In the figure: 1. a base; 2. a body housing; 3. a back plate; 4. a moving wheel; 5. heat dissipation holes; 6. fixing screw holes; 7. a wire guide hole; 8. a connection port; 9. and an LED display screen.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
It should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
Example 1
Referring to fig. 1-4, a movable floor LED advertising machine comprises a base 1 and a machine body shell 2 fixedly connected to the top end of the base 1, and is characterized in that moving wheels 4 are arranged at four corners of the bottom end of the base 1, an LED display screen 9 is fixedly connected in the machine body shell 2, tempered glass is arranged at the joint of the machine body shell 2 of the LED display screen 9, a back plate 3 is fixedly connected to the rear side of the machine body shell 2, and heat dissipation holes 5 are formed in the back plate 3.
The top of base 1 has seted up a plurality of fixed screw 6, wire guide 7 has been seted up on the top of base 1, the fixed connection port 8 that is equipped with in top of base 1, remove wheel 4 and be the universal wheel.
Example 2
Referring to fig. 1 to 4, the other contents of the present embodiment are the same as embodiment 1, except that: the machine body shell 2 is made of an aluminum alloy material, and the back plate 3 is made of an aluminum alloy material.
The utility model discloses at the implementation in-process, through setting up engine body shell 1, toughened glass, backplate 3, can protect LED display screen 9 to receive the damage that external force collision caused when satisfying that the outward appearance is pleasing to the eye, base 1 adopts four to remove the wheel, can conveniently remove when satisfying that the LED display screen has better viewing effect.
The utility model discloses have following useful part: the beneficial effects of the utility model are that, solved the problem that current LED display screen 9 outward appearance is beautiful and inconvenient removal inadequately, made LED display screen 9 can regard as a novel mobilizable advertisement machine that falls to the ground of section.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a mobilizable LED advertisement machine that falls to ground, includes base (1), top fixed connection engine body shell (2) of base (1), its characterized in that, the bottom four corners of base (1) all are equipped with removes wheel (4), fixed connection LED display screen (9) in engine body shell (2), and the junction of engine body shell (2) of LED display screen (9) is equipped with toughened glass, rear side fixed connection backplate (3) of engine body shell (2), louvre (5) have been seted up on backplate (3).
2. A movable floor LED advertising machine according to claim 1, wherein the top of the base (1) is provided with a plurality of fixing screw holes (6).
3. A movable floor LED advertising machine according to claim 2, wherein the top of the base (1) is provided with a wire guide hole (7).
4. A movable floor LED advertising machine according to claim 3, characterized in that the top end of the base (1) is fixedly provided with a connection port (8).
5. A mobile floor LED advertising machine according to claim 4, characterized in that the moving wheels (4) are universal wheels.
6. A movable floor LED advertising machine according to claim 1, wherein the body housing (2) is made of an aluminum alloy material.
7. A movable floor LED advertising machine according to claim 5 or 6, characterized in that the back plate (3) is made of an aluminum alloy material.
