Abstract

The utility model discloses a monitoring device for a grounding system of a computer room, which comprises a main body, a side wall of the main body is fixedly connected with a first connection post and a second connection post, and a first connection wire and a second connection post are fixedly connected to the inside of the main body. connecting wire, the first connecting post is fixedly connected with the first connecting wire, the second connecting post is fixedly connected with the second connecting wire, the first connecting wire and the second connecting wire are fixedly connected with an electromagnetic coil, the An iron core fixing frame is fixedly connected to the top of the inner wall of the main body, and an iron core is fixedly connected to the bottom of the iron core fixing frame. The utility model relates to the technical field of machine room maintenance. The monitoring device for the grounding system of the computer room can monitor the power connection system of the computer room at the same time. When the lightning protection equipment fails, the power supply of the equipment is automatically cut off to reduce the damage of the equipment. The lightning protection device fails and needs to be maintained to improve work efficiency and meet the purpose of use requirements.

Description

A computer room grounding system monitoring device

technical field

The utility model relates to the technical field of machine room maintenance, in particular to a monitoring device for a machine room grounding system.

Background technique

When the equipment room is in use, it needs to be grounded to reduce the impact of lightning on the equipment room. The detection of the grounding lightning protection system relies on manual and irregular inspections, and it is difficult to find faults in time, which seriously threatens the safe operation of the power distribution lines in the computer room. The existing equipment room grounding system monitoring device implements remote automatic online monitoring of the lightning protection device for the equipment room grounding equipment. It has a safe operation early warning system for distribution lines, but in the process of use, it can only play a monitoring role, and cannot automatically cut off the line and protect the equipment when the equipment encounters lightning, which cannot meet the needs of use.

Utility model content

(1) Technical problems solved

In view of the shortcomings of the prior art, the utility model provides a monitoring device for the grounding system of a computer room, which solves the problem of the existing monitoring device for the grounding system of the computer room. During the use process, it can only play the role of monitoring, and cannot be used when the equipment encounters lightning. When the problem occurs, it will automatically cut off the line and protect the equipment, which cannot meet the needs of use.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: a monitoring device for a grounding system of a computer room, comprising a main body, a first terminal post and a second terminal post are fixedly connected to the side wall of the main body, and the interior of the main body is A first connection line and a second connection line are fixedly connected, the first connection post is fixedly connected with the first connection line, the second connection post is fixedly connected with the second connection line, and the first connection line is connected with the second connection line. The connecting wire is fixedly connected with an electromagnetic coil, the top of the inner wall of the main body is fixedly connected with an iron core fixing frame, the bottom of the iron core fixing frame is fixedly connected with an iron core, the electromagnetic coil is wound and connected with the iron core, and the main body is The bottom of the inner wall is fixedly connected to a limit frame, the inner wall of the limit frame is fixedly connected with a support spring, the limit frame is fixedly connected to the limit block through the support spring, and the top of the limit block is fixedly connected with a movement rod, the The movement rod is slidably connected with the limit frame, the first iron block is fixedly connected to one end of the movement rod at the outer side of the limit frame, the micro switch is fixedly connected to the bottom of the inner wall of the limit frame, and the limit block is connected to the micro switch. Corresponding to the movable switch, the top of the inner wall of the main body is fixedly connected with a fixed frame, the outside of the fixed frame is fixedly connected with a sliding rod, the sliding rod is slidably connected with a second iron block, and the side wall of the second iron block is fixedly connected A traction rope is fixedly connected, a guide wheel is arranged inside the fixed frame, the traction rope is slidably connected with the fixed frame, the traction rope is slidably connected with the guide wheel, and the end of the traction rope away from the second iron block is fixedly connected There is a puncture needle fixing frame, the side wall of the puncture needle fixing frame is fixedly connected with a tension spring, the puncture needle fixing frame is fixedly connected with the inner wall of the fixing frame through the tension spring, and the puncture needle is fixedly connected to the side wall of the puncture needle fixing frame.

Preferably, the top of the main body is provided with an instrument panel.

Preferably, both sides of the bottom of the main body are fixedly connected with universal wheels, and the number of the universal wheels is four.

Preferably, an alarm is provided on the top of the main body, and the alarm is electrically connected with the micro switch.

Preferably, a stopper is fixedly connected to one end of the sliding rod away from the fixing frame.

Preferably, the side wall of the main body is provided with a balloon fixing frame, and the puncture needle corresponds to the balloon fixing frame.

(3) Beneficial effects

The utility model provides a monitoring device for the grounding system of a computer room. By arranging an electromagnetic coil in the grounding equipment of the computer room, when the lightning protection equipment fails and cannot be used for lightning protection, the electromagnetic coil is energized to generate a magnetic force, which drives the first iron block and the second iron block. The second iron block moves, the first iron block drives the movement of the movement rod, drives the movement of the limit block, increases the elastic potential energy of the support spring, and removes the restriction on the micro switch, then the equipment is powered off, reducing the damage of lightning to the equipment, and the alarm Power on to remind people to perform maintenance, the movement of the second iron block drives the movement of the traction rope, drives the movement of the needle fixing frame, pulls the tension spring, increases the elastic potential energy of the tension spring to drive the needle movement, and punctures the balloon inside the balloon fixing frame , it is convenient to remind people that the lightning protection equipment of the device is faulty and needs to be maintained, so as to monitor the power connection system of the computer room, and when the lightning protection equipment fails, the power supply of the equipment is automatically cut off to reduce the damage to the equipment, and at the same time, the puncture and puncture If the lightning protection device fails, it needs to be maintained to improve work efficiency and meet the purpose of use.

Description of drawings

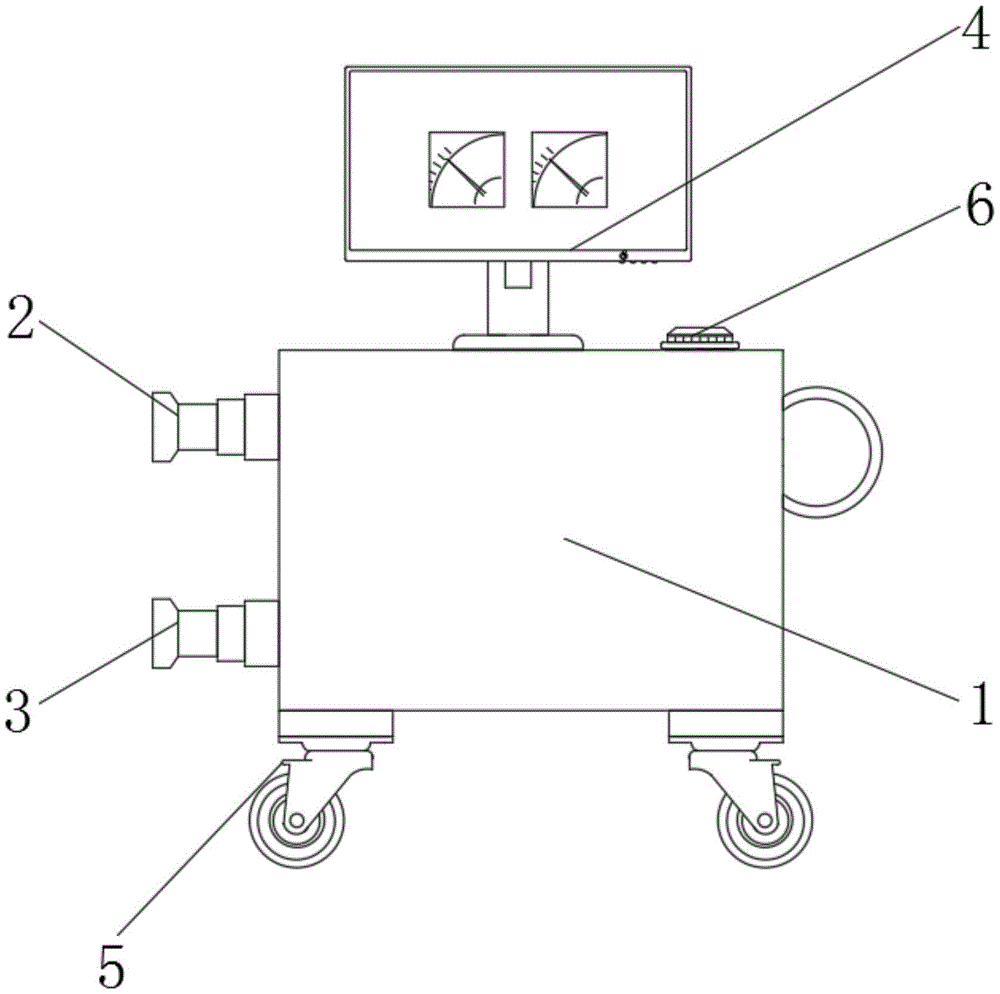

1 is a schematic diagram of the overall external structure of the present utility model;

2 is a schematic diagram of the overall internal structure of the utility model;

FIG. 3 is a schematic diagram of the internal structure of the main body of the present invention.

In the figure: 1. Main body; 2. The first terminal; 3. The second terminal; 4. The instrument panel; 5. The universal wheel; 6. The alarm; 7. The first connecting line; 8. The second connecting line ;9, electromagnetic coil; 10, iron core fixing frame; 11, iron core; 12, limit frame; 13, support spring; 14, limit block; 15, exercise rod; 16, first iron block; 17, micro 18, fixed frame; 19, sliding rod; 20, stopper; 21, second iron block; 22, traction rope; 23, guide wheel; 24, needle fixing frame; 25, tension spring; 26, needle ; 27. Balloon fixed frame.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a grounding system monitoring device of a computer room, comprising a main body 1, a first terminal 2 and a second terminal 3 are fixedly connected to the side wall of the main body 1, and the main body 1 There are first connecting wires 7 and second connecting wires 8 fixedly connected to the inside, the first connecting post 2 is fixedly connected with the first connecting wire 7, the second connecting post 3 is fixedly connected with the second connecting wire 8, and the first connecting wire 7 An electromagnetic coil 9 is fixedly connected to the second connecting wire 8 , an iron core fixing frame 10 is fixedly connected to the top of the inner wall of the main body 1 , an iron core 11 is fixedly connected to the bottom of the iron core fixing frame 10 , and the electromagnetic coil 9 is wound and connected to the iron core 11 , the bottom of the inner wall of the main body 1 is fixedly connected to the limit frame 12, the inner wall of the limit frame 12 is fixedly connected with a support spring 13, the limit frame 12 is fixedly connected to the limit block 14 through the support spring 13, and the top of the limit block 14 is fixedly connected with a The movement rod 15 is slidably connected with the limit frame 12, the first iron block 16 is fixedly connected to one end of the movement rod 15 at the outer end of the limit frame 12, and the microswitch 17 is fixedly connected to the bottom of the inner wall of the limit frame 12, The limit block 14 corresponds to the micro switch 17 , the top of the inner wall of the main body 1 is fixedly connected with a fixed frame 18 , the outside of the fixed frame 18 is fixedly connected with a sliding rod 19 , and the sliding rod 19 is slidably connected with a second iron block 21 , the second The side wall of the iron block 21 is fixedly connected with a traction rope 22, the interior of the fixed frame 18 is provided with a guide wheel 23, the traction rope 22 is slidingly connected with the fixing frame 18, the traction rope 22 is slidingly connected with the guide wheel 23, and the traction rope 22 is far away from the second One end of the iron block 21 is fixedly connected with a puncture needle fixing frame 24, a side wall of the puncture needle fixing frame 24 is fixedly connected with a tension spring 25, the puncture needle fixing frame 24 is fixedly connected with the inner wall of the fixing frame 18 through the tension spring 25, and the puncture needle fixing frame 24 is fixedly connected with the inner wall of the fixing frame 18. The side wall is fixedly connected with a thorn 26, which can monitor the power connection system of the computer room and automatically cut off the power supply of the equipment when the lightning protection equipment fails to reduce the damage of the equipment. The lightning protection device is faulty and needs to be maintained to improve work efficiency and meet the purpose of use. The top of the main body 1 is provided with an instrument panel 4, and both sides of the bottom of the main body 1 are fixedly connected with a universal wheel 5. The number is four, the top of the main body 1 is provided with an alarm 6, the alarm 6 is electrically connected with the micro switch 17, the end of the sliding rod 19 away from the fixed frame 18 is fixedly connected with a stopper 20, and the side wall of the main body 1 is provided with The balloon fixing frame 27 and the lancet 26 correspond to the balloon fixing frame 27 .

When in use, in the grounding equipment of the computer room, the instrument panel performs remote monitoring of the lightning protection equipment, and the balloon is placed in the balloon fixing frame 27. At the same time, an electromagnetic coil 9 is arranged inside the main body 1, and the first terminal 2 and the second terminal 3 are connected to the computer room. The wires are connected in series. When the lightning protection equipment fails and the lightning protection cannot be performed, the ground wire of the computer room will generate current, the electromagnetic coil will be energized, and a magnetic force will be generated, which drives the first iron block 16 and the second iron block 21 to move, and the first iron block 16 drives the movement. The movement of the rod 15 drives the movement of the limit block 14, increases the elastic potential energy of the support spring 13, and lifts the restriction on the micro switch 17, then the equipment is powered off, reducing the damage to the equipment by lightning, and the alarm 6 is powered on to remind people to perform maintenance , The second iron block 21 moves, drives the traction rope 22 to move, drives the needle fixing frame 24 to move, pulls the tension spring 25, increases the elastic potential energy of the tension spring 25, drives the thorn, 26 moves, and the balloon inside the balloon fixing frame 27 is moved. Puncture, when the inspection people are conducting inspections, they see the punctured balloon, which is convenient to remind people that the lightning protection equipment of the device is faulty and needs to be maintained. When a fault occurs, the power supply of the equipment is automatically cut off to reduce the damage of the equipment, and at the same time, the puncture is punctured to improve the inspection personnel. If the lightning protection device fails, it needs to be maintained to improve the work efficiency and meet the purpose of use.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. without more restrictions. An element defined by the phrase "comprising an... does not preclude the presence of additional identical elements in a process, method, article or apparatus comprising said element".

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. An equipment room grounding system monitoring device, comprising a main body (1), characterized in that: a first terminal (2) and a second terminal (3) are fixedly connected to the side wall of the main body (1), and the A first connecting wire (7) and a second connecting wire (8) are fixedly connected inside the main body (1), the first connecting post (2) is fixedly connected with the first connecting wire (7), and the second connecting wire The column (3) is fixedly connected with the second connection line (8), the first connection line (7) is fixedly connected with the second connection line (8) with an electromagnetic coil (9), and the top of the inner wall of the main body (1) An iron core fixing frame (10) is fixedly connected, the bottom of the iron core fixing frame (10) is fixedly connected with an iron core (11), the electromagnetic coil (9) is wound and connected with the iron core (11), and the main body The bottom of the inner wall of (1) is fixedly connected to the limit frame (12), the inner wall of the limit frame (12) is fixedly connected with a support spring (13), and the limit frame (12) is fixedly connected by the support spring (13) A limit block (14), the top of the limit block (14) is fixedly connected with a motion rod (15), the motion rod (15) is slidably connected with the limit frame (12), and the motion rod (15) A first iron block (16) is fixedly connected to the outer end of the limit frame (12), a micro switch (17) is fixedly connected to the bottom of the inner wall of the limit frame (12), and the limit block (14) Corresponding to the micro switch (17), a fixing frame (18) is fixedly connected to the top of the inner wall of the main body (1), and a sliding rod (19) is fixedly connected to the outside of the fixing frame (18). (19) A second iron block (21) is slidably connected, a traction rope (22) is fixedly connected to the side wall of the second iron block (21), and a guide wheel (23) is arranged inside the fixing frame (18). ), the traction rope (22) is slidably connected with the fixing frame (18), the traction rope (22) is slidably connected with the guide wheel (23), and the traction rope (22) is far away from the second iron block (21). A puncture needle fixing frame (24) is fixedly connected to one end, a tension spring (25) is fixedly connected to the side wall of the puncture needle fixing frame (24), and the puncture needle fixing frame (24) is connected to the fixing frame through the tension spring (25). The inner wall of (18) is fixedly connected, and the side wall of the puncture needle fixing frame (24) is fixedly connected with the puncture needle (26). 2 . The equipment room grounding system monitoring device according to claim 1 , wherein a dashboard ( 4 ) is provided on the top of the main body ( 1 ). 3 . 3. The equipment room grounding system monitoring device according to claim 1, characterized in that: universal wheels (5) are fixedly connected to both sides of the bottom of the main body (1), and the universal wheels (5) The number is four. 4. The equipment room grounding system monitoring device according to claim 1, characterized in that: an alarm (6) is provided on the top of the main body (1), and the alarm (6) is connected to a micro switch (17). ) electrical connection. 5 . The equipment room grounding system monitoring device according to claim 1 , wherein a stopper ( 20 ) is fixedly connected to one end of the sliding rod ( 19 ) away from the fixing frame ( 18 ). 6 . 6. The equipment room grounding system monitoring device according to claim 1, characterized in that: a balloon fixing frame (27) is provided on the side wall of the main body (1), and the puncture needle (26) is connected to the balloon fixing frame (27). 27) Correspondingly.
