CN209956431U

CN209956431U - Foldable turnover box

Info

Publication number: CN209956431U
Application number: CN201920426830.9U
Authority: CN
Inventors: 房强
Original assignee: Zhejiang Zhapu Plastic Products Co Ltd
Current assignee: Zhejiang Zhapu Plastic Products Co Ltd
Priority date: 2019-03-30
Filing date: 2019-03-30
Publication date: 2020-01-17
Anticipated expiration: 2029-03-30

Abstract

The utility model discloses a folded cascade turnover case, including top frame and case frame, the case frame includes left board, right board, front bezel, back plate and bottom plate, characterized by: the lower surface of the top frame is provided with a connecting groove; the left plate, the right plate, the front plate and the rear plate are all provided with first creases extending horizontally, the left plate, the right plate, the front plate and the rear plate form a connecting wall and a box body side wall through the first creases, the connecting wall is connected with the connecting groove, and the box body side wall can be folded relative to the connecting wall along the first creases; the box body side walls of the left plate and the right plate are respectively provided with a second crease parallel to the first crease, the box body side walls of the left plate and the right plate are divided into an upper folded plate and a lower folded plate through the second creases, and the lower folded plate can be folded relative to the upper folded plate along the second creases; the left side and the right side of the bottom plate are respectively connected with the two lower folding plates, and the two lower folding plates can be folded relative to the bottom plate. The utility model discloses can fold vacant turnover case to transport and deposit of vacant turnover case.

Description

Foldable turnover box

Technical Field

The utility model relates to a turnover case, more specifically relate to a folded cascade turnover case.

Background

The turnover box is also called as a logistics box, is widely used in the industries of machinery, automobiles, household appliances, light industry, electronics and the like, can resist acid and alkali, resist oil stains, is nontoxic and tasteless, and can be used for containing food and the like.

Present cavity turnover case is formed by the concatenation of polylith cavity wall usually, because current mosaic structure is comparatively simple, consequently this type of cavity wall turnover case has not enoughly in the use: 1. the occupied space of the turnover box during the empty transportation is the same as that of the turnover box during the full transportation, which leads to higher cost of the turnover box during the empty transportation; 2. when the empty boxes are stacked in a workshop, the occupied space is the same as that of the full boxes, so that the space waste of the workshop is serious, and the improved space exists.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a folded cascade turnover case can be folded the turnover case of vacancy to transport and deposit of vacancy turnover case.

In order to achieve the above purpose, the utility model provides a following technical scheme:

a foldable turnover box comprises a top frame and a box frame, wherein the box frame comprises a left plate, a right plate, a front plate, a rear plate and a bottom plate,

the lower surface of the top frame is provided with a connecting groove;

the left plate, the right plate, the front plate and the rear plate are all provided with first creases extending horizontally, the left plate, the right plate, the front plate and the rear plate form a connecting wall and a box body side wall through the first creases, the connecting wall is connected with the connecting groove, and the box body side wall can be folded relative to the connecting wall along the first creases;

the box body side walls of the left plate and the right plate are respectively provided with a second crease parallel to the first crease, the box body side walls of the left plate and the right plate are divided into an upper folded plate and a lower folded plate through the second creases, and the lower folded plate can be folded relative to the upper folded plate along the second creases;

the left side and the right side of the bottom plate are respectively connected with the two lower folding plates, and the two lower folding plates can be folded relative to the bottom plate.

Preferably, the box frame further comprises a positioning frame, the positioning frame is sleeved on the box frame, and a positioning assembly is arranged between the positioning frame and the top frame.

Preferably, the positioning component is a magic tape.

Preferably, the left plate, the right plate and the bottom plate are integrally formed.

Preferably, the front plate and the rear plate are both provided with lifting ports.

Preferably, each top corner of the top frame is provided with a limiting wall, and a superposed groove is formed between the limiting walls.

The utility model has the advantages that: when the utility model discloses be in when vacant state, can with the utility model discloses fold to reduce the occupation to the space, thereby be convenient for the transportation and the storage of vacant turnover case.

Drawings

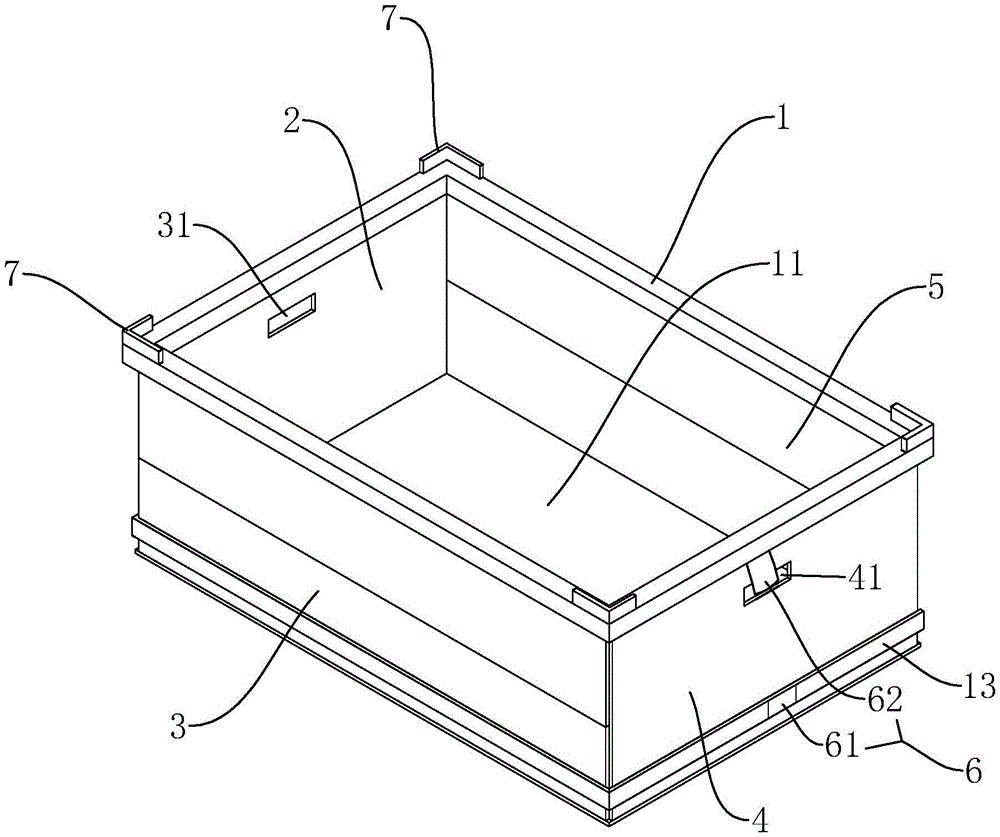

Fig. 1 is a schematic view of a foldable turnover box provided in this embodiment in an unfolded state;

fig. 2 is a schematic view of a folding process of the foldable turnover box provided in this embodiment;

fig. 3 is a schematic view of the foldable turnover box provided in the embodiment in a folded state;

FIG. 4 is a schematic view of the left plate, the right plate and the bottom plate provided in the present embodiment;

fig. 5 is a schematic view of the front plate provided in this embodiment.

Detailed Description

The foldable turnover box of the present invention is further described with reference to fig. 1 to 5.

The utility model provides a folded cascade turnover case, includes top frame 1 and case frame, the case frame includes left board 3, right board 5, front bezel 4, back plate 2 and bottom plate 11, and left board 3, right board 5, front bezel 4, back plate 2 and bottom plate 11 are the cavity board.

The lower surface of the top frame 1 is provided with a connecting groove;

the left plate 3, the right plate 5, the front plate 4 and the rear plate 2 are all provided with first creases 12 extending horizontally, the left plate 3, the right plate 5, the front plate 4 and the rear plate 2 form a connecting wall 8 and each box side wall through the first creases 12, each box side wall is the left wall, the right wall, the front wall and the rear wall of the turnover box, the connecting wall 8 is clamped in the connecting groove and fixed through screws or bolts, and the box side walls can be turned over relative to the connecting wall 8 along the first creases 8;

the box side walls 31 of the left plate 3 and the right plate 5 are respectively provided with a second crease 9 parallel to the first crease 12, and the box side walls 31 of the left plate 3 and the right plate 5 are divided into an upper folded plate 311 and a lower folded plate 312 by the second crease 9, and the lower folded plate can be folded relative to the upper folded plate along the second crease 9;

the left and right sides of the bottom plate 11 are respectively connected with the two lower folding plates 312, and the two lower folding plates can be folded relative to the bottom plate 11.

During the use, upwards turn over the box curb plate of front bezel 4 and back plate 2, upwards turn over the folded plate and the lower folded plate of turning over the folded plate of going up of left side board 3 and right side board 5, turn over the back upwards at the folded plate down, bottom plate 11 also can be along with upward movement to realize the holistic folding of turnover case, because piling up between the turnover case after folding, consequently the turnover case after folding can not scatter, realize stable depositing or transporting.

The embodiment is further configured as follows: the turnover box is characterized by further comprising a positioning frame 13, wherein the positioning frame 13 is sleeved on the box frame through friction force between the positioning frame 13 and the box frame, a positioning assembly 6 is arranged between the positioning frame and the top frame, the left plate 3, the right plate 5, the front plate 4, the rear plate 2, the bottom plate 11 and the positioning frame are arranged in size, so that after the turnover box is folded, the left plate 3, the right plate 5, the front plate 4, the rear plate 2 and the bottom plate are all located in the positioning frame, the side wall of each plate is in contact with the inner wall of the positioning frame to generate friction force, so that each plate can be stably folded in the positioning frame and cannot be naturally scattered, and finally the positioning frame is in up-and-down limit connection with the top frame 1 through the positioning assembly 6, so that the folded turnover box can be stably in a folding state; on the other hand, when placing article in the case frame, this locating frame can play the spacing effect of parcel with left board, right board, front bezel and back plate, avoids front bezel or back plate to turn over the outside of case frame, leads to the problem that article revealed from the case frame.

The embodiment is further configured as follows: positioning assembly 6 is the magic subsides, divide into the public subsides 61 of magic 62 and magic promptly, the public 62 of pasting of magic passes through in bolt or the fix with screw spread groove, and the magic is female to paste 61 and is fixed in on the locating frame, consequently through the public mutual laminating of pasting 62 of magic and the female 61 of subsides of magic, realizes the fixed of locating frame and top frame 1, has improved the stability under the turnover case coincide state.

The embodiment is further configured as follows: left side board 3, right side board 5 and bottom plate 11 integrated into one piece set up, have third crease 10 between left side board 3 and right side board 5 and the bottom plate 11 promptly, through this third crease 10, can realize two lower folded plates for the rotation of bottom plate 11. An organic whole shaping structure has simplified the utility model discloses a structure has promoted again the utility model discloses a structural strength.

The embodiment is further configured as follows: the front plate 4 and the rear plate 2 are both provided with

lifting ports

41 and 31. Through this carry the mouth, can conveniently drive the utility model discloses remove.

The embodiment is further configured as follows: all be provided with spacing wall 7 on four apex angles of top frame 1, form the superimposed groove between four spacing walls 7, when stacking between the turnover case promptly, the bottom of locating frame or turnover case can be located this superimposed groove to improve the stability of coincide between the turnover case.

It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. The utility model provides a folded cascade turnover case, includes top frame and case frame, the case frame includes left board, right board, front bezel, back plate and bottom plate, characterized by:

the lower surface of the top frame is provided with a connecting groove;

2. The collapsible container of claim 1, wherein: the box frame is characterized by further comprising a positioning frame, the positioning frame is sleeved on the box frame, and a positioning assembly is arranged between the positioning frame and the top frame.

3. The collapsible container of claim 2, wherein: the positioning component is a magic tape.

4. The collapsible container of claim 1, wherein: the left plate, the right plate and the bottom plate are integrally formed.

5. The collapsible container of claim 1, wherein: the front plate and the rear plate are both provided with lifting ports.

6. The collapsible container of claim 1, wherein: and each vertex angle of the top frame is provided with a limiting wall, and a superposed groove is formed between the limiting walls.
